Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

36 part groups · 16 illustrations

Illustrations

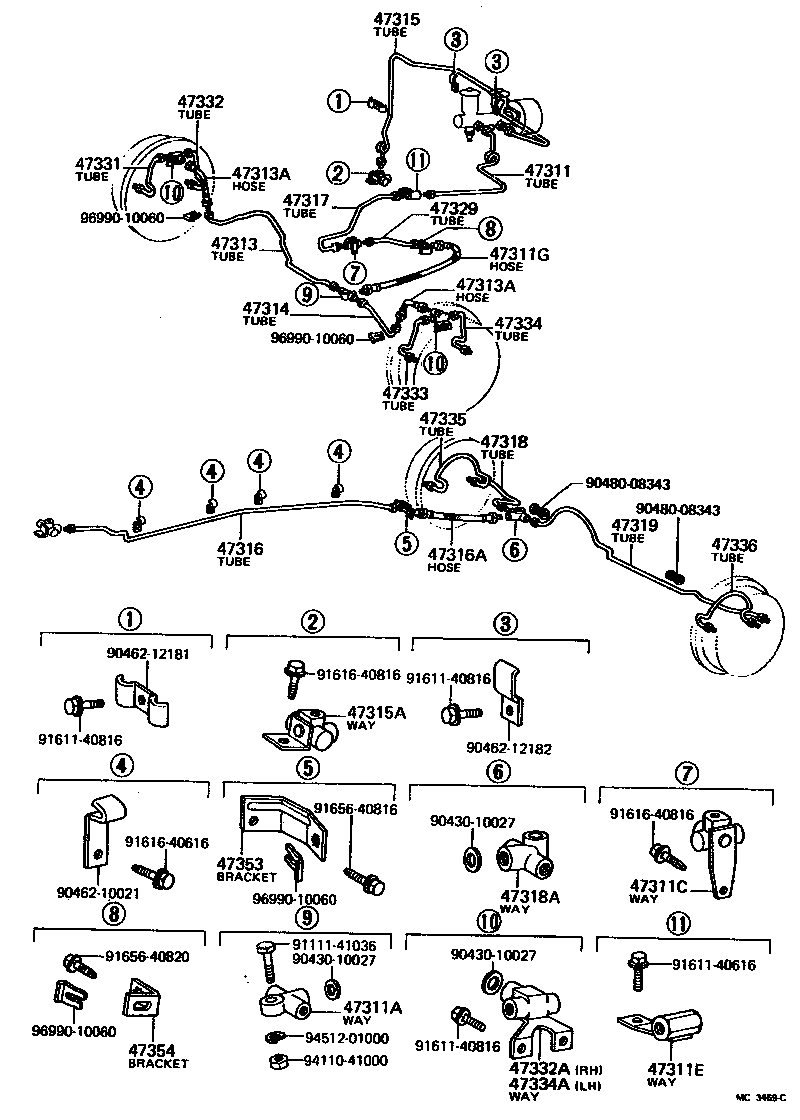

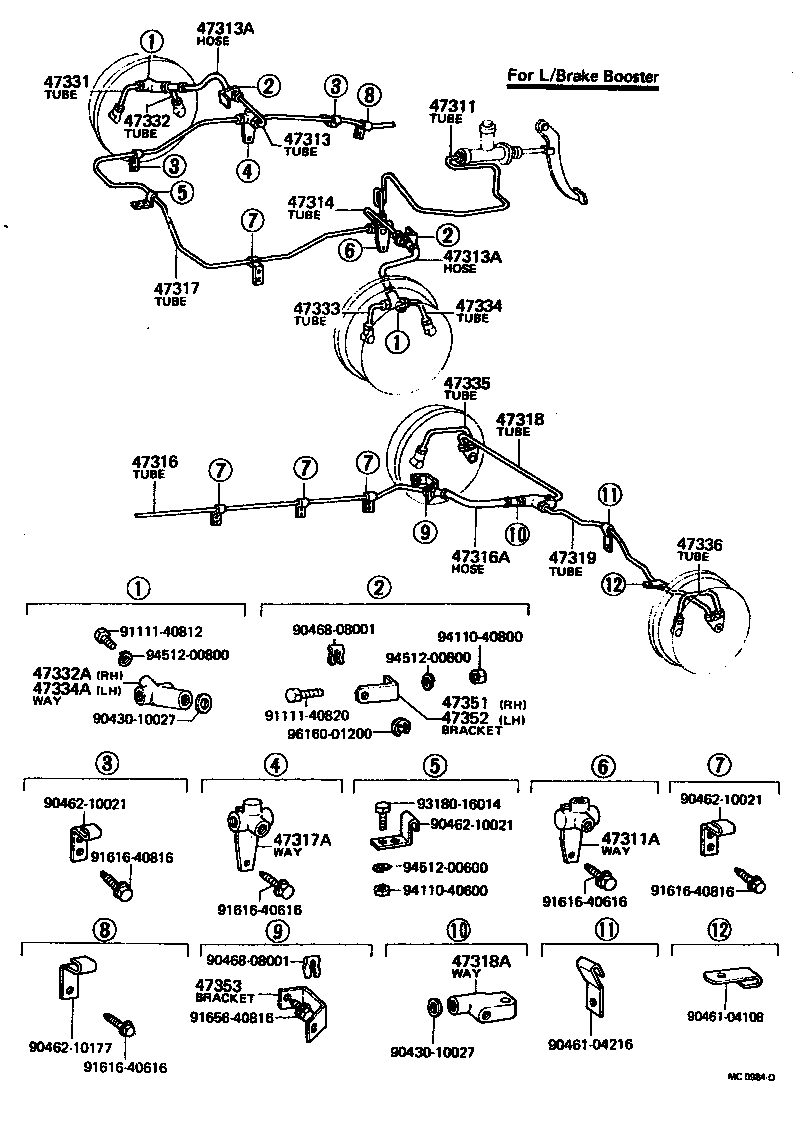

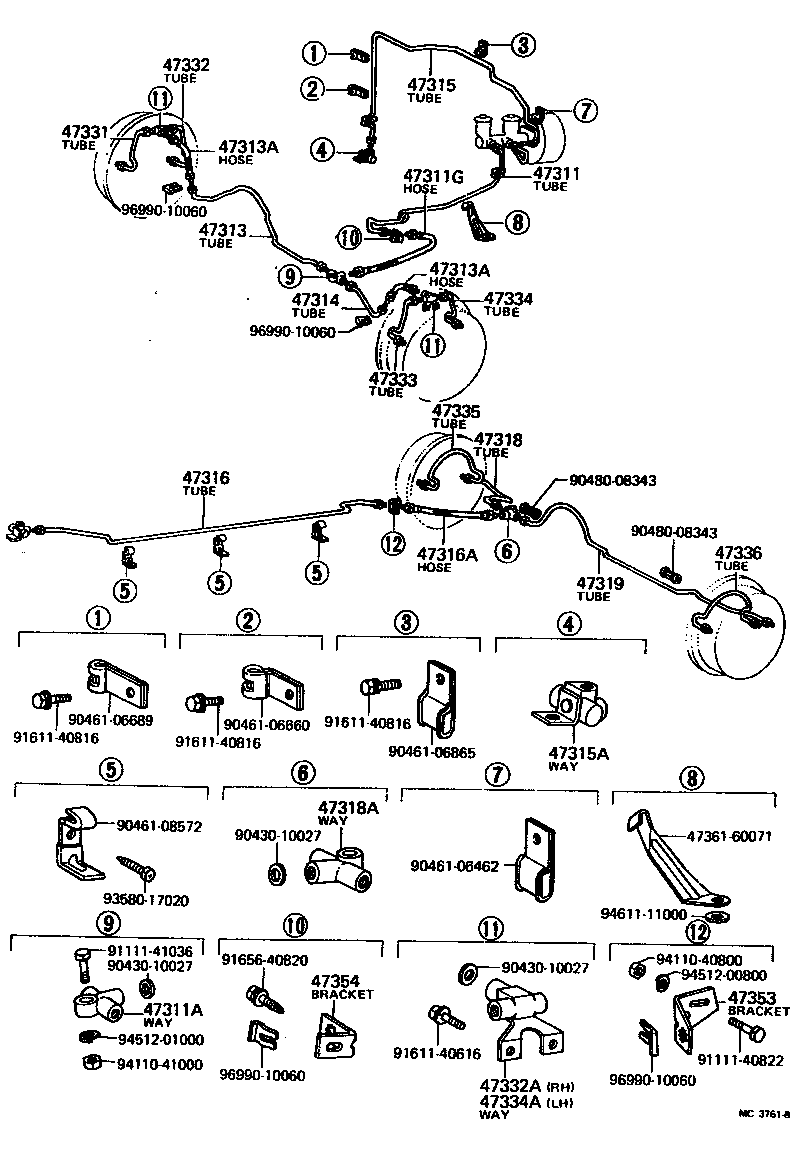

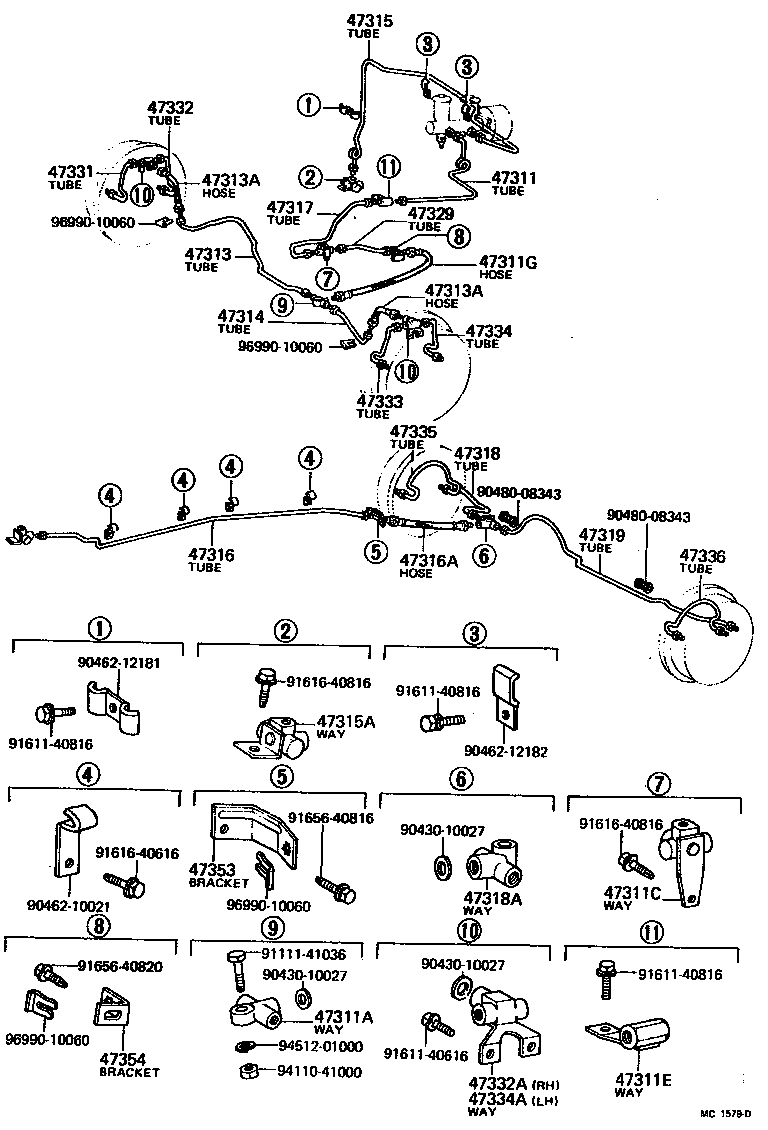

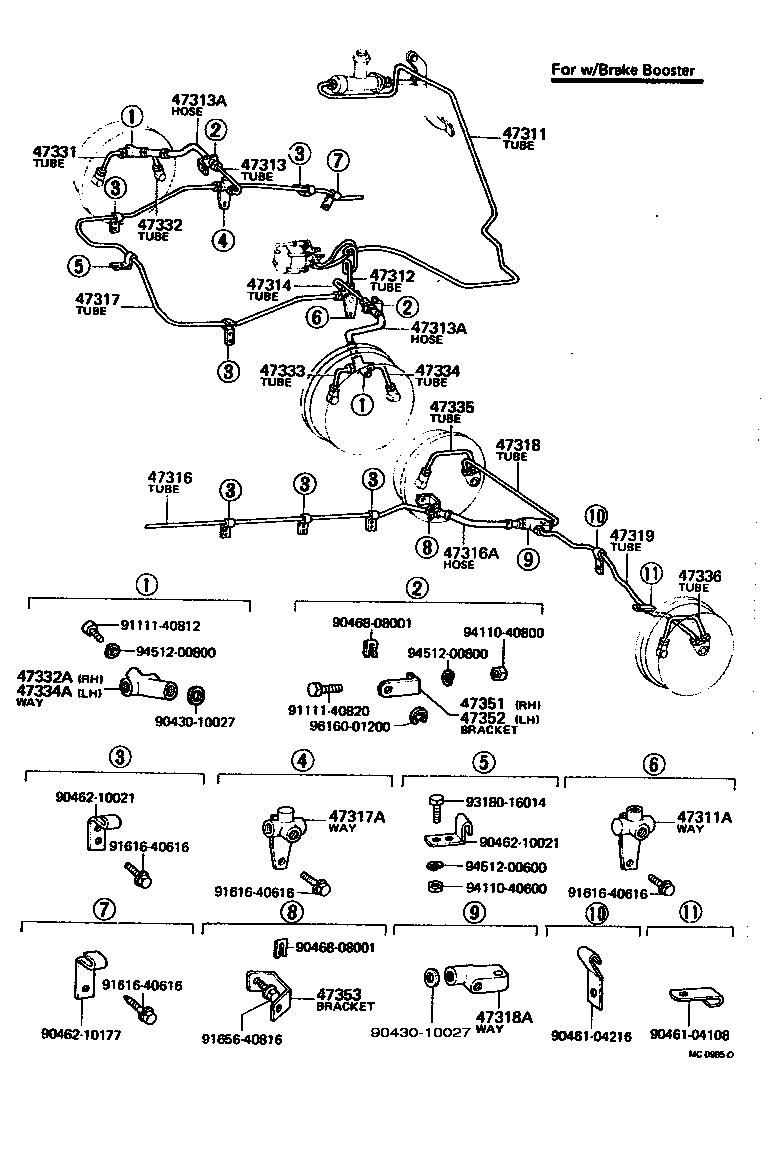

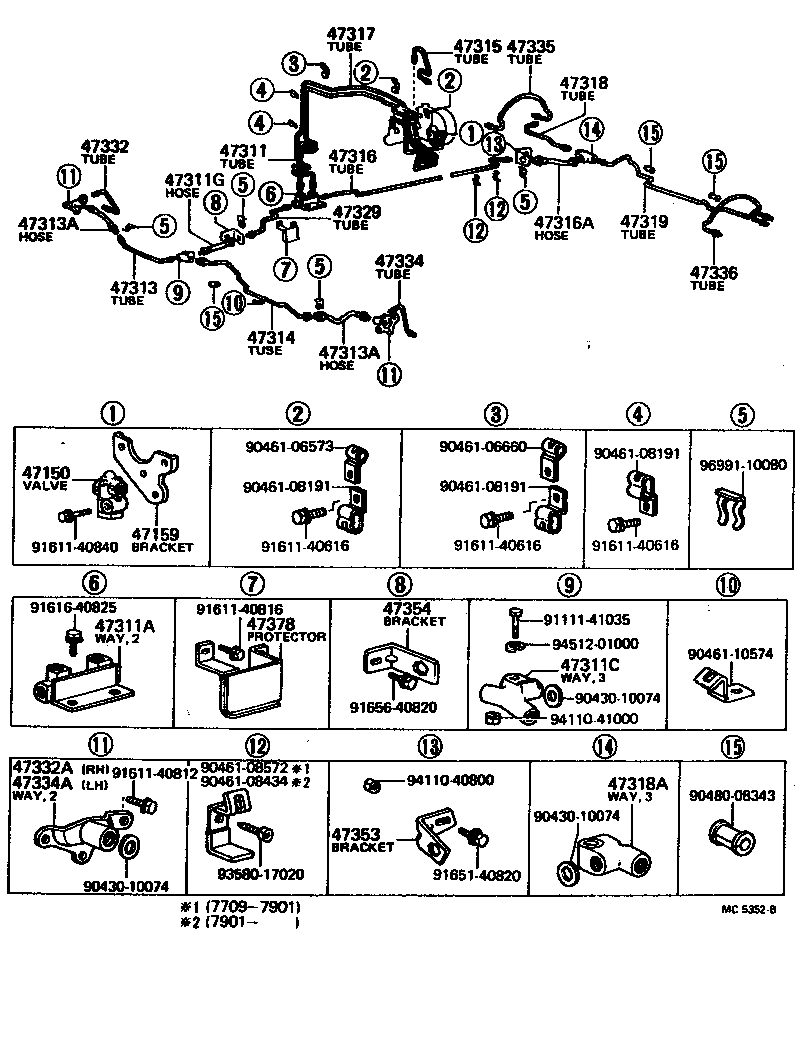

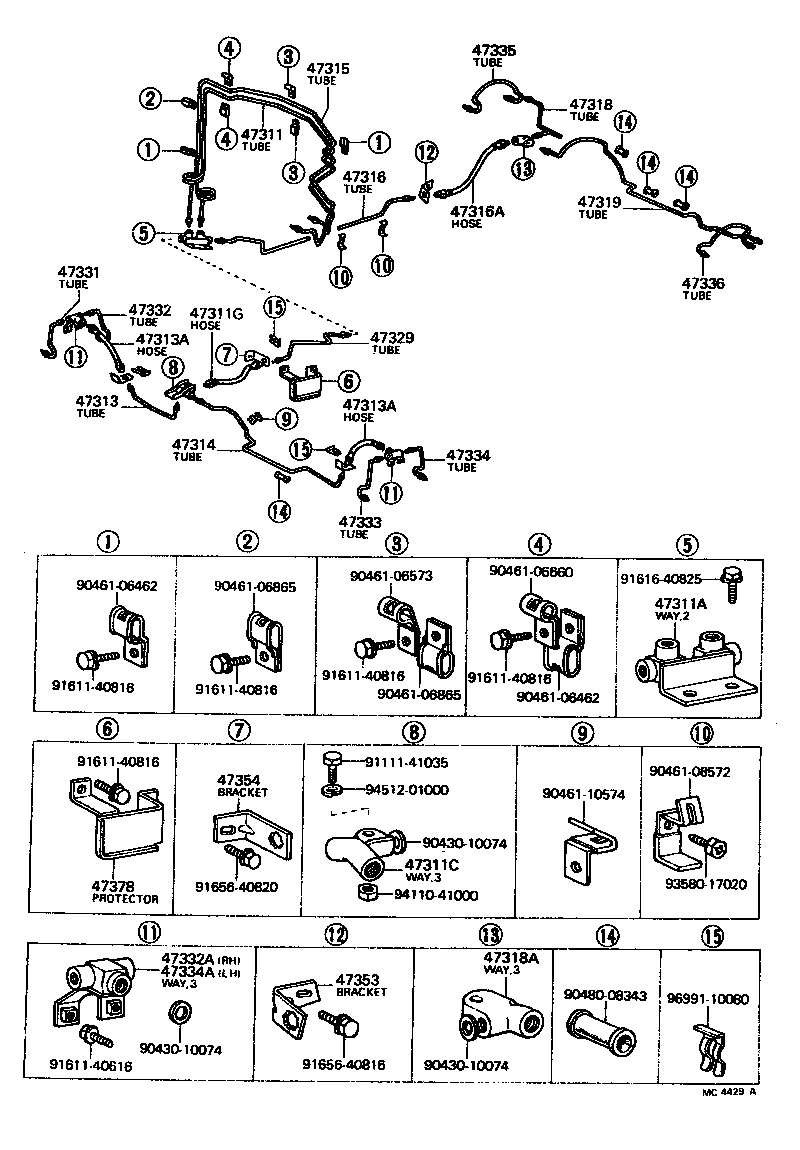

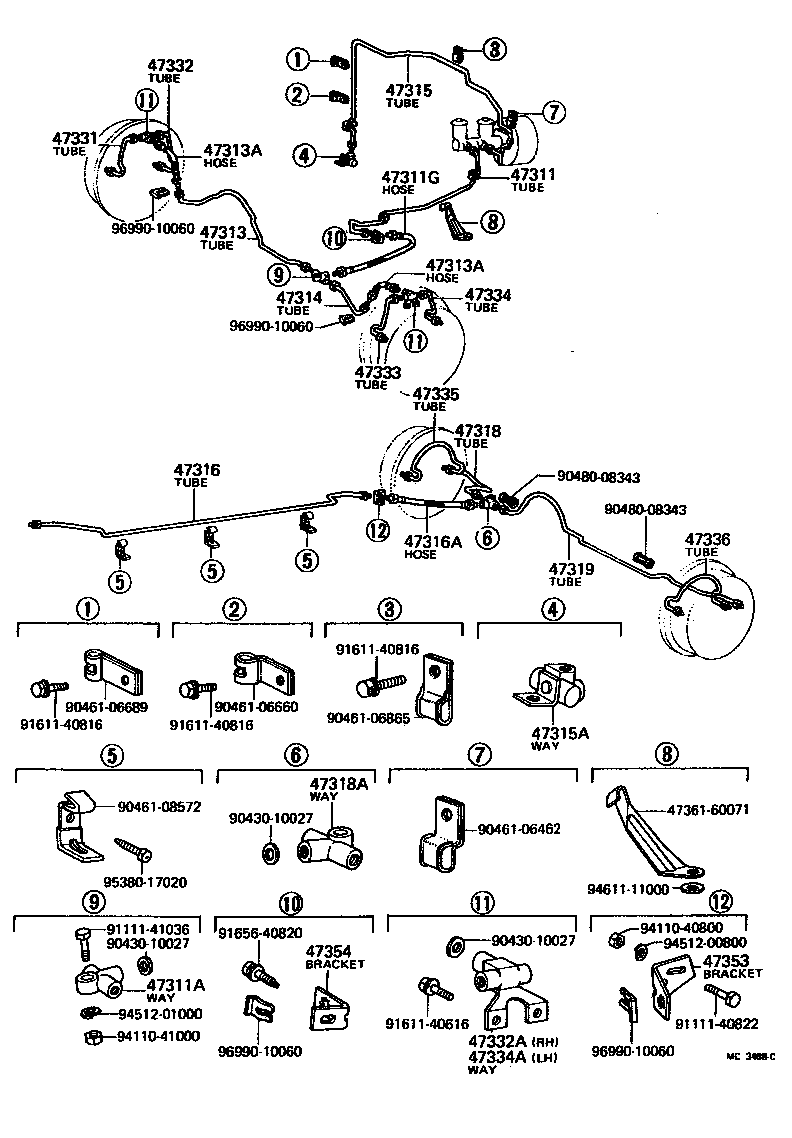

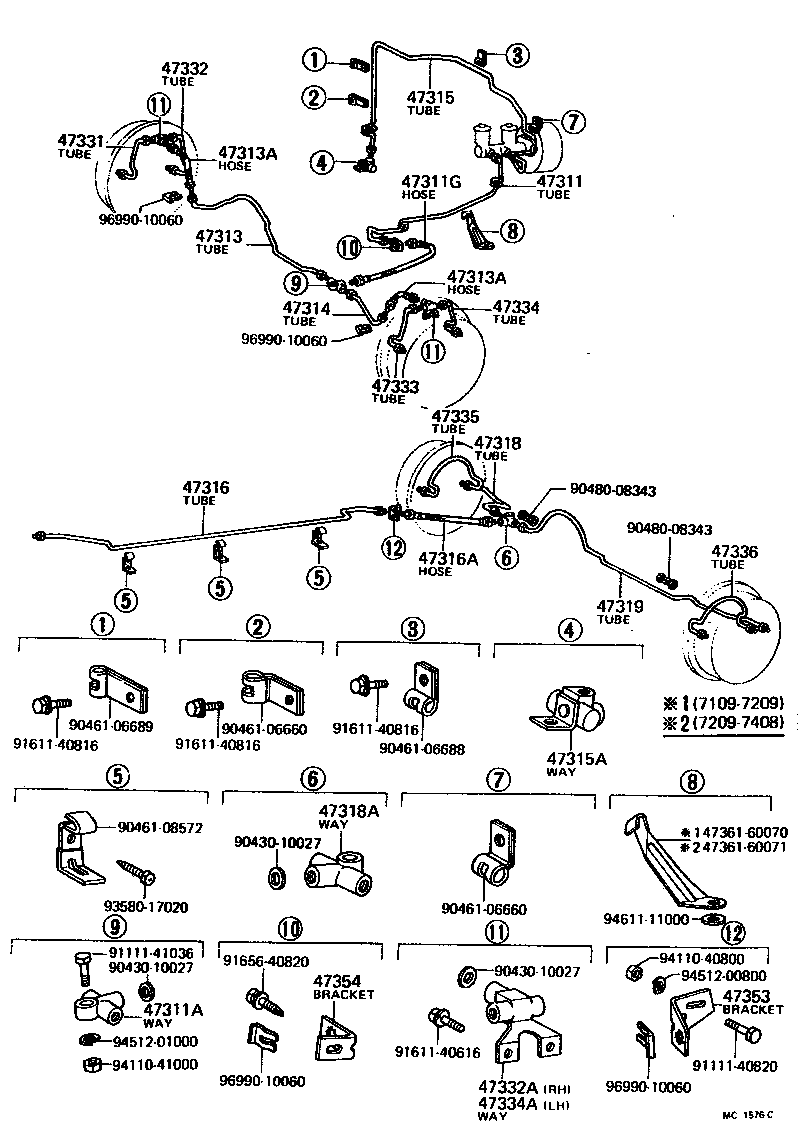

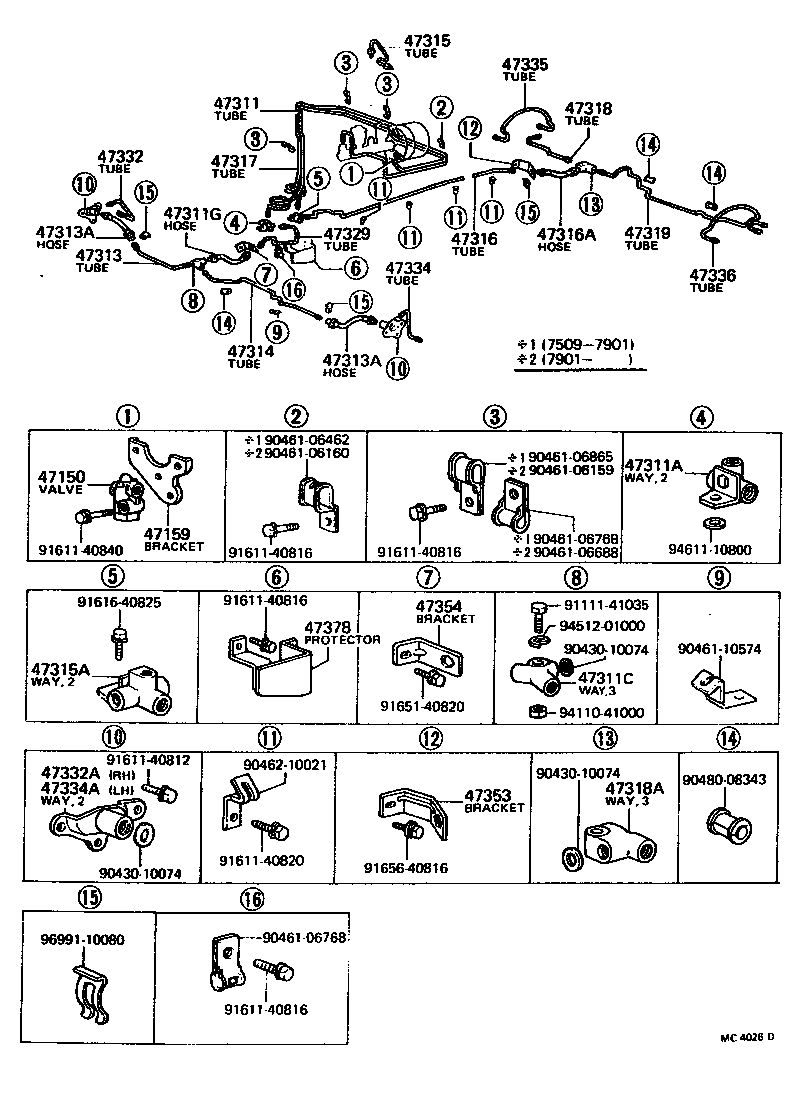

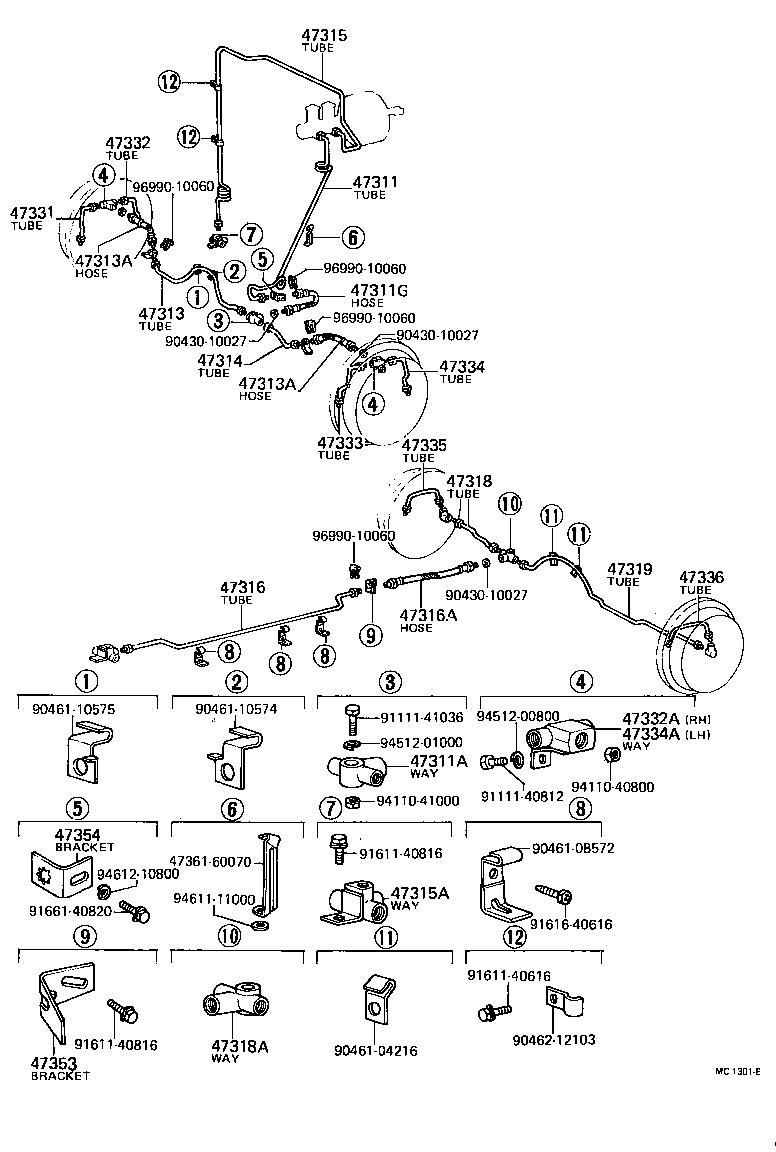

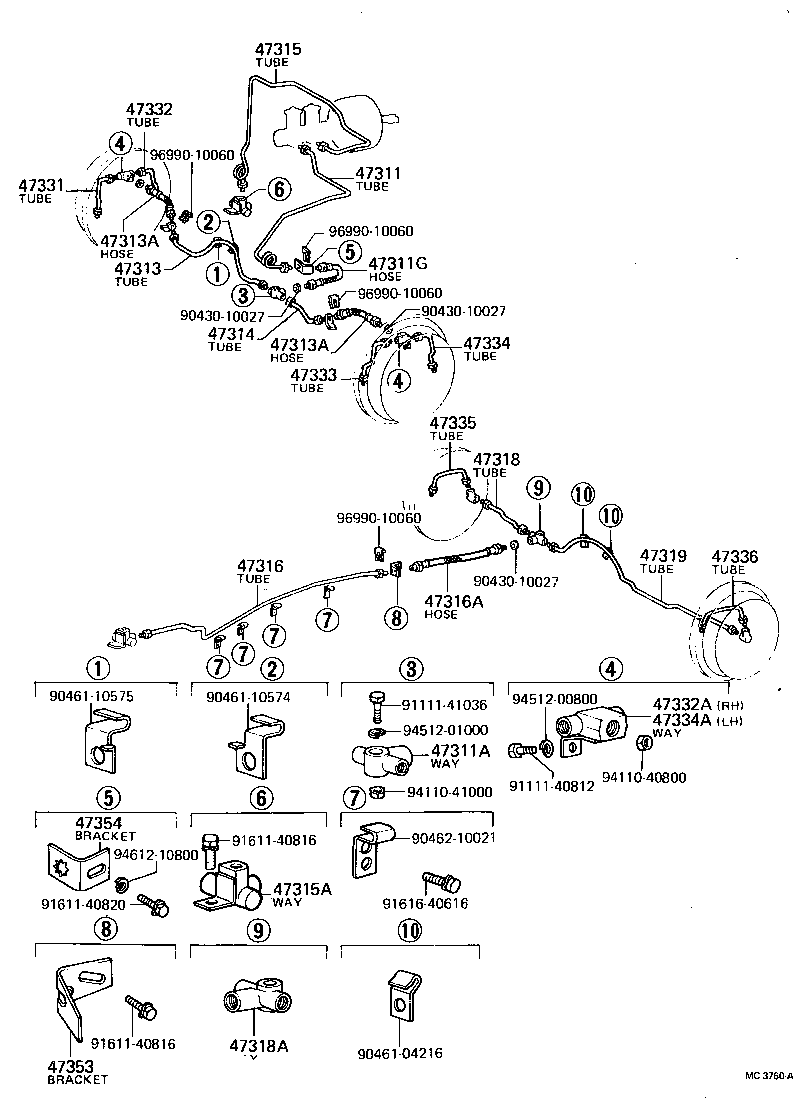

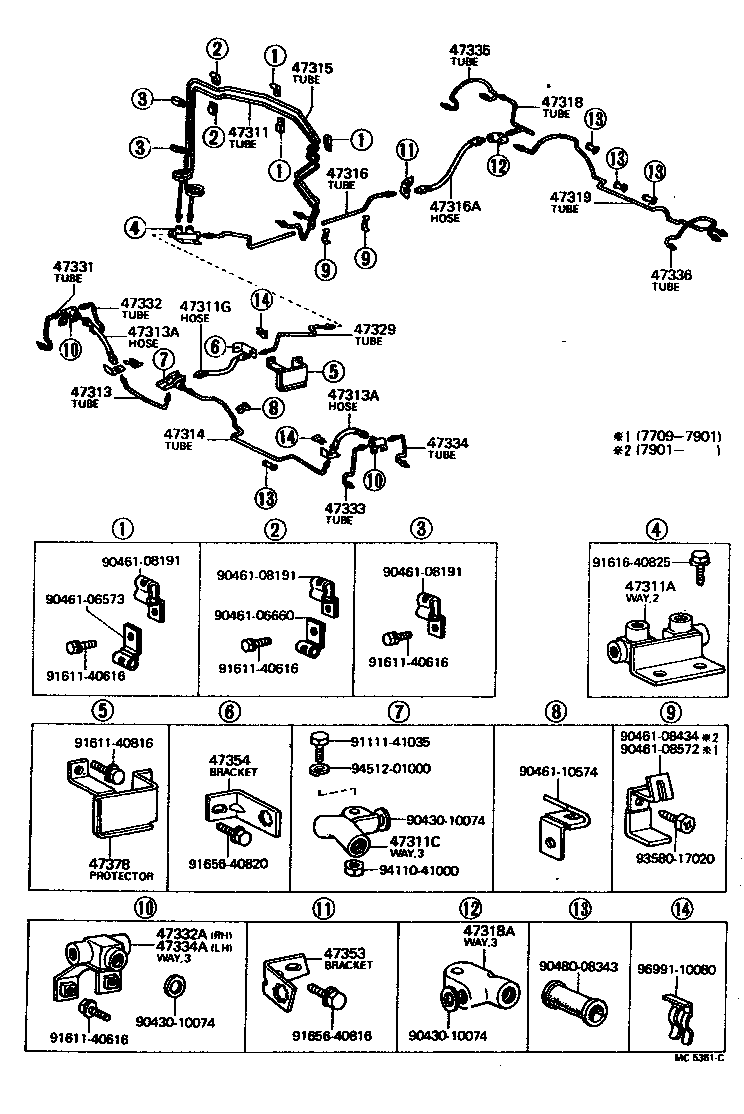

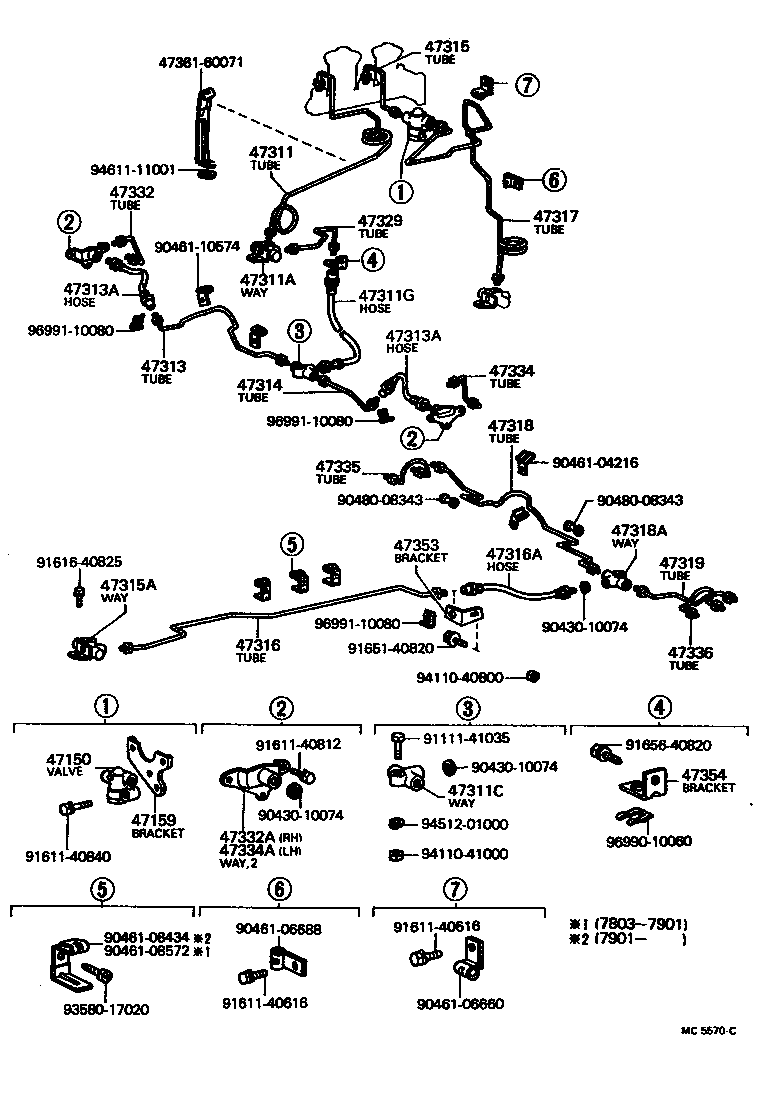

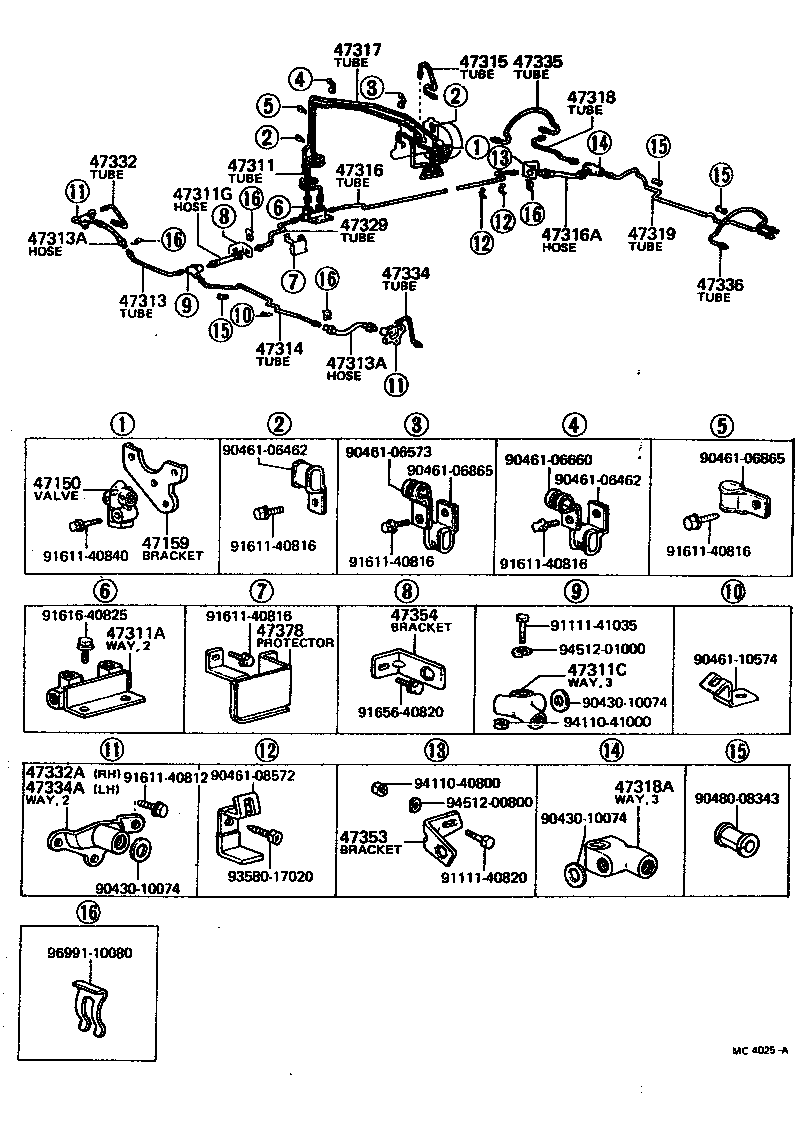

Figure MC1444C MC1444C 1969-03 → 1970-07 Figure MC1301E MC1301E 1970-07 → 1971-09 Figure MC1576C MC1576C 1971-09 → 1974-08 Figure MC3761B MC3761B 1974-08 → 1975-01 Figure MC3468C MC3468C 1975-01 → 1975-09 Figure MC4025A MC4025A 1975-09 → 1977-09 Figure MC5352B MC5352B 1977-09 → 1980-07 Figure MC4429A MC4429A 1976-06 → 1977-09 Figure MC5361C MC5361C 1977-09 → — Figure MC0984D MC0984D 1969-03 → 1970-07 Figure MC0985D MC0985D 1969-03 → 1970-07 Figure MC3760A MC3760A 1970-07 → 1971-09 Figure MC1579D MC1579D 1971-09 → 1975-01 Figure MC3469C MC3469C 1975-01 → 1975-09 Figure MC4026D MC4026D 1975-09 → 1980-07 Figure MC5570C MC5570C 1978-03 → 1980-07

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47159 Bracket, Proportioning Valve
47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311C Union(FOR FRONT BRAKE TUBE)
47311E Union, NO.1(FOR FRONT BRAKE TUBE)
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313E Spring, Tension(FOR FRONT FLEXIBLE HOSE)
47313G Bush(FOR FLEXIBLE HOSE TENSION SPRING)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315A Way OR Union(FOR REAR BRAKE TUBE)
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47317A Way(FOR BRAKE TUBE)
47318 Tube, Front Brake, NO.8
47318A Way(FOR REAR RH BRAKE TUBE)
47319 Tube, Front Brake, NO.9
47329 Tube, Rear Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47332A Way(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47334A Way(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
47335 Tube, Rear Brake, NO.14
47336 Tube, Rear Brake, NO.15
47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47354 Bracket, Front Flexible Hose
47378 Protector, Brake Tube
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
