Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

24 part groups · 2 illustrations

Illustrations

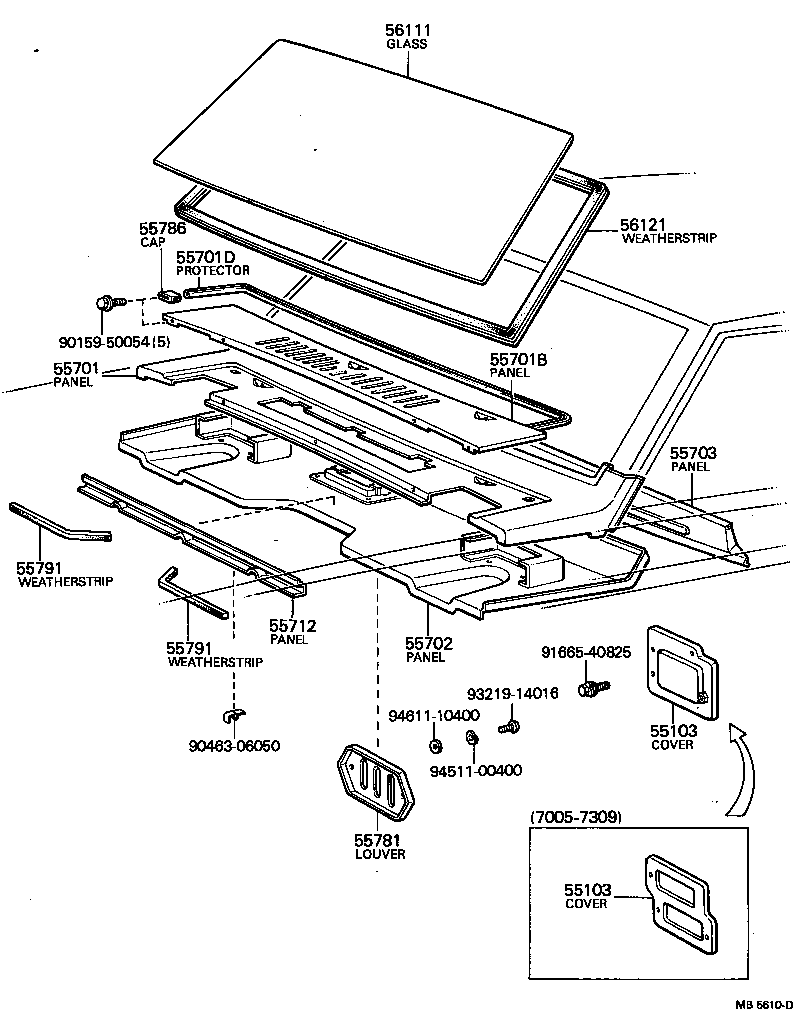

Figure MB4918J MB4918J 1969-03 → 1980-07 Figure MB5610D MB5610D 1969-03 → 1980-07

Part groups

PNCDescription
55103 Cover Sub-assy, Hole
55257 Cover, Dash Panel Opening
55701 Panel Sub-assy, Cowl
55701B Panel Sub-assy, Cowl Upper Louver
55701D Protector, Cowl Upper Louver
55702 Panel Sub-assy,Cowl Top, Inside
55703 Panel Sub-assy, Cowl Top, Rear
55712 Panel, Cowl Top Outside, Front
55781 Louver, Cowl Ventilator
55786 Cap, Cowl Ventilator Louver
55791 Weatherstrip, Hood TO Cowl Top
55955 Guide, Defroster Nozzle
56111 Glass, Windshield
56121 Weatherstrip, Windshield
56122 Weatherstrip, Windshield, NO.2
56211 Spacer, Windshield
56211A Plate, Windshield Set
56214 Weatherstrip, Front Windshield
56301 Frame Sub-assy, Windshield
56306 Hinge Sub-assy, Windshield Support, RH
56307 Hinge Sub-assy, Windshield Support, LH
56313 Rail, Windshield Frame, Upper
56457 Bracket, Windshield Catch, Upper
56469 Cover, Windshield Catch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
