Toyota Land Cruiser
1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States
Discontinued model
Data version 1985-05

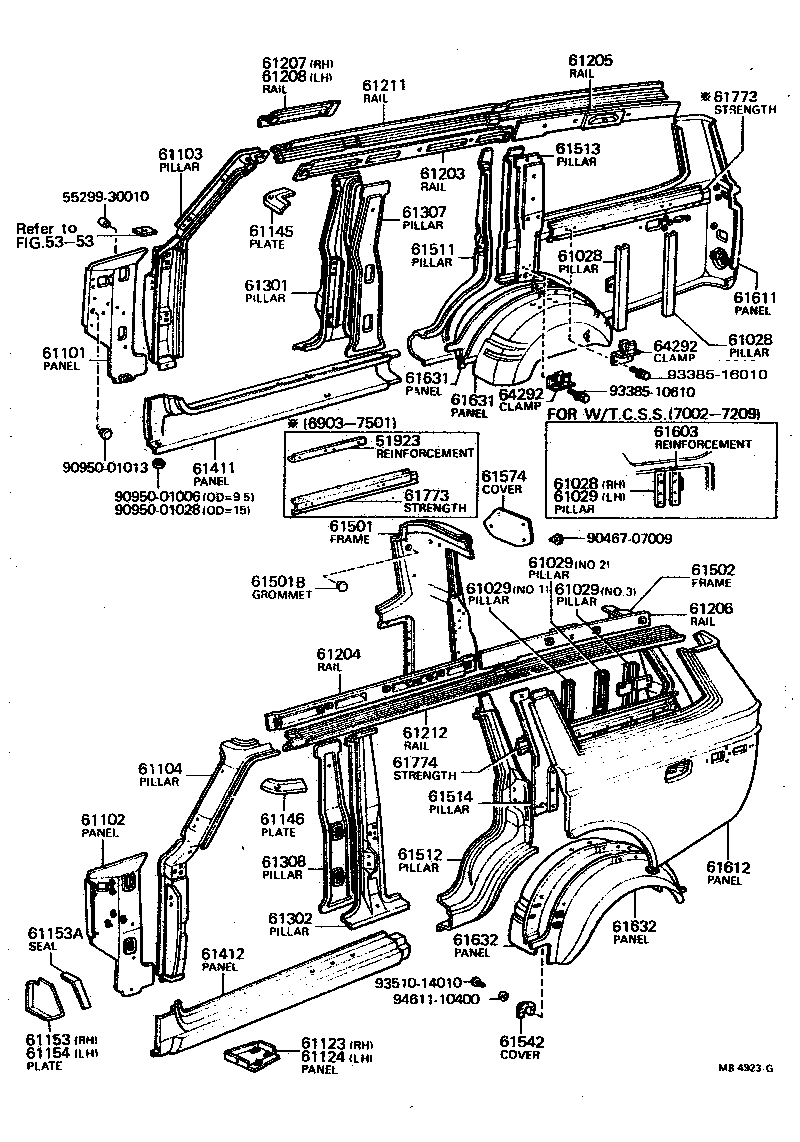

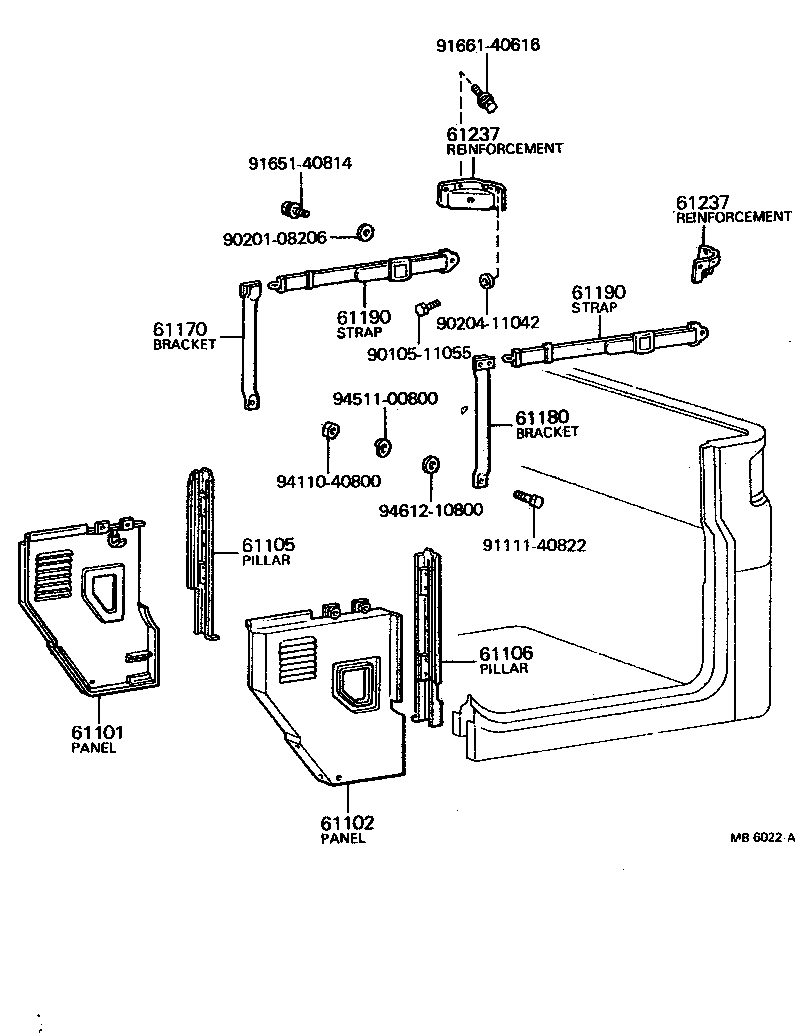

Side Member
68 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 51923 | Reinforcement,Spare Wheel |
| 53206 | Cover Sub-assy, Cowl Side Air Guide |
| 55191 | Bolt, Safety Strap Ring |
| 61009 | Flange Sub-assy,Rear Side Service Hole Cover Set |
| 61028 | Pillar Sub-assy, Rear Inner, RH |
| 61029 | Pillar Sub-assy, Rear Inner, LH |
| 61101 | Panel Sub-assy, Cowl Side, RH |
| 61102 | Panel Sub-assy, Cowl Side, LH |
| 61103 | Pillar Sub-assy, Front Body, RH |
| 61104 | Pillar Sub-assy, Front Body, LH |
| 61105 | Pillar Sub-assy, Front Body Lower Outer, RH |
| 61106 | Pillar Sub-assy, Front Body Lower Outer, LH |
| 61123 | Panel, Cowl Side Lower, RH |
| 61124 | Panel, Cowl Side Lower, LH |
| 61145 | Plate, Front Window Upper Corner, RH |
| 61146 | Plate, Front Window Upper Corner, LH |
| 61153 | Plate, Air Guide, RH |
| 61153A | Seal, Plate Air Guide |
| 61154 | Plate, Air Guide, LH |
| 61170 | Bracket Assy, Safety Strap, RH |
| 61180 | Bracket Assy, Safety Strap, LH |
| 61190 | Strap Assy, Safety |
| 61191 | Bolt, Safety Strap Ring |
| 61203 | Rail Sub-assy, Roof Side, Inner RH |
| 61204 | Rail Sub-assy, Roof Side, Inner LH |
| 61205 | Rail Sub-assy, Roof Side, Inner Rear RH |
| 61206 | Rail Sub-assy, Roof Side, Inner Rear LH |
| 61207 | Rail Sub-assy, Roof Side, Inner Center RH |
| 61208 | Rail Sub-assy, Roof Side, Inner Center LH |
| 61211 | Rail, Roof Side, Outer RH |
| 61212 | Rail, Roof Side, Outer LH |
| 61237 | Reinforcement, Safety Band Anchorage |
| 61301 | Pillar Sub-assy, Center Body, RH |
| 61302 | Pillar Sub-assy, Center Body, LH |
| 61307 | Pillar Sub-assy, Center Body, Inner RH |
| 61308 | Pillar Sub-assy, Center Body, Inner LH |
| 61411 | Panel, Rocker, Outer RH |
| 61412 | Panel, Rocker, Outer LH |
| 61501 | Frame Sub-assy, Back Side, RH |
| 61501B | Grommet, Back Side Panel |
| 61502 | Frame Sub-assy, Back Side, LH |
| 61510 | Panel Assy, Rear Upper Side, RH |
| 61510A | Grommet, Safety Belt Anchorage Nut |
| 61511 | Pillar, Quarter Lock, RH |
| 61512 | Pillar, Quarter Lock, LH |
| 61513 | Pillar, Quarter Lock Inner, RH |
| 61514 | Pillar, Quarter Lock, Inner LH |
| 61520 | Panel Assy, Rear Upper Side,LH |
| 61539 | Packing, Rear Upper Side Panel Set |
| 61542 | Cover, Quarter Lock Pillar Harness |
| 61574 | Cover, Rear Mounting |
| 61603 | Reinforcement Sub-assy, Expansion Tank |
| 61610 | Panel Assy, Rear Body Side, RH |
| 61611 | Panel, Quarter, RH |
| 61612 | Panel, Quarter, LH |
| 61620 | Panel Assy, Rear Body Side, LH |
| 61631 | Panel, Quarter Wheel House, RH |
| 61632 | Panel, Quarter Wheel House, LH |
| 61683 | Packing, Rear Body Rear Side Service Hole Cover |
| 61691 | Plate, Rear Fender Under Guard |
| 61698B | Cover, Rear Body Side Service Hole |
| 61773 | Strength, Quarter Panel Horizontal, Upper RH |
| 61774 | Strength, Quarter Panel Horizontal, Upper LH |
| 62759 | Weatherstrip, Upper Side Set Flange |
| 64292 | Clamp, Jack Handle |
| 64931 | Bracket, Band, NO.1 |
| 64932 | Bracket, Band, NO.2 |
| 65839 | Spacer, Front Side Panel Pillar |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
