Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

30 part groups · 2 illustrations

Illustrations

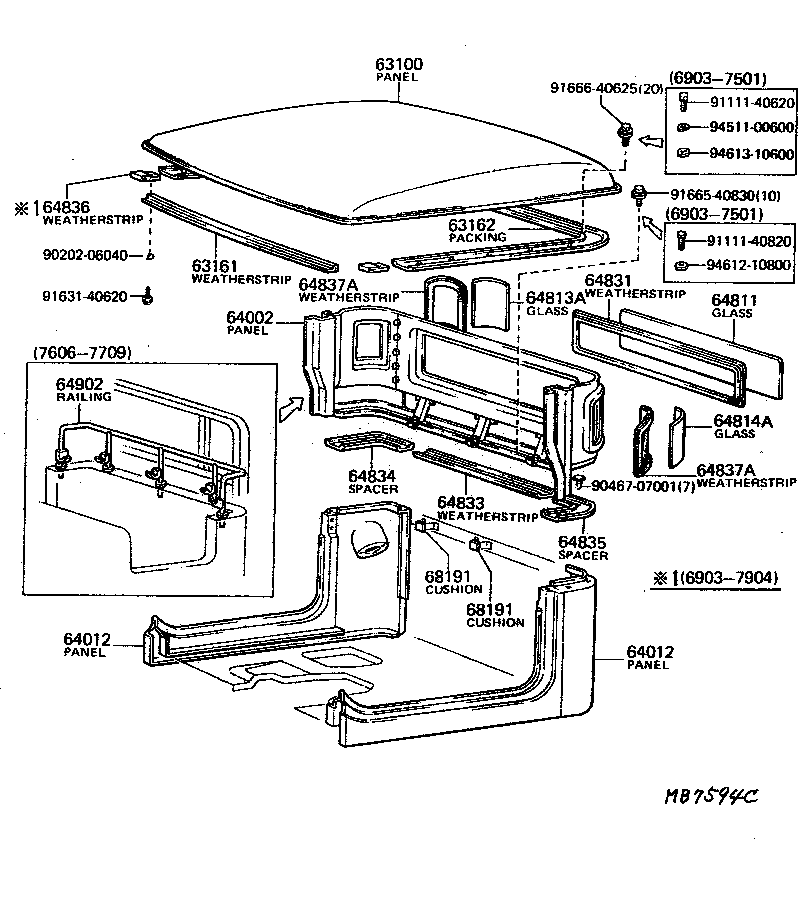

Figure MBA001D MBA001D 1969-03 → 1980-07 Figure MB7594C MB7594C 1976-06 → 1980-07

Part groups

PNCDescription
63100 Panel Assy, Roof
63102 Reinforcement Sub-assy, Roof Panel, Front
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
63105C Moulding Sub-assy, Roof Drip
63114 Reinforcement, Roof Panel, Rear
63132 Panel, Windshield Header, Inner
63151 Shim, Roof Reinforcement
63161 Weatherstrip, Roof
63162 Packing, Roof Drip Moulding
63163 Spacer, Roof Drip Moulding Strength
63163A Clip, Spring(FOR ROOF DRIP MOULDING STRENGTH SPACER SET)
63164 Gusset, Roof Drip Moulding, RH
63165 Gusset, Roof Drip Moulding, LH
64002 Panel Sub-assy, Cab Rear, Upper
64012 Panel Sub-assy, Cab Lower Corner
64811 Glass, Back Window
64813A Glass, Back Window Corner, RH
64814A Glass, Back Window Corner, LH
64831 Weatherstrip, Back Window Glass
64833 Weatherstrip, Back Window Channel
64834 Spacer, Cab Rear Panel, RH
64835 Spacer, Cab Rear Panel, LH
64836 Weatherstrip, Roof, Front
64837A Weatherstrip, Back Window Corner
64901 Frame Sub-assy, Back
64902 Railing Sub-assy, Cab, Rear
64905 Frame Sub-assy, Back Upper
64905B Rail Sub-assy, Rear Upper Pillar
68191 Cushion, Driver Seatback
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
