Toyota Land Cruiser
1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States
Discontinued model
Data version 1985-05

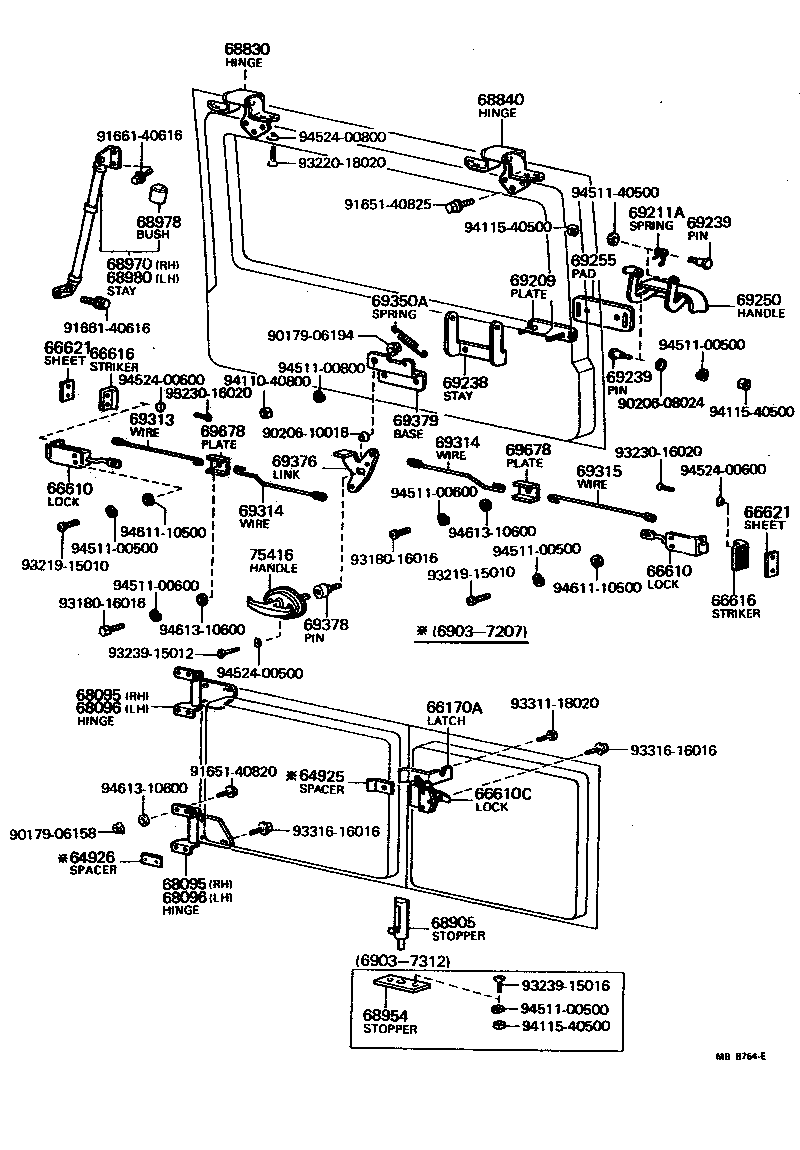

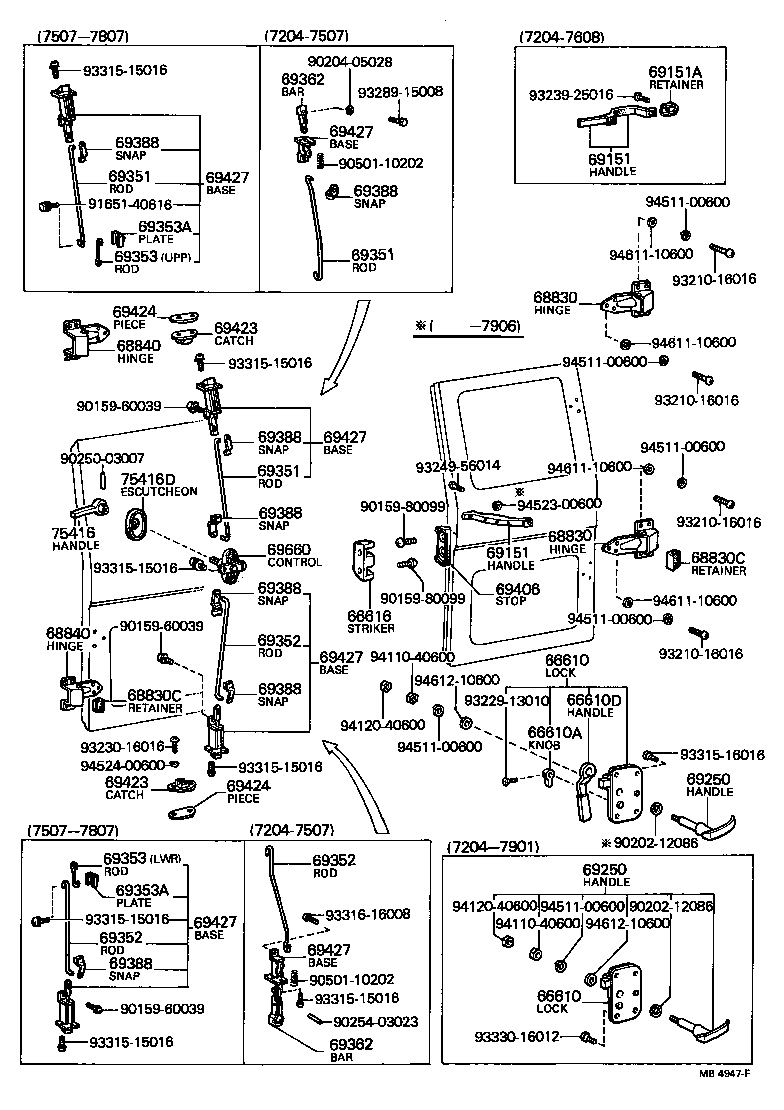

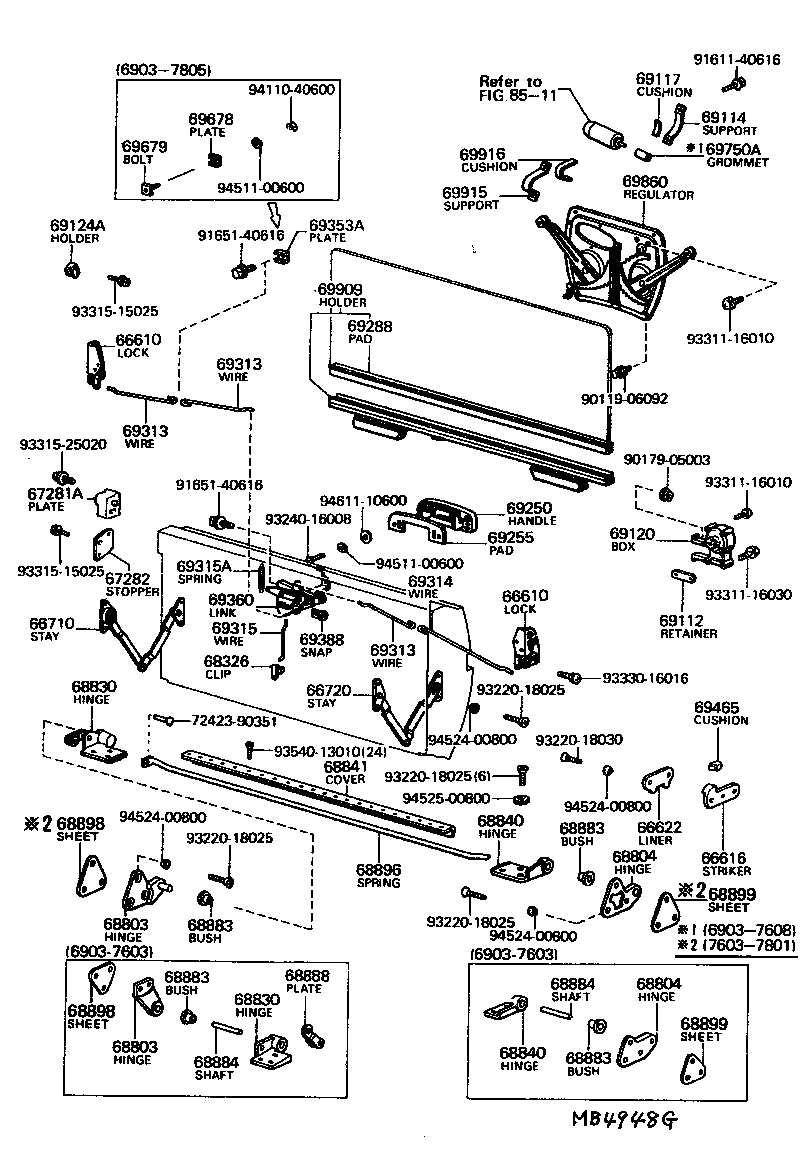

Back Door Lock & Hinge
82 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 64925 | Spacer, Rear Drop Gate, Lock Latch |
| 64926 | Spacer, Rear Drop Gate, Hinge Male |
| 66170A | Latch Assy, Rear Drop Gate |
| 66280A | Chain Assy, Rear Drop Gate, RH |
| 66287A | Hook, Rear Drop Gate Chain, RH |
| 66288A | Hook, Rear Drop Gate Chain, LH |
| 66290A | Chain Assy, Rear Drop Gate, LH |
| 66610 | Lock Assy, Tail Gate |
| 66610A | Knob, Door Lock Key |
| 66610C | Lock Assy, Rear Drop Gate |
| 66610D | Handle Sub-assy, Door Inside |
| 66616 | Striker, Tail Gate Lock |
| 66621 | Sheet, Tail Gate Lock Striker |
| 66622 | Liner, Tail Gate Lock Striker |
| 66710 | Stay Assy, Tail Gate, RH |
| 66720 | Stay Assy, Tail Gate, LH |
| 67281A | Plate, Tail Gate Switch |
| 67282 | Stopper, Back Door, NO.1 |
| 68095 | Hinge Assy, Rear Gate, RH |
| 68096 | Hinge Assy, Rear Gate, LH |
| 68326 | Clip(FOR TAIL GATE REMOTE CONTROL LINK) |
| 68803 | Hinge Assy, Back Door, Lower RH |
| 68804 | Hinge Assy, Back Door, Lower LH |
| 68830 | Hinge Assy, Back Door, RH |
| 68830C | Retainer, Back Door Hinge |
| 68840 | Hinge Assy, Back Door, LH |
| 68841 | Cover, Torsion Bar, RH |
| 68883 | Bush, Tail Gate Hinge Shaft |
| 68884 | Shaft, Tail Gate Hinge |
| 68888 | Plate, Tail Gate Torsion Spring Connect |
| 68896 | Spring, Tail Gate Torsion |
| 68898 | Sheet, Tail Gate Hinge Pillar Side, RH |
| 68899 | Sheet, Tail Gate Hinge Pillar Side, LH |
| 68905 | Stopper Sub-assy, Back Door Open |
| 68954 | Stopper, Rear Swing Gate Open Female |
| 68970 | Stay Assy, Back Door, RH |
| 68978 | Bush, Back Door Stay Handle |
| 68980 | Stay Assy, Back Door |
| 69112 | Retainer, Gear Box |
| 69114 | Support, Tail Gate Regulator Motor, Outer |
| 69117 | Cushion, Tail Gate Regulator Motor, Outer |
| 69120 | Box Assy, Tail Gate Regulator Gear |
| 69124A | Holder, Tail Gate Support Stay |
| 69151 | Handle, Back Door Inside Pull |
| 69151A | Retainer, Back Door Inside Pull |
| 69209 | Plate Sub-assy, Back Door Outside Handle |
| 69211A | Spring, Torsion(FOR BACK DOOR OUTSIDE HANDLE) |
| 69238 | Stay, Back Door Outside Handle |
| 69239 | Pin, Back Door Outside Handle |
| 69250 | Handle Assy, Tail Gate Lock |
| 69255 | Pad, Back Door Handle |
| 69288 | Pad, Front Back Door Handle |
| 69313 | Wire, Tail Gate Lock, NO.1 |
| 69314 | Wire, Tail Gate Lock, NO.2 |
| 69315 | Wire, Tail Gate Lock, NO.3 |
| 69315A | Spring, NO.3 Tail Gate Lock Wire |
| 69350A | Spring(FOR BACK DOOR LOCK) |
| 69351 | Rod, Back Door Lock Control, Upper |
| 69352 | Rod, Back Door Lock Control, Lower |
| 69353 | Rod, Back Door Lock Control, Center |
| 69353A | Plate, Back Door Lock Control |
| 69360 | Link Assy, Tail Gate Remote Control |
| 69362 | Bar, Rear Gate Lock |
| 69376 | Link, Back Door Lock |
| 69378 | Pin, Back Door Lock Link |
| 69379 | Base, Back Door Lock Link |
| 69388 | Snap, Rod(FOR DOOR LOCK) |
| 69406 | Stop Sub-assy, Back Door Down |
| 69423 | Catch, Back Door Lock |
| 69424 | Piece, Back Door Lock Catch |
| 69427 | Base, Back Door Lock Upper |
| 69465 | Cushion, Tail Gate Lock Striker, A |
| 69660 | Control Assy, Back Door Lock Remote, LH |
| 69678 | Plate, Connect |
| 69679 | Bolt Sub-assy, Connect |
| 69750A | Grommet(FOR BACK DOOR REMOTE CONTROL) |
| 69860 | Regulator Assy, Tail Gate |
| 69909 | Holder Sub-assy, Tail Gate Glass |
| 69915 | Support, Tail Gate Regulator Motor, Inner |
| 69916 | Cushion, Tail Gate Regulator Motor, Inner |
| 75416 | Handle, Tail Gate, Inside |
| 75416D | Escutcheon, Back Door Inside Handle |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
