Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

101 part groups · 9 illustrations

Illustrations

MB4955E 1969-03 → 1971-09

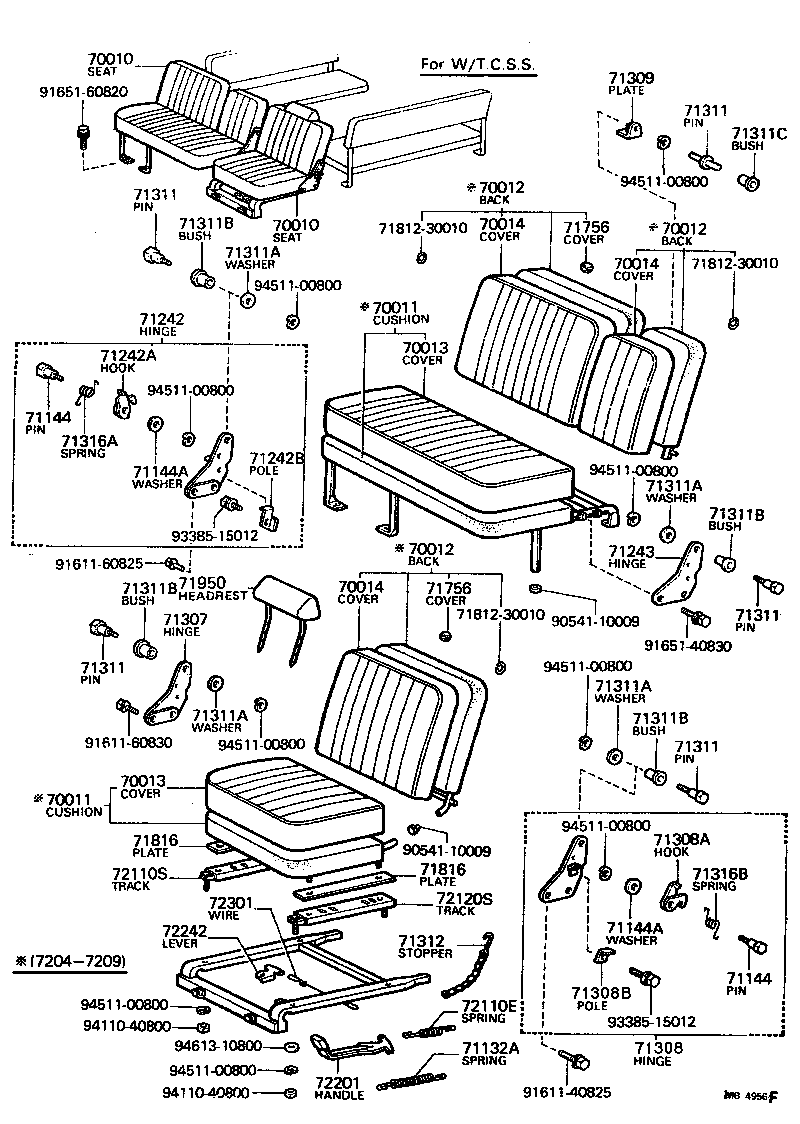

MB4956F 1970-02 → 1972-09

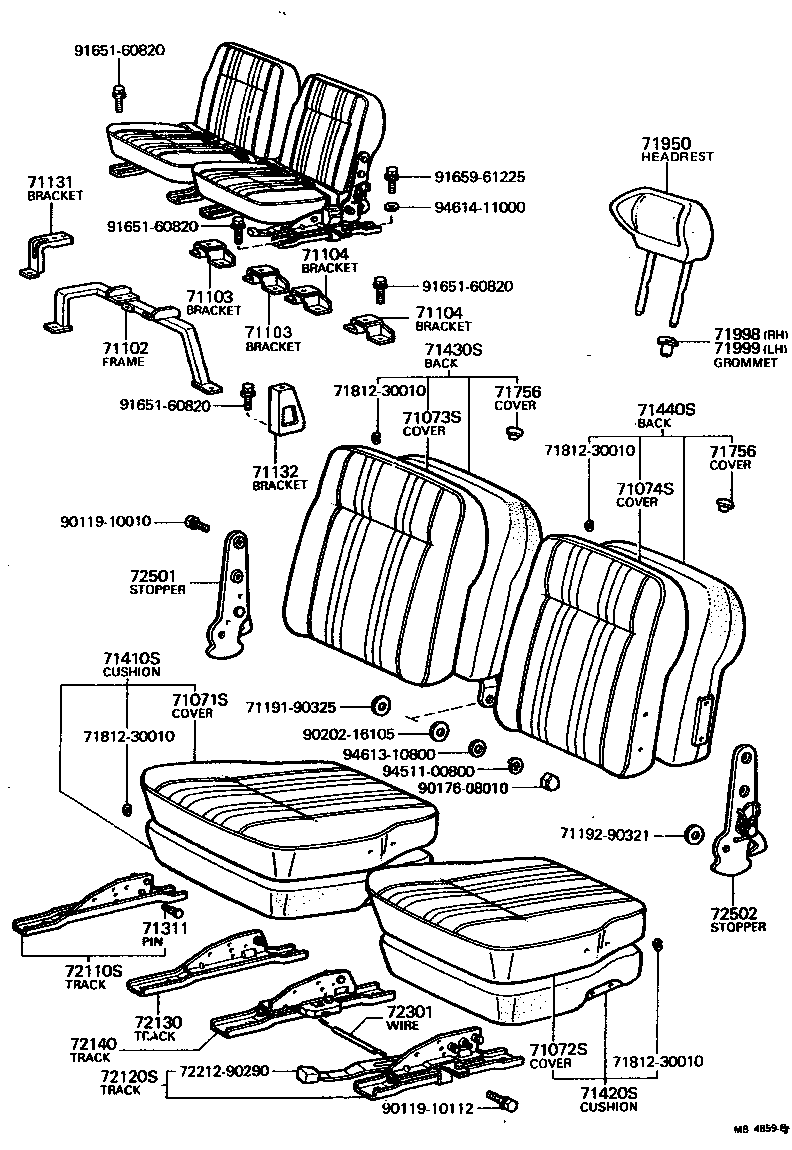

MB4859G 1972-09 → 1979-01

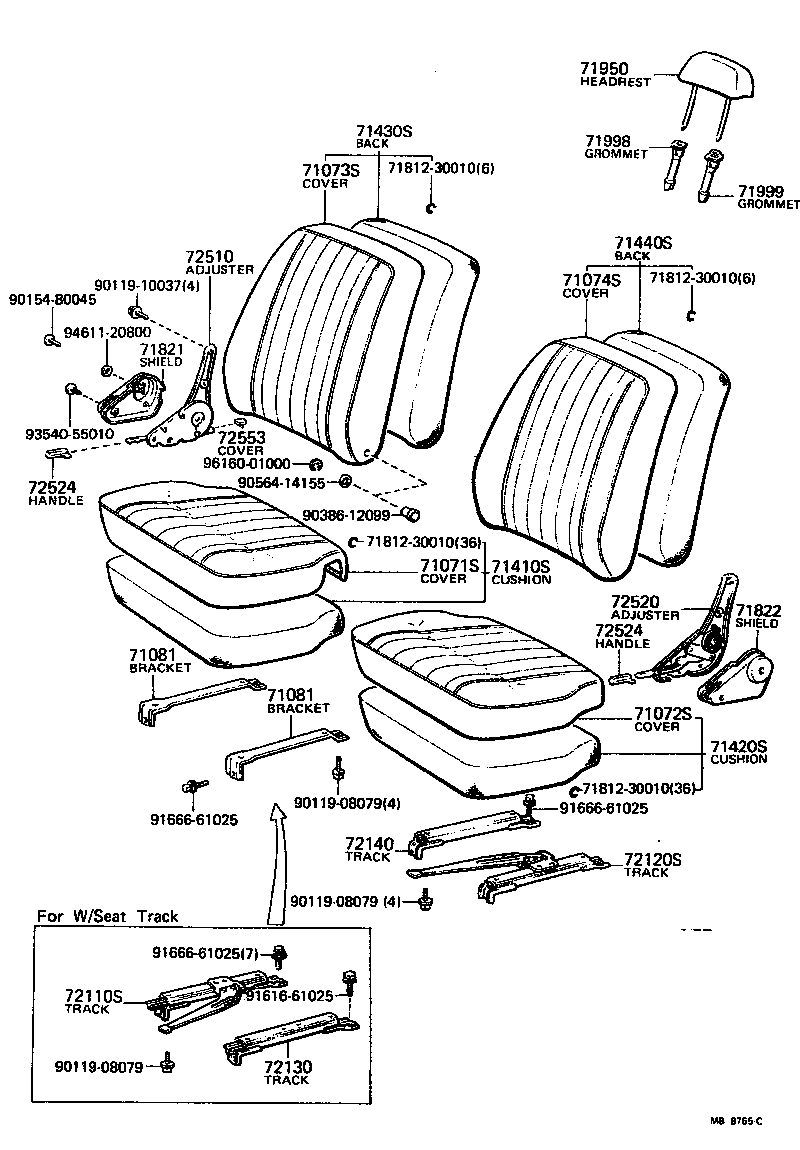

MB8765C 1979-01 → 1980-07

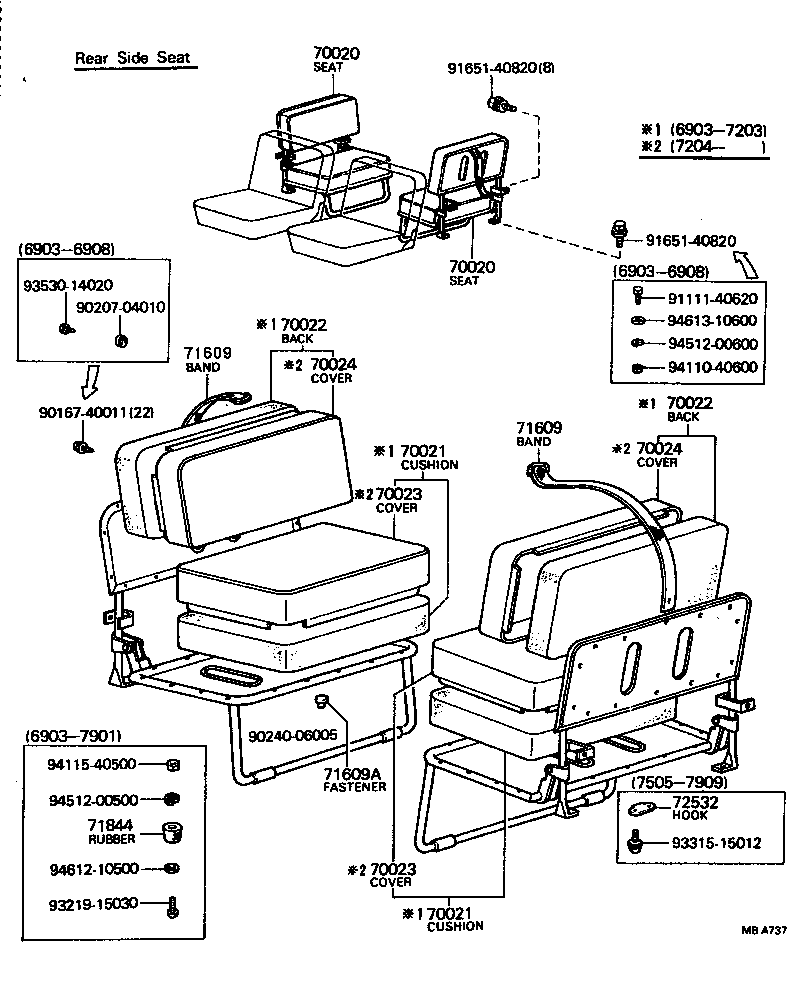

MBA737 1969-03 → 1980-07

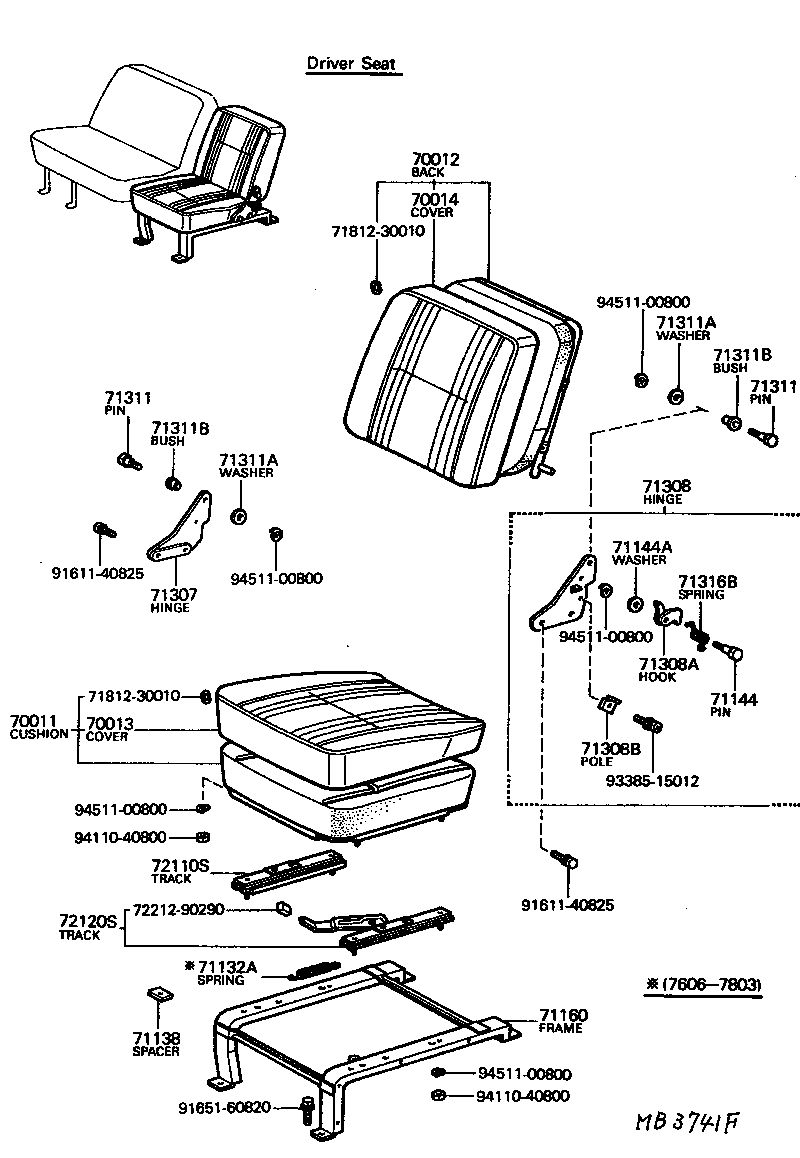

MB3741F 1976-06 → 1979-01

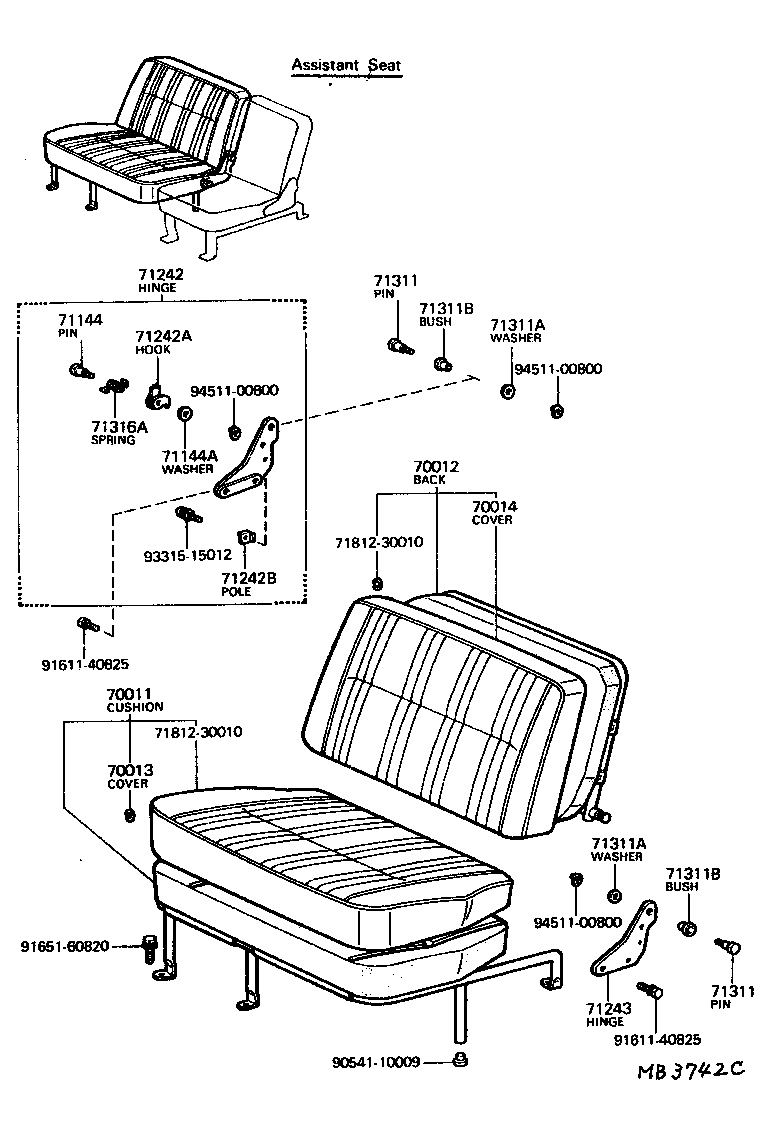

MB3742C 1976-06 → 1979-01

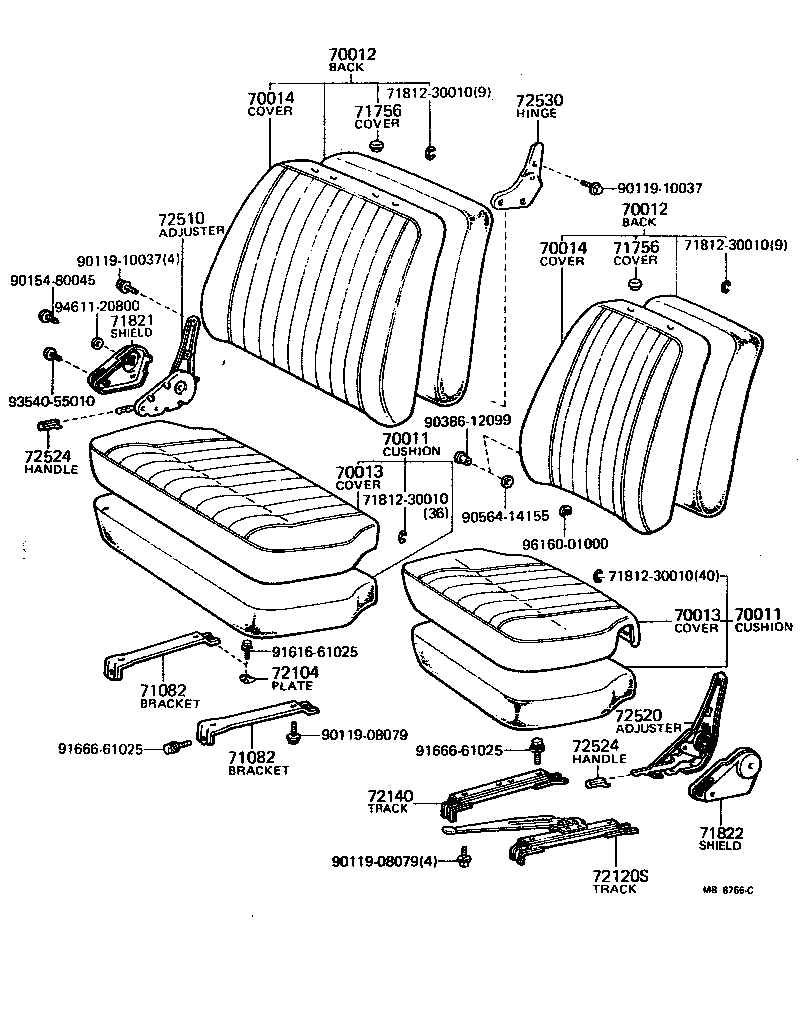

MB8766C 1979-01 → 1980-07

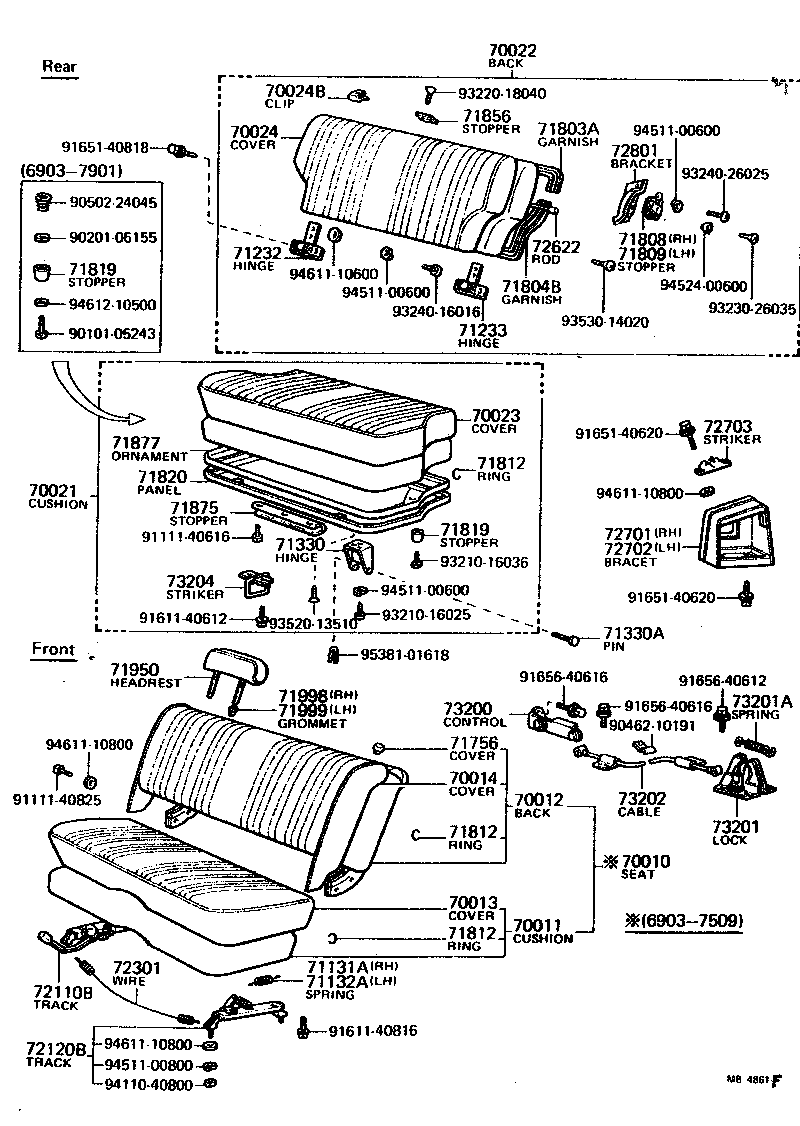

MB4861F 1969-03 → 1980-07

Part groups

PNC	Description
70010	Seat Assy, NO.1
70011	Cushion Assy, NO.1 Seat
70012	Back Assy, NO.1 Seat
70013	Cover Assy, NO.1 Seat Cushion
70014	Cover Assy, NO.1 Seatback
70020	Seat Assy, NO.2
70021	Cushion Assy, NO.2 Seat
70022	Back Assy, NO.2 Seat
70023	Cover Assy, NO.2 Seat Cushion
70024	Cover Assy, NO.2 Seatback
70024B	Clip, Leather(FOR SEATBACK COVER)
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71081	Bracket Sub-assy, Front Seat Set
71082	Bracket Sub-assy, Passenger Seat Set
71102	Frame Sub-assy, Front Seat Set Inner
71103	Bracket Sub-assy, Front Seat, Rear, RH
71104	Bracket Sub-assy, Front Seat, Rear, LH
71131	Bracket, Front Seat Set, Outer RH
71131A	Spring, Tension (FOR SEAT TRACK)
71132	Bracket, Front Seat Set, Outer LH
71132A	Spring, Tension (FOR SEAT TRACK)
71138	Spacer, Front Seat Set
71144	Pin, Seat Hinge Hook
71144A	Washer, Plate (FOR SEAT HINGE HOOK PIN)
71160	Frame Assy, Driver Seat
71232	Hinge, Rear Seatback Frame, RH
71233	Hinge, Rear Seatback Frame, LH
71242	Hinge, Passenger Seatback, RH
71242A	Hook, Passenger Seat Hinge, RH
71242B	Pole, Passenger Seat Hinge Hook, RH
71243	Hinge, Passenger Seatback, LH
71307	Hinge Sub-assy, Driver Seat, RH
71308	Hinge Sub-assy, Driver Seat, LH
71308A	Hook, Driver Seat Hinge, LH
71308B	Pole, Driver Seat Hinge Hook, LH
71309	Plate, Passenger Seat Center Hinge
71311	Pin, Front Seat Hinge
71311A	Washer, Plate (FOR FRONT SEAT HINGE PIN)
71311B	Bush (FOR FRONT SEAT HINGE PIN)
71311C	Bush (FOR FRONT SEAT HINGE PIN)
71312	Stopper Sub-assy, Seat Hinge Shaft
71316A	Spring, Torsion, NO.1
71316B	Spring, Torsion, NO.2
71330	Hinge Assy, Rear Seat Cushion
71330A	Pin, Rear Seat Cushion Hinge
71410S	Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S	Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S	Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S	Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71609	Band Sub-assy, Rear Side Seat
71609A	Fastener, Rear Side Seat Band
71756	Cover, Air Hole
71803A	Garnish Sub-assy, Rear Seatback, Upper
71804B	Garnish Sub-assy, Rear Seatback, Lower
71808	Stopper Sub-assy, Rear Seatback, RH
71809	Stopper Sub-assy, Rear Seatback, LH
71812	Clip (FOR FRONT SEAT CUSHION COVER)
71816	Plate, Driver Seat Leather Set
71819	Cushion (FOR REAR SEAT CUSHION)
71820	Panel Assy, Rear Seat Cushion
71821	Shield, Front Seat Side, RH
71822	Shield, Front Seat Side, LH
71844	Rubber, Rear Seat Cushion Base
71856	Stopper, Rear Seatback, Upper
71875	Stopper, Rear Seat Cushion
71877	Ornament, Rear Seat Cushion Panel
71950	Headrest Assy, Front Seat
71998	Grommet, Front Seat Headrest, RH
71999	Grommet, Front Seat Headrest, LH
72104	Plate Sub-assy, Seat Track Stopper
72110B	Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110E	Spring, Tension, NO.1 (FOR SEAT TRACK)
72110S	Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B	Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S	Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130	Track Assy, RH Seat, Inner
72140	Track Assy, LH Seat, Inner
72201	Handle Sub-assy, Seat Track
72242	Lever, Seat Track Lock Open
72301	Wire Sub-assy, Seat Track Equalizing
72501	Stopper Assy, Front Seatback, RH
72502	Stopper Assy, Front Seatback, LH
72510	Adjuster Assy, Reclining Seatback, RH
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72530	Hinge Assy, Passenger Seat
72532	Hook, Passenger Seat Cushion Stop
72553	Cover, Reclining Pedal
72622	Rod, Rear Seatback Stopper Connecting
72701	Bracket Sub-assy, Rear Seatback Stopper
72702	Bracket Sub-assy, Rear Seatback Striker
72703	Striker Sub-assy, Rear Seatback Stopper
72801	Bracket Sub-assy, Protector
73200	Control Assy, Seat Cushion Lock
73201	Lock Sub-assy, Rear Seat Cushion
73201A	Spring, Tension (FOR REAR SEAT CUSHION LOCK)
73202	Cable Sub-assy, Seat Cushion Lock Control
73204	Striker Sub-assy, Rear Seat Cushion

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
