Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

14 part groups · 3 illustrations

Illustrations

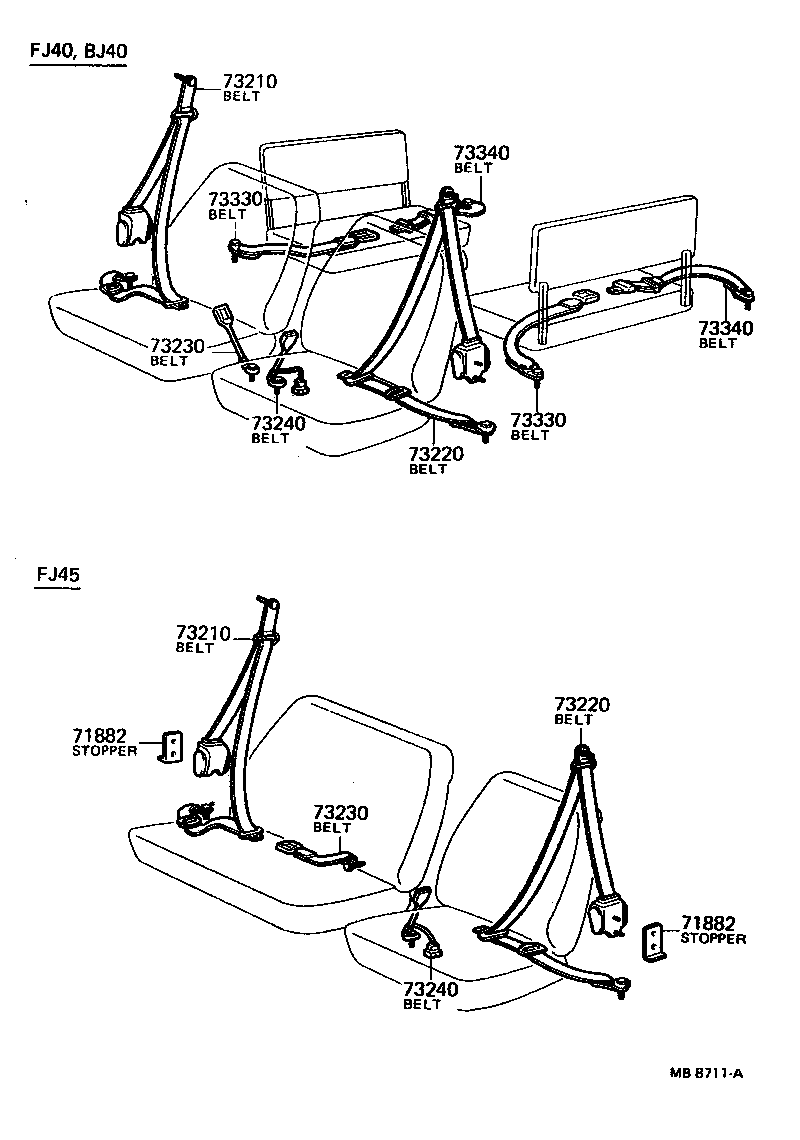

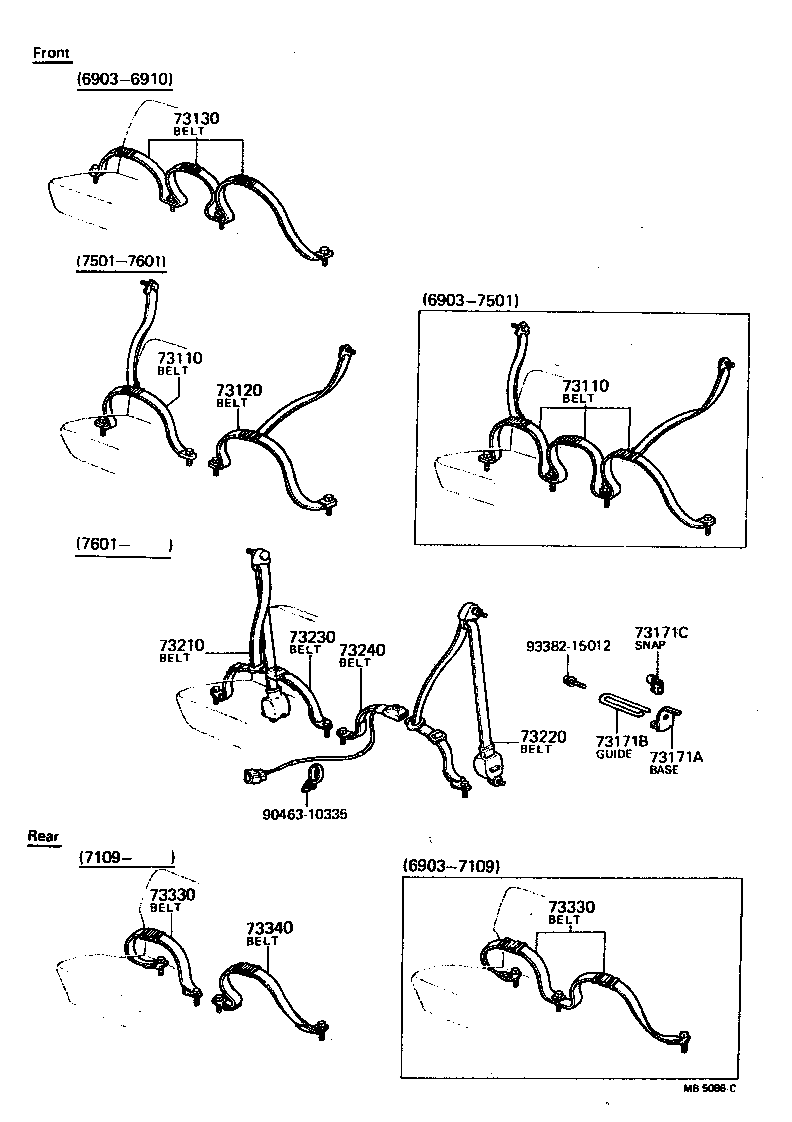

Figure MB5085Z MB5085Z 1969-03 → 1979-01 Figure MB8711A MB8711A 1979-01 → 1980-07 Figure MB5086C MB5086C 1969-03 → 1980-07

Part groups

PNCDescription
71882 Stopper, Seat Belt Retractor
73110 Belt Assy, Front Seat 3 Point Type, RH
73120 Belt Assy, Front Seat 3 Point Type, LH
73130 Belt Assy, Front Seat Lap Type, RH
73140 Belt Assy, Front Seat Lap Type, LH
73171A Base, Front Seat Shoulder Belt
73171B Guide, Front Seat Shoulder Belt
73171C Snap (FOR FRONT SEAT SHOULDER BELT)
73210 Belt Assy, Front Seat Outer, RH
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330 Belt Assy, Rear Seat Lap Type, RH
73340 Belt Assy, Rear Seat Lap Type, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
