Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate

12 part groups · 2 illustrations

Illustrations

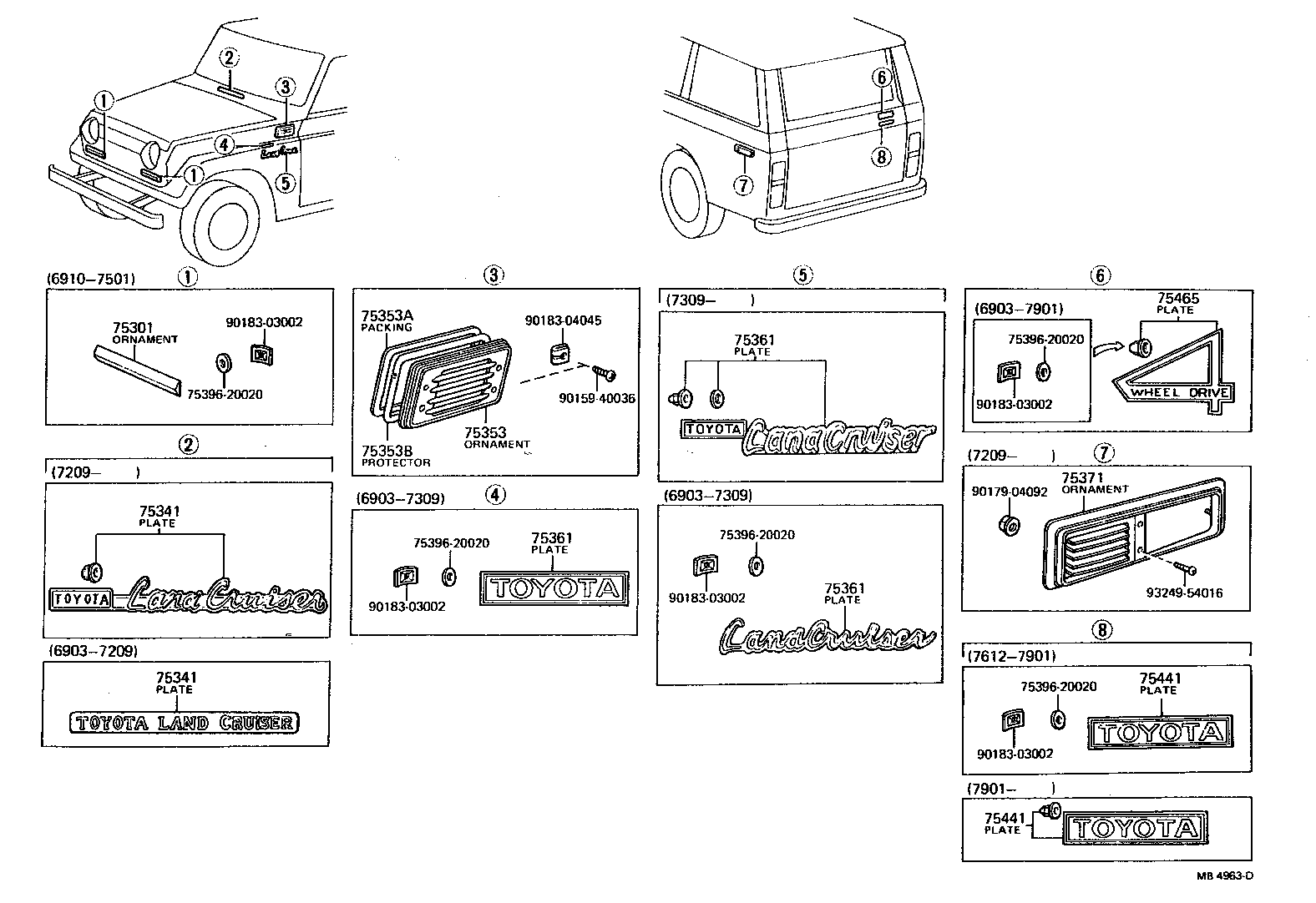

Figure MB4962F MB4962F 1969-03 → 1980-07 Figure MB4963D MB4963D 1969-03 → 1980-07

Part groups

PNCDescription
75301 Ornament, Radiator Grille (OR FRONT PANEL)
75305 Emblem, Hood
75310 Plate Assy, Front Panel
75321 Plate, Radiator Grille OR Front Panel Name
75341 Plate, Instrument Panel Name, NO.1
75353 Ornament, Front Fender
75353A Packing, Front Fender Ornament
75353B Protector, Front Fender Upper Ornament
75361 Plate, Front Fender Name, NO.1 (MODEL MARK)
75371 Ornament, Air Outlet
75441 Plate, Rear Name, NO.1
75465 Plate, Rear Name, NO.5 (MECHANISM)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
