Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Tool Box & License Plate Bracket

17 part groups · 2 illustrations

Illustrations

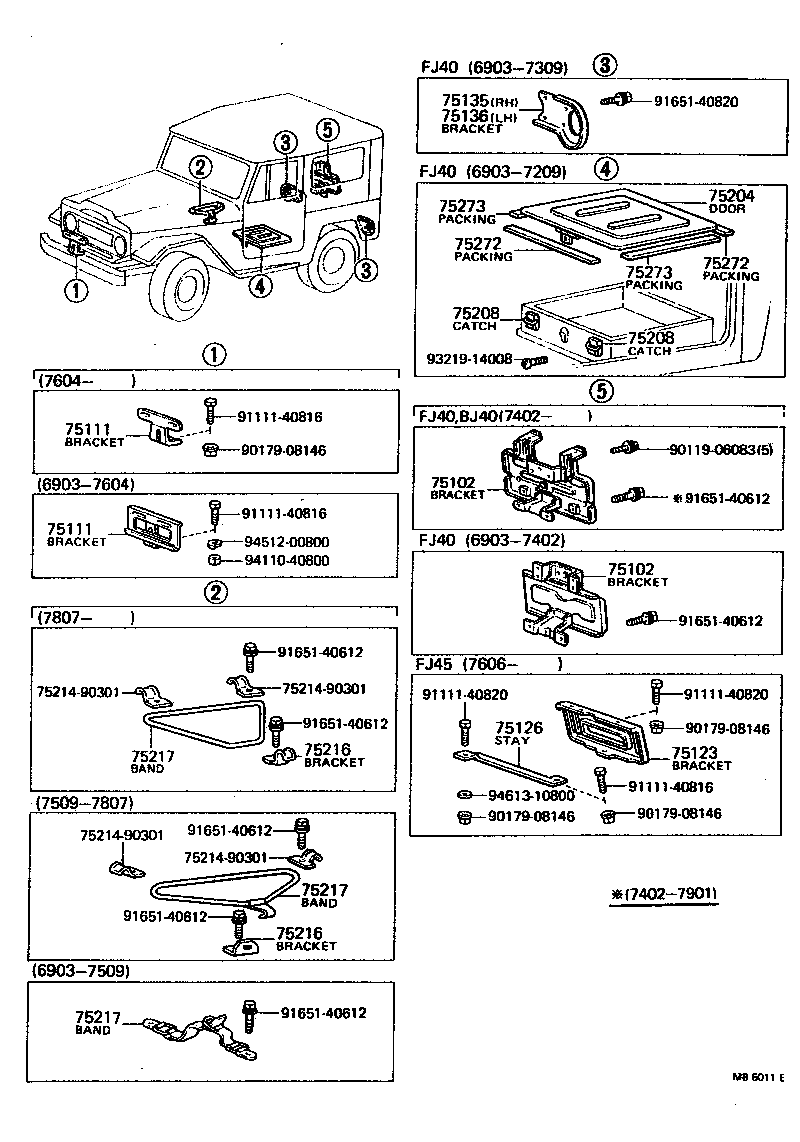

Figure MB8768A MB8768A 1969-03 → 1980-07 Figure MB6011E MB6011E 1969-03 → 1980-07

Part groups

PNCDescription
52177 Handle, Starting OR Spare Wheel Carrier
74741 Spring, Starting Handle Support
75102 Bracket Sub-assy, Rear License Plate
75111 Bracket, Front License Plate
75123 Bracket, License Plate
75126 Stay, Rear License Plate Bracket, Lower
75135 Bracket, Combination Rear Lamp, RH
75136 Bracket, Combination Rear Lamp, LH
75202 Rest Sub-assy, Jack
75202A Base Sub-assy, Jack Handle Clamp
75204 Door Sub-assy, Tool Box
75208 Catch Sub-assy, Tool Box Door
75216 Bracket, Tool Bag Band
75217 Band, Tool Bag
75242 Cushion, Jack Seat
75272 Packing, Tool Box Door, NO.1
75273 Packing, Tool Box Door, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
