Toyota Land Cruiser
1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States
Discontinued model
Data version 1985-05

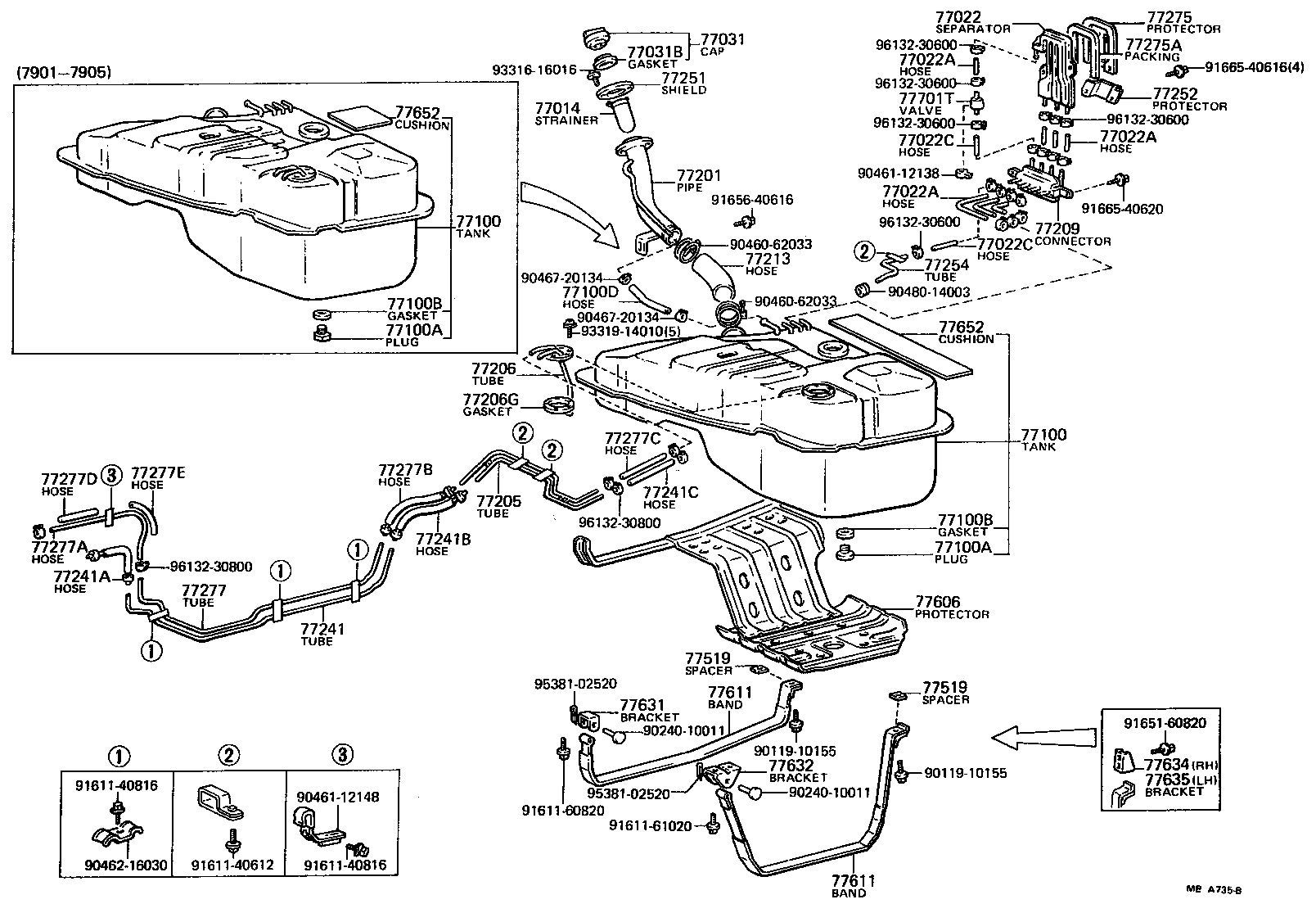

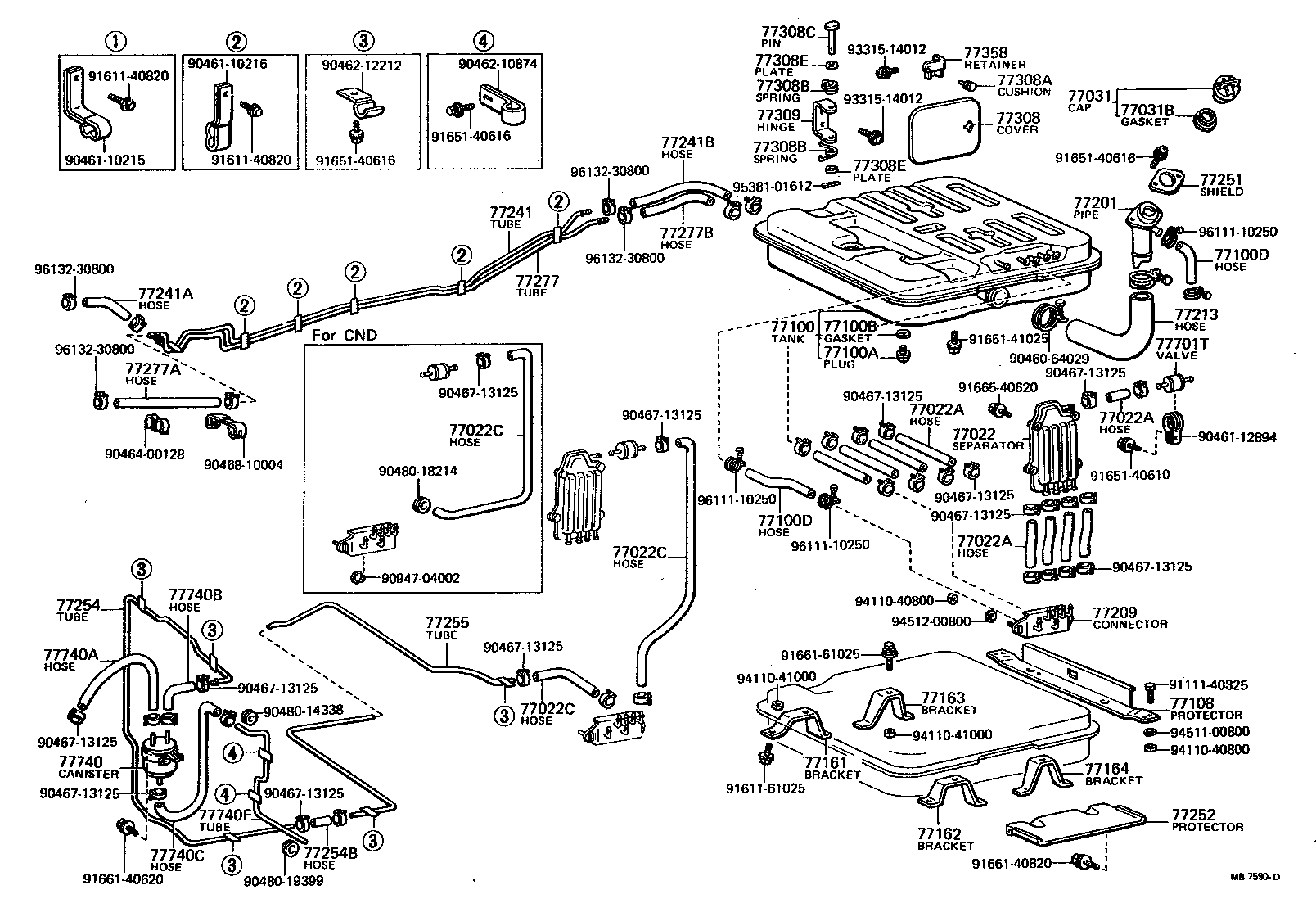

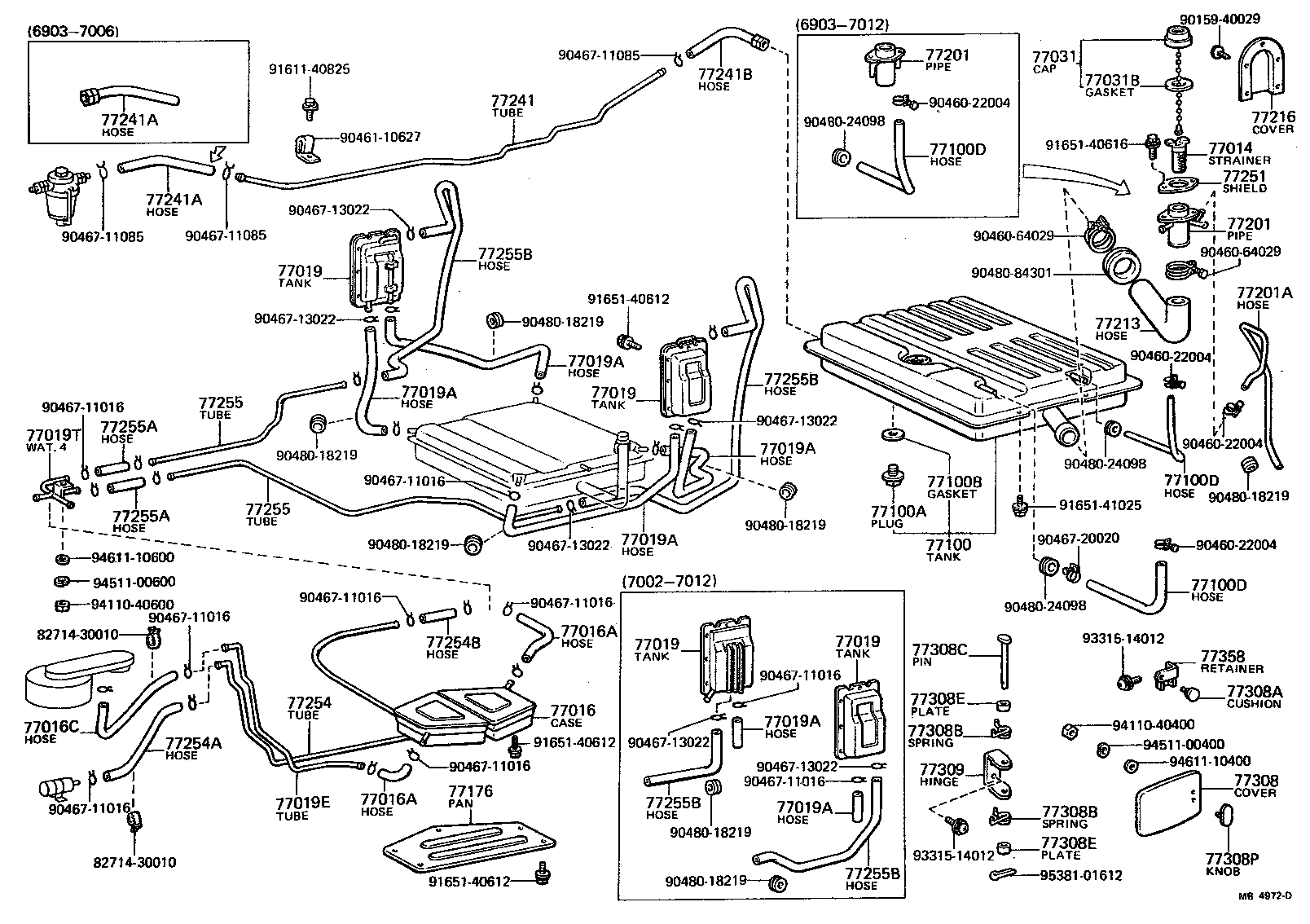

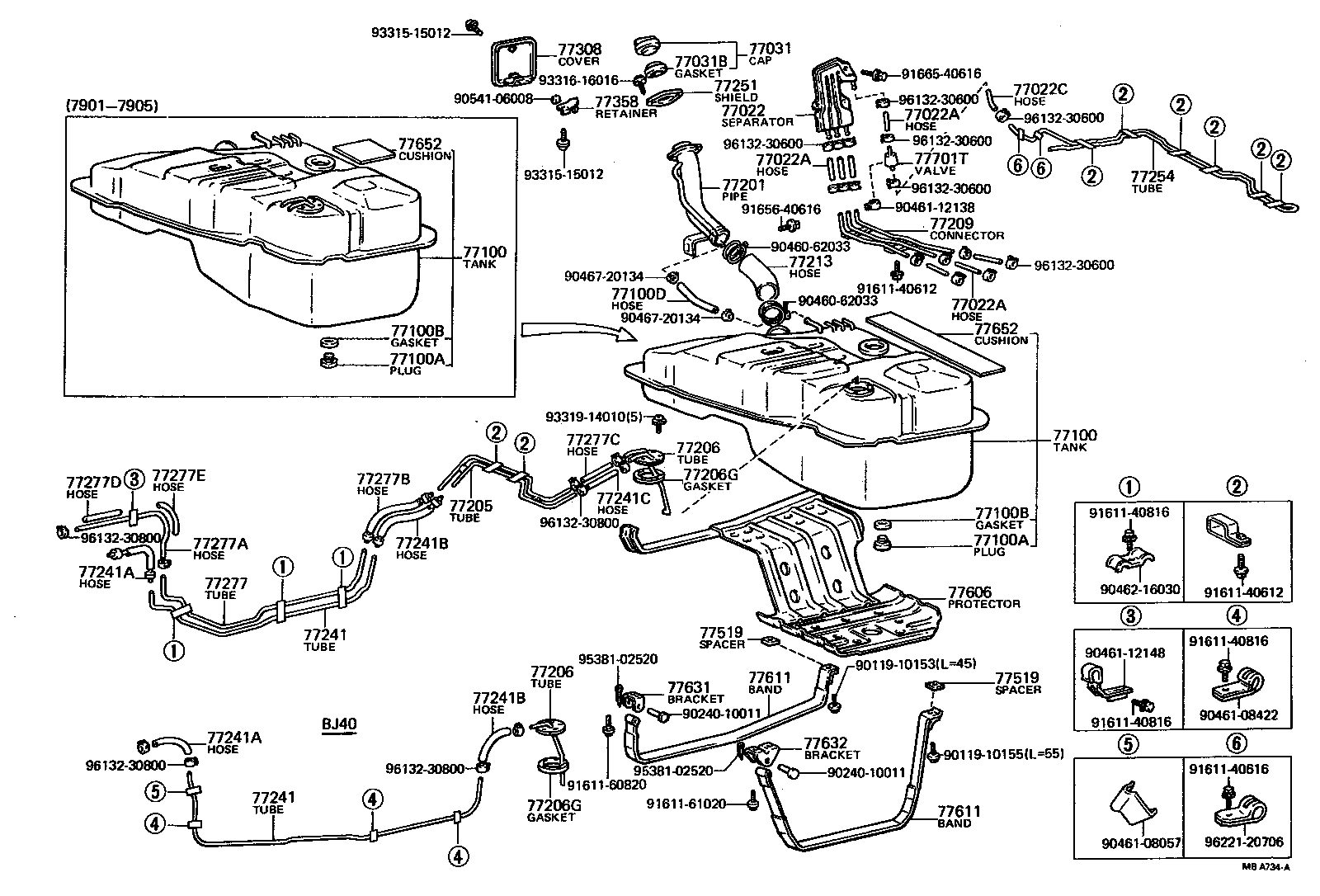

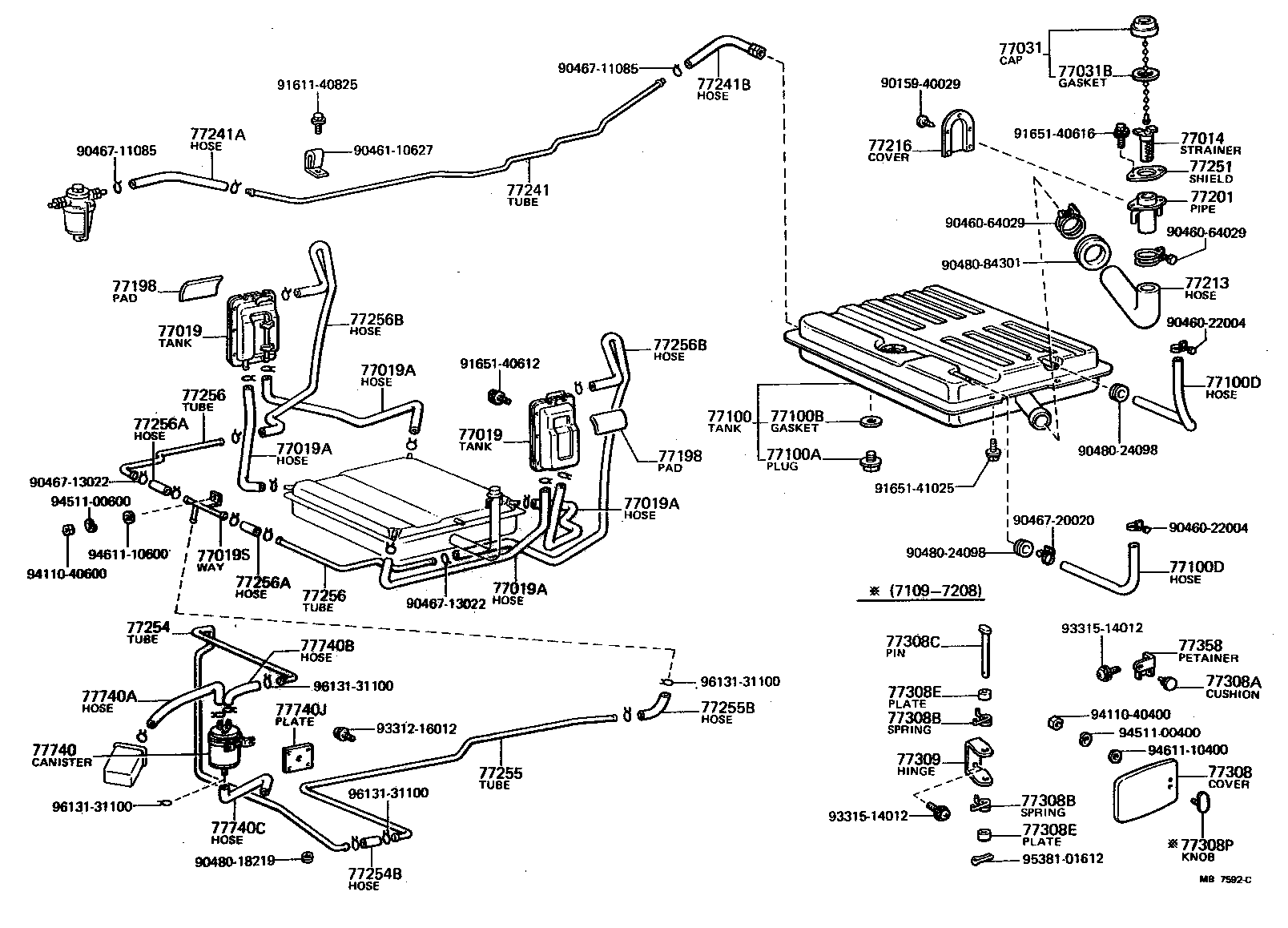

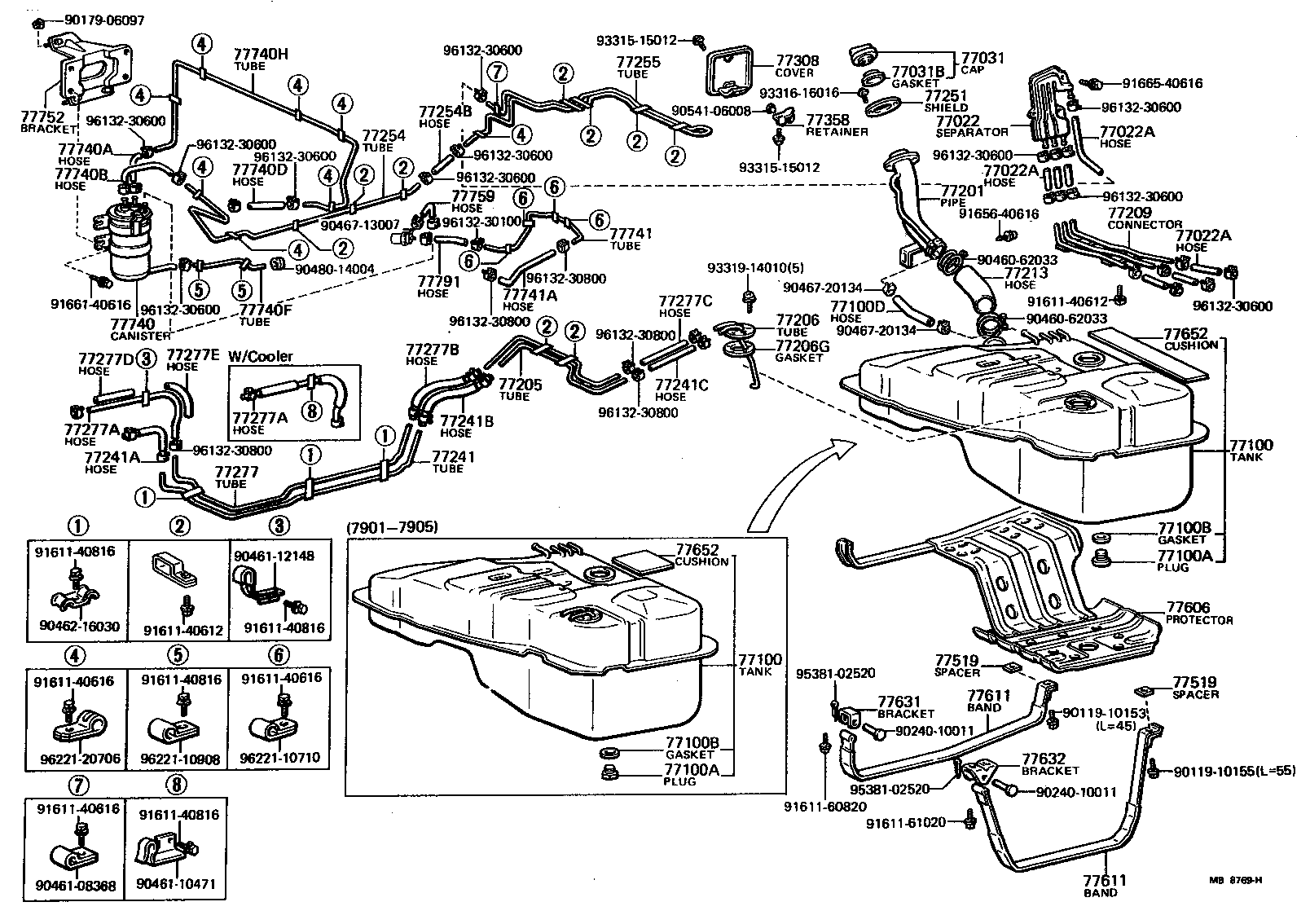

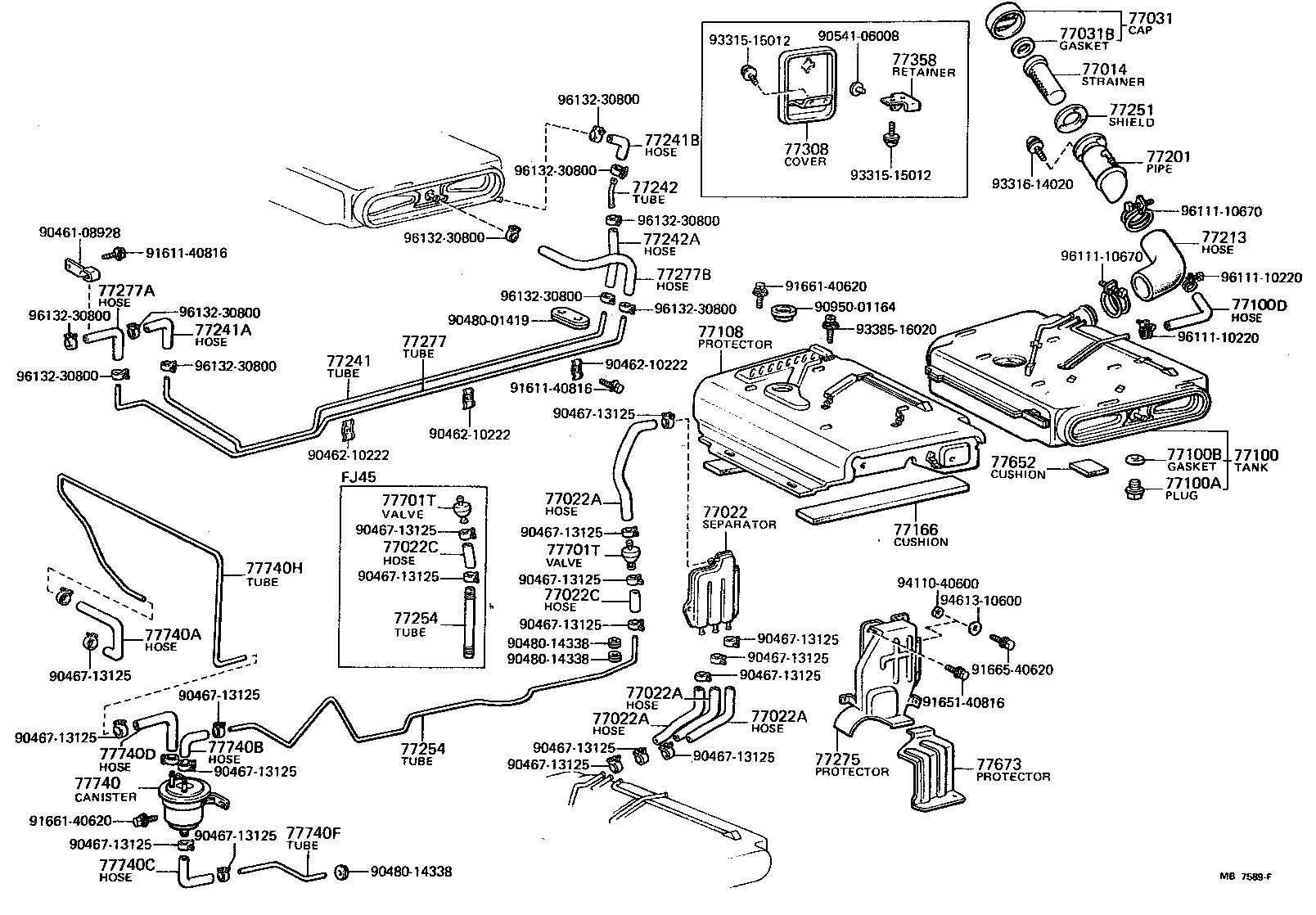

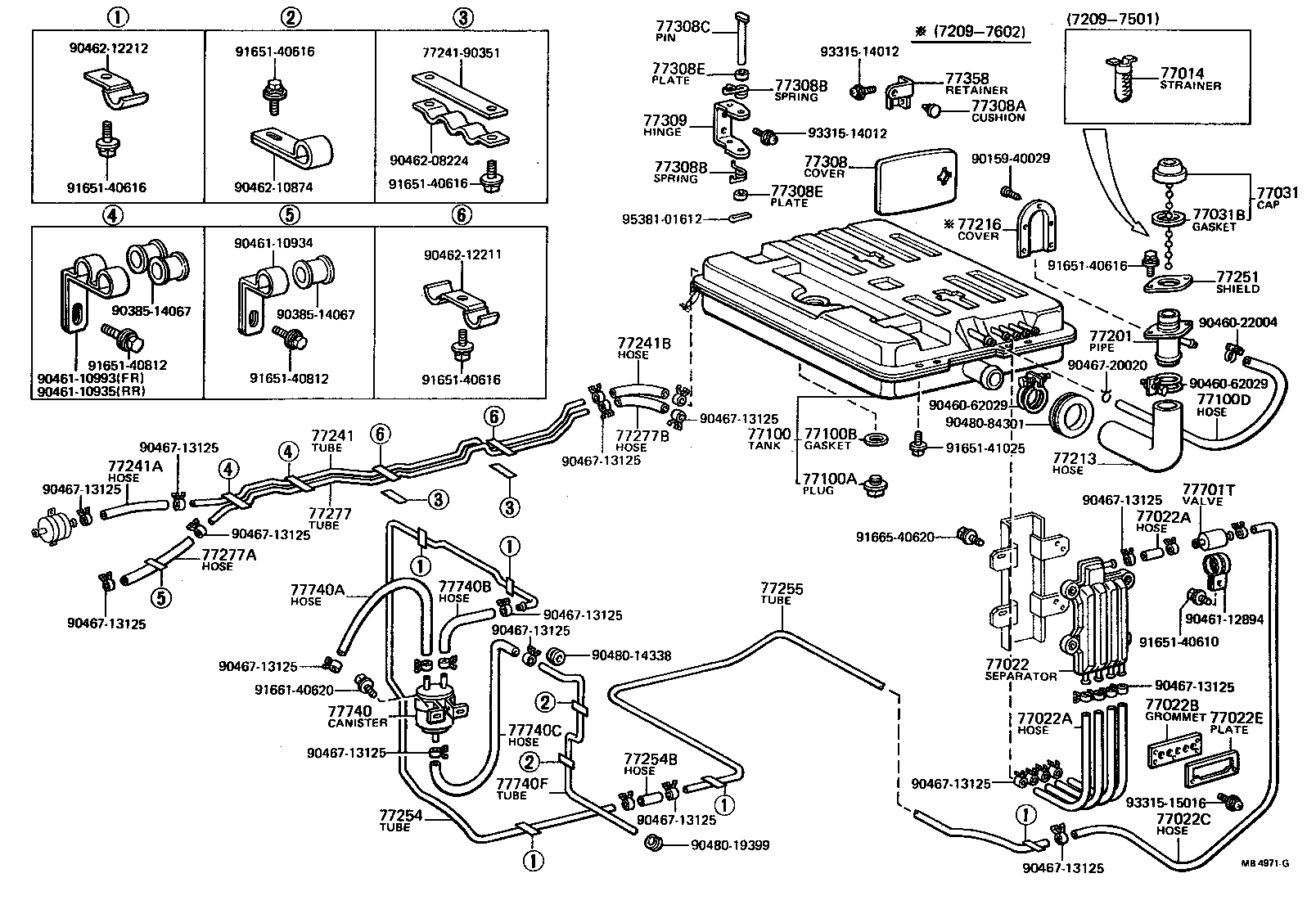

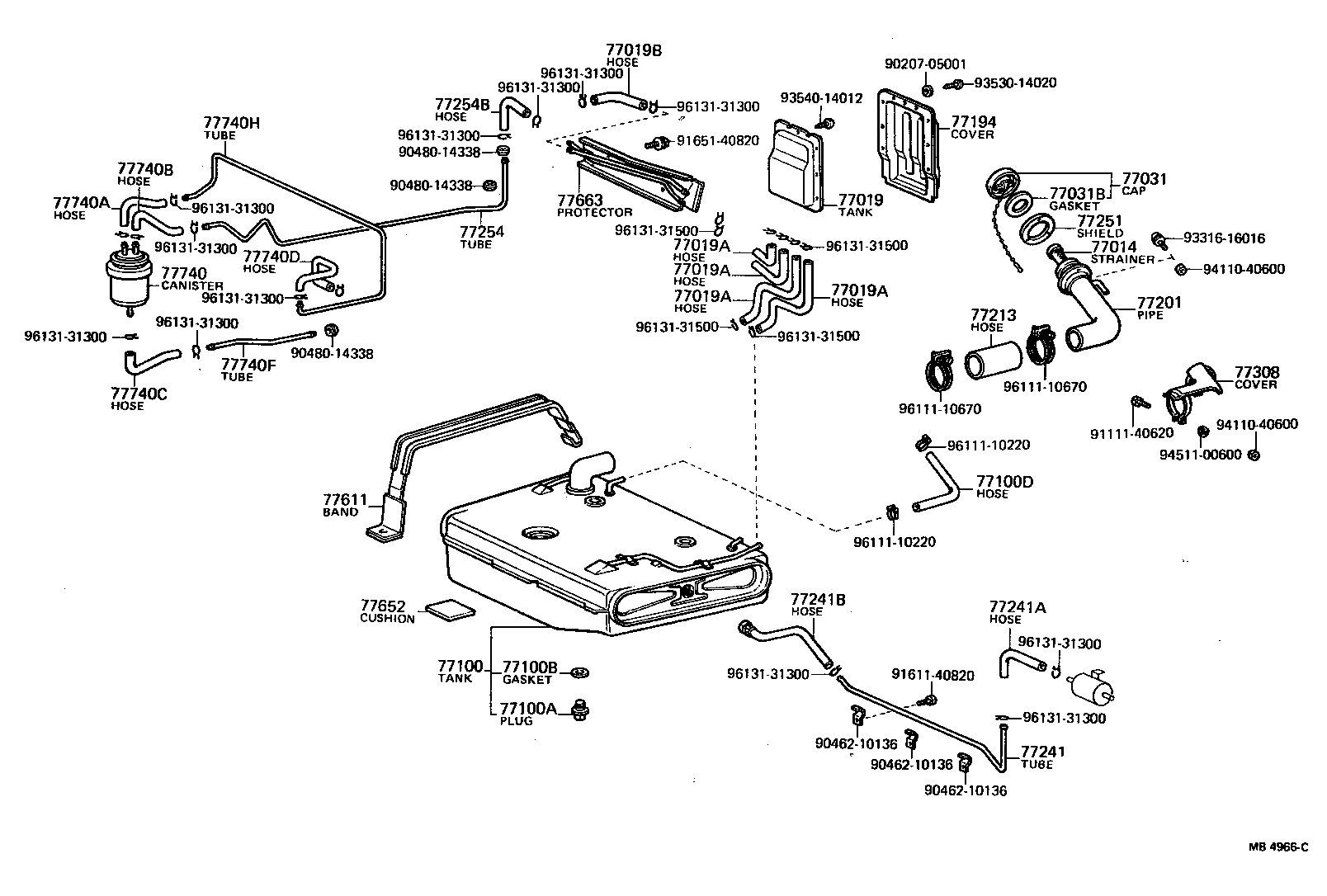

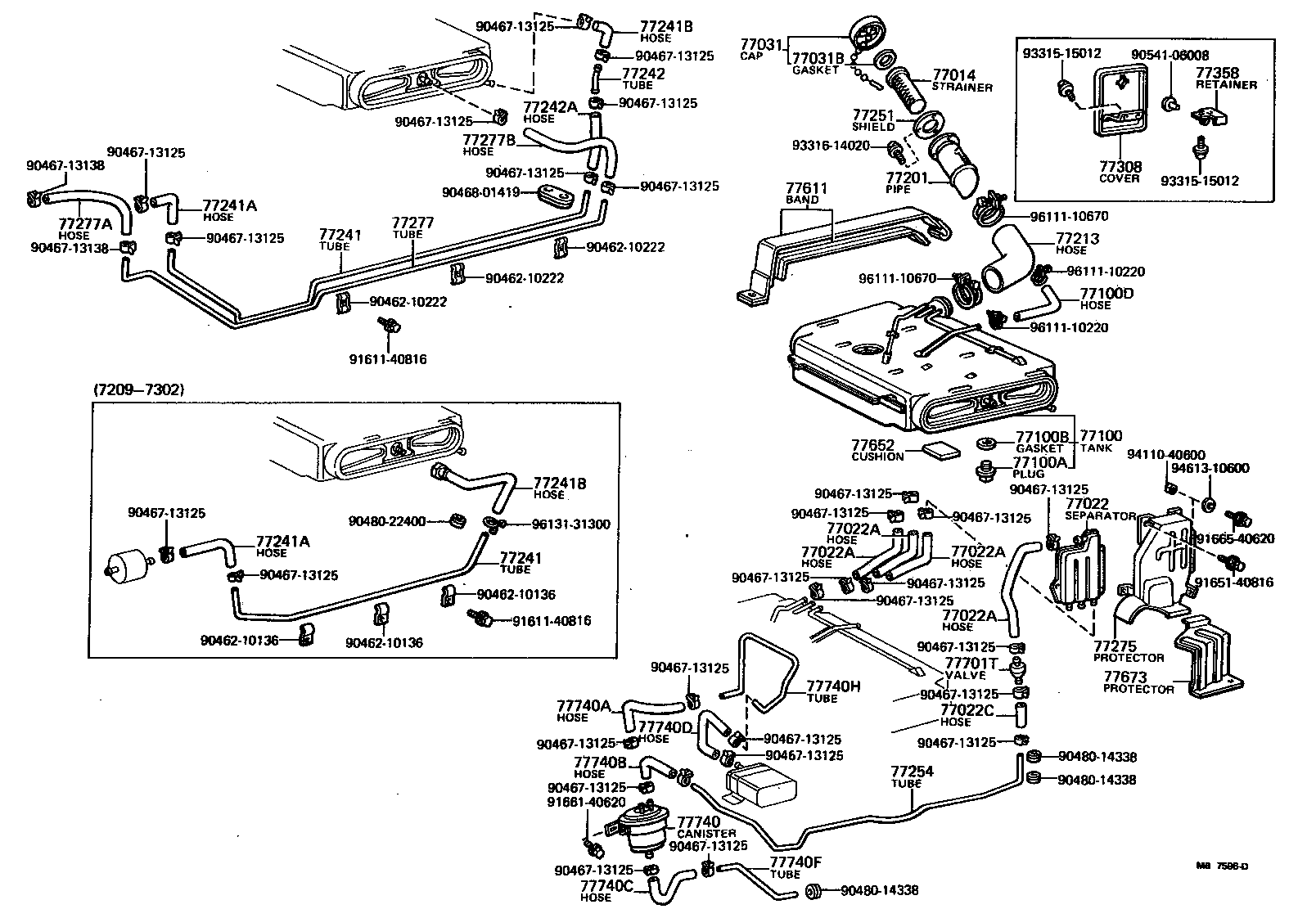

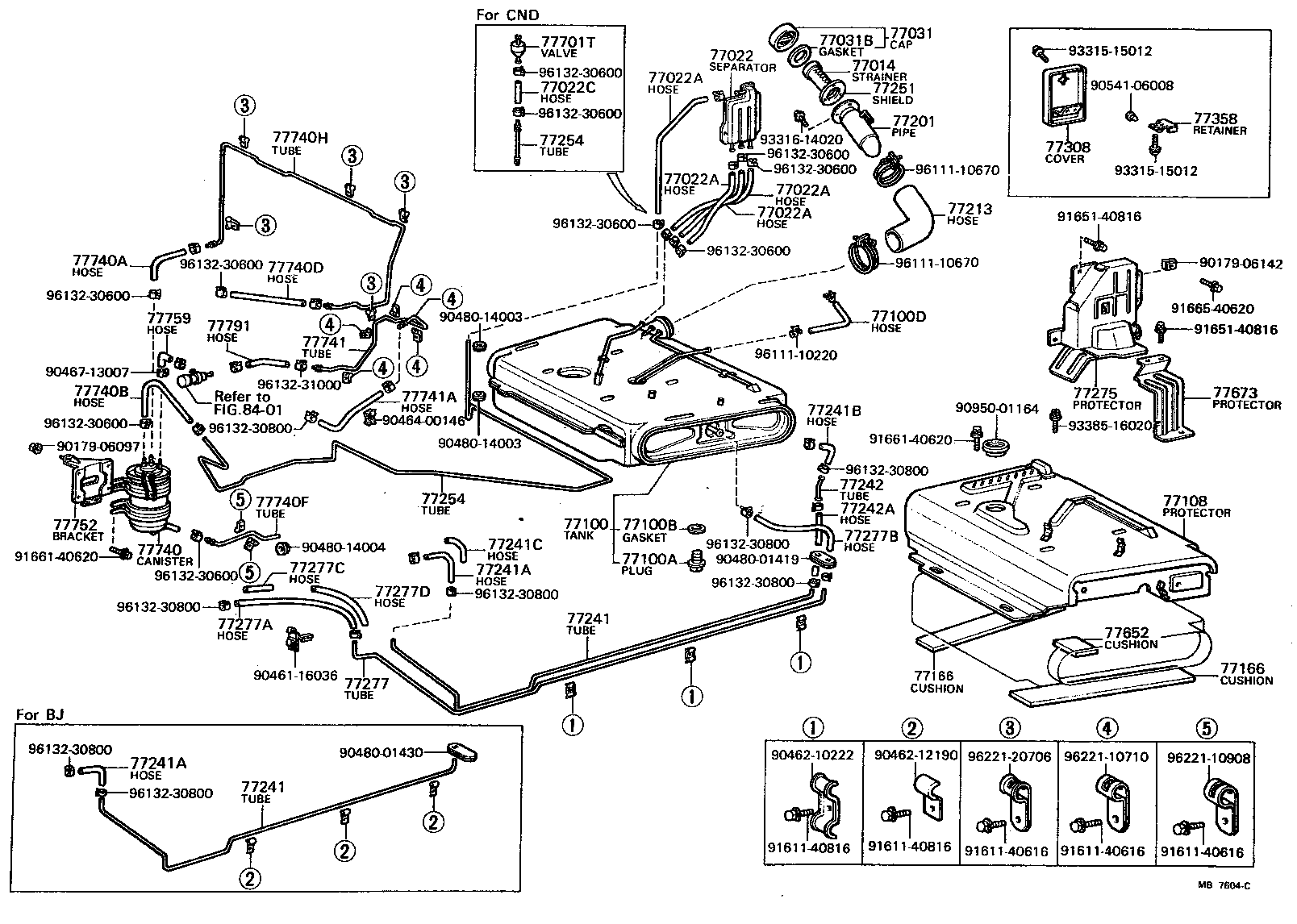

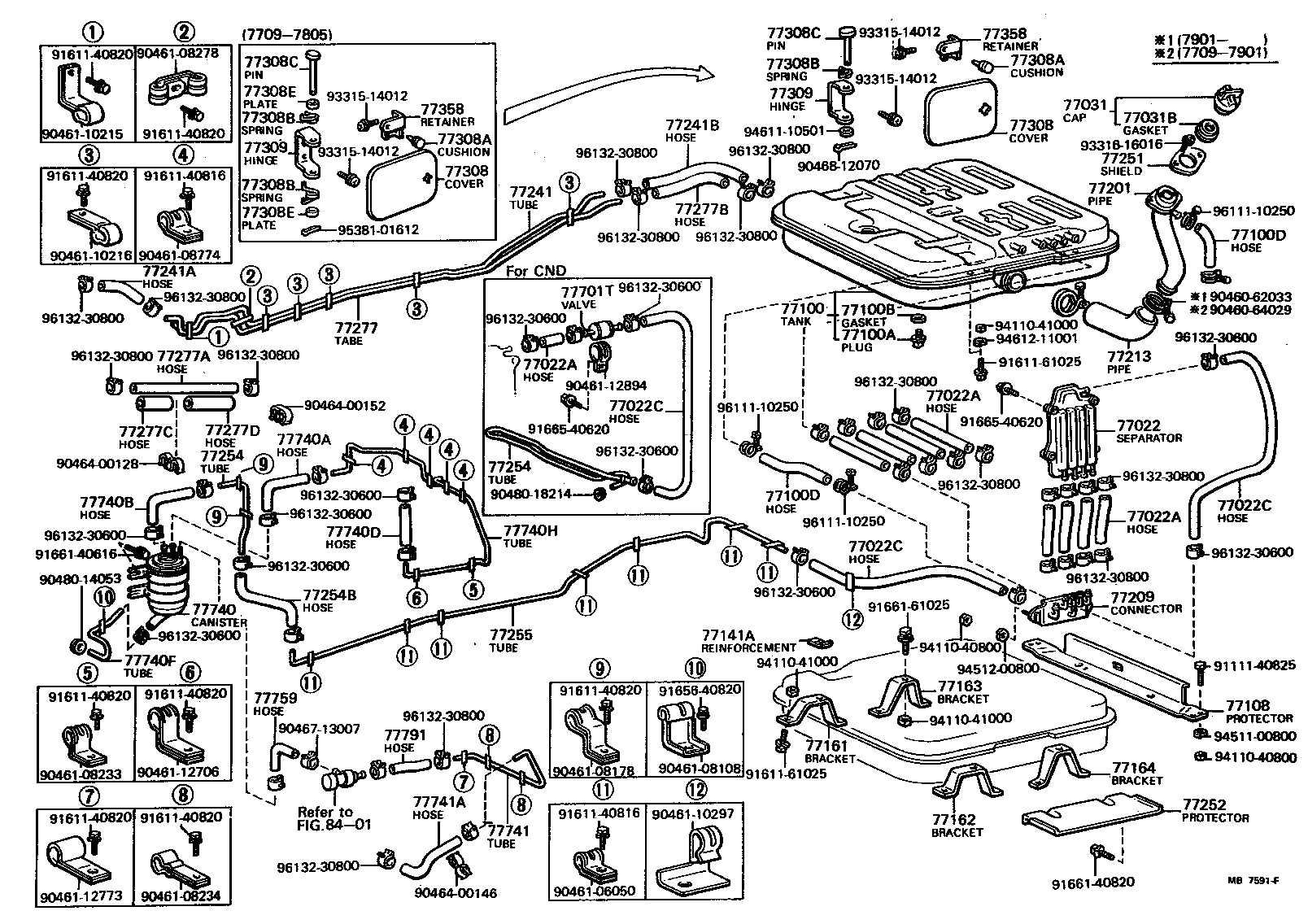

Fuel Tank & Tube
110 part groups · 15 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 77014 | Strainer Sub-assy, Fuel |
| 77016 | Case Sub-assy, Vapour Storage |
| 77016A | Hose, Fuel, NO.1 (FOR VAPOUR STORAGE CASE) |
| 77016B | Hose, Fuel, NO.2 (FOR VAPOUR STORAGE CASE) |
| 77016C | Hose, Fuel, NO.3 (FOR VAPOUR STORAGE CASE) |
| 77019 | Tank Sub-assy, Fuel Expansion |
| 77019A | Hose, Fuel, NO.1(FOR FUEL EXPANSION TANK) |
| 77019B | Hose, Fuel, NO.2(FOR FUEL EXPANSION TANK) |
| 77019E | Tube, Fuel, NO.1(FOR FUEL EXPANSION TANK) |
| 77019F | Tube, Fuel, NO.2(FOR FUEL EXPANSION TANK) |
| 77019G | Tube, Fuel, NO.3(FOR FUEL EXPANSION TANK) |
| 77019S | Way, 3(FOR FUEL EXPANSION TANK) |
| 77019T | Way, 4(FOR FUEL EXPANSION TANK) |
| 77022 | Separator Sub-assy, Fuel Evaporative |
| 77022A | Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022B | Grommet(FOR FUEL EVAPORATIVE SEPARATOR FUEL HOSE) |
| 77022C | Hose OR Tube(FOR FUEL EVAPORATIVE SEPARATOR) |
| 77022E | Plate, Fuel Hose |
| 77031 | Cap Assy, Fuel Tank |
| 77031B | Gasket (FOR FUEL TANK CAP) |
| 77100 | Tank Assy, Fuel |
| 77100A | Plug(FOR FUEL TANK) |
| 77100B | Gasket(FOR FUEL TANK) |
| 77100D | Hose, Fuel, NO.1(FOR FUEL TANK) |
| 77108 | Protector Sub-assy, Fuel Tank |
| 77141A | Reinforcement, Fuel Tank Flange |
| 77161 | Bracket, Fuel Tank, Front RH |
| 77162 | Bracket, Fuel Tank, Front LH |
| 77163 | Bracket, Fuel Tank, Rear RH |
| 77164 | Bracket, Fuel Tank, Rear LH |
| 77166 | Cushion, Fuel Tank Protector |
| 77168 | Protector, Storage Case |
| 77176 | Pan, Case Storage Under |
| 77194 | Cover, Fuel Tank Expansion Tank |
| 77198 | Pad, Fuel Expansion Tank |
| 77200 | Pipe Assy, Fuel Strainer And Outer Inlet |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77201A | Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE) |
| 77205 | Tube Sub-assy, Fuel Main |
| 77206 | Tube Sub-assy, Fuel Tank Suction |
| 77206G | Gasket (FOR FUEL TANK SUCTION TUBE) |
| 77209 | Connector Sub-assy, Fuel Tube |
| 77213 | Hose, Fuel Tank Sub Inlet |
| 77216 | Cover, Fuel Pipe |
| 77241 | Tube, Fuel Main, NO.1 |
| 77241A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1) |
| 77241B | Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.1) |
| 77241C | Hose, Fuel, NO.3 (FOR MAIN TUBE, NO.1) |
| 77242 | Tube, Fuel Main, NO.2 |
| 77242A | Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2) |
| 77251 | Shield, Fuel Tank, Inlet, NO.1 |
| 77252 | Protector, Fuel Tube |
| 77254 | Tube, Fuel Emission, NO.1 |
| 77254A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.1) |
| 77254B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.1) |
| 77255 | Tube, Fuel Emission, NO.2 |
| 77255A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.2) |
| 77255B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.2) |
| 77256 | Tube, Fuel Emission, NO.3 |
| 77256A | Hose, Fuel, NO.1 (FOR EMISSION TUBE, NO.3) |
| 77256B | Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3) |
| 77275 | Protector, Fuel Evaporative Separator |
| 77275A | Packing, Fuel Evaporative Separator |
| 77277 | Tube, Fuel Return, NO.1 |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277B | Hose, Fuel, NO.2(FOR RETURN TUBE, NO.1) |
| 77277C | Hose, Fuel, NO.3(FOR RETURN TUBE, NO.1) |
| 77277D | Hose, Fuel, NO.4 (FOR RETURN TUBE, NO.1) |
| 77277E | Hose, Fuel, NO.5 (FOR RETURN TUBE, NO.1) |
| 77308 | Cover Sub-assy, Fuel Inlet Box |
| 77308A | Cushion(FOR FUEL INLET BOX COVER) |
| 77308B | Spring, Torsion(FOR FUEL INLET BOX COVER) |
| 77308C | Pin, Straight(FOR FUEL INLET BOX COVER) |
| 77308E | Plate, Fuel Inlet Box |
| 77308P | Knob, Fuel Inlet Cover |
| 77309 | Hinge Sub-assy, Fuel Inlet Box Cover |
| 77358 | Retainer, Fuel Inlet Cushion |
| 77500 | Tank Assy, Auxiliary Fuel |
| 77501 | Bracket Assy, Auxiliary Fuel Tank |
| 77502 | Cap Sub-assy, Auxiliary Fuel Tank |
| 77502A | Chain Sub-assy, Auxiliary Fuel Tank Cap |
| 77502B | Packing, Cap(FOR AUXILIARY FUEL TANK CAP) |
| 77504 | Shim, Auxiliary Fuel Tank Bracket |
| 77506 | Band Sub-assy, Auxiliary Fuel Tank |
| 77519 | Spacer, Fuel Tank Bracket |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77611 | Band, Fuel Tank |
| 77611A | Pin (FOR FUEL TANK BAND) |
| 77614 | Seat, Fuel Tank Band |
| 77631 | Bracket, Fuel Tank, NO.1 |
| 77632 | Bracket, Fuel Tank, NO.2 |
| 77634 | Bracket, Fuel Tank Band, NO.4 |
| 77635 | Bracket, Fuel Tank Band, NO.5 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77663 | Protector, Fuel Tank Breather Tube, Front |
| 77673 | Protector, Fuel Tank Breather Tube, Rear |
| 77701T | Valve, Check (FOR MAIN FUEL TANK) |
| 77740 | Canister Assy, Charcoal |
| 77740A | Hose, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740B | Hose, Fuel, NO.2(FOR CHARCOAL CANISTER) |
| 77740C | Hose, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740D | Hose, Fuel, NO.4(FOR CHARCOAL CANISTER) |
| 77740F | Tube, Fuel, NO.1(FOR CHARCOAL CANISTER) |
| 77740H | Tube, Fuel, NO.3(FOR CHARCOAL CANISTER) |
| 77740J | Plate,Canister Hose Support |
| 77741 | Tube, Fuel Vapor Feed |
| 77741A | Hose, Fuel, (FOR VAPOR FEED) |
| 77752 | Bracket, Charcoal Canister Support |
| 77759 | Hose, Charcoal Canister |
| 77791 | Hose, Outer Vent Valve TO Carburetor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
