Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

11 part groups · 2 illustrations

Illustrations

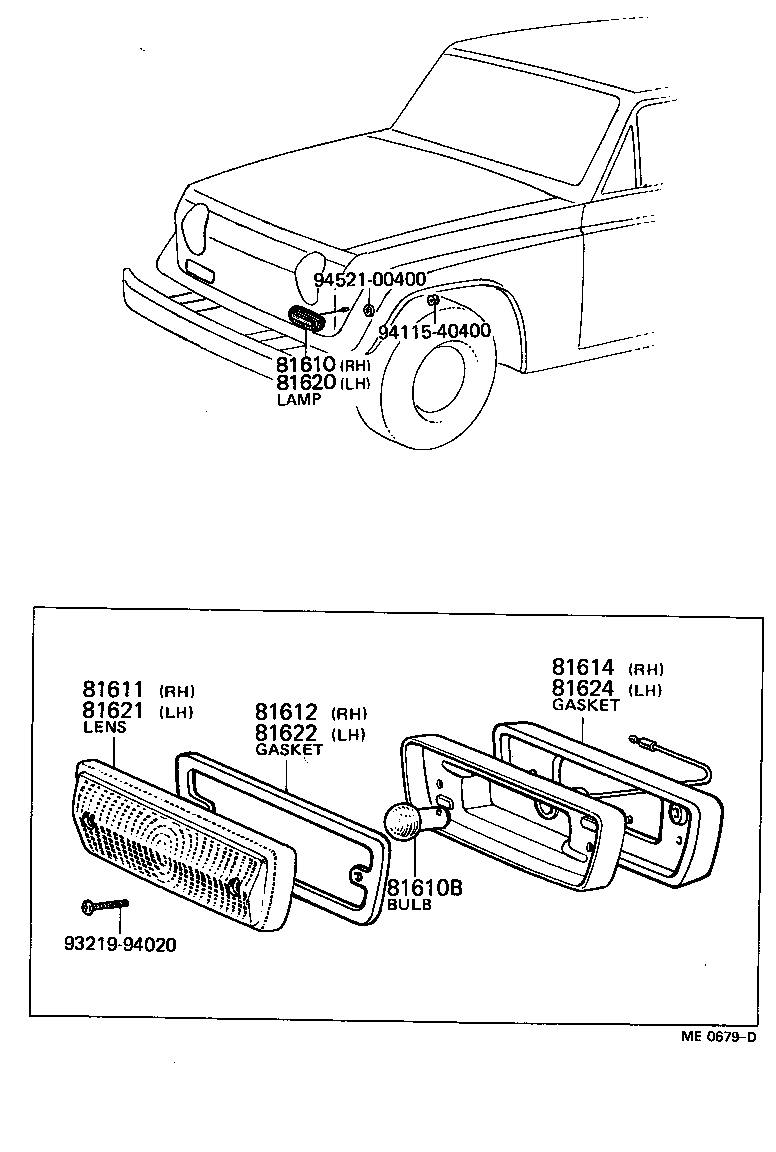

Figure ME0678C ME0678C 1969-03 → 1969-10 Figure ME0679D ME0679D 1969-03 → 1969-10

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81612 Gasket, Parking And Clearance Lamp Lens, RH
81614 Gasket, Parking And Clearance Lamp Body, RH
81616 Rim, Parking And Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81622 Gasket, Parking And Clearance Lamp Lens, LH
81624 Gasket, Parking And Clearance Lamp Body, LH
81626 Rim, Parking And Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
