Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

40 part groups · 16 illustrations

Illustrations

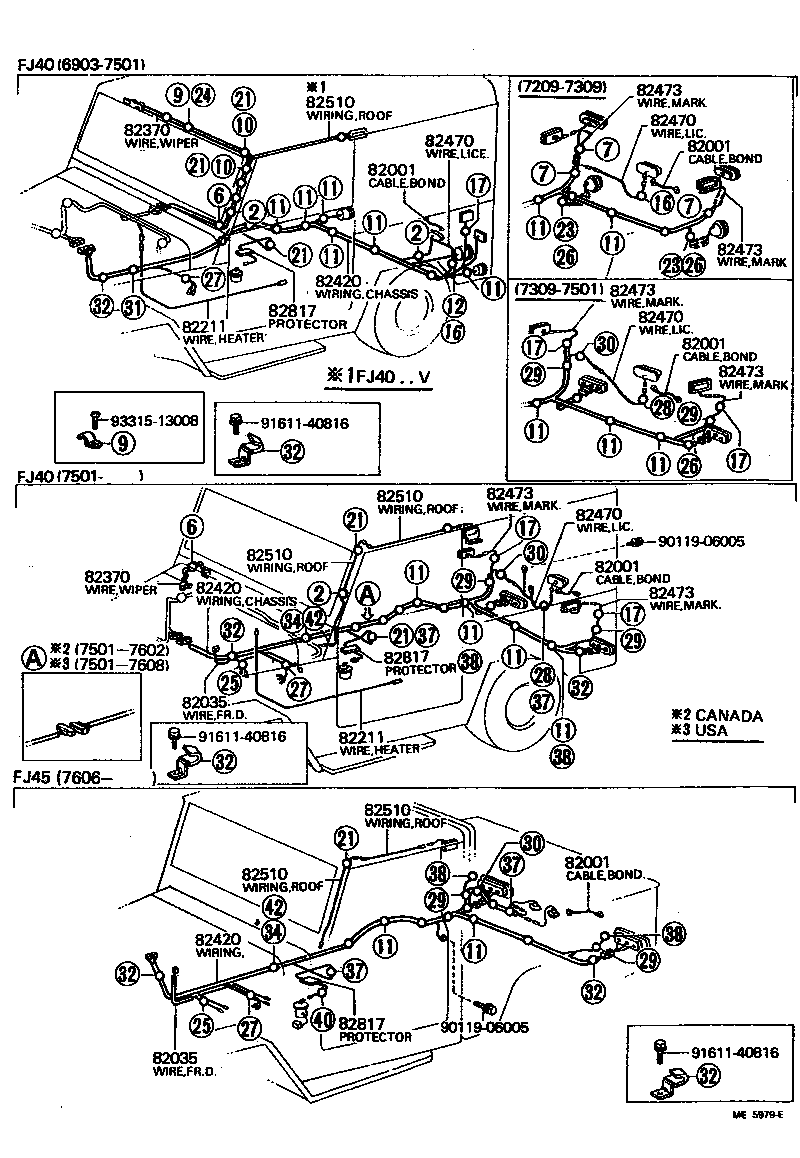

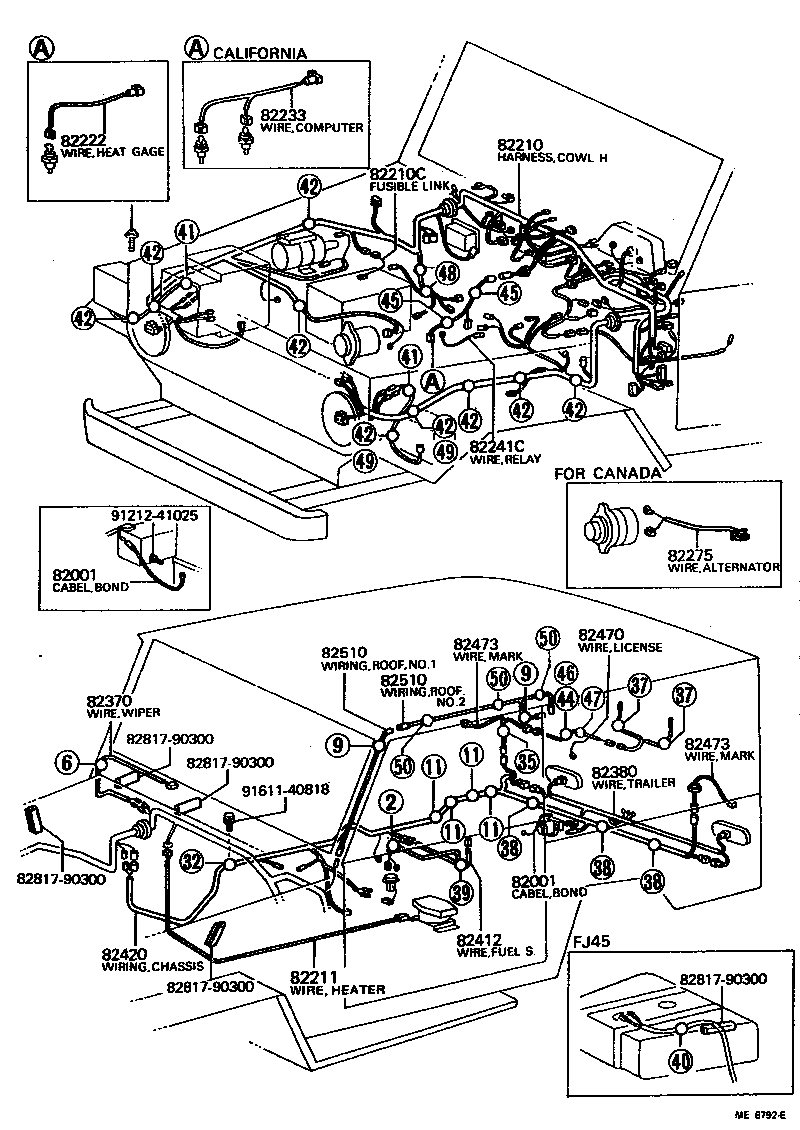

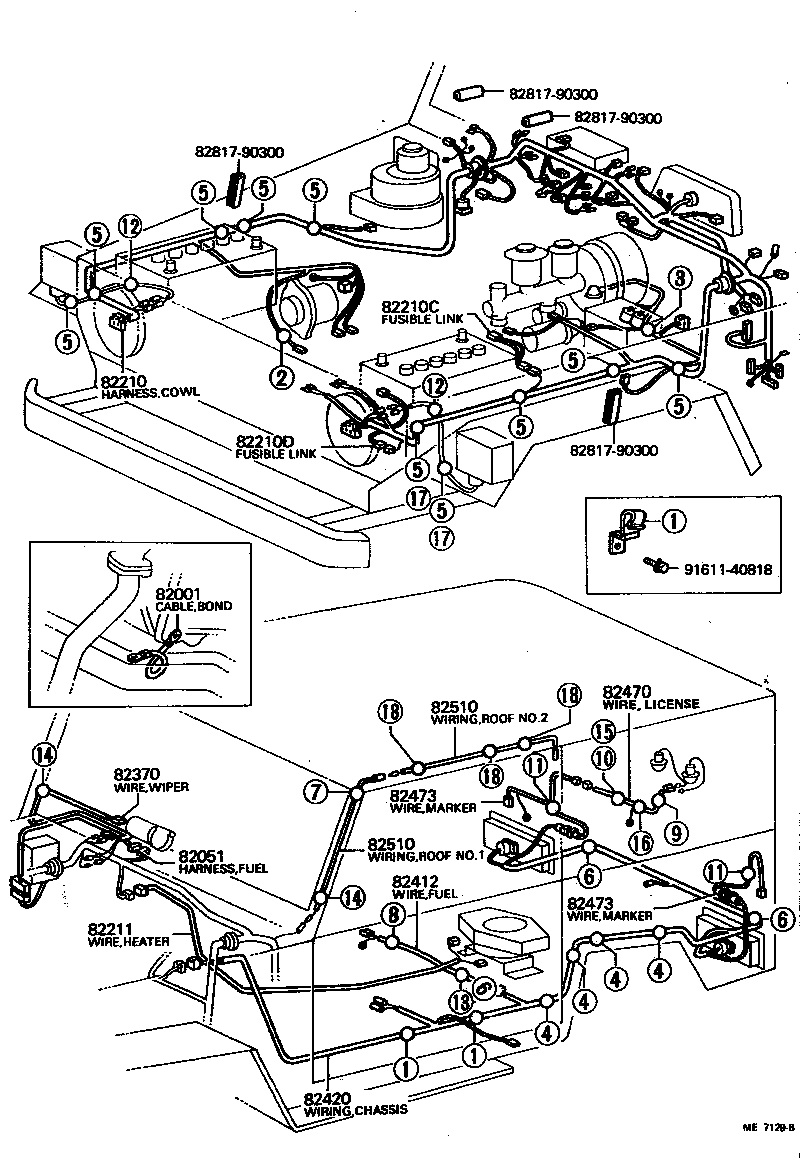

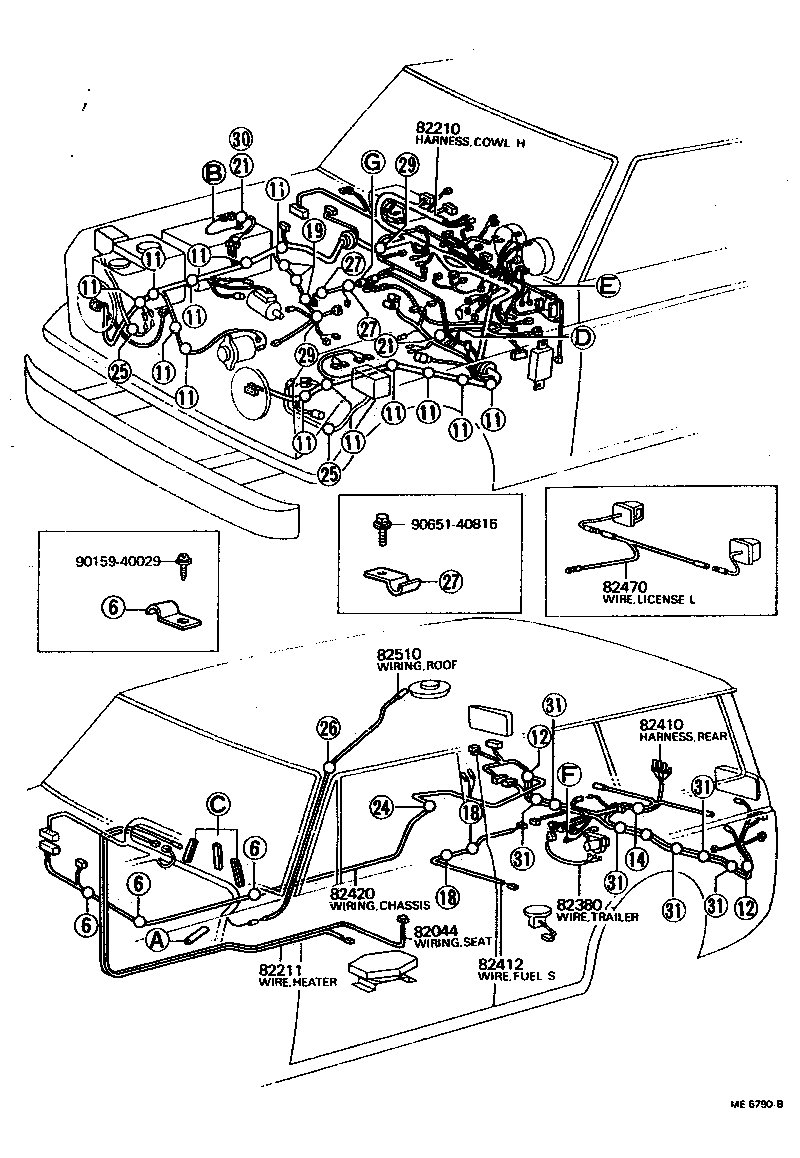

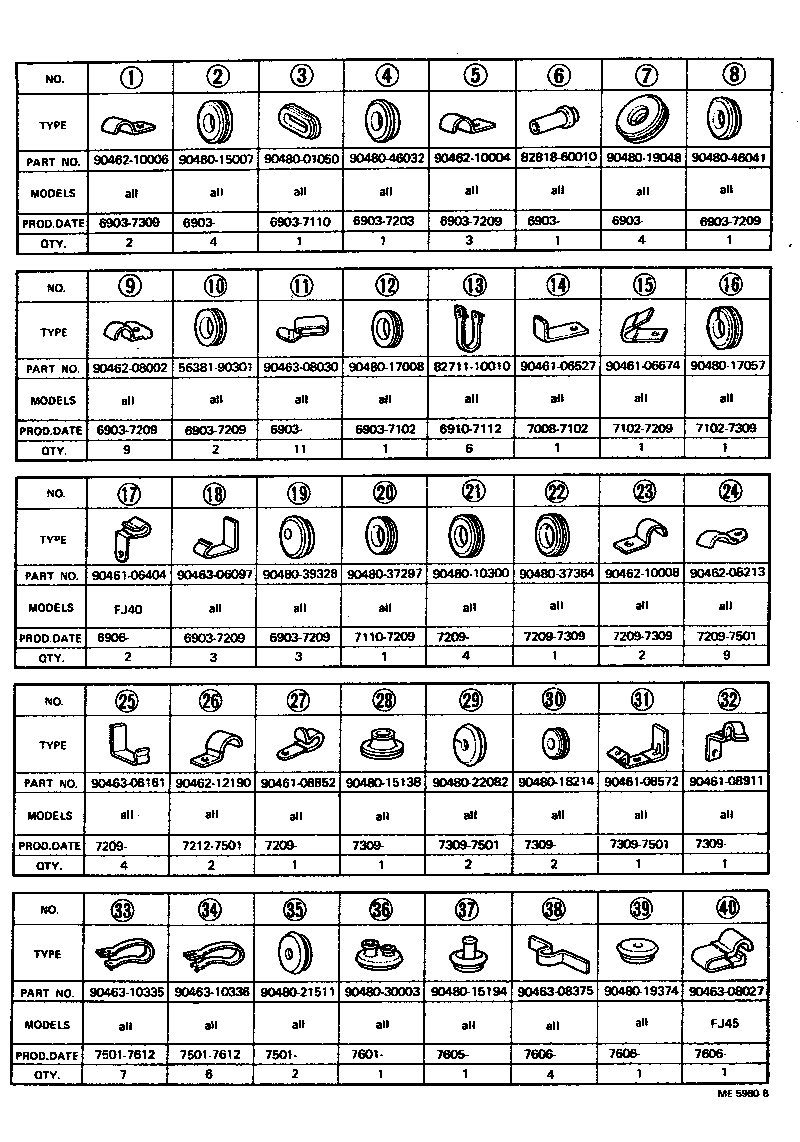

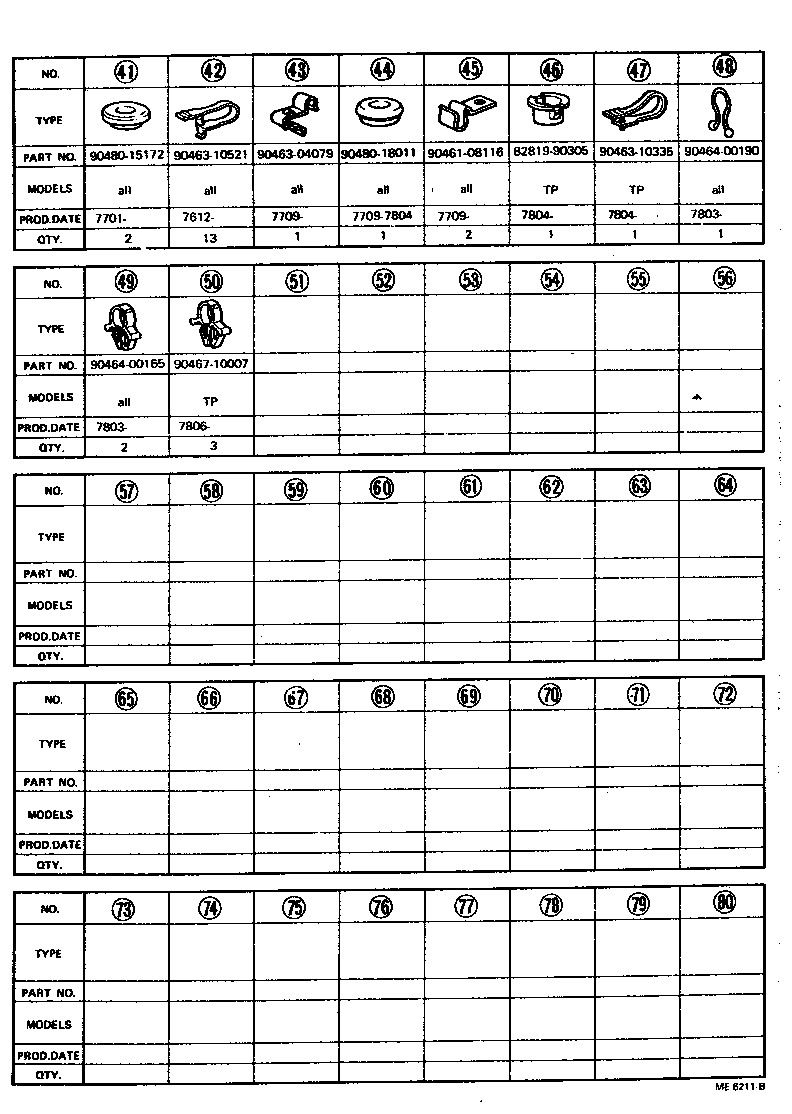

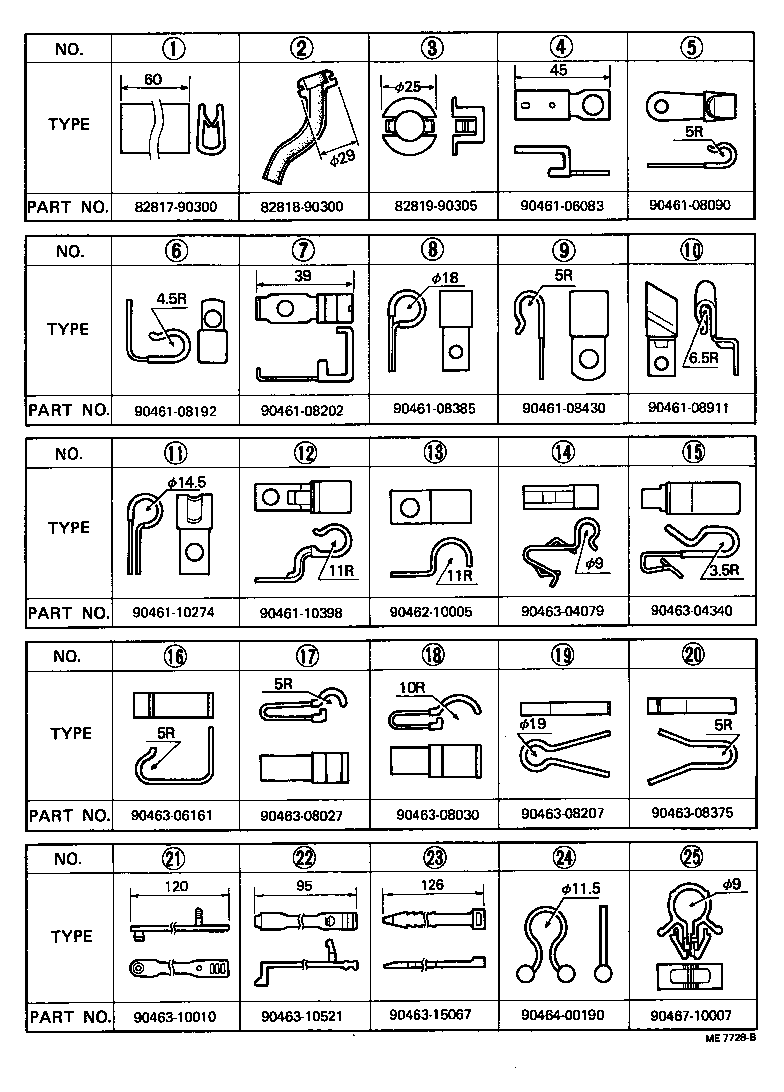

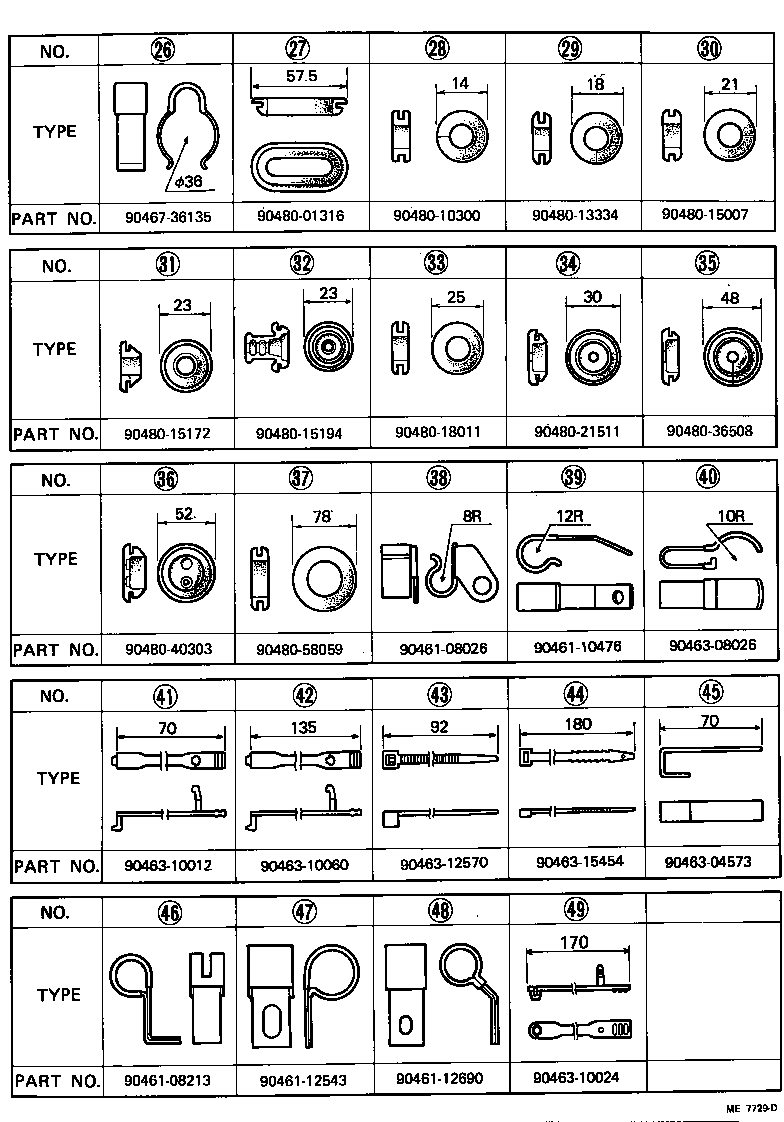

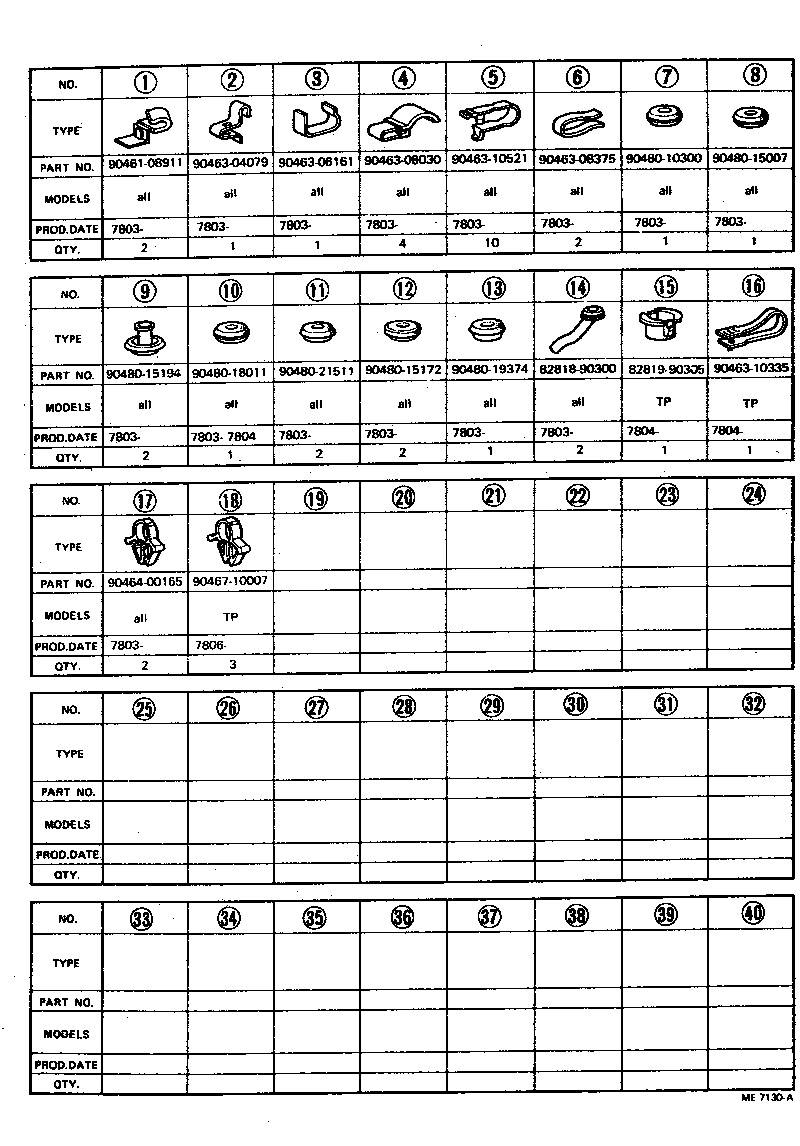

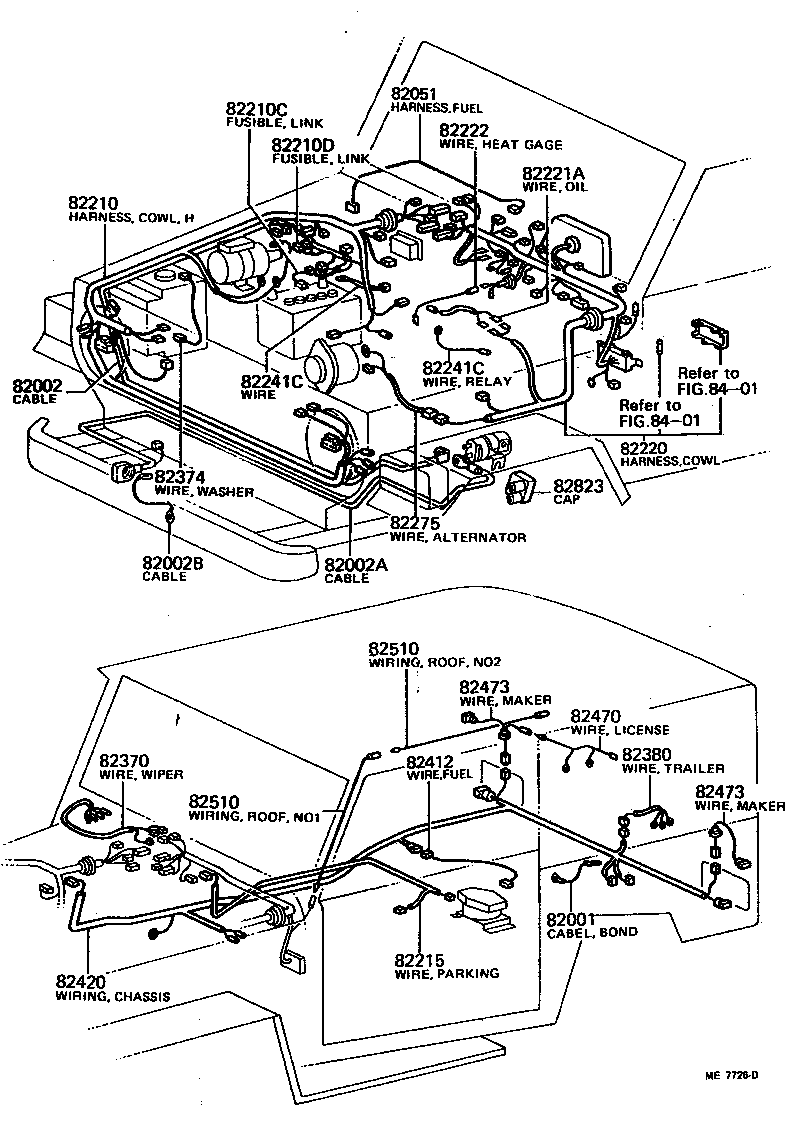

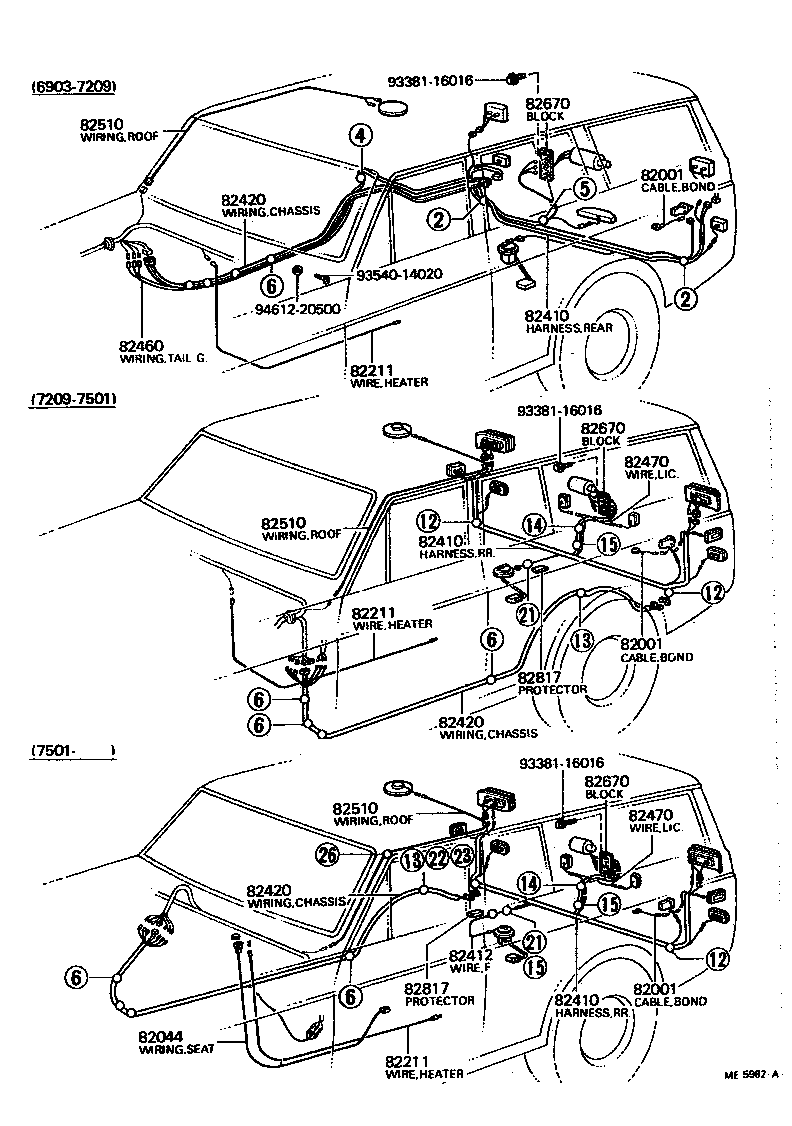

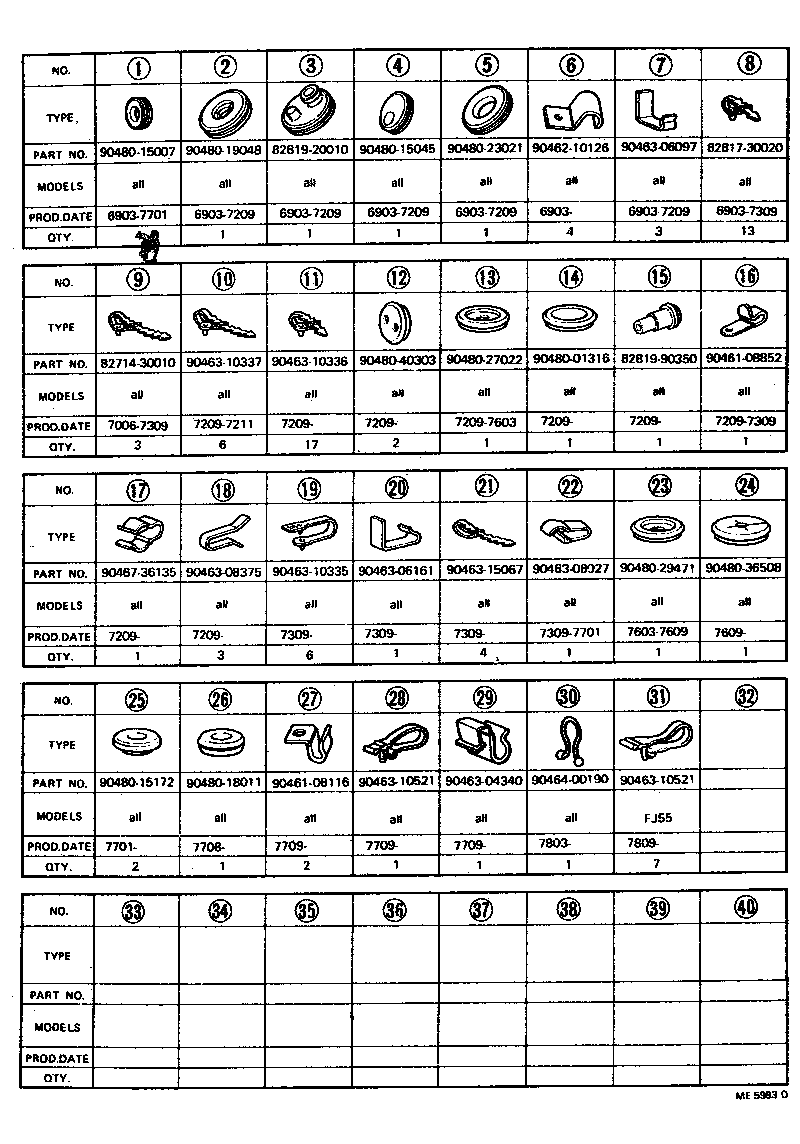

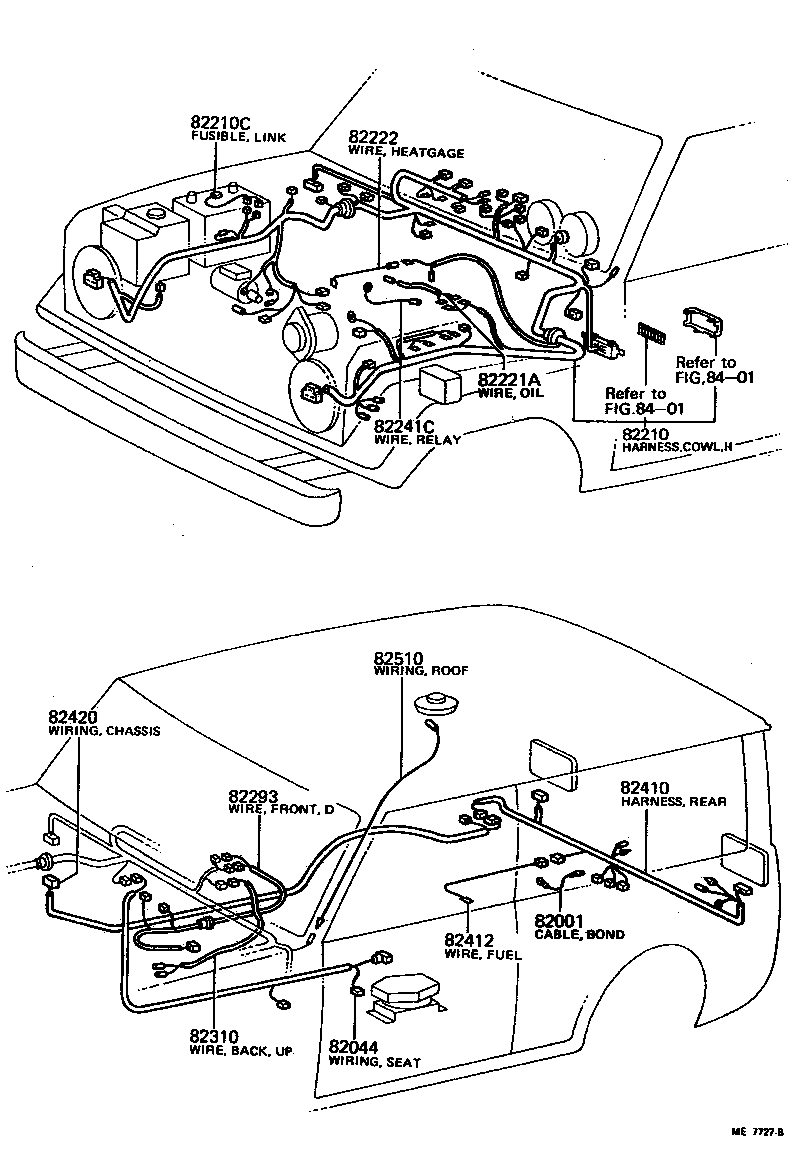

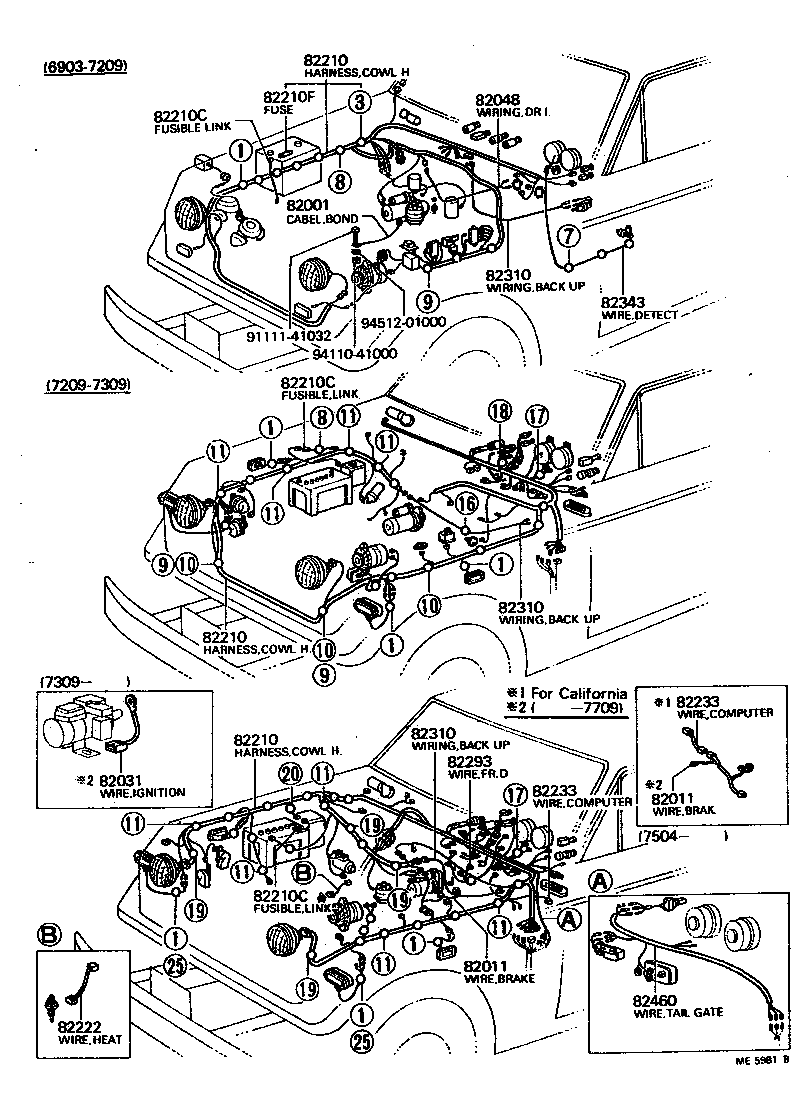

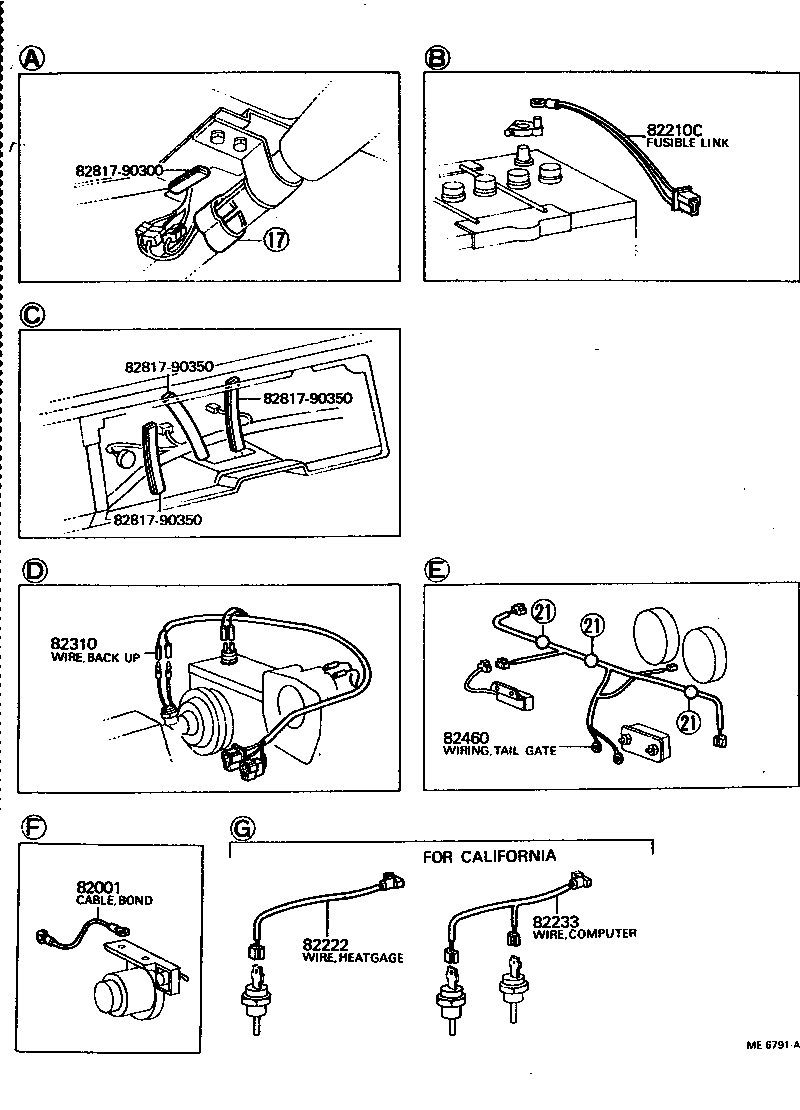

Figure ME5978B ME5978B 1969-03 → 1977-09 Figure ME5979E ME5979E 1969-03 → 1977-09 Figure ME6792E ME6792E 1977-09 → 1979-01 Figure ME5980B ME5980B 1969-09 → 1979-01 Figure ME6211B ME6211B 1969-03 → 1979-01 Figure ME5981B ME5981B 1969-03 → 1977-09 Figure ME5982A ME5982A 1969-03 → 1977-09 Figure ME6790B ME6790B 1977-09 → 1979-01 Figure ME6791A ME6791A 1977-09 → 1979-01 Figure ME5983D ME5983D 1969-03 → 1979-01 Figure ME7129B ME7129B 1978-03 → 1979-01 Figure ME7130A ME7130A 1978-03 → 1979-01 Figure ME7726D ME7726D 1979-01 → 1980-07 Figure ME7727B ME7727B 1979-01 → 1980-07 Figure ME7728B ME7728B 1979-01 → 1980-07 Figure ME7729D ME7729D 1979-01 → 1980-07

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82002 Cable, Battery TO Magnet Switch
82002A Cable, Magnet Switch TO Winch
82002B Cable, Winch TO Ground
82011 Wiring Assy, Brake Warning System
82031 Wire Sub-assy, Ignition Coil
82035 Wire Sub-assy, Front Drive
82044 Wiring Sub-assy, Seat Switch
82048 Wiring Sub-assy, Front Drive Indicator Lamp Switch
82051 Harness Assy, Fuel Control
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82210D Fusible Link
82210F Fuse, Cowl TO Headlamp Wiring Harness
82211 Wire, Heater Blower Fan Switch
82215 Wire, Parking Brake Lamp Switch
82220 Harness Assy, Wiring Cowl
82221A Wire, Oil Plessure (FOR TANDEM MASTER CYLINDER)
82222 Wire, Heat Gage
82233 Wire, Computer
82241 Wiring Assy, Headlamp Junction
82241C Wire, Relay
82275 Wire, Alternator
82293 Wire Assy, Front Drive Solenoid
82301 Wire Sub-assy, Side Turn Signal Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82343 Wire, Detector
82370 Wire Assy, Wiper Switch TO Wiper
82374 Wire, Washer
82380 Wiring Assy, Trailer Socket
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82420 Wiring Assy, Chassis
82460 Wiring Assy, Tail Gate Regulator
82470 Wire Assy, License Lamp Feed
82473 Wire, Rear Side Marker Lamp
82510 Wiring Assy, Roof
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
