Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Meter

21 part groups · 7 illustrations

Illustrations

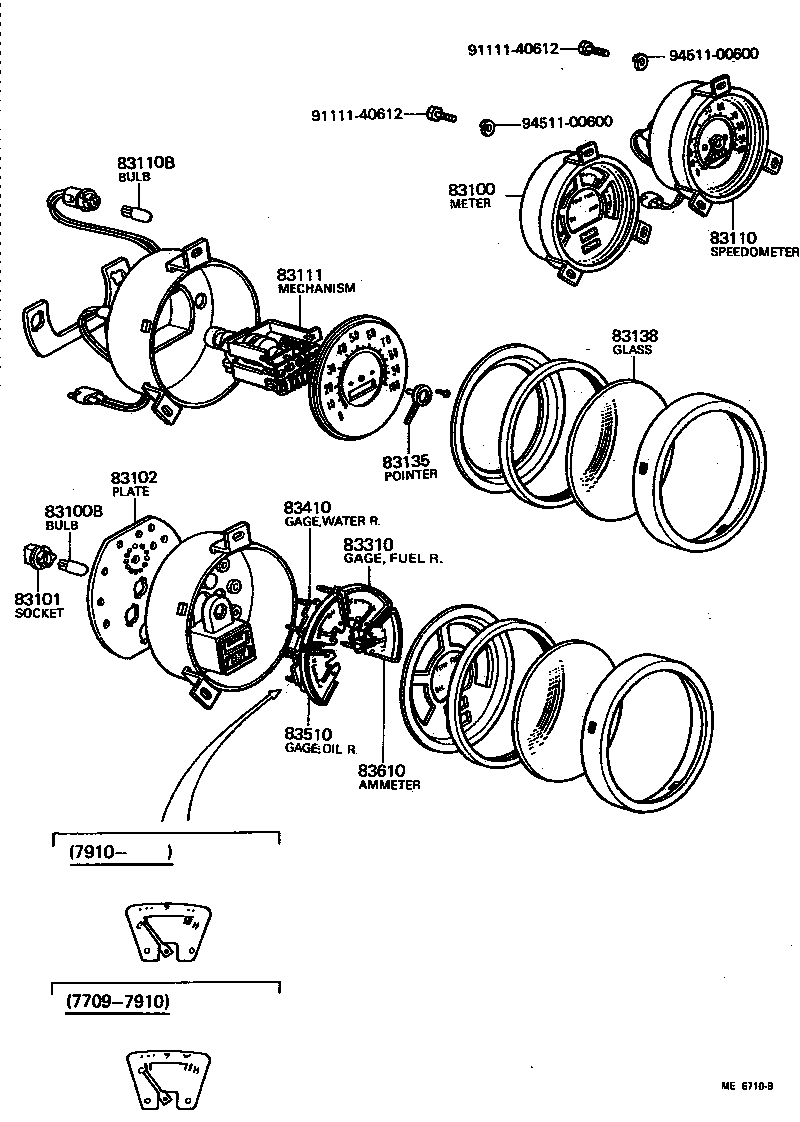

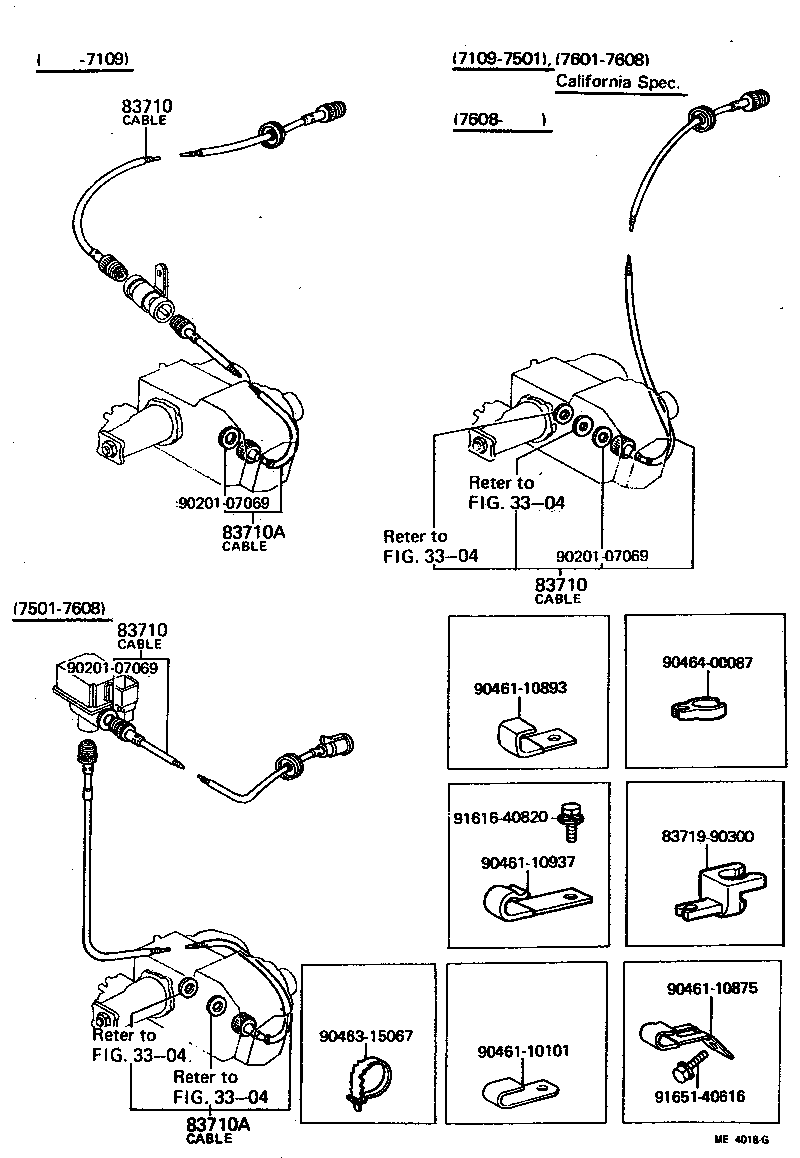

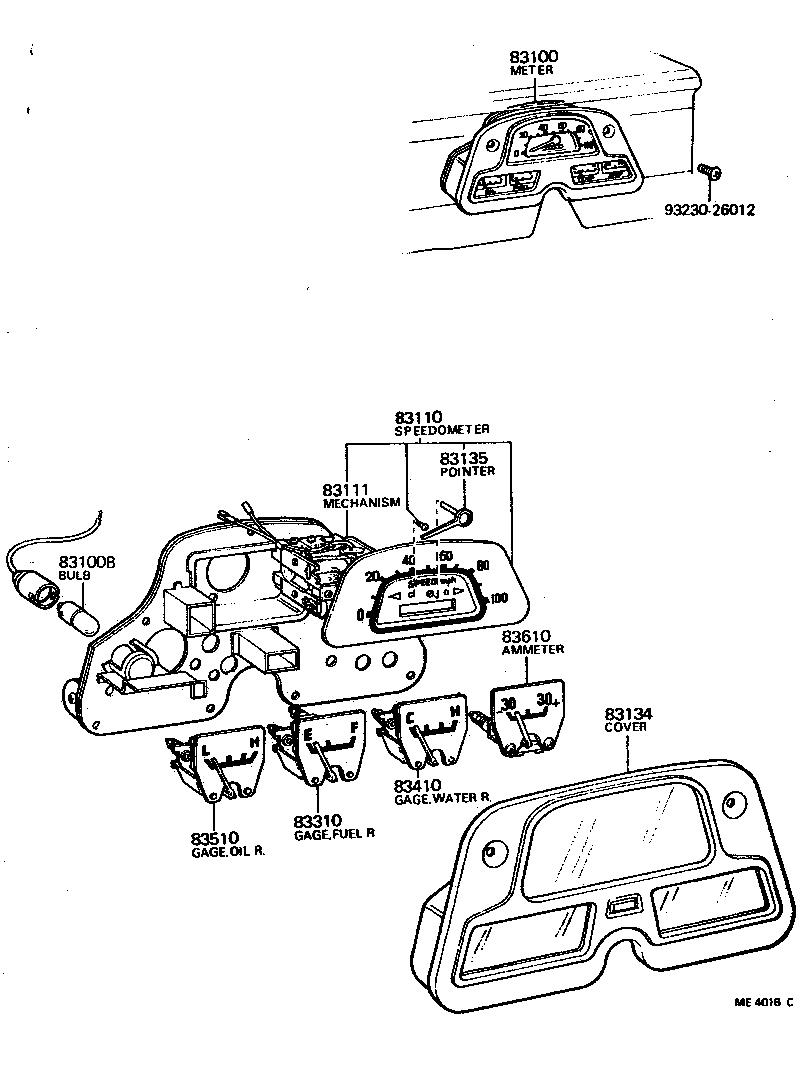

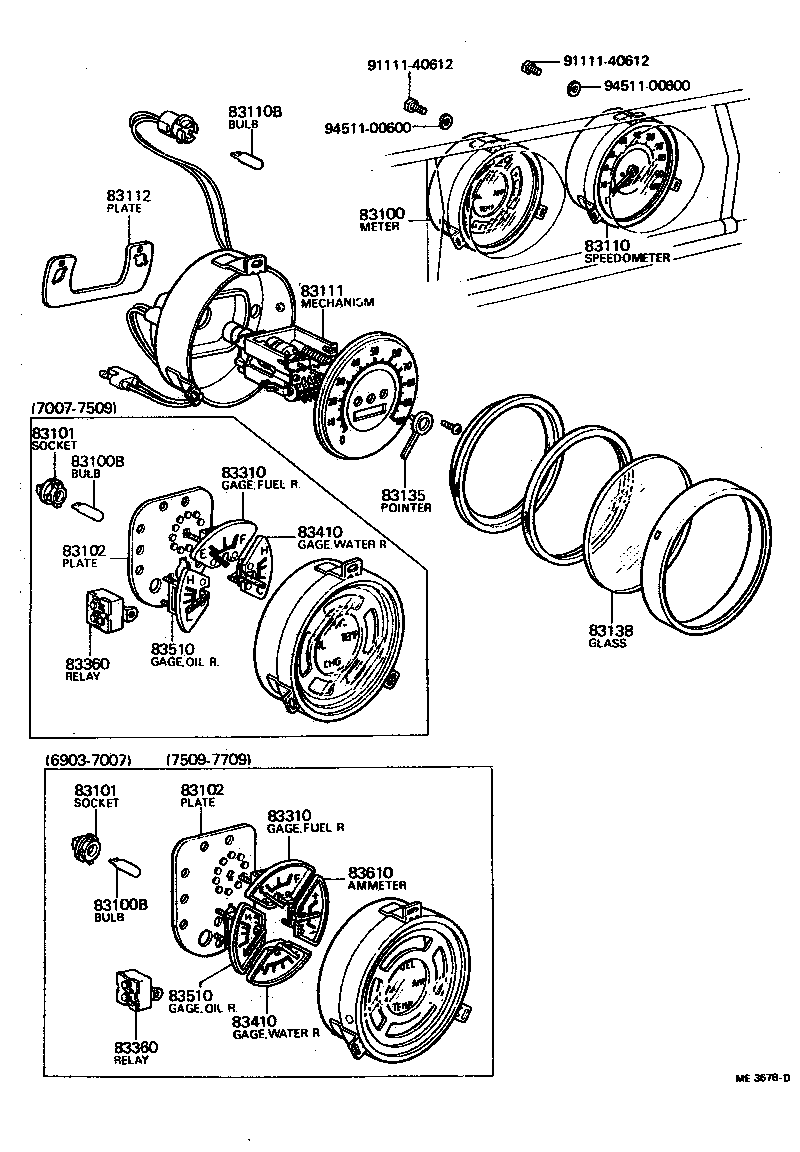

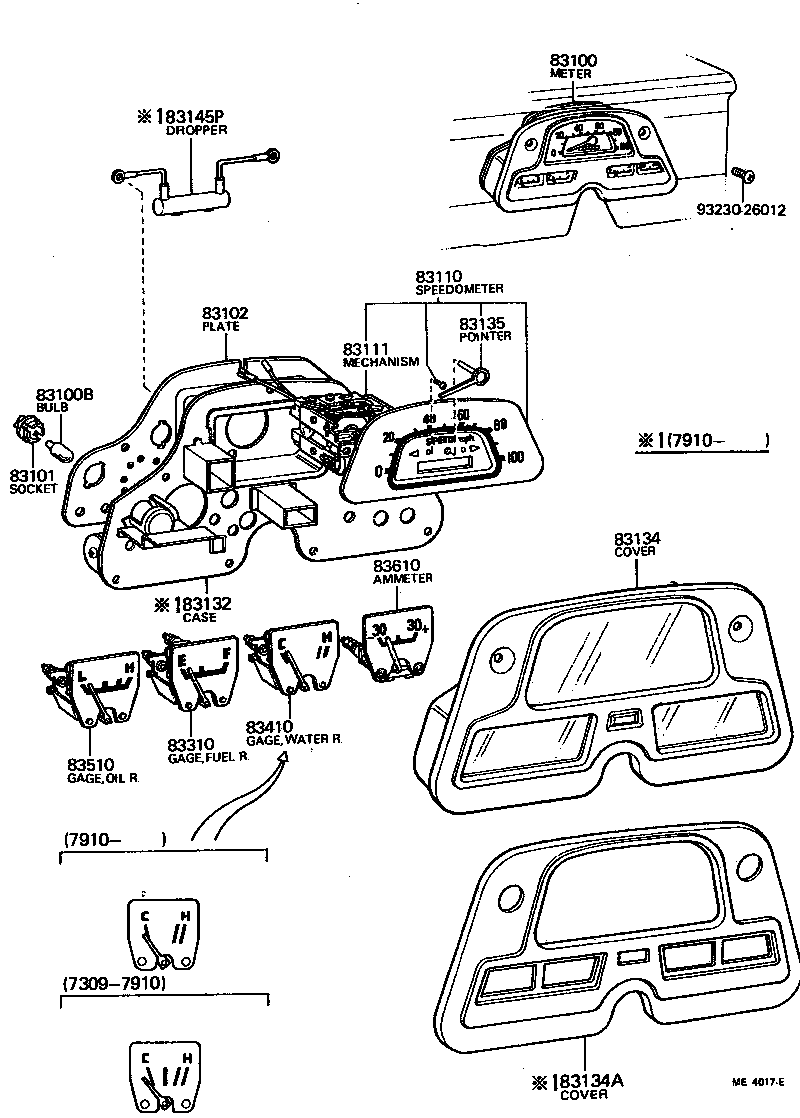

Figure ME4015 ME4015 1969-03 → 1972-09 Figure ME4016C ME4016C 1972-09 → 1973-09 Figure ME4017E ME4017E 1973-09 → 1980-07 Figure ME4017E ME4017E 1978-03 → 1980-07 Figure ME3678D ME3678D 1969-03 → 1977-09 Figure ME6710B ME6710B 1977-09 → 1980-07 Figure ME4018G ME4018G 1969-03 → 1980-07

Part groups

PNCDescription
83100 Meter Assy, Combination
83100B Bulb, Combination Meter, NO.1
83101 Socket Sub-assy, Combination Meter Bulb
83102 Plate Sub-assy, Combination Meter Circuit, NO.1
83110 Speedometer Assy
83110B Bulb, Speedometer
83111 Mechanism, Speedometer
83112 Plate Sub-assy, Speedometer Circuit
83132 Case, Combination Meter
83134 Cover, Combination Meter, NO.1
83134A Cover, Combination Gage
83135 Pointer, Speedometer
83138 Glass, Speedometer
83145P Dropper, Meter
83310 Gage Assy, Fuel Receiver
83360 Relay Assy, Fuel Sender
83410 Gage Assy, Water Temperature Receiver
83510 Gage Assy, Oil Pressure Receiver
83610 Ammeter Assy
83710 Cable Assy, Speedometer Drive, NO.1
83710A Cable Assy, Speedometer Drive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
