Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Wiper

43 part groups · 7 illustrations

Illustrations

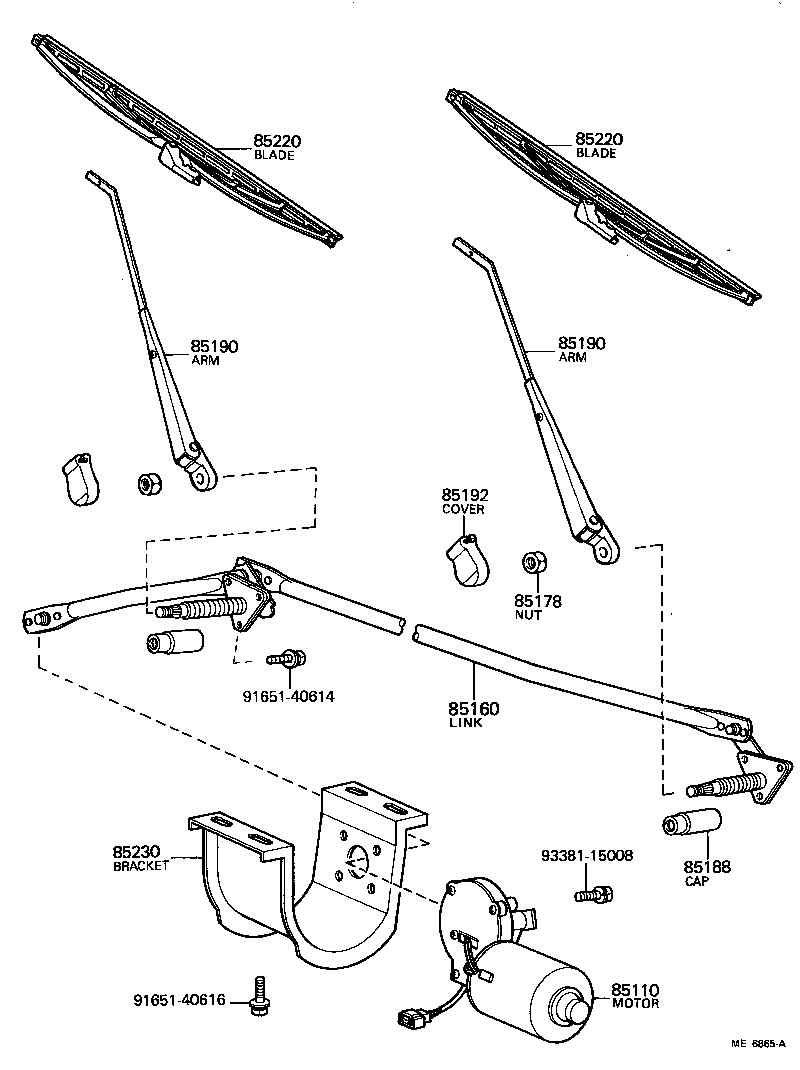

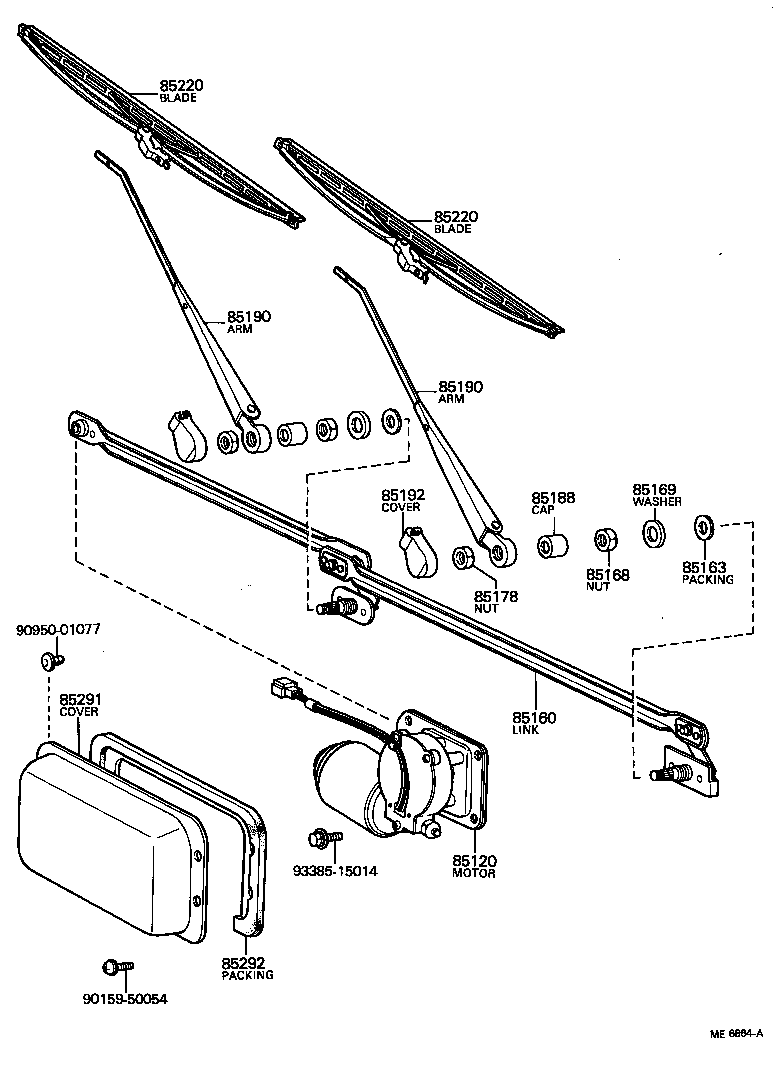

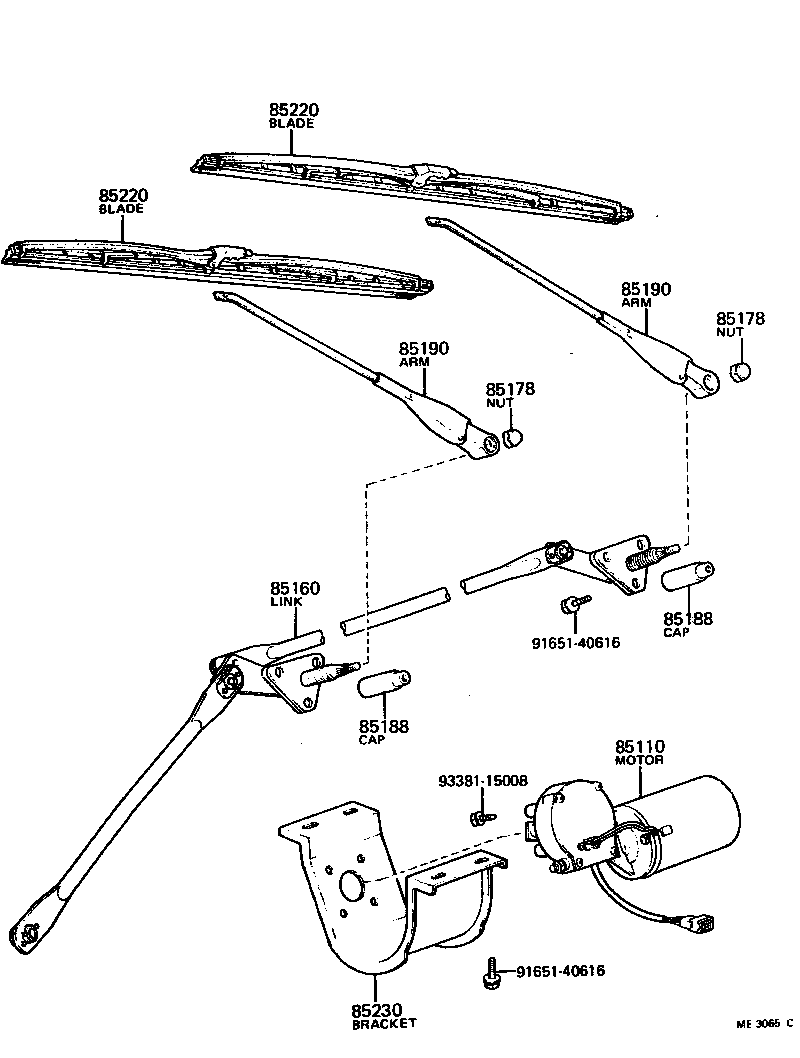

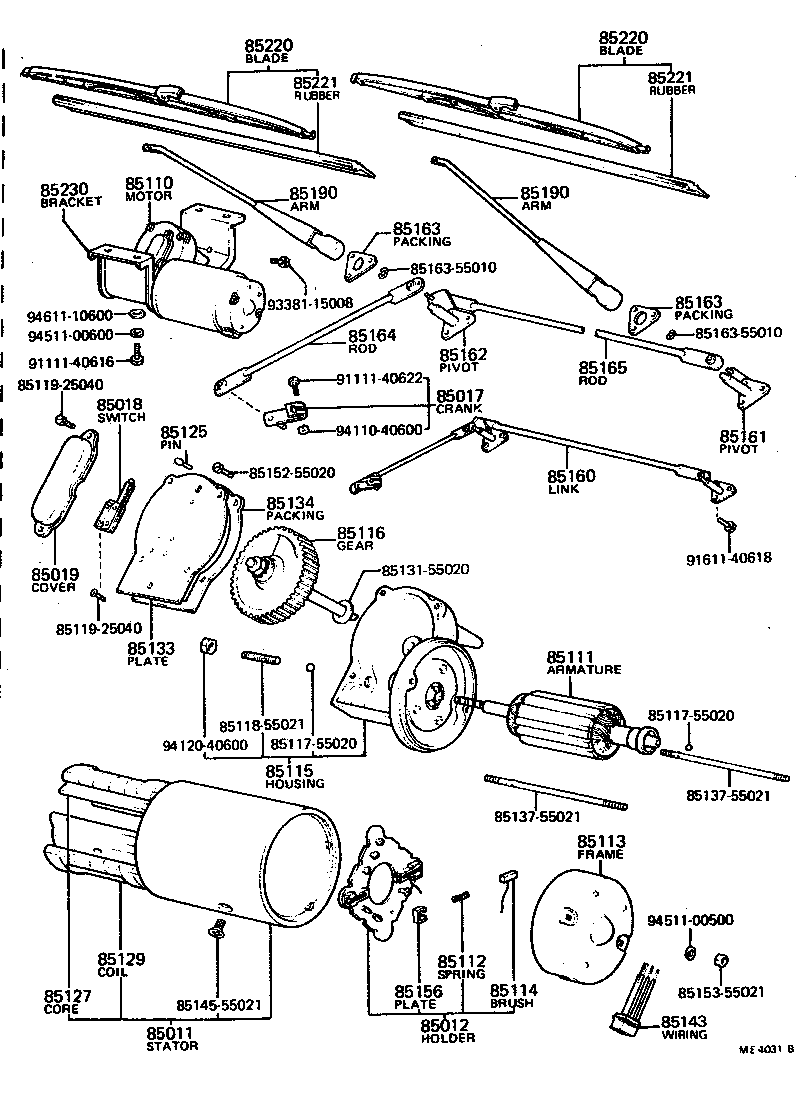

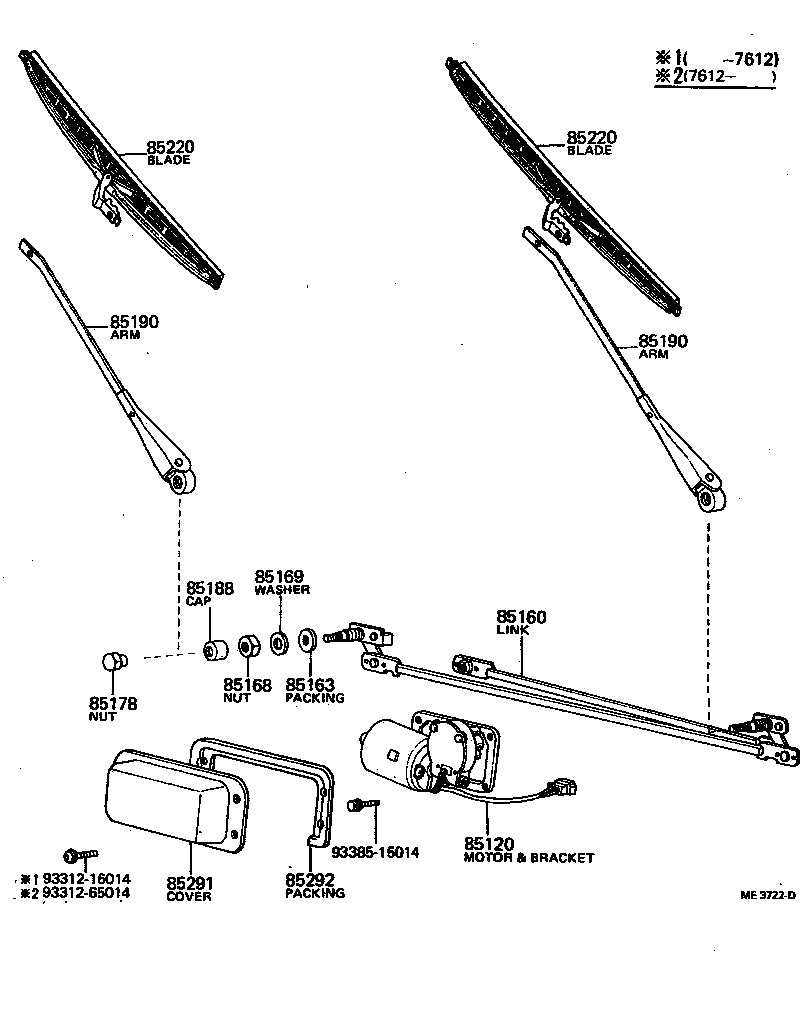

Figure ME4030A ME4030A 1969-03 → 1975-01 Figure ME3722D ME3722D 1975-01 → 1977-09 Figure ME6864A ME6864A 1977-09 → 1980-07 Figure ME6864A ME6864A 1978-03 → 1980-07 Figure ME4031B ME4031B 1969-03 → 1971-09 Figure ME3065C ME3065C 1971-09 → 1977-09 Figure ME6865A ME6865A 1977-09 → 1980-07

Part groups

PNCDescription
85011 Stator Sub-assy, Windshield Wiper Motor
85012 Holder Sub-assy, Windshield Wiper Motor Brush
85014 Shaft Sub-assy, Windshield Wiper Drive
85017 Crank Sub-assy, Windshield Wiper Link
85018 Switch Sub-assy, Windshield Wiper Auto Stop
85019 Cover, Windshield Wiper Motor Auto Stop Switch
85110 Motor Assy, Windshield Wiper
85111 Armature, Windshield Wiper Motor
85112 Spring, Windshield Wiper Motor Brush
85113 Frame, Windshield Wiper Motor End
85114 Brush, Windshield Wiper Motor
85115 Housing, Windshield Wiper Motor Gear
85116 Gear, Windshield Wiper Motor
85120 Motor And Bracket Assy, Windshield Wiper
85125 Pin, Windshield Wiper Motor Auto Stop Switch
85127 Core, Windshield Wiper Motor Pole
85129 Coil, Windshield Wiper Motor Field
85133 Plate, Windshield Wiper Motor Gear Housing Cover
85134 Gasket, Windshield Wiper Motor Gear Housing Cover
85136 Packing, Windshield Wiper Motor Wire
85138 Plate, Windshield Wiper Motor Gear
85143 Wiring, Windshield Wiper Motor Lead
85148 Plug, Windshield Wiper Motor Gear Case Hole
85156 Plate, Windshield Wiper Motor Brush
85160 Link Assy, Windshield Wiper
85161 Pivot, Windshield Wiper Link, NO.1
85162 Pivot, Windshield Wiper Link, NO.2
85163 Packing, Windshield Wiper Pivot
85164 Rod, Windshield Wiper Link, NO.1
85165 Rod, Windshield Wiper Link W/Crank
85168 Nut, Windshield Wiper Link Pivot
85169 Washer, Windshield Wiper Link Pivot, NO.1
85172 Plate, Windshield Wiper Link Pivot Housing End
85178 Nut (FOR FRONT WIPER ARM SETTING)
85186 Packing, Windshield Wiper Link Pivot, B
85188 Cap, Windshield Wiper Pivot, NO.1
85190 Arm Assy, Windshield Wiper
85192 Cover, Windshield Wiper Arm
85220 Blade Assy, Windshield Wiper
85221 Blade, Windshield Wiper
85230 Bracket Assy, Windshield Wiper
85291 Cover, Windshield Wiper Motor
85292 Packing, Windshield Wiper Motor
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
