Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

12 part groups · 6 illustrations

Illustrations

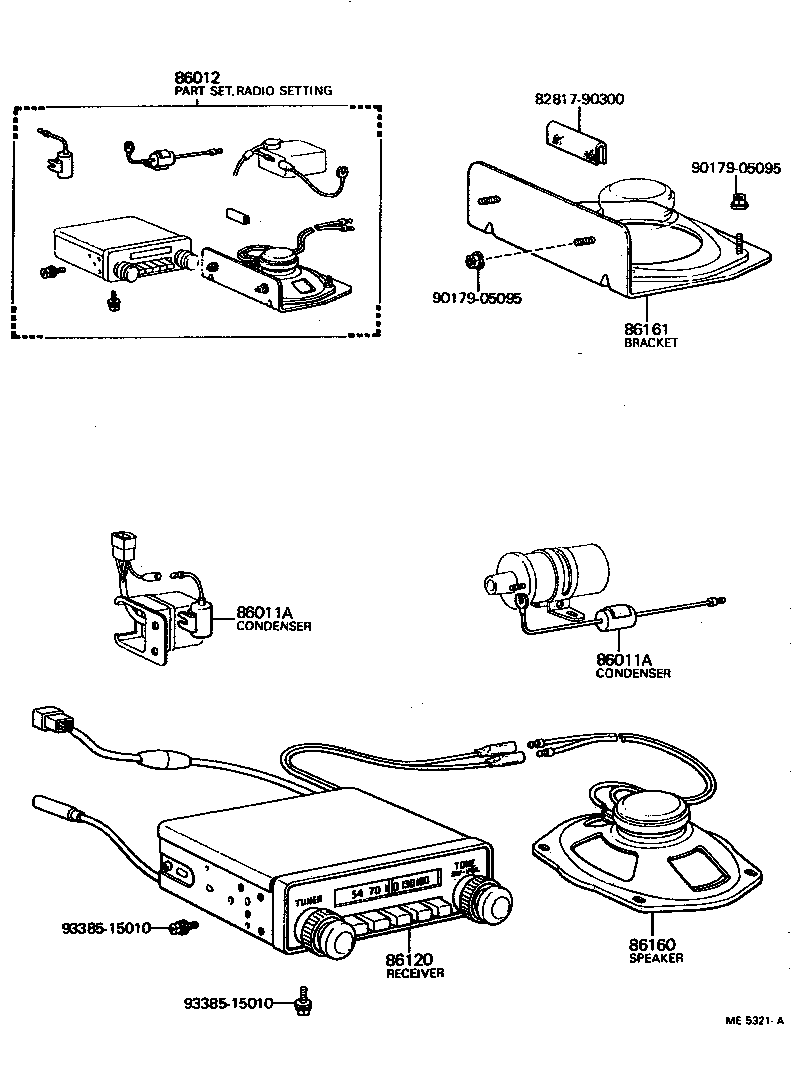

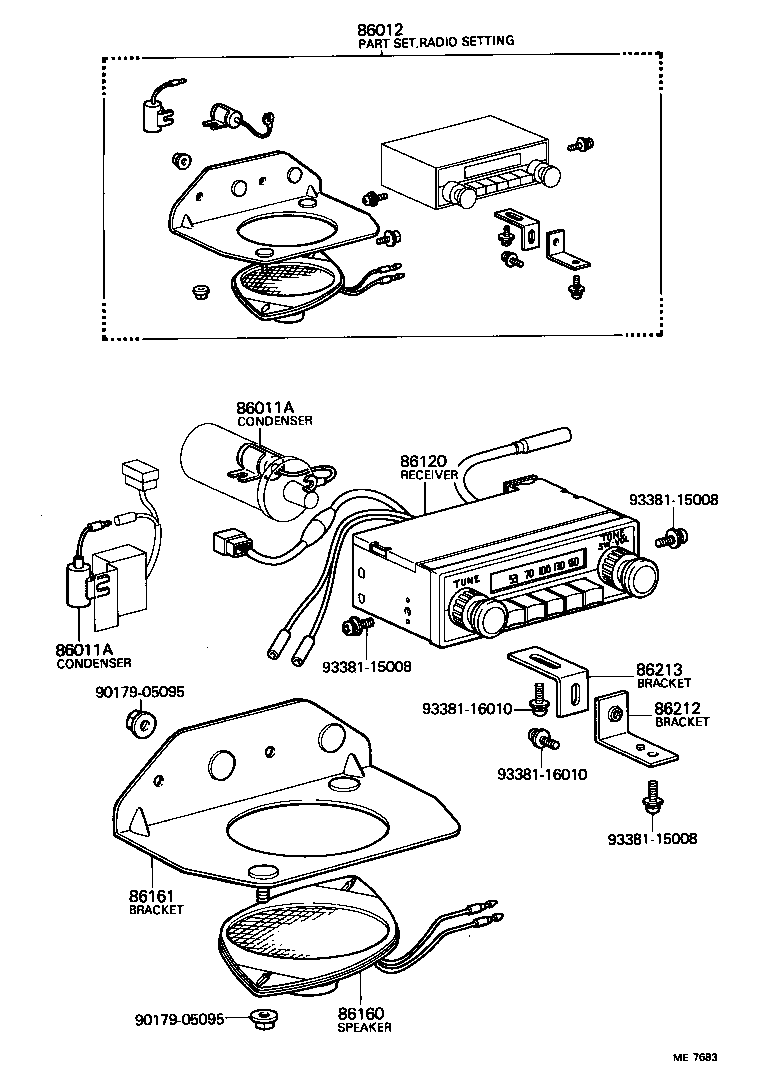

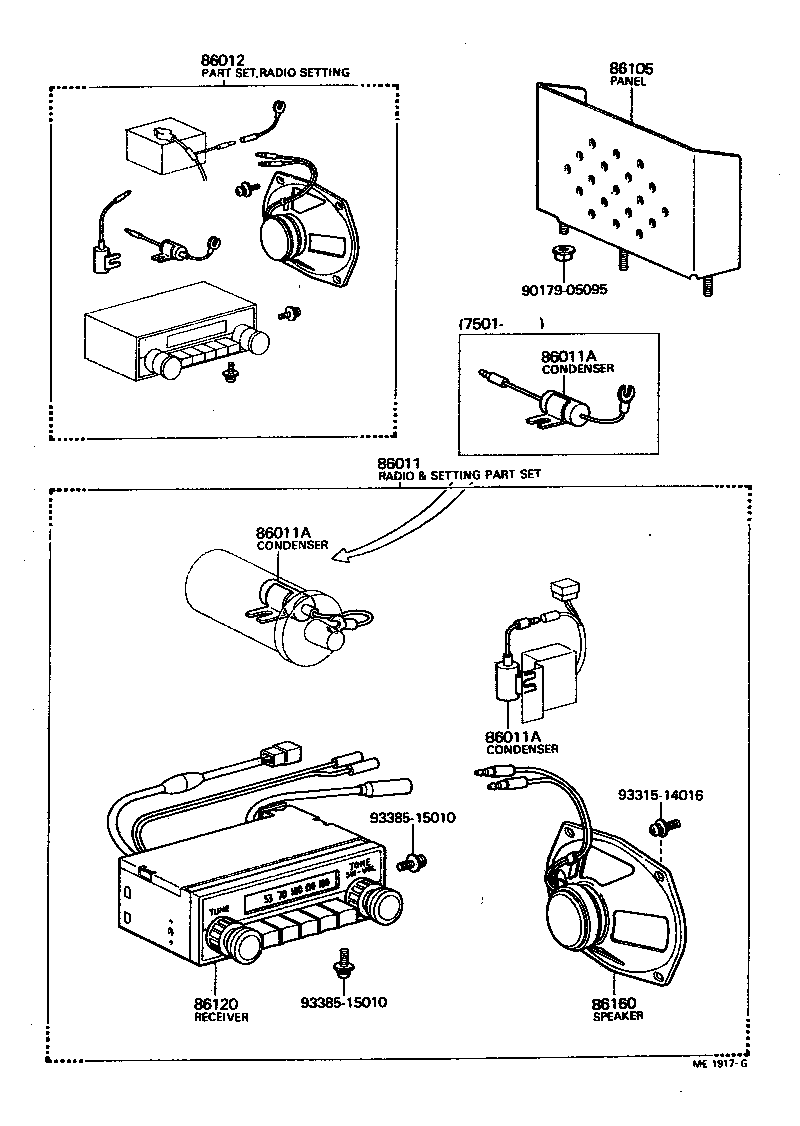

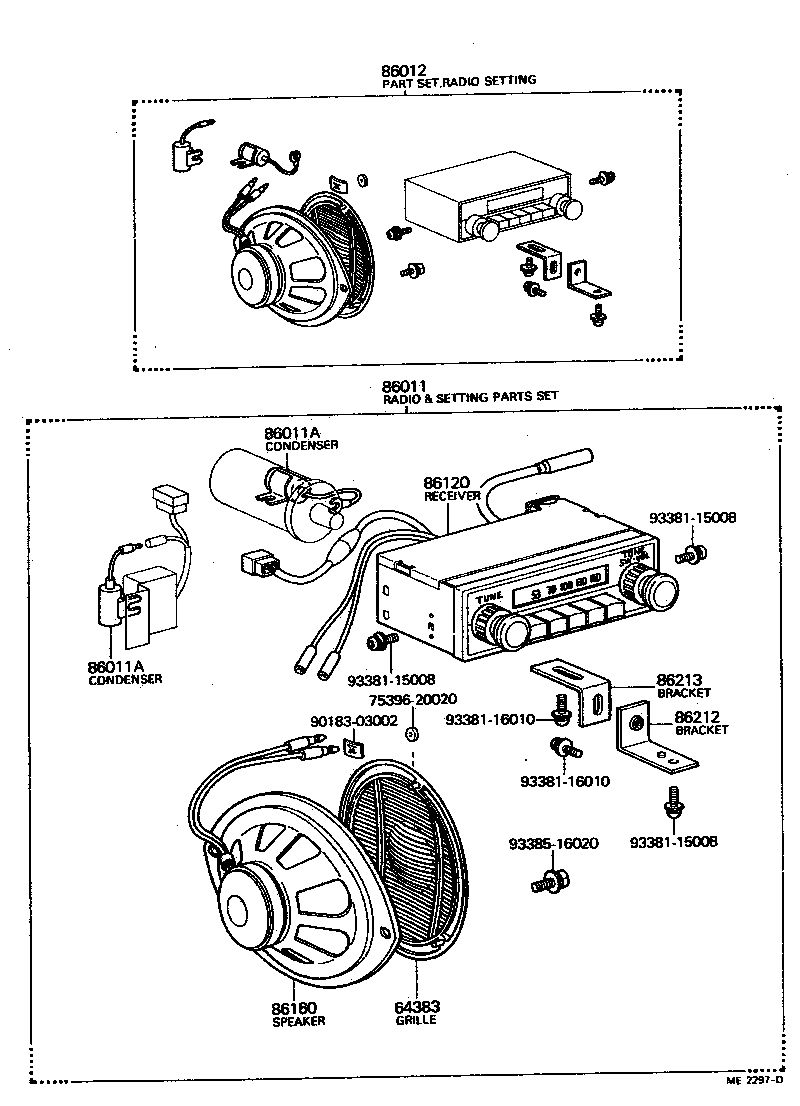

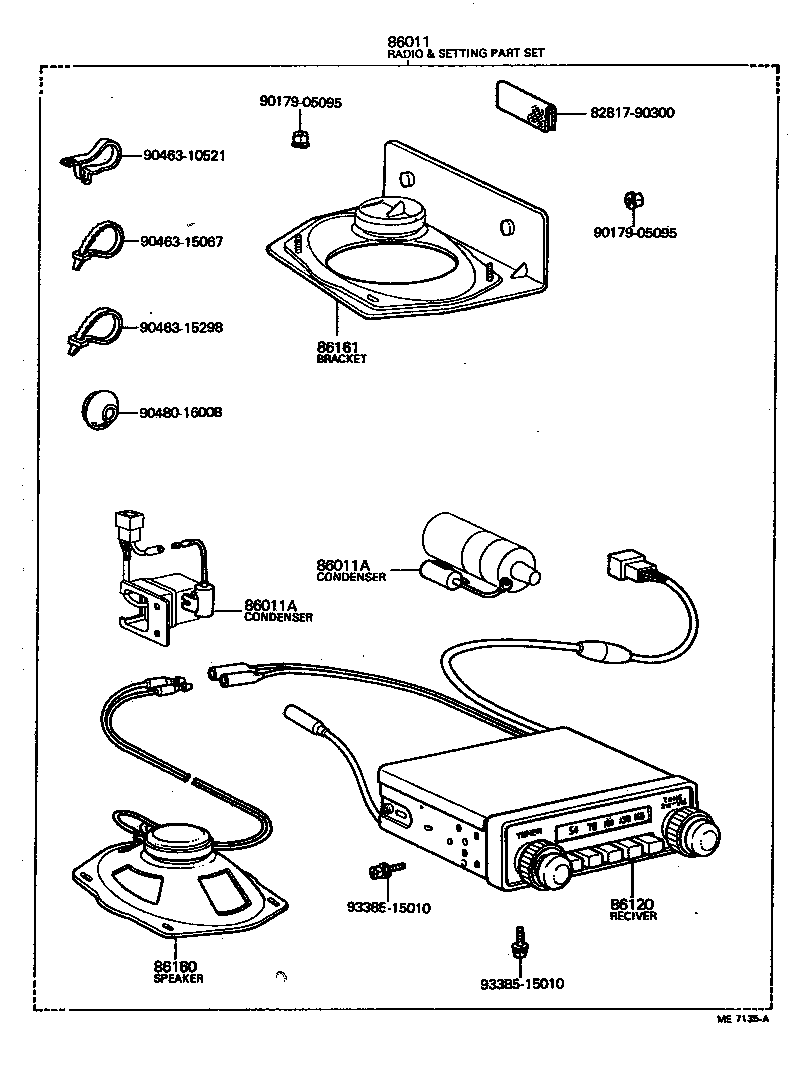

Figure ME4032B ME4032B 1969-03 → 1972-09 Figure ME1917G ME1917G 1972-09 → 1976-08 Figure ME5321A ME5321A 1976-08 → 1980-07 Figure ME2297D ME2297D 1972-09 → 1979-01 Figure ME7683 ME7683 1979-01 → 1980-07 Figure ME7135A ME7135A 1978-03 → 1980-07

Part groups

PNCDescription
64383 Grille, Speaker, Rear
86011 Radio & Setting Parts Set
86011A Condenser, Radio Setting
86012 Parts Set, Radio Setting
86105 Panel Sub-assy, Speaker Separate
86120 Receiver Assy, Radio
86160 Speaker Assy, Front NO.1
86161 Bracket, Speaker, Front NO.1
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86213 Bracket, Radio, NO.3
86214 Bracket, Radio, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
