Toyota Land Cruiser

1969-03 → 1980-07 · chassis BJ40,FJ4#,55 · catalogue 791410 · United States

Discontinued model Data version 1985-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Set

4 part groups · 6 illustrations

Illustrations

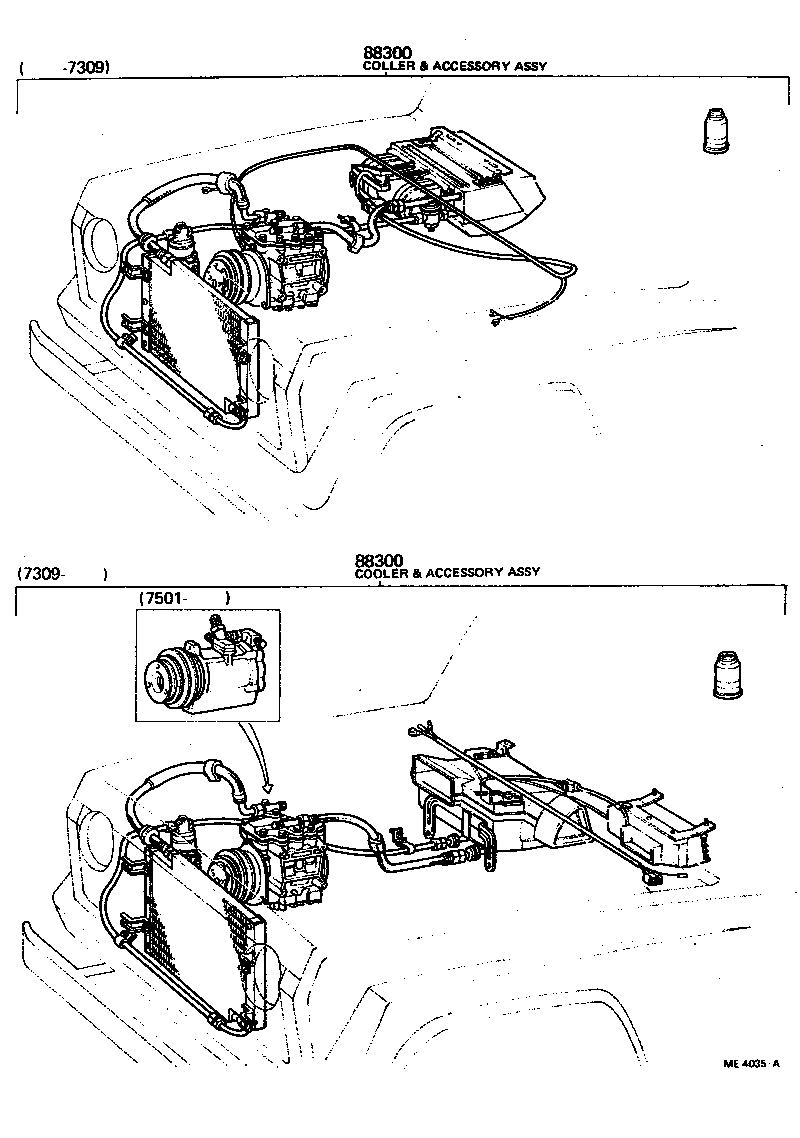

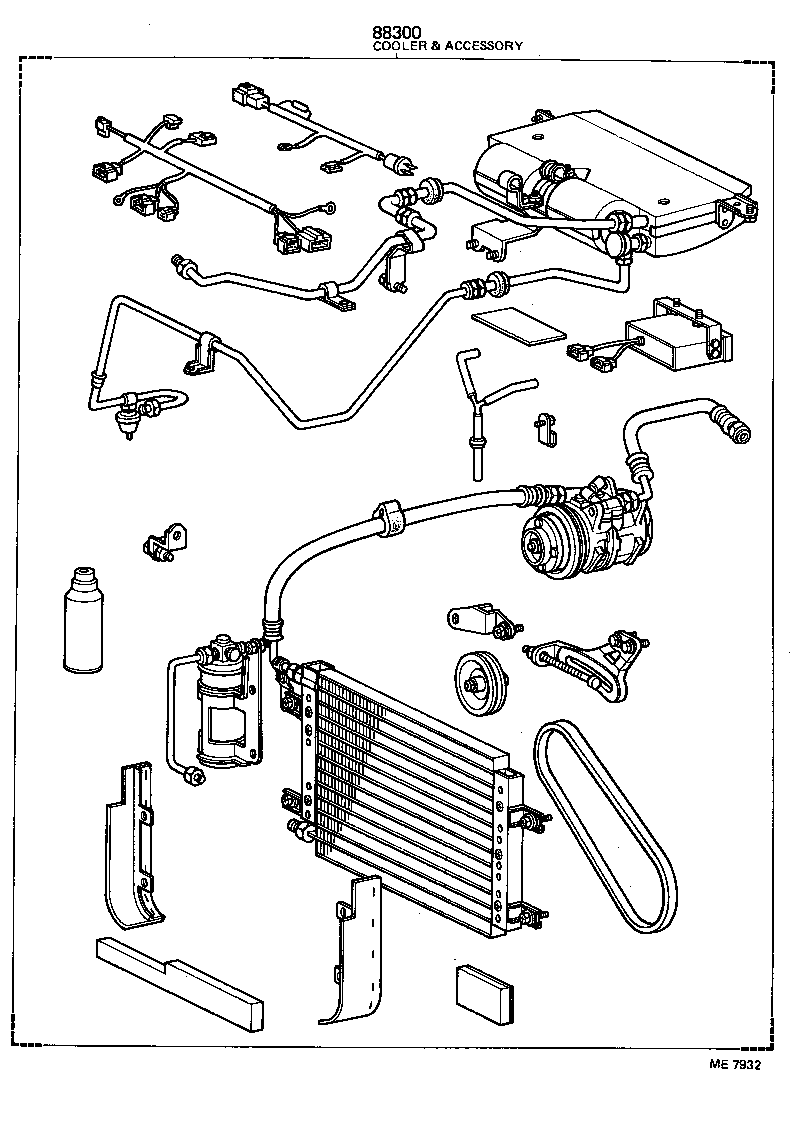

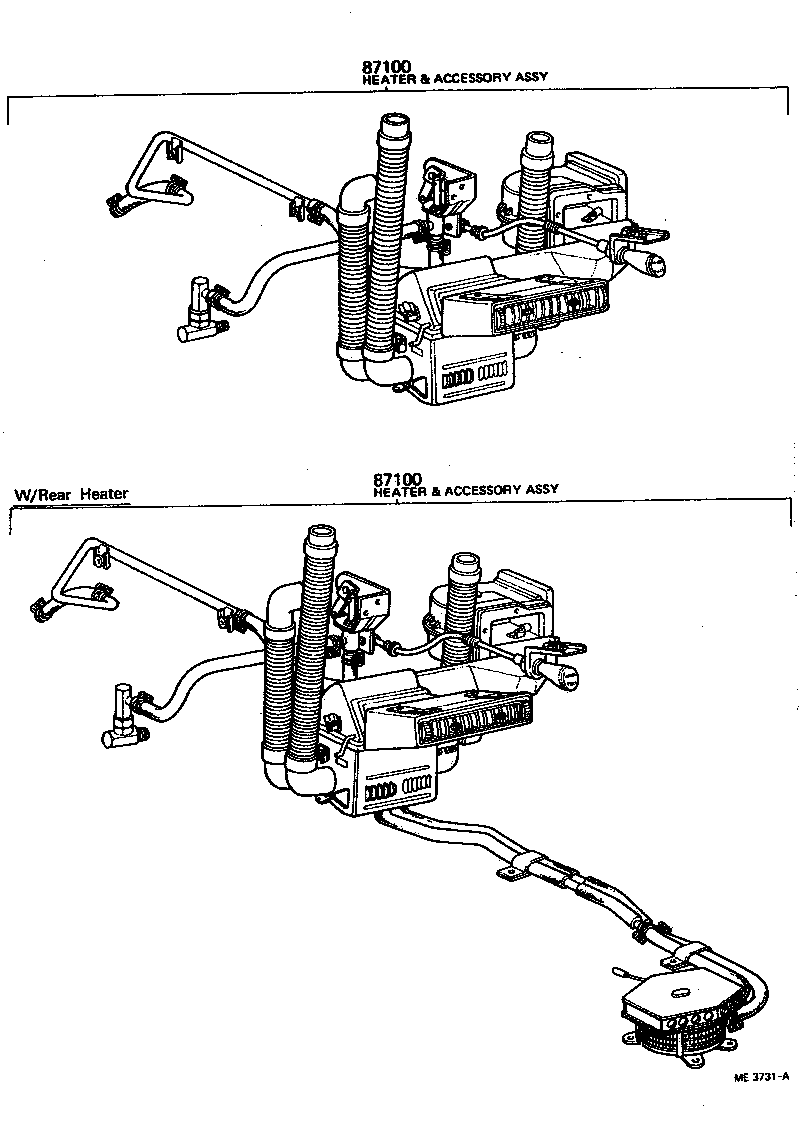

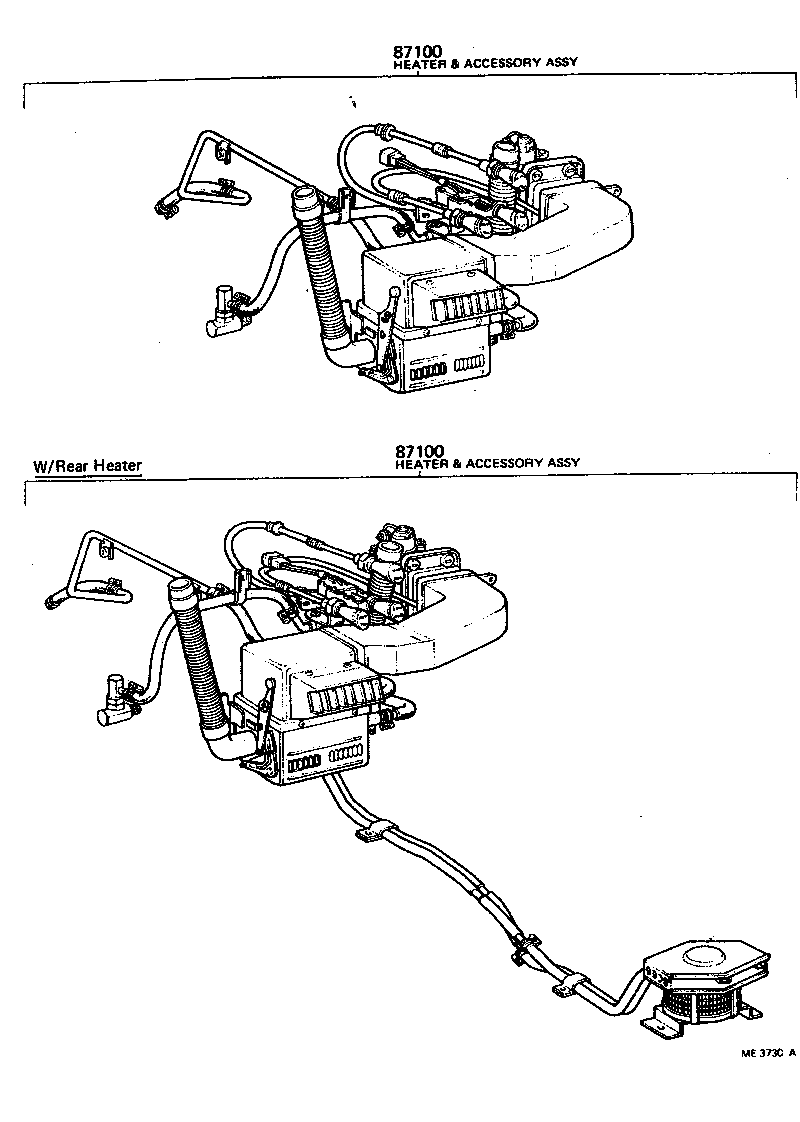

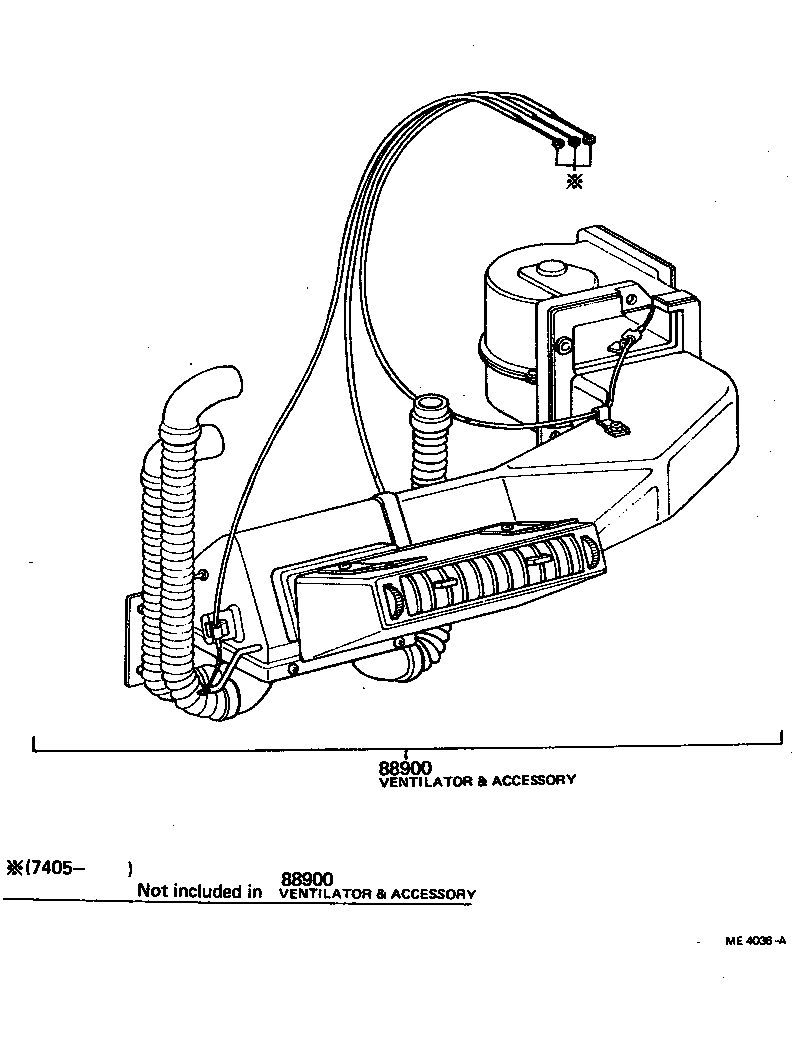

Figure ME4034A ME4034A 1969-03 → 1980-07 Figure ME3730A ME3730A 1973-09 → 1977-09 Figure ME3731A ME3731A 1973-09 → 1977-09 Figure ME4035A ME4035A 1970-10 → 1979-01 Figure ME7932 ME7932 1979-01 → 1980-07 Figure ME4036A ME4036A 1974-03 → 1977-09

Part groups

PNCDescription
87100 Heater And Accessory Assy
87200 Heater & Accessory, Rear
88300 Cooler & Accessory Assy
88900 Ventilator And Accessory Assy, Boost
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
