Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

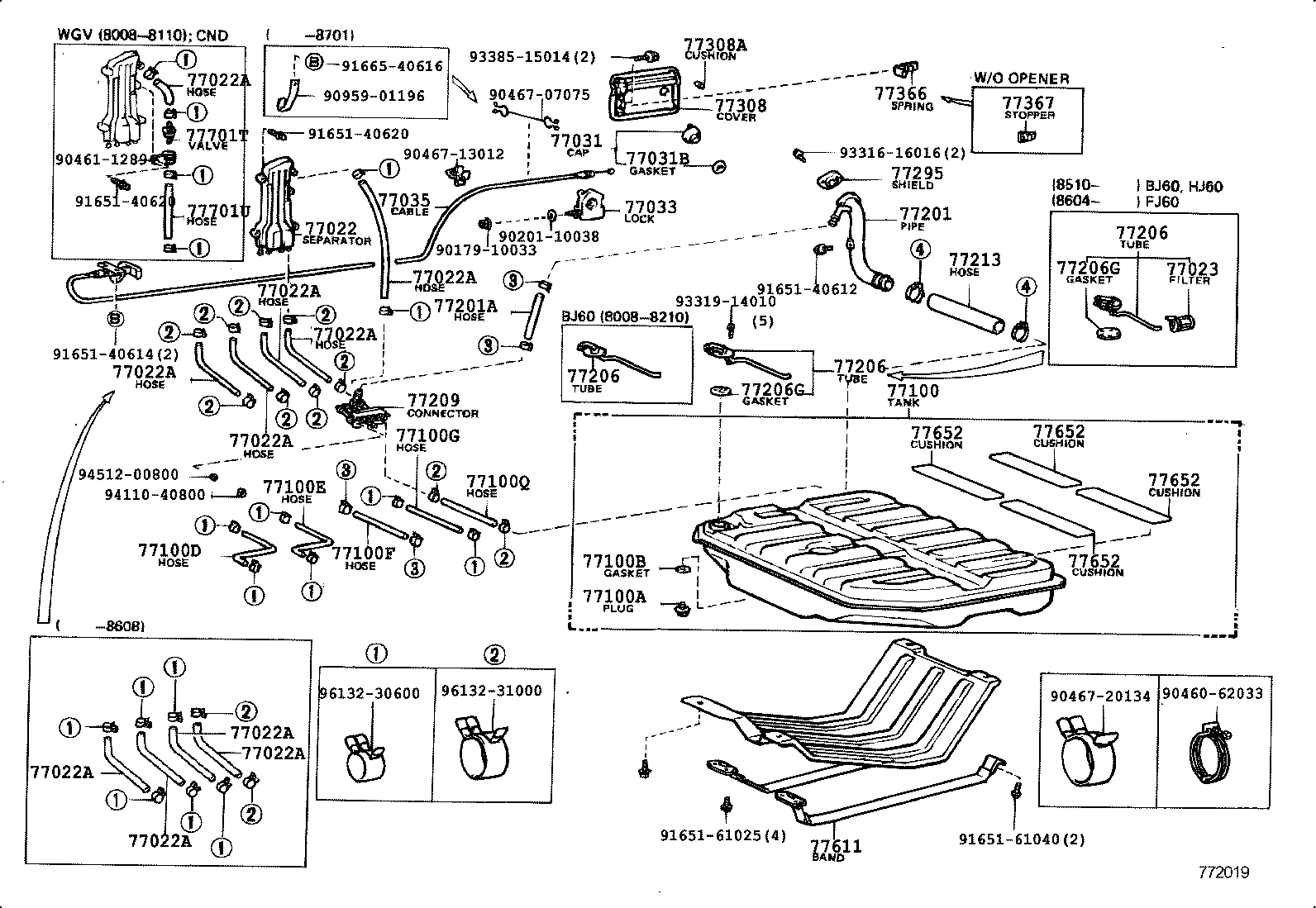

Exploded illustration 772019A 77308A — CUSHION(FOR FUEL INLET BOX COVER) (1 parts) 9338515014 — not listed in this catalogue 9166540616 — not listed in this catalogue 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 9046707075 — not listed in this catalogue 77366 — SPRING, FUEL FILLER OPENING LID HINGE (1 parts) 9095901196 — not listed in this catalogue 77367 — STOPPER, FUEL FILLER OPENING LID (2 parts) 77308 — COVER SUB-ASSY, FUEL INLET BOX (4 parts) 9165140620 — not listed in this catalogue 77701T — VALVE, CHECK (FOR MAIN FUEL TANK) (2 parts) 77031 — CAP ASSY, FUEL TANK (4 parts) 9046713012 — not listed in this catalogue 9331616016 — not listed in this catalogue 9046112894 — not listed in this catalogue 77031B — GASKET (FOR FUEL TANK CAP) (1 parts) 77295 — SHIELD, FUEL FILLER PIPE (1 parts) 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (1 parts) 9165140620 — not listed in this catalogue 77033 — LOCK SUB-ASSY, FUEL TANK CAP (1 parts) 77701U — HOSE, FUEL (FOR CHECK VALVE) (2 parts) 77201 — PIPE SUB-ASSY, FUEL TANK INLET (4 parts) 77022 — SEPARATOR SUB-ASSY, FUEL EVAPORATIVE (2 parts) 77206 — TUBE SUB-ASSY, FUEL TANK SUCTION (6 parts) 9020110038 — not listed in this catalogue 9017910033 — not listed in this catalogue 77213 — HOSE, FUEL TANK SUB INLET (1 parts) 77206G — GASKET (FOR FUEL TANK SUCTION TUBE) (3 parts) 77023 — FILTER SUB-ASSY, FUEL SUCTION TUBE (2 parts) 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 9165140612 — not listed in this catalogue 9331914010 — not listed in this catalogue 77201A — HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) (1 parts) 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 9165140614 — not listed in this catalogue 77206 — TUBE SUB-ASSY, FUEL TANK SUCTION (6 parts) 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 77206 — TUBE SUB-ASSY, FUEL TANK SUCTION (6 parts) 77206G — GASKET (FOR FUEL TANK SUCTION TUBE) (3 parts) 77100 — TANK ASSY, FUEL (3 parts) 77209 — CONNECTOR SUB-ASSY, FUEL TUBE (2 parts) 77652 — CUSHION, FUEL TANK, NO.1 (1 parts) 77652 — CUSHION, FUEL TANK, NO.1 (1 parts) 77100G — HOSE, FUEL, NO.4(FOR FUEL TANK) (2 parts) 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 9451200800 — not listed in this catalogue 77652 — CUSHION, FUEL TANK, NO.1 (1 parts) 77100Q — HOSE, FUEL, NO.5(FOR FUEL TANK) (2 parts) 77100E — HOSE, FUEL, NO.2(FOR FUEL TANK) (1 parts) 9411040800 — not listed in this catalogue 77100D — HOSE, FUEL, NO.1(FOR FUEL TANK) (1 parts) 77100F — HOSE, FUEL, NO.3(FOR FUEL TANK) (1 parts) 77652 — CUSHION, FUEL TANK, NO.1 (1 parts) 77100B — GASKET(FOR FUEL TANK) (1 parts) 77100A — PLUG(FOR FUEL TANK) (1 parts) 9613231000 — not listed in this catalogue 9046062033 — not listed in this catalogue 9613230600 — not listed in this catalogue 9046720134 — not listed in this catalogue 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 9165161025 — not listed in this catalogue 9165161040 — not listed in this catalogue 77022A — HOSE, FUEL(FOR FUEL EVAPORATIVE SEPARATOR) (8 parts) 77611 — BAND, FUEL TANK (2 parts)
772019A · 45 callouts, 22 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
77022 — Separator Sub-assy, Fuel Evaporative
77193-60030 Separator Sub-assy, Fuel Evaporative
1980-08 → 1986-08 ended
BJ60,FJ60,HJ60 —
77193-60031 Separator Sub-assy, Fuel Evaporative
1986-08 → 1987-08 ended
FJ60,HJ60 —
77022A — Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
90445-17064 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1986-08 → 1987-08 ended
FJ60,HJ60 —
95331-10020 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1980-08 → 1981-05 ended
BJ60,FJ60 —
95332-06010 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1980-08 → 1987-02 ended
BJ60,FJ60,HJ60 CND —
95332-06030 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1980-08 → 1986-08 ended
BJ60,FJ60,HJ60 —
95332-06060 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1980-08 → 1986-09 ended
FJ60 USA —
95332-06060 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1986-09 → 1987-02 ended
FJ60 —
95333-06010 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1987-02 → 1987-08 ended
HJ60 —
95333-06060 note Hose, Fuel(FOR FUEL EVAPORATIVE SEPARATOR)
1987-02 → 1987-08 ended
FJ60 —
77023 — Filter Sub-assy, Fuel Suction Tube
77023-22040 Filter Sub-assy, Fuel Suction Tube
1985-10 → 1987-08 ended
HJ60 —
77023-22040 Filter Sub-assy, Fuel Suction Tube
1986-04 → 1987-08 ended
FJ60 —
77031 — Cap Assy, Fuel Tank
77310-12090 note Cap Assy, Fuel Tank
1980-08 → 1981-10 ended
BJ60,FJ60 —
77310-12100 note Cap Assy, Fuel Tank
1981-10 → 1982-10 ended
BJ60,FJ60 —
77310-12100 note Cap Assy, Fuel Tank
1982-10 → 1987-08 ended
FJ60 —
77310-35061 Cap Assy, Fuel Tank
1982-10 → 1987-08 ended
BJ60,HJ60 —
77031B — Gasket (FOR FUEL TANK CAP)
77316-12050 Gasket (FOR FUEL TANK CAP)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77033 — Lock Sub-assy, Fuel Tank Cap
77037-90K00 Lock Sub-assy, Fuel Tank Cap
1984-11 → 1987-08 ended
BJ60,HJ60 —
77035 — Cable Sub-assy, Fuel Lid Lock Control
77030-90A01 Cable Sub-assy, Fuel Lid Lock Control
1984-11 → 1987-08 ended
BJ60,HJ60 —
77100 — Tank Assy, Fuel
77001-60110 Tank Assy, Fuel
1980-08 → 1986-04 ended
BJ60,FJ60 —
77001-60200 Tank Assy, Fuel
1985-10 → 1987-08 ended
HJ60 —
77001-60200 Tank Assy, Fuel
1986-04 → 1987-08 ended
FJ60 —
77100A — Plug(FOR FUEL TANK)
90105-12018 Plug(FOR FUEL TANK)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77100B — Gasket(FOR FUEL TANK)
90430-12245 Gasket(FOR FUEL TANK)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77100D — Hose, Fuel, NO.1(FOR FUEL TANK)
77249-60040 note Hose, Fuel, NO.1(FOR FUEL TANK)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77100E — Hose, Fuel, NO.2(FOR FUEL TANK)
77249-60050 note Hose, Fuel, NO.2(FOR FUEL TANK)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77100F — Hose, Fuel, NO.3(FOR FUEL TANK)
90445-22904 note Hose, Fuel, NO.3(FOR FUEL TANK)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77100G — Hose, Fuel, NO.4(FOR FUEL TANK)
95332-06040 note Hose, Fuel, NO.4(FOR FUEL TANK)
1980-08 → 1987-02 ended
BJ60,FJ60,HJ60 —
95333-06040 note Hose, Fuel, NO.4(FOR FUEL TANK)
1987-02 → 1987-08 ended
FJ60,HJ60 —
77100Q — Hose, Fuel, NO.5(FOR FUEL TANK)
95331-10036 note Hose, Fuel, NO.5(FOR FUEL TANK)
1980-08 → 1981-05 ended
BJ60,FJ60 —
95332-10036 note Hose, Fuel, NO.5(FOR FUEL TANK)
1981-05 → 1987-08 ended
BJ60,FJ60,HJ60 —
77201 — Pipe Sub-assy, Fuel Tank Inlet
77201-60130 Pipe Sub-assy, Fuel Tank Inlet
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
77201-60130 Pipe Sub-assy, Fuel Tank Inlet
1981-10 → 1987-08 ended
BJ60,HJ60 —
77201-60150 Pipe Sub-assy, Fuel Tank Inlet
1980-08 → 1986-09 ended
FJ60 USA —
77201-60150 Pipe Sub-assy, Fuel Tank Inlet
1986-09 → 1987-08 ended
FJ60 —
77201A — Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
90445-22015 note Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77206 — Tube Sub-assy, Fuel Tank Suction
77203-60040 Tube Sub-assy, Fuel Tank Suction
1980-08 → 1982-10 ended
BJ60 —
77203-60050 Tube Sub-assy, Fuel Tank Suction
1980-08 → 1982-10 ended
FJ60 —
77240-60010 Tube Sub-assy, Fuel Tank Suction
1982-10 → 1985-10 ended
BJ60 —
77240-60011 Tube Sub-assy, Fuel Tank Suction
1985-10 → 1987-08 ended
HJ60 —
77240-60020 Tube Sub-assy, Fuel Tank Suction
1982-10 → 1986-04 ended
FJ60 —
77240-60030 Tube Sub-assy, Fuel Tank Suction
1986-04 → 1987-08 ended
FJ60 —
77206G — Gasket (FOR FUEL TANK SUCTION TUBE)
77169-14020 Gasket (FOR FUEL TANK SUCTION TUBE)
1982-10 → 1986-08 ended
BJ60,FJ60,HJ60 —
77169-14020 Gasket (FOR FUEL TANK SUCTION TUBE)
1986-08 → 1987-08 ended
FJ60,HJ60 —
83361-20030 Gasket (FOR FUEL TANK SUCTION TUBE)
1980-08 → 1982-10 ended
BJ60,FJ60 —
77209 — Connector Sub-assy, Fuel Tube
77209-60040 Connector Sub-assy, Fuel Tube
1980-08 → 1986-08 ended
BJ60,FJ60,HJ60 —
77209-60041 Connector Sub-assy, Fuel Tube
1986-08 → 1987-08 ended
FJ60,HJ60 —
77213 — Hose, Fuel Tank Sub Inlet
77213-60030 Hose, Fuel Tank Sub Inlet
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77295 — Shield, Fuel Filler Pipe
77293-60030 Shield, Fuel Filler Pipe
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77308 — Cover Sub-assy, Fuel Inlet Box
77305-90A00 Cover Sub-assy, Fuel Inlet Box
1980-08 → 1984-11 ended
BJ60,FJ60 —
77305-90A00 Cover Sub-assy, Fuel Inlet Box
1984-11 → 1985-04 ended
FJ60 —
77305-90A01 Cover Sub-assy, Fuel Inlet Box
1984-11 → 1985-04 ended
BJ60 —
77305-90A01 Cover Sub-assy, Fuel Inlet Box
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
77308A — Cushion(FOR FUEL INLET BOX COVER)
90541-08003 Cushion(FOR FUEL INLET BOX COVER)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77366 — Spring, Fuel Filler Opening Lid Hinge
77366-12010 note Spring, Fuel Filler Opening Lid Hinge
1984-11 → 1987-08 ended
BJ60,HJ60 —
77367 — Stopper, Fuel Filler Opening Lid
77358-12020 Stopper, Fuel Filler Opening Lid
1984-11 → 1987-08 ended
BJ60,HJ60 —
77358-12020 Stopper, Fuel Filler Opening Lid
1986-04 → 1987-08 ended
FJ60 —
77611 — Band, Fuel Tank
77601-60060 note Band, Fuel Tank
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77602-60040 note Band, Fuel Tank
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77652 — Cushion, Fuel Tank, NO.1
77653-60010 Cushion, Fuel Tank, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77701T — Valve, Check (FOR MAIN FUEL TANK)
90917-10020 Valve, Check (FOR MAIN FUEL TANK)
1980-08 → 1986-08 ended
BJ60,FJ60,HJ60 CND —
90917-10020 Valve, Check (FOR MAIN FUEL TANK)
1986-08 → 1987-08 ended
HJ60 —
77701U — Hose, Fuel (FOR CHECK VALVE)
95332-06040 note Hose, Fuel (FOR CHECK VALVE)
1980-08 → 1987-02 ended
BJ60,FJ60,HJ60 CND —
95333-06040 note Hose, Fuel (FOR CHECK VALVE)
1987-02 → 1987-08 ended
HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
