Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

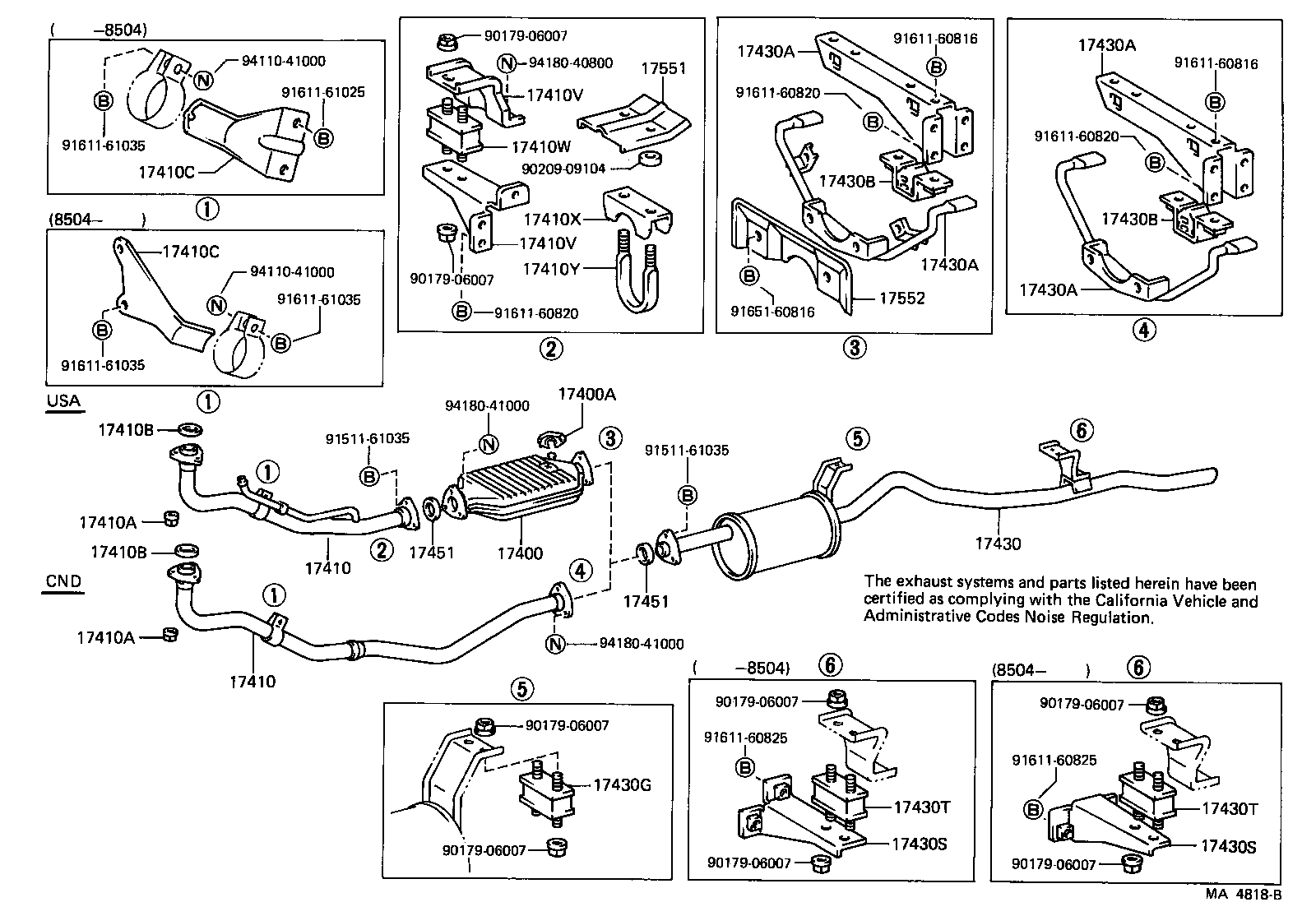

Exploded illustration MA4818B 9017906007 — not listed in this catalogue 9161160816 — not listed in this catalogue 17430A — BRACKET, EXHAUST TAILPIPE(FOR FRONT) (5 parts) 17430A — BRACKET, EXHAUST TAILPIPE(FOR FRONT) (5 parts) 9411041000 — not listed in this catalogue 9418040800 — not listed in this catalogue 9161160816 — not listed in this catalogue 17551 — INSULATOR, EXHAUST PIPE HEAT, NO.1 (1 parts) 9161161025 — not listed in this catalogue 9161160820 — not listed in this catalogue 17410V — BRACKET, EXHAUST PIPE FRONT (FOR REAR) (2 parts) 9161160820 — not listed in this catalogue 9161161035 — not listed in this catalogue 17410W — CUSHION, EXHAUST PIPE FRONT (FOR REAR) (1 parts) 9020909104 — not listed in this catalogue 17410C — BRACKET, EXHAUST PIPE FRONT (FOR FRONT) (6 parts) 17430B — CUSHION, EXHAUST TAILPIPE(FOR FRONT) (1 parts) 17410X — CLAMP NO.1, EXHAUST PIPE FRONT (FOR REAR) (1 parts) 17430B — CUSHION, EXHAUST TAILPIPE(FOR FRONT) (1 parts) 17410V — BRACKET, EXHAUST PIPE FRONT (FOR REAR) (2 parts) 17410C — BRACKET, EXHAUST PIPE FRONT (FOR FRONT) (6 parts) 17430A — BRACKET, EXHAUST TAILPIPE(FOR FRONT) (5 parts) 17410Y — BOLT OR RING, EXHAUST PIPE FRONT (FOR REAR) (1 parts) 9411041000 — not listed in this catalogue 9017906007 — not listed in this catalogue 17430A — BRACKET, EXHAUST TAILPIPE(FOR FRONT) (5 parts) 17552 — INSULATOR, EXHAUST PIPE HEAT, NO.2 (1 parts) 9161161035 — not listed in this catalogue 9165160816 — not listed in this catalogue 9161160820 — not listed in this catalogue 9161161035 — not listed in this catalogue 17400A — FLANGE, THERMOSENSER INLET (1 parts) 9418041000 — not listed in this catalogue 17410B — GASKET, EXHAUST PIPE (3 parts) 9151161035 — not listed in this catalogue 9151161035 — not listed in this catalogue 17410A — NUT, EXHAUST PIPE SET STUD BOLT (2 parts) 17430 — PIPE ASSY, EXHAUST, TAIL (6 parts) 17410B — GASKET, EXHAUST PIPE (3 parts) 17451 — GASKET, EXHAUST PIPE (2 parts) 17400 — CONVERTER ASSY, W/CATALYST (2 parts) 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 17451 — GASKET, EXHAUST PIPE (2 parts) 17410A — NUT, EXHAUST PIPE SET STUD BOLT (2 parts) 9418041000 — not listed in this catalogue 17410 — PIPE ASSY, EXHAUST, FRONT (6 parts) 9017906007 — not listed in this catalogue 9017906007 — not listed in this catalogue 9017906007 — not listed in this catalogue 9161160825 — not listed in this catalogue 9161160825 — not listed in this catalogue 17430G — CUSHION, EXHAUST TAILPIPE(FOR CENTER) (1 parts) 17430T — CUSHION, EXHAUST TAILPIPE (FOR REAR) (1 parts) 17430T — CUSHION, EXHAUST TAILPIPE (FOR REAR) (1 parts) 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (5 parts) 17430S — BRACKET, EXHAUST TAILPIPE (FOR REAR) (5 parts) 9017906007 — not listed in this catalogue 9017906007 — not listed in this catalogue 9017906007 — not listed in this catalogue
MA4818B · 31 callouts, 28 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
48 parts on this figure
Part number Description Fitment Price
17400 — Converter Assy, W/Catalyst
17400-61020 Converter Assy, W/Catalyst
1980-08 → 1986-04 ended
2F FJ60 USA —
17400-61021 Converter Assy, W/Catalyst
1986-04 → 1987-08 ended
2F FJ60 —
17400A — Flange, Thermosenser Inlet
18491-61010 Flange, Thermosenser Inlet
1980-08 → 1987-08 ended
2F FJ60 USA —
17410 — Pipe Assy, Exhaust, Front
17401-56080 Pipe Assy, Exhaust, Front
1980-08 → 1984-11 ended
3B BJ60 —
17401-58050 Pipe Assy, Exhaust, Front
1984-11 → 1985-10 ended
3B BJ60 —
17401-61120 Pipe Assy, Exhaust, Front
1980-08 → 1981-10 ended
2F FJ60 CND —
17401-68020 Pipe Assy, Exhaust, Front
1985-10 → 1987-08 ended
2H HJ60 —
17410-61160 Pipe Assy, Exhaust, Front
1980-08 → 1985-04 ended
2F FJ60 USA —
17410-61190 Pipe Assy, Exhaust, Front
1985-04 → 1987-08 ended
2F FJ60 —
17410A — Nut, Exhaust Pipe Set Stud Bolt
90179-10010 Nut, Exhaust Pipe Set Stud Bolt
1980-08 → 1984-11 ended
3B,2F BJ60,FJ60 —
90179-10070 Nut, Exhaust Pipe Set Stud Bolt
1984-11 → 1987-08 ended
3B,2F,2H BJ60,FJ60,HJ60 —
17410B — Gasket, Exhaust Pipe
90917-06003 Gasket, Exhaust Pipe
1980-08 → 1987-08 ended
2F FJ60 —
90917-06005 Gasket, Exhaust Pipe
1985-10 → 1987-08 ended
2H HJ60 —
90917-06012 Gasket, Exhaust Pipe
1980-08 → 1985-10 ended
3B BJ60 —
17410C — Bracket, Exhaust Pipe Front (FOR FRONT)
17571-56040 Bracket, Exhaust Pipe Front (FOR FRONT)
1980-08 → 1984-11 ended
3B BJ60 —
17571-58090 Bracket, Exhaust Pipe Front (FOR FRONT)
1984-11 → 1985-10 ended
3B BJ60 —
17571-61090 Bracket, Exhaust Pipe Front (FOR FRONT)
1980-08 → 1985-04 ended
2F FJ60 —
17571-61150 Bracket, Exhaust Pipe Front (FOR FRONT)
1985-04 → 1987-08 ended
2F FJ60 —
17571-68010 Bracket, Exhaust Pipe Front (FOR FRONT)
1985-10 → 1987-08 ended
2H HJ60 4FC —
17571-68020 Bracket, Exhaust Pipe Front (FOR FRONT)
1985-10 → 1987-08 ended
2H HJ60 5F —
17410V — Bracket, Exhaust Pipe Front (FOR REAR)
17563-61030 note Bracket, Exhaust Pipe Front (FOR REAR)
1980-08 → 1987-08 ended
2F FJ60 USA —
17572-61040 note Bracket, Exhaust Pipe Front (FOR REAR)
1980-08 → 1987-08 ended
2F FJ60 USA —
17410W — Cushion, Exhaust Pipe Front (FOR REAR)
17567-61030 Cushion, Exhaust Pipe Front (FOR REAR)
1980-08 → 1987-08 ended
2F FJ60 USA —
17410X — Clamp NO.1, Exhaust Pipe Front (FOR REAR)
90917-04006 Clamp NO.1, Exhaust Pipe Front (FOR REAR)
1980-08 → 1987-08 ended
2F FJ60 USA —
17410Y — Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
90117-08020 Bolt OR Ring, Exhaust Pipe Front (FOR REAR)
1980-08 → 1987-08 ended
2F FJ60 USA —
17430 — Pipe Assy, Exhaust, Tail
17405-58050 Pipe Assy, Exhaust, Tail
1984-11 → 1985-10 ended
3B BJ60 —
17405-68060 Pipe Assy, Exhaust, Tail
1985-10 → 1987-08 ended
2H HJ60 —
17430-56260 Pipe Assy, Exhaust, Tail
1980-08 → 1982-10 ended
3B BJ60 —
17430-56261 Pipe Assy, Exhaust, Tail
1982-10 → 1984-11 ended
3B BJ60 —
17430-61160 Pipe Assy, Exhaust, Tail
1980-08 → 1981-10 ended
2F FJ60 CND —
17430-61170 Pipe Assy, Exhaust, Tail
1980-08 → 1987-08 ended
2F FJ60 USA —
17430A — Bracket, Exhaust Tailpipe(FOR FRONT)
17505-61040 note Bracket, Exhaust Tailpipe(FOR FRONT)
1980-08 → 1985-10 ended
3B,2F BJ60,FJ60 CND —
17505-61050 note Bracket, Exhaust Tailpipe(FOR FRONT)
1985-10 → 1987-08 ended
2H HJ60 —
17505-61060 note Bracket, Exhaust Tailpipe(FOR FRONT)
1980-08 → 1987-08 ended
2F FJ60 USA —
17583-61050 note Bracket, Exhaust Tailpipe(FOR FRONT)
1980-08 → 1987-08 ended
3B,2F BJ60,FJ60 —
17590-61051 note Bracket, Exhaust Tailpipe(FOR FRONT)
1985-10 → 1987-08 ended
2H HJ60 —
17430B — Cushion, Exhaust Tailpipe(FOR FRONT)
90917-04052 Cushion, Exhaust Tailpipe(FOR FRONT)
1980-08 → 1987-08 ended
3B,2F,2H BJ60,FJ60,HJ60 —
17430G — Cushion, Exhaust Tailpipe(FOR CENTER)
17567-61030 Cushion, Exhaust Tailpipe(FOR CENTER)
1980-08 → 1987-08 ended
3B,2F,2H BJ60,FJ60,HJ60 —
17430S — Bracket, Exhaust Tailpipe (FOR REAR)
17574-61050 Bracket, Exhaust Tailpipe (FOR REAR)
1980-08 → 1984-11 ended
3B,2F BJ60,FJ60 —
17574-61050 Bracket, Exhaust Tailpipe (FOR REAR)
1984-11 → 1985-04 ended
2F FJ60 —
17574-61050 Bracket, Exhaust Tailpipe (FOR REAR)
1986-04 → 1987-08 ended
2F FJ60 —
17574-61060 Bracket, Exhaust Tailpipe (FOR REAR)
1985-04 → 1986-04 ended
2F FJ60 —
17574-61060 Bracket, Exhaust Tailpipe (FOR REAR)
1984-11 → 1987-08 ended
3B,2H BJ60,HJ60 —
17430T — Cushion, Exhaust Tailpipe (FOR REAR)
17567-61030 Cushion, Exhaust Tailpipe (FOR REAR)
1980-08 → 1987-08 ended
3B,2F,2H BJ60,FJ60,HJ60 —
17451 — Gasket, Exhaust Pipe
90917-06012 Gasket, Exhaust Pipe
1980-08 → 1985-10 ended
3B BJ60 —
90917-06024 Gasket, Exhaust Pipe
1980-08 → 1987-08 ended
2F,2H FJ60,HJ60 —
17551 — Insulator, Exhaust Pipe Heat, NO.1
17551-61030 Insulator, Exhaust Pipe Heat, NO.1
1980-08 → 1987-08 ended
2F FJ60 USA —
17552 — Insulator, Exhaust Pipe Heat, NO.2
17552-61050 Insulator, Exhaust Pipe Heat, NO.2
1980-08 → 1987-08 ended
2F FJ60 USA —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
