Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

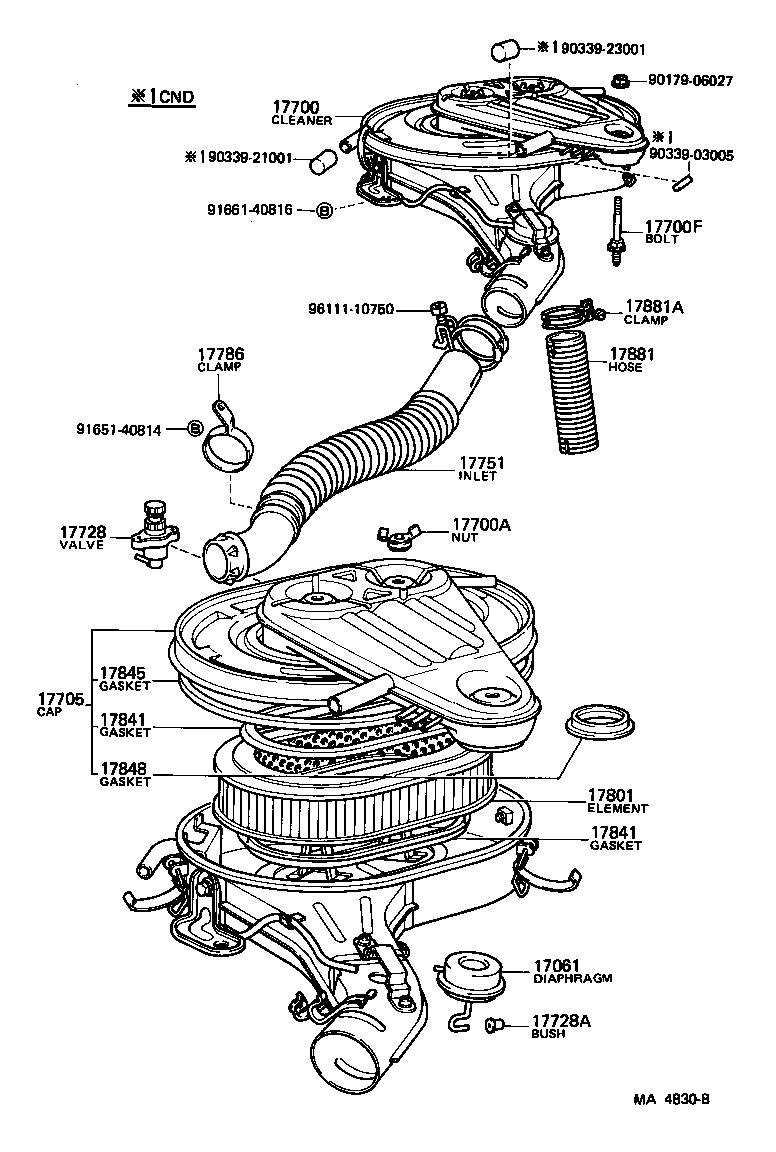

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17061 — Diaphragm Sub-assy | ||||
| 17061-61020 |
Diaphragm Sub-assy
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17700 — Cleaner Assy, Air | ||||
| 17700-61023 |
Cleaner Assy, Air
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17700-68010 |
Cleaner Assy, Air
1980-08 → 1982-10
ended
|
3B BJ60 | — | |
| 17700-68011 |
Cleaner Assy, Air
1982-10 → 1984-11
ended
|
3B BJ60 | — | |
| 17700-68140 |
Cleaner Assy, Air
1985-10 → 1986-08
ended
|
2H HJ60 | — | |
| 17700-68140 |
Cleaner Assy, Air
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 17700-68210 |
Cleaner Assy, Air
1986-08 → 1987-08
ended
|
2H HJ60 | — | |
| 17700A — Nut, Wing(FOR AIR CLEANER) | ||||
| 90175-06003 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 90175-08008 |
Nut, Wing(FOR AIR CLEANER)
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 17700F — Bolt, Stud(FOR AIR CLEANER SETTING) | ||||
| 90116-06018 |
Bolt, Stud(FOR AIR CLEANER SETTING)
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17705 — Cap Sub-assy, Air Cleaner | ||||
| 17705-61023 |
Cap Sub-assy, Air Cleaner
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17705-68010 |
Cap Sub-assy, Air Cleaner
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 17705-68100 |
Cap Sub-assy, Air Cleaner
1984-11 → 1987-08
ended
|
3B BJ60 | — | |
| 17705-68100 |
Cap Sub-assy, Air Cleaner
1984-11 → 1987-08
ended
|
2H HJ60 | — | |
| 17728 — Valve, Thermostatic | ||||
| 17728-24030 |
Valve, Thermostatic
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17728A — Bush | ||||
| 90386-03001 |
Bush
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17751 — Inlet, Air Cleaner, NO.1 | ||||
| 17751-61030 |
Inlet, Air Cleaner, NO.1
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17786 — Clamp, Air Cleaner | ||||
| 17781-61010 |
Clamp, Air Cleaner
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17801 — Element Sub-assy, Air Cleaner Filter | ||||
| 17801-61010 |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17801-66020 |
Element Sub-assy, Air Cleaner Filter
1980-08 → 1982-10
ended
|
3B BJ60 | — | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1987-08
ended
|
2H HJ60 | — | |
| 17801-68020 |
Element Sub-assy, Air Cleaner Filter
1982-10 → 1987-08
ended
|
3B BJ60 | — | |
| 17841 — Gasket, Filter Element | ||||
| 17841-61011 |
Gasket, Filter Element
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17841-68010 |
Gasket, Filter Element
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 17841-68010 |
Gasket, Filter Element
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 17845 — Gasket, Air Cleaner Cap | ||||
| 17845-61011 |
Gasket, Air Cleaner Cap
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1987-08
ended
|
2H HJ60 | — | |
| 17845-61011 note |
Gasket, Air Cleaner Cap
1982-10 → 1987-08
ended
|
3B BJ60 | — | |
| 17845-68010 |
Gasket, Air Cleaner Cap
1980-08 → 1982-10
ended
|
3B BJ60 | — | |
| 17848 — Gasket, Air Cleaner TO Carburetor | ||||
| 17848-61020 |
Gasket, Air Cleaner TO Carburetor
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17881 — Hose, Air Cleaner, NO.1 | ||||
| 17881-58010 |
Hose, Air Cleaner, NO.1
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 17881-58090 |
Hose, Air Cleaner, NO.1
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 17881-61010 |
Hose, Air Cleaner, NO.1
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 17881-68010 |
Hose, Air Cleaner, NO.1
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 17881A — Clamp(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10650 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 96111-10690 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 96111-10710 |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 96111-10780 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 96111-10830 note |
Clamp(FOR AIR CLEANER HOSE, NO.1)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
