Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

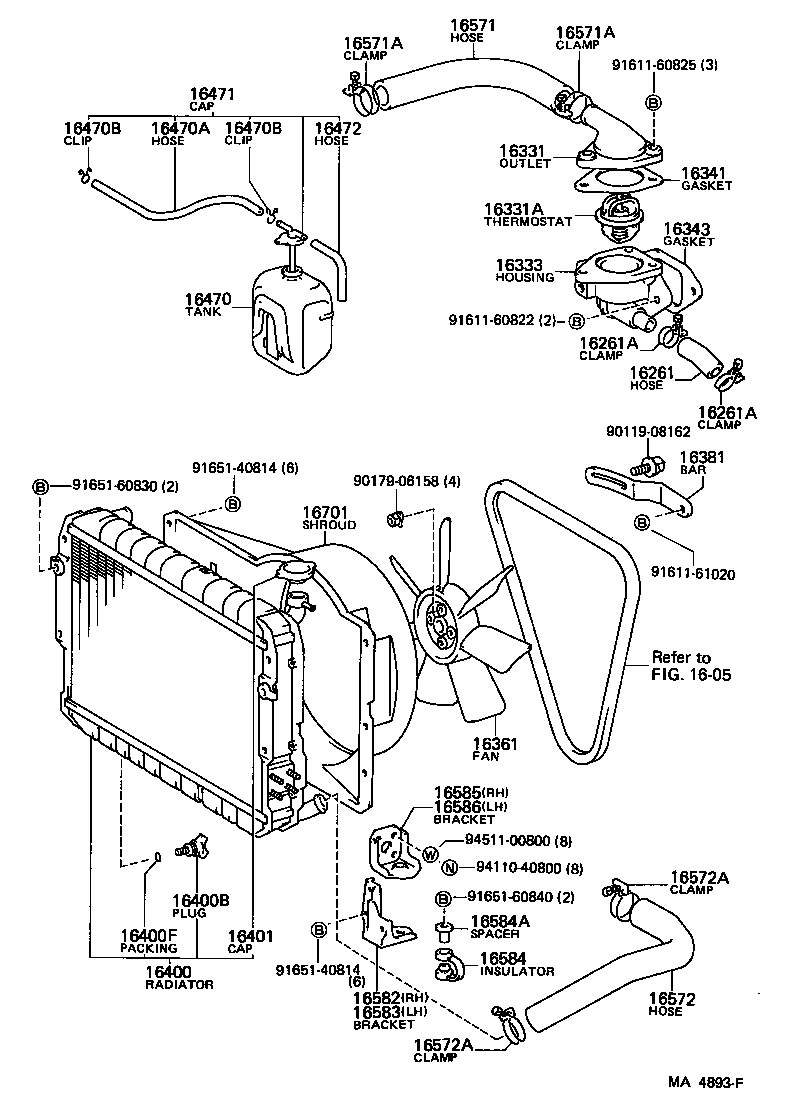

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-56011 |
Hose, Water By-pass
1980-08 → 1981-10
ended
|
3B BJ60 | — | |
| 16261-56012 |
Hose, Water By-pass
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 16261-60011 |
Hose, Water By-pass
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 99555-40090 |
Hose, Water By-pass
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90044-60053 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 96112-10330 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 96112-10330 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16331 — Outlet, Water | ||||
| 16331-56020 |
Outlet, Water
1980-08 → 1981-10
ended
|
3B BJ60 | — | |
| 16331-56030 |
Outlet, Water
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 16331-68011 |
Outlet, Water
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 16333-61100 |
Outlet, Water
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 16333-61110 |
Outlet, Water
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 16331A — Thermostat | ||||
| 90916-03045 note |
Thermostat
1980-08 → 1980-10
ended
|
3B BJ60 | — | |
| 90916-03052 note |
Thermostat
1980-08 → 1984-11
ended
|
2F FJ60 | — | |
| 90916-03059 note |
Thermostat
1980-10 → 1987-08
ended
|
3B BJ60 | — | |
| 90916-03059 note |
Thermostat
1980-10 → 1987-08
ended
|
2H HJ60 | — | |
| 90916-03071 note |
Thermostat
1984-11 → 1987-08
ended
|
2F FJ60 | — | |
| 16333 — Housing, Water Outlet | ||||
| 16331-61032 |
Housing, Water Outlet
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 16331-61041 |
Housing, Water Outlet
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 16333-56040 |
Housing, Water Outlet
1980-08 → 1981-10
ended
|
3B BJ60 | — | |
| 16333-56060 |
Housing, Water Outlet
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 16333-68010 |
Housing, Water Outlet
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 16341 — Gasket, Water Outlet | ||||
| 16341-56020 |
Gasket, Water Outlet
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 16341-61020 |
Gasket, Water Outlet
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16341-68010 |
Gasket, Water Outlet
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 16343 — Gasket, Water Outlet Housing | ||||
| 16343-56020 |
Gasket, Water Outlet Housing
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 16343-60010 |
Gasket, Water Outlet Housing
1980-08 → 1984-11
ended
|
2F FJ60 | — | |
| 16343-61010 |
Gasket, Water Outlet Housing
1984-11 → 1987-08
ended
|
2F FJ60 | — | |
| 16343-68010 |
Gasket, Water Outlet Housing
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 16361 — Fan | ||||
| 16361-41070 |
Fan
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 16361-61011 |
Fan
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 16361-61020 |
Fan
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 16361-68010 |
Fan
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-56030 |
Bar, Fan Belt Adjusting
1980-08 → 1982-10
ended
|
3B BJ60 | — | |
| 16381-56050 |
Bar, Fan Belt Adjusting
1982-10 → 1984-11
ended
|
3B BJ60 | — | |
| 16381-58020 |
Bar, Fan Belt Adjusting
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 16381-60081 |
Bar, Fan Belt Adjusting
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 16381-61011 |
Bar, Fan Belt Adjusting
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 16381-68030 note |
Bar, Fan Belt Adjusting
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 16400 — Radiator Assy | ||||
| 16400-58010 |
Radiator Assy
1980-08 → 1981-10
ended
|
3B BJ60 | — | |
| 16400-58011 |
Radiator Assy
1981-10 → 1984-11
ended
|
3B BJ60 | — | |
| 16400-58180 |
Radiator Assy
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 16400-58190 note |
Radiator Assy
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 16400-61040 |
Radiator Assy
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 16400-61050 |
Radiator Assy
1980-08 → 1986-04
ended
|
2F FJ60 USA | — | |
| 16400-61051 |
Radiator Assy
1986-04 → 1987-08
ended
|
2F FJ60 | — | |
| 16400-68090 note |
Radiator Assy
1985-10 → 1987-08
ended
|
2H HJ60 4FC | — | |
| 16400-68100 |
Radiator Assy
1985-10 → 1987-08
ended
|
2H HJ60 5F | — | |
| 16400-68110 |
Radiator Assy
1985-10 → 1987-08
ended
|
2H HJ60 4FC | — | |
| 16400B — Plug, Radiator Drain Cock | ||||
| 16417-24200 |
Plug, Radiator Drain Cock
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16417-24200 |
Plug, Radiator Drain Cock
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16417-24200 |
Plug, Radiator Drain Cock
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 16400F — Packing(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16418-24200 |
Packing(FOR RADIATOR DRAIN COCK)
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16401 — Cap Sub-assy, Radiator | ||||
| 16401-41021 |
Cap Sub-assy, Radiator
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 16401-41021 |
Cap Sub-assy, Radiator
1980-08 → 1984-11
ended
|
2F FJ60 | — | |
| 16401-41021 |
Cap Sub-assy, Radiator
1984-11 → 1986-04
ended
|
2F FJ60 | — | |
| 16401-71010 |
Cap Sub-assy, Radiator
1984-11 → 1987-08
ended
|
3B BJ60 | — | |
| 16401-71010 |
Cap Sub-assy, Radiator
1984-11 → 1987-08
ended
|
2H HJ60 | — | |
| 16401-71010 |
Cap Sub-assy, Radiator
1986-04 → 1987-08
ended
|
2F FJ60 | — | |
| 16470 — Tank Assy, Radiator Reserve | ||||
| 16480-90A00 |
Tank Assy, Radiator Reserve
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 16480-90A00 |
Tank Assy, Radiator Reserve
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16480-90A00 |
Tank Assy, Radiator Reserve
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16470A — Hose OR Pipe(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12002 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1980-08 → 1981-10
ended
|
3B BJ60 | — | |
| 90445-12002 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1985-10 → 1987-05
ended
|
2H HJ60 | — | |
| 90445-12043 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1987-05 → 1987-08
ended
|
2H HJ60 | — | |
| 90445-12046 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 90445-12101 note |
Hose OR Pipe(FOR RADIATOR RESERVE TANK)
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16470B — Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 90467-11085 |
Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16471 — Cap Sub-assy, Reserve Tank | ||||
| 16405-90A00 |
Cap Sub-assy, Reserve Tank
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16405-90A02 |
Cap Sub-assy, Reserve Tank
1980-08 → 1981-10
ended
|
3B BJ60 | — | |
| 16405-90A02 |
Cap Sub-assy, Reserve Tank
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 16405-90A04 |
Cap Sub-assy, Reserve Tank
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 16472 — Hose, Breather | ||||
| 85338-22020 |
Hose, Breather
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 85338-22020 |
Hose, Breather
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 85338-22020 |
Hose, Breather
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16571 — Hose, Radiator, Inlet | ||||
| 16571-58010 |
Hose, Radiator, Inlet
1980-08 → 1981-10
ended
|
3B BJ60 | — | |
| 16571-58011 |
Hose, Radiator, Inlet
1981-10 → 1985-10
ended
|
3B BJ60 | — | |
| 16571-68010 |
Hose, Radiator, Inlet
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 90916-01172 |
Hose, Radiator, Inlet
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16571A — Clamp OR Clip, Hose(FOR RADIATOR INLET) | ||||
| 90460-50016 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 90467-42001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 90467-42001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1984-11 → 1987-08
ended
|
2H HJ60 | — | |
| 90467-42001 |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1984-11 → 1987-08
ended
|
3B BJ60 | — | |
| 96111-10560 note |
Clamp OR Clip, Hose(FOR RADIATOR INLET)
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 16572 — Hose, Radiator, Outlet | ||||
| 16571-61090 note |
Hose, Radiator, Outlet
1980-08 → 1985-10
ended
|
2F FJ60 | — | |
| 16572-58010 |
Hose, Radiator, Outlet
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 16572-68010 |
Hose, Radiator, Outlet
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 90916-01056 note |
Hose, Radiator, Outlet
1980-08 → 1985-10
ended
|
2F FJ60 | — | |
| 90916-01163 note |
Hose, Radiator, Outlet
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 99554-70185 note |
Hose, Radiator, Outlet
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 16572A — Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 90460-50016 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 96111-10510 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 96111-10510 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1980-10 → 1987-08
ended
|
2F FJ60 USA | — | |
| 96111-10510 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1980-10 → 1985-10
ended
|
2F FJ60 | — | |
| 96111-10530 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1980-08 → 1980-10
ended
|
2F FJ60 USA | — | |
| 96111-10530 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1980-08 → 1980-10
ended
|
2F FJ60 | — | |
| 96111-10560 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1984-11 → 1987-08
ended
|
3B BJ60 | — | |
| 96111-10560 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1984-11 → 1987-08
ended
|
2H HJ60 | — | |
| 96111-10580 note |
Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
1980-08 → 1985-10
ended
|
2F FJ60 | — | |
| 16582 — Bracket, Radiator, NO.1 | ||||
| 16582-61010 |
Bracket, Radiator, NO.1
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16582-61010 |
Bracket, Radiator, NO.1
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16582-61010 |
Bracket, Radiator, NO.1
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 16583 — Bracket, Radiator, NO.2 | ||||
| 16583-61010 |
Bracket, Radiator, NO.2
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 16583-61010 |
Bracket, Radiator, NO.2
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16583-61010 |
Bracket, Radiator, NO.2
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16584 — Insulator, Radiator Mounting | ||||
| 16584-61010 |
Insulator, Radiator Mounting
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 16584-61010 |
Insulator, Radiator Mounting
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16584-61010 |
Insulator, Radiator Mounting
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16584A — Spacer, Radiator Mounting Insulator | ||||
| 90561-09005 |
Spacer, Radiator Mounting Insulator
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 90561-09005 |
Spacer, Radiator Mounting Insulator
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 90561-09005 |
Spacer, Radiator Mounting Insulator
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16585 — Bracket, Radiator, NO.3 | ||||
| 16585-61010 |
Bracket, Radiator, NO.3
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 16585-61010 |
Bracket, Radiator, NO.3
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16585-61010 |
Bracket, Radiator, NO.3
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16586 — Bracket, Radiator, NO.4 | ||||
| 16586-61010 |
Bracket, Radiator, NO.4
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 16586-61010 |
Bracket, Radiator, NO.4
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 16586-61010 |
Bracket, Radiator, NO.4
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 16701 — Shroud Sub-assy, Fan | ||||
| 16711-58010 |
Shroud Sub-assy, Fan
1980-08 → 1981-12
ended
|
3B BJ60 | — | |
| 16711-58011 |
Shroud Sub-assy, Fan
1981-12 → 1984-11
ended
|
3B BJ60 | — | |
| 16711-58040 |
Shroud Sub-assy, Fan
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 16711-61111 |
Shroud Sub-assy, Fan
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 16711-61151 |
Shroud Sub-assy, Fan
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 16711-68010 |
Shroud Sub-assy, Fan
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
