Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

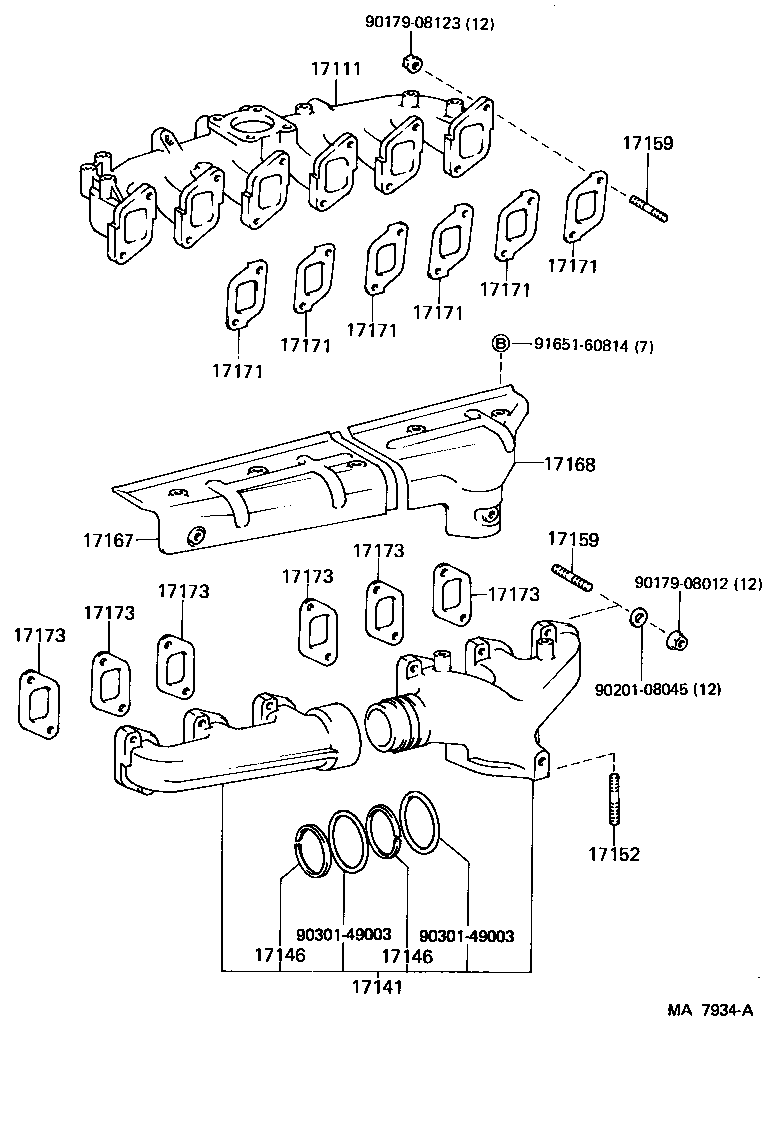

Exploded illustration MA7934A 9017908123 — not listed in this catalogue 17111 — MANIFOLD, INTAKE (5 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (11 parts) 17171 — GASKET, INTAKE TO EXHAUST MANIFOLD (2 parts) 17171 — GASKET, INTAKE TO EXHAUST MANIFOLD (2 parts) 17171 — GASKET, INTAKE TO EXHAUST MANIFOLD (2 parts) 17171 — GASKET, INTAKE TO EXHAUST MANIFOLD (2 parts) 17171 — GASKET, INTAKE TO EXHAUST MANIFOLD (2 parts) 9165160814 — not listed in this catalogue 17171 — GASKET, INTAKE TO EXHAUST MANIFOLD (2 parts) 17168 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 (4 parts) 17159 — BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) (11 parts) 17167 — INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 (5 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (5 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (5 parts) 9017908012 — not listed in this catalogue 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (5 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (5 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (5 parts) 17173 — GASKET, EXHAUST MANIFOLD TO HEAD (5 parts) 9020108045 — not listed in this catalogue 17152 — BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) (7 parts) 9030149003 — not listed in this catalogue 9030149003 — not listed in this catalogue 17146 — RING, EXHAUST MANIFOLD (2 parts) 17146 — RING, EXHAUST MANIFOLD (2 parts) 17141 — MANIFOLD, EXHAUST (4 parts)
MA7934A · 21 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
17111 — Manifold, Intake
17111-56060 Manifold, Intake
1980-08 → 1981-10 ended
3B BJ60 —
17111-56080 Manifold, Intake
1981-10 → 1982-10 ended
3B BJ60 —
17111-56130 Manifold, Intake
1982-10 → 1985-10 ended
3B BJ60 —
17111-68022 Manifold, Intake
1985-10 → 1987-08 ended
2H HJ60 5F —
17111-68050 Manifold, Intake
1985-10 → 1987-08 ended
2H HJ60 4FC —
17141 — Manifold, Exhaust
17140-68010 Manifold, Exhaust
1985-10 → 1987-08 ended
2H HJ60 —
17141-56030 Manifold, Exhaust
1980-08 → 1982-10 ended
3B BJ60 —
17141-56031 Manifold, Exhaust
1982-10 → 1984-09 ended
3B BJ60 —
17141-56050 Manifold, Exhaust
1984-09 → 1985-10 ended
3B BJ60 —
17146 — Ring, Exhaust Manifold
17151-61010 Ring, Exhaust Manifold
1980-08 → 1987-08 ended
2F FJ60 —
17151-68010 Ring, Exhaust Manifold
1985-10 → 1987-08 ended
2H HJ60 —
17152 — Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
90116-10048 note Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1982-03 → 1984-08 ended
3B BJ60 —
90116-10055 note Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1980-08 → 1982-03 ended
3B BJ60 —
90116-10056 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1984-08 → 1987-05 ended
3B BJ60 —
90116-10056 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1984-08 → 1987-05 ended
2H HJ60 —
90116-10087 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1987-05 → 1987-08 ended
2H HJ60 —
90116-10096 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1983-11 → 1987-08 ended
2F FJ60 —
90116-10299 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
1980-08 → 1983-11 ended
2F FJ60 —
17159 — Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
90116-08131 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1985-10 → 1987-08 ended
2H HJ60 —
90116-08188 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1985-10 → 1986-07 ended
2H HJ60 —
90116-08222 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1986-07 → 1987-08 ended
2H HJ60 —
90116-10048 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1981-08 → 1984-06 ended
3B BJ60 —
90116-10098 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1984-06 → 1985-10 ended
3B BJ60 —
90116-12011 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1984-10 → 1987-08 ended
2F FJ60 —
90116-12321 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1980-08 → 1984-10 ended
2F FJ60 —
92122-61028 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1980-08 → 1981-08 ended
3B BJ60 —
92132-60822 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1982-04 → 1984-09 ended
3B BJ60 —
92132-60822 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1980-08 → 1982-04 ended
3B BJ60 —
92132-60825 note Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
1984-09 → 1985-10 ended
3B BJ60 —
17167 — Insulator, Exhaust Manifold Heat, NO.1
17167-56020 Insulator, Exhaust Manifold Heat, NO.1
1980-08 → 1984-11 ended
3B BJ60 —
17167-56022 Insulator, Exhaust Manifold Heat, NO.1
1984-11 → 1985-10 ended
3B BJ60 —
17167-61012 Insulator, Exhaust Manifold Heat, NO.1
1980-08 → 1987-08 ended
2F FJ60 —
17167-68010 Insulator, Exhaust Manifold Heat, NO.1
1985-10 → 1987-05 ended
2H HJ60 —
17167-68011 Insulator, Exhaust Manifold Heat, NO.1
1987-05 → 1987-08 ended
2H HJ60 —
17168 — Insulator, Exhaust Manifold Heat, NO.2
17168-58021 Insulator, Exhaust Manifold Heat, NO.2
1984-11 → 1985-10 ended
3B BJ60 —
17168-61014 Insulator, Exhaust Manifold Heat, NO.2
1980-08 → 1987-08 ended
2F FJ60 —
17168-68020 Insulator, Exhaust Manifold Heat, NO.2
1985-10 → 1987-05 ended
2H HJ60 —
17168-68021 Insulator, Exhaust Manifold Heat, NO.2
1987-05 → 1987-08 ended
2H HJ60 —
17171 — Gasket, Intake TO Exhaust Manifold
17171-61010 Gasket, Intake TO Exhaust Manifold
1980-08 → 1987-08 ended
2F FJ60 —
17171-68011 Gasket, Intake TO Exhaust Manifold
1985-10 → 1987-08 ended
2H HJ60 —
17173 — Gasket, Exhaust Manifold TO Head
17173-56020 Gasket, Exhaust Manifold TO Head
1980-08 → 1982-04 ended
3B BJ60 —
17173-56021 Gasket, Exhaust Manifold TO Head
1982-04 → 1983-01 ended
3B BJ60 —
17173-56022 Gasket, Exhaust Manifold TO Head
1983-01 → 1984-09 ended
3B BJ60 —
17173-58010 Gasket, Exhaust Manifold TO Head
1984-09 → 1985-10 ended
3B BJ60 —
17173-68010 Gasket, Exhaust Manifold TO Head
1985-10 → 1987-08 ended
2H HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
