Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

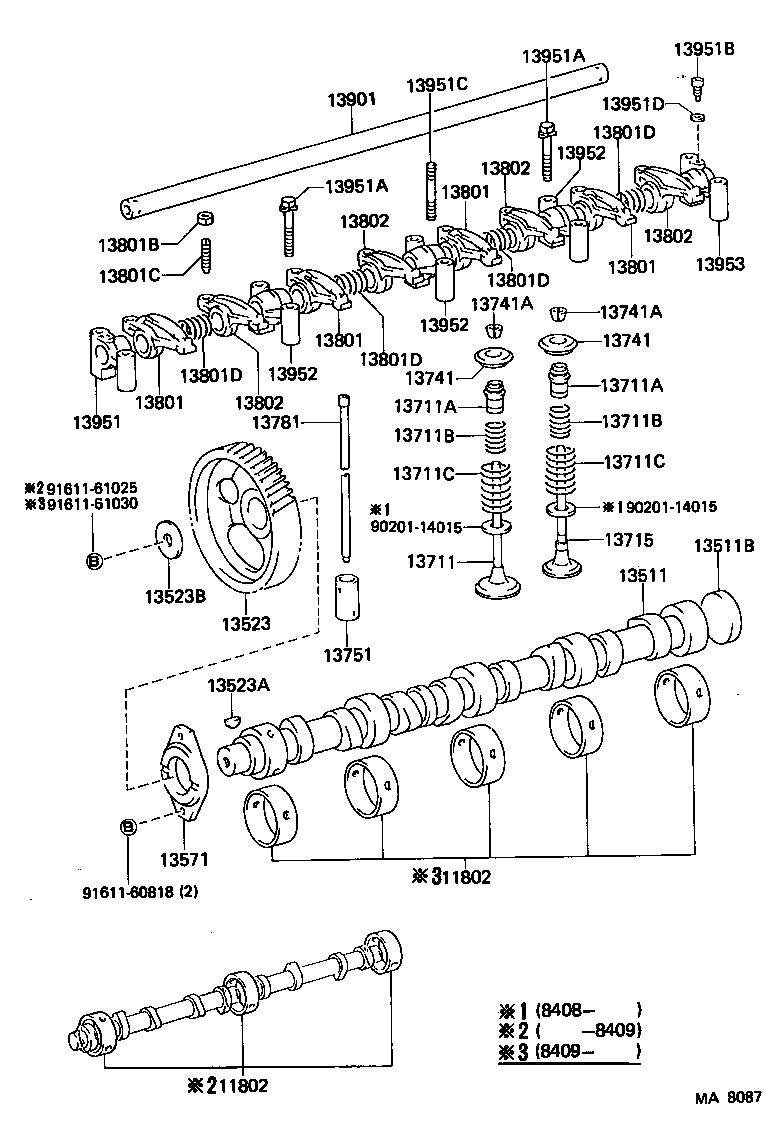

Exploded illustration MA8087 13951B — SCREW OR BOLT(FOR VALVE ROCKER SHAFT LOCK) (3 parts) 13951A — BOLT(FOR ROCKER SUPPORT SET) (6 parts) 13951C — BOLT, STUD(FOR ROCKER SUPPORT) (3 parts) 13901 — SHAFT SUB-ASSY, VALVE ROCKER, NO.1 (4 parts) 13951D — WASHER, SEAL(FOR HEAD COVER SET) (1 parts) 13801D — SPRING, COMPRESSION(FOR ROCKER ARM) (5 parts) 13952 — SUPPORT, VALVE ROCKER, NO.2 (3 parts) 13802 — ARM SUB-ASSY, VALVE ROCKER, NO.2 (4 parts) 13951A — BOLT(FOR ROCKER SUPPORT SET) (6 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (5 parts) 13802 — ARM SUB-ASSY, VALVE ROCKER, NO.2 (4 parts) 13802 — ARM SUB-ASSY, VALVE ROCKER, NO.2 (4 parts) 13801B — NUT, HEXAGON(FOR VALVE ADJUSTING) (5 parts) 13953 — SUPPORT, VALVE ROCKER, NO.3 (2 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (5 parts) 13801C — SCREW, VALVE ADJUSTING (6 parts) 13801D — SPRING, COMPRESSION(FOR ROCKER ARM) (5 parts) 13741A — LOCK, VALVE SPRING RETAINER (3 parts) 13741A — LOCK, VALVE SPRING RETAINER (3 parts) 13952 — SUPPORT, VALVE ROCKER, NO.2 (3 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (5 parts) 13741 — RETAINER, VALVE SPRING (4 parts) 13801D — SPRING, COMPRESSION(FOR ROCKER ARM) (5 parts) 13952 — SUPPORT, VALVE ROCKER, NO.2 (3 parts) 13801D — SPRING, COMPRESSION(FOR ROCKER ARM) (5 parts) 13741 — RETAINER, VALVE SPRING (4 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (3 parts) 13801 — ARM SUB-ASSY, VALVE ROCKER, NO.1 (5 parts) 13802 — ARM SUB-ASSY, VALVE ROCKER, NO.2 (4 parts) 13711A — SEAL OR RING, O(FOR VALVE STEM OIL) (3 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (3 parts) 13951 — SUPPORT, VALVE ROCKER, NO.1 (3 parts) 13781 — ROD, VALVE PUSH (4 parts) 13711B — SPRING, COMPRESSION(FOR INNER) (3 parts) 13711C — SPRING, COMPRESSION(FOR OUTER) (2 parts) 13711C — SPRING, COMPRESSION(FOR OUTER) (2 parts) 9161161025 — not listed in this catalogue 9161161030 — not listed in this catalogue 9020114015 — not listed in this catalogue 9020114015 — not listed in this catalogue 13715 — VALVE, EXHAUST (6 parts) 13511B — PLUG, EXPANSION(FOR CAMSHAFT) (4 parts) 13711 — VALVE, INTAKE (3 parts) 13511 — CAMSHAFT (4 parts) 13523B — WASHER, PLATE(FOR TIMING GEAR) (2 parts) 13523 — GEAR OR SPROCKET, CAMSHAFT TIMING (4 parts) 13751 — LIFTER, VALVE (7 parts) 13523A — KEY, WOODRUFF(FOR TIMING GEAR) (4 parts) 13571 — PLATE, CAMSHAFT THRUST (5 parts) 11802 — BEARING SET, CAMSHAFT (11 parts) 9161160818 — not listed in this catalogue 11802 — BEARING SET, CAMSHAFT (11 parts)
MA8087 · 47 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
119 parts on this figure
Part number Description Fitment Price
11802 — Bearing Set, Camshaft
11802-56011 note Bearing Set, Camshaft
1980-08 → 1984-09 ended
3B BJ60 —
11802-56020 note Bearing Set, Camshaft
1984-09 → 1985-10 ended
3B BJ60 —
11802-60011 note Bearing Set, Camshaft
1980-08 → 1984-10 ended
2F FJ60 —
11802-61010 note Bearing Set, Camshaft
1984-10 → 1987-08 ended
2F FJ60 —
11802-68011 note Bearing Set, Camshaft
1985-10 → 1987-08 ended
2H HJ60 —
11803-68011 note Bearing Set, Camshaft
1985-10 → 1987-08 ended
2H HJ60 —
11804-60021 note Bearing Set, Camshaft
1980-08 → 1984-10 ended
2F FJ60 —
11804-61010 note Bearing Set, Camshaft
1984-10 → 1987-08 ended
2F FJ60 —
11804-68011 note Bearing Set, Camshaft
1985-10 → 1987-08 ended
2H HJ60 —
11805-60021 note Bearing Set, Camshaft
1980-08 → 1984-10 ended
2F FJ60 —
11805-61010 note Bearing Set, Camshaft
1984-10 → 1987-08 ended
2F FJ60 —
13511 — Camshaft
13511-56010 Camshaft
1980-08 → 1984-09 ended
3B BJ60 —
13511-56030 Camshaft
1984-09 → 1985-10 ended
3B BJ60 —
13511-60060 Camshaft
1980-08 → 1987-08 ended
2F FJ60 —
13511-68010 Camshaft
1985-10 → 1987-08 ended
2H HJ60 —
13511B — Plug, Expansion(FOR CAMSHAFT)
90331-48010 Plug, Expansion(FOR CAMSHAFT)
1980-08 → 1987-08 ended
2F FJ60 —
90331-51032 note Plug, Expansion(FOR CAMSHAFT)
1980-08 → 1984-09 ended
3B BJ60 —
90331-55001 note Plug, Expansion(FOR CAMSHAFT)
1985-10 → 1987-08 ended
2H HJ60 —
90331-56001 note Plug, Expansion(FOR CAMSHAFT)
1984-09 → 1985-10 ended
3B BJ60 —
13523 — Gear OR Sprocket, Camshaft Timing
13523-56030 note Gear OR Sprocket, Camshaft Timing
1980-08 → 1984-09 ended
3B BJ60 —
13523-56040 Gear OR Sprocket, Camshaft Timing
1984-09 → 1985-10 ended
3B BJ60 —
13523-60030 Gear OR Sprocket, Camshaft Timing
1980-08 → 1987-08 ended
2F FJ60 —
13523-68010 Gear OR Sprocket, Camshaft Timing
1985-10 → 1987-08 ended
2H HJ60 —
13523A — Key, Woodruff(FOR TIMING GEAR)
90280-05010 Key, Woodruff(FOR TIMING GEAR)
1980-08 → 1986-09 ended
2F FJ60 —
95161-10519 Key, Woodruff(FOR TIMING GEAR)
1980-08 → 1987-08 ended
3B BJ60 —
95161-10519 Key, Woodruff(FOR TIMING GEAR)
1980-08 → 1987-08 ended
2H HJ60 —
95161-10519 Key, Woodruff(FOR TIMING GEAR)
1986-09 → 1987-08 ended
2F FJ60 —
13523B — Washer, Plate(FOR TIMING GEAR)
90201-10227 Washer, Plate(FOR TIMING GEAR)
1980-08 → 1985-10 ended
3B BJ60 —
90201-12006 Washer, Plate(FOR TIMING GEAR)
1985-10 → 1987-08 ended
2H HJ60 —
13571 — Plate, Camshaft Thrust
13571-56010 Plate, Camshaft Thrust
1980-08 → 1984-09 ended
3B BJ60 —
13571-56020 Plate, Camshaft Thrust
1984-09 → 1985-10 ended
3B BJ60 —
13571-60010 Plate, Camshaft Thrust
1980-08 → 1980-10 ended
2F FJ60 —
13571-61010 Plate, Camshaft Thrust
1980-10 → 1987-08 ended
2F FJ60 —
13571-68010 Plate, Camshaft Thrust
1985-10 → 1987-08 ended
2H HJ60 —
13711 — Valve, Intake
13711-58010 Valve, Intake
1980-08 → 1985-10 ended
3B BJ60 —
13711-60021 Valve, Intake
1980-08 → 1987-08 ended
2F FJ60 —
13711-68010 Valve, Intake
1985-10 → 1987-08 ended
2H HJ60 —
13711A — Seal OR Ring, O(FOR VALVE STEM OIL)
90913-02048 Seal OR Ring, O(FOR VALVE STEM OIL)
1980-08 → 1987-08 ended
2F FJ60 —
90913-02050 Seal OR Ring, O(FOR VALVE STEM OIL)
1985-10 → 1987-08 ended
2H HJ60 —
90913-02051 Seal OR Ring, O(FOR VALVE STEM OIL)
1980-08 → 1985-10 ended
3B BJ60 —
13711B — Spring, Compression(FOR INNER)
90501-23018 Spring, Compression(FOR INNER)
1980-08 → 1985-10 ended
3B BJ60 —
90501-26017 Spring, Compression(FOR INNER)
1985-10 → 1987-08 ended
2H HJ60 —
90501-45342 Spring, Compression(FOR INNER)
1980-08 → 1987-08 ended
2F FJ60 —
13711C — Spring, Compression(FOR OUTER)
90501-42006 Spring, Compression(FOR OUTER)
1985-10 → 1987-08 ended
2H HJ60 —
90501-47003 Spring, Compression(FOR OUTER)
1980-08 → 1985-10 ended
3B BJ60 —
13715 — Valve, Exhaust
13715-58010 Valve, Exhaust
1980-08 → 1984-10 ended
3B BJ60 —
13715-58011 Valve, Exhaust
1984-10 → 1985-10 ended
3B BJ60 —
13715-60032 Valve, Exhaust
1980-08 → 1984-11 ended
2F FJ60 USA —
13715-61010 Valve, Exhaust
1980-08 → 1981-10 ended
2F FJ60 CND —
13715-61030 Valve, Exhaust
1984-11 → 1987-08 ended
2F FJ60 —
13715-68010 Valve, Exhaust
1985-10 → 1987-08 ended
2H HJ60 —
13741 — Retainer, Valve Spring
13741-56020 Retainer, Valve Spring
1980-08 → 1984-09 ended
3B BJ60 —
13741-56021 Retainer, Valve Spring
1984-09 → 1985-10 ended
3B BJ60 —
13741-60030 Retainer, Valve Spring
1980-08 → 1987-08 ended
2F FJ60 —
13741-68010 Retainer, Valve Spring
1985-10 → 1987-08 ended
2H HJ60 —
13741A — Lock, Valve Spring Retainer
90913-03012 Lock, Valve Spring Retainer
1980-08 → 1987-08 ended
2F FJ60 —
90913-03018 Lock, Valve Spring Retainer
1985-10 → 1987-08 ended
2H HJ60 —
90913-03019 Lock, Valve Spring Retainer
1980-08 → 1985-10 ended
3B BJ60 —
13751 — Lifter, Valve
13751-47011 note Lifter, Valve
1985-10 → 1987-08 ended
2H HJ60 —
13751-56011 Lifter, Valve
1980-08 → 1983-05 ended
3B BJ60 —
13751-56012 Lifter, Valve
1983-05 → 1984-09 ended
3B BJ60 —
13751-56020 Lifter, Valve
1984-09 → 1985-10 ended
3B BJ60 —
13751-61010 note Lifter, Valve
1980-08 → 1987-08 ended
2F FJ60 —
13755-47011 note Lifter, Valve
1985-10 → 1987-08 ended
2H HJ60 —
13755-61010 note Lifter, Valve
1980-08 → 1987-08 ended
2F FJ60 —
13781 — Rod, Valve Push
13781-31011 Rod, Valve Push
1980-08 → 1984-09 ended
3B BJ60 —
13781-56010 Rod, Valve Push
1984-09 → 1985-10 ended
3B BJ60 —
13781-61010 Rod, Valve Push
1980-08 → 1987-08 ended
2F FJ60 —
13781-68010 Rod, Valve Push
1985-10 → 1987-08 ended
2H HJ60 —
13801 — Arm Sub-assy, Valve Rocker, NO.1
13811-56020 Arm Sub-assy, Valve Rocker, NO.1
1980-08 → 1984-09 ended
3B BJ60 —
13811-56030 Arm Sub-assy, Valve Rocker, NO.1
1984-09 → 1985-10 ended
3B BJ60 —
13811-61021 Arm Sub-assy, Valve Rocker, NO.1
1980-08 → 1984-10 ended
2F FJ60 —
13811-61030 Arm Sub-assy, Valve Rocker, NO.1
1984-10 → 1987-08 ended
2F FJ60 —
13811-68011 Arm Sub-assy, Valve Rocker, NO.1
1985-10 → 1987-08 ended
2H HJ60 —
13801B — Nut, Hexagon(FOR VALVE ADJUSTING)
90041-70001 Nut, Hexagon(FOR VALVE ADJUSTING)
1984-09 → 1985-10 ended
3B BJ60 —
90170-08005 Nut, Hexagon(FOR VALVE ADJUSTING)
1984-10 → 1987-08 ended
2H HJ60 —
90170-08005 Nut, Hexagon(FOR VALVE ADJUSTING)
1984-10 → 1987-08 ended
2F FJ60 —
90170-10014 Nut, Hexagon(FOR VALVE ADJUSTING)
1980-08 → 1984-10 ended
2F FJ60 —
90170-10074 Nut, Hexagon(FOR VALVE ADJUSTING)
1980-08 → 1984-09 ended
3B BJ60 —
13801C — Screw, Valve Adjusting
90913-05007 Screw, Valve Adjusting
1980-08 → 1984-09 ended
3B BJ60 —
90913-05007 Screw, Valve Adjusting
1980-08 → 1984-09 ended
2F FJ60 —
90913-05007 Screw, Valve Adjusting
1984-09 → 1984-10 ended
2F FJ60 —
90913-05020 Screw, Valve Adjusting
1984-10 → 1987-08 ended
2F FJ60 —
90913-05020 Screw, Valve Adjusting
1984-10 → 1987-08 ended
2H HJ60 —
90913-05021 Screw, Valve Adjusting
1984-09 → 1985-10 ended
3B BJ60 —
13801D — Spring, Compression(FOR ROCKER ARM)
90501-14087 Spring, Compression(FOR ROCKER ARM)
1984-10 → 1987-08 ended
2F FJ60 —
90501-16163 Spring, Compression(FOR ROCKER ARM)
1980-08 → 1984-10 ended
3B BJ60 —
90501-16163 Spring, Compression(FOR ROCKER ARM)
1980-08 → 1984-10 ended
2F FJ60 —
90501-16163 Spring, Compression(FOR ROCKER ARM)
1984-10 → 1987-08 ended
3B BJ60 —
90501-16163 Spring, Compression(FOR ROCKER ARM)
1984-10 → 1987-08 ended
2H HJ60 —
13802 — Arm Sub-assy, Valve Rocker, NO.2
13812-56020 Arm Sub-assy, Valve Rocker, NO.2
1980-08 → 1984-09 ended
3B BJ60 —
13812-56030 Arm Sub-assy, Valve Rocker, NO.2
1984-09 → 1985-10 ended
3B BJ60 —
13812-61021 Arm Sub-assy, Valve Rocker, NO.2
1980-08 → 1984-10 ended
2F FJ60 —
13812-61030 Arm Sub-assy, Valve Rocker, NO.2
1984-10 → 1987-08 ended
2F FJ60 —
13901 — Shaft Sub-assy, Valve Rocker, NO.1
13901-56020 Shaft Sub-assy, Valve Rocker, NO.1
1980-08 → 1985-10 ended
3B BJ60 —
13901-61011 Shaft Sub-assy, Valve Rocker, NO.1
1980-08 → 1984-10 ended
2F FJ60 —
13901-61020 Shaft Sub-assy, Valve Rocker, NO.1
1984-10 → 1987-08 ended
2F FJ60 —
13901-68010 Shaft Sub-assy, Valve Rocker, NO.1
1985-10 → 1987-08 ended
2H HJ60 —
13951 — Support, Valve Rocker, NO.1
13951-56010 Support, Valve Rocker, NO.1
1980-08 → 1985-10 ended
3B BJ60 —
13951-61012 Support, Valve Rocker, NO.1
1980-08 → 1987-08 ended
2F FJ60 —
13951-68010 Support, Valve Rocker, NO.1
1985-10 → 1987-08 ended
2H HJ60 —
13951A — Bolt(FOR ROCKER SUPPORT SET)
90910-01006 Bolt(FOR ROCKER SUPPORT SET)
1980-08 → 1985-09 ended
2F FJ60 —
90910-01006 note Bolt(FOR ROCKER SUPPORT SET)
1985-09 → 1987-08 ended
2F FJ60 —
90910-01012 note Bolt(FOR ROCKER SUPPORT SET)
1985-09 → 1987-08 ended
2F FJ60 —
91611-60855 note Bolt(FOR ROCKER SUPPORT SET)
1980-08 → 1985-10 ended
3B BJ60 —
91611-60860 note Bolt(FOR ROCKER SUPPORT SET)
1985-10 → 1987-08 ended
2H HJ60 —
91611-60865 note Bolt(FOR ROCKER SUPPORT SET)
1980-08 → 1985-10 ended
3B BJ60 —
13951B — Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
13958-56010 Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
1984-09 → 1985-10 ended
3B BJ60 —
90149-60001 Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
1980-08 → 1984-09 ended
3B BJ60 —
91611-60816 note Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
1985-10 → 1987-08 ended
2H HJ60 —
13951C — Bolt, Stud(FOR ROCKER SUPPORT)
13994-61010 Bolt, Stud(FOR ROCKER SUPPORT)
1980-08 → 1987-08 ended
2F FJ60 —
90116-08123 note Bolt, Stud(FOR ROCKER SUPPORT)
1980-08 → 1985-10 ended
3B BJ60 —
92112-60828 note Bolt, Stud(FOR ROCKER SUPPORT)
1985-10 → 1987-08 ended
2H HJ60 —
13951D — Washer, Seal(FOR HEAD COVER SET)
90201-06177 Washer, Seal(FOR HEAD COVER SET)
1980-08 → 1985-10 ended
3B BJ60 —
13952 — Support, Valve Rocker, NO.2
13952-56010 Support, Valve Rocker, NO.2
1980-08 → 1985-10 ended
3B BJ60 —
13952-61012 Support, Valve Rocker, NO.2
1980-08 → 1987-08 ended
2F FJ60 —
13952-68010 Support, Valve Rocker, NO.2
1985-10 → 1987-08 ended
2H HJ60 —
13953 — Support, Valve Rocker, NO.3
13953-56010 Support, Valve Rocker, NO.3
1980-08 → 1985-10 ended
3B BJ60 —
13953-68010 Support, Valve Rocker, NO.3
1985-10 → 1987-08 ended
2H HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
