Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

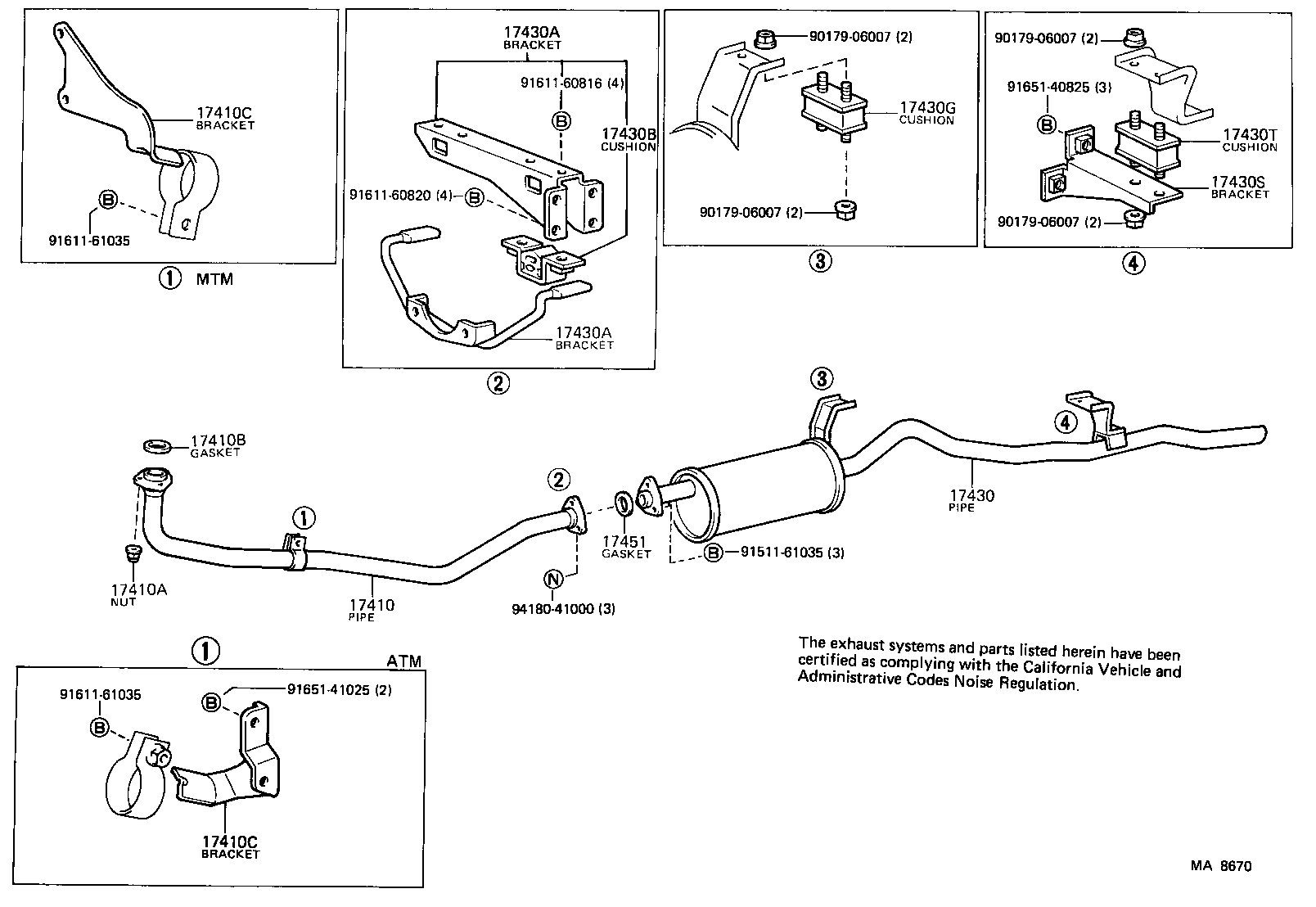

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 17410 — Pipe Assy, Exhaust, Front | ||||
| 17401-56080 |
Pipe Assy, Exhaust, Front
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 17401-58050 |
Pipe Assy, Exhaust, Front
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 17401-61120 |
Pipe Assy, Exhaust, Front
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 17401-68020 |
Pipe Assy, Exhaust, Front
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 17410-61160 |
Pipe Assy, Exhaust, Front
1980-08 → 1985-04
ended
|
2F FJ60 USA | — | |
| 17410-61190 |
Pipe Assy, Exhaust, Front
1985-04 → 1987-08
ended
|
2F FJ60 | — | |
| 17410A — Nut, Exhaust Pipe Set Stud Bolt | ||||
| 90179-10010 |
Nut, Exhaust Pipe Set Stud Bolt
1980-08 → 1984-11
ended
|
3B,2F BJ60,FJ60 | — | |
| 90179-10070 |
Nut, Exhaust Pipe Set Stud Bolt
1984-11 → 1987-08
ended
|
3B,2F,2H BJ60,FJ60,HJ60 | — | |
| 17410B — Gasket, Exhaust Pipe | ||||
| 90917-06003 |
Gasket, Exhaust Pipe
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 90917-06005 |
Gasket, Exhaust Pipe
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 90917-06012 |
Gasket, Exhaust Pipe
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 17410C — Bracket, Exhaust Pipe Front (FOR FRONT) | ||||
| 17571-56040 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1980-08 → 1984-11
ended
|
3B BJ60 | — | |
| 17571-58090 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 17571-61090 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1980-08 → 1985-04
ended
|
2F FJ60 | — | |
| 17571-61150 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1985-04 → 1987-08
ended
|
2F FJ60 | — | |
| 17571-68010 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1985-10 → 1987-08
ended
|
2H HJ60 4FC | — | |
| 17571-68020 |
Bracket, Exhaust Pipe Front (FOR FRONT)
1985-10 → 1987-08
ended
|
2H HJ60 5F | — | |
| 17430 — Pipe Assy, Exhaust, Tail | ||||
| 17405-58050 |
Pipe Assy, Exhaust, Tail
1984-11 → 1985-10
ended
|
3B BJ60 | — | |
| 17405-68060 |
Pipe Assy, Exhaust, Tail
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 17430-56260 |
Pipe Assy, Exhaust, Tail
1980-08 → 1982-10
ended
|
3B BJ60 | — | |
| 17430-56261 |
Pipe Assy, Exhaust, Tail
1982-10 → 1984-11
ended
|
3B BJ60 | — | |
| 17430-61160 |
Pipe Assy, Exhaust, Tail
1980-08 → 1981-10
ended
|
2F FJ60 CND | — | |
| 17430-61170 |
Pipe Assy, Exhaust, Tail
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 17430A — Bracket, Exhaust Tailpipe(FOR FRONT) | ||||
| 17505-61040 note |
Bracket, Exhaust Tailpipe(FOR FRONT)
1980-08 → 1985-10
ended
|
3B,2F BJ60,FJ60 CND | — | |
| 17505-61050 note |
Bracket, Exhaust Tailpipe(FOR FRONT)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 17505-61060 note |
Bracket, Exhaust Tailpipe(FOR FRONT)
1980-08 → 1987-08
ended
|
2F FJ60 USA | — | |
| 17583-61050 note |
Bracket, Exhaust Tailpipe(FOR FRONT)
1980-08 → 1987-08
ended
|
3B,2F BJ60,FJ60 | — | |
| 17590-61051 note |
Bracket, Exhaust Tailpipe(FOR FRONT)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 17430B — Cushion, Exhaust Tailpipe(FOR FRONT) | ||||
| 90917-04052 |
Cushion, Exhaust Tailpipe(FOR FRONT)
1980-08 → 1987-08
ended
|
3B,2F,2H BJ60,FJ60,HJ60 | — | |
| 17430G — Cushion, Exhaust Tailpipe(FOR CENTER) | ||||
| 17567-61030 |
Cushion, Exhaust Tailpipe(FOR CENTER)
1980-08 → 1987-08
ended
|
3B,2F,2H BJ60,FJ60,HJ60 | — | |
| 17430S — Bracket, Exhaust Tailpipe (FOR REAR) | ||||
| 17574-61050 |
Bracket, Exhaust Tailpipe (FOR REAR)
1980-08 → 1984-11
ended
|
3B,2F BJ60,FJ60 | — | |
| 17574-61050 |
Bracket, Exhaust Tailpipe (FOR REAR)
1984-11 → 1985-04
ended
|
2F FJ60 | — | |
| 17574-61050 |
Bracket, Exhaust Tailpipe (FOR REAR)
1986-04 → 1987-08
ended
|
2F FJ60 | — | |
| 17574-61060 |
Bracket, Exhaust Tailpipe (FOR REAR)
1985-04 → 1986-04
ended
|
2F FJ60 | — | |
| 17574-61060 |
Bracket, Exhaust Tailpipe (FOR REAR)
1984-11 → 1987-08
ended
|
3B,2H BJ60,HJ60 | — | |
| 17430T — Cushion, Exhaust Tailpipe (FOR REAR) | ||||
| 17567-61030 |
Cushion, Exhaust Tailpipe (FOR REAR)
1980-08 → 1987-08
ended
|
3B,2F,2H BJ60,FJ60,HJ60 | — | |
| 17451 — Gasket, Exhaust Pipe | ||||
| 90917-06012 |
Gasket, Exhaust Pipe
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 90917-06024 |
Gasket, Exhaust Pipe
1980-08 → 1987-08
ended
|
2F,2H FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
