Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

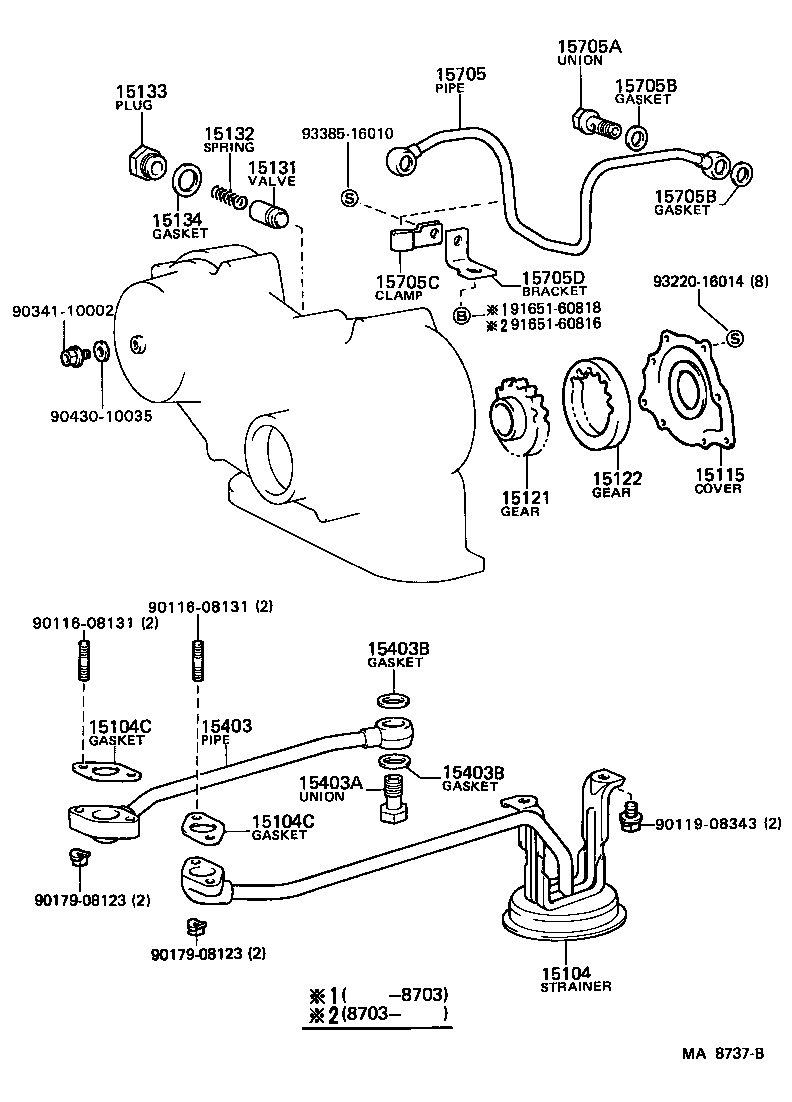

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-56040 |
Strainer Sub-assy, Oil
1980-08 → 1984-09
ended
|
3B BJ60 | — | |
| 15104-56050 |
Strainer Sub-assy, Oil
1984-09 → 1985-10
ended
|
3B BJ60 | — | |
| 15104-68012 |
Strainer Sub-assy, Oil
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15104C — Gasket(FOR OIL STRAINER) | ||||
| 15149-68010 |
Gasket(FOR OIL STRAINER)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15193-56010 |
Gasket(FOR OIL STRAINER)
1981-09 → 1984-09
ended
|
3B BJ60 | — | |
| 15193-56020 |
Gasket(FOR OIL STRAINER)
1984-09 → 1985-10
ended
|
3B BJ60 | — | |
| 15422-56020 |
Gasket(FOR OIL STRAINER)
1980-08 → 1981-09
ended
|
3B BJ60 | — | |
| 15115 — Cover, Oil Pump | ||||
| 15115-56030 |
Cover, Oil Pump
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 15115-68020 |
Cover, Oil Pump
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15121 — Gear, Oil Pump Drive | ||||
| 15121-56030 |
Gear, Oil Pump Drive
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 15121-61011 |
Gear, Oil Pump Drive
1984-11 → 1987-08
ended
|
2F FJ60 | — | |
| 15121-68020 |
Gear, Oil Pump Drive
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15121-88111 |
Gear, Oil Pump Drive
1980-08 → 1984-11
ended
|
2F FJ60 | — | |
| 15122 — Gear, Oil Pump Driven | ||||
| 15122-56030 |
Gear, Oil Pump Driven
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 15122-61011 |
Gear, Oil Pump Driven
1984-11 → 1987-08
ended
|
2F FJ60 | — | |
| 15122-68020 |
Gear, Oil Pump Driven
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15122-79410 |
Gear, Oil Pump Driven
1980-08 → 1984-11
ended
|
2F FJ60 | — | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-22010 |
Valve, Oil Pump Relief
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15131-24010 |
Valve, Oil Pump Relief
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 15131-24010 |
Valve, Oil Pump Relief
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 15132 — Spring, Oil Pump Relief Valve | ||||
| 15132-40010 |
Spring, Oil Pump Relief Valve
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 15132-76011 |
Spring, Oil Pump Relief Valve
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 15132-76011 |
Spring, Oil Pump Relief Valve
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-20010 |
Plug, Oil Pump Relief Valve
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 15133-20010 |
Plug, Oil Pump Relief Valve
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 15133-24010 |
Plug, Oil Pump Relief Valve
1980-08 → 1987-08
ended
|
2F FJ60 | — | |
| 15134 — Gasket, Oil Pump Relief Valve | ||||
| 15134-20010 |
Gasket, Oil Pump Relief Valve
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 15134-20010 |
Gasket, Oil Pump Relief Valve
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 15403 — Pipe Sub-assy, Oil Pump Outlet | ||||
| 15403-56040 |
Pipe Sub-assy, Oil Pump Outlet
1980-08 → 1984-09
ended
|
3B BJ60 | — | |
| 15403-56041 |
Pipe Sub-assy, Oil Pump Outlet
1984-09 → 1985-10
ended
|
3B BJ60 | — | |
| 15403-68010 |
Pipe Sub-assy, Oil Pump Outlet
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15403A — Union(FOR OIL PUMP OUTLET PIPE) | ||||
| 90401-18002 |
Union(FOR OIL PUMP OUTLET PIPE)
1980-08 → 1985-10
ended
|
3B BJ60 | — | |
| 90401-18007 |
Union(FOR OIL PUMP OUTLET PIPE)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15403B — Gasket(FOR OIL PUMP OUTLET PIPE) | ||||
| 90430-18012 |
Gasket(FOR OIL PUMP OUTLET PIPE)
1980-08 → 1987-08
ended
|
3B BJ60 | — | |
| 90430-18012 |
Gasket(FOR OIL PUMP OUTLET PIPE)
1980-08 → 1987-08
ended
|
2H HJ60 | — | |
| 15705 — Pipe Sub-assy, Oil, Injection Pump Inlet | ||||
| 15707-68011 |
Pipe Sub-assy, Oil, Injection Pump Inlet
1985-10 → 1987-08
ended
|
2H HJ60 5F | — | |
| 15707-68020 |
Pipe Sub-assy, Oil, Injection Pump Inlet
1985-10 → 1987-08
ended
|
2H HJ60 4FC | — | |
| 15705A — Union(FOR INJECTION PUMP INLET PIPE) | ||||
| 90401-10006 |
Union(FOR INJECTION PUMP INLET PIPE)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15705B — Gasket(FOR INJECTION PUMP INLET PIPE) | ||||
| 90430-10035 |
Gasket(FOR INJECTION PUMP INLET PIPE)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15705C — Clamp(FOR INJECTION PUMP INLET PIPE) | ||||
| 90461-08516 |
Clamp(FOR INJECTION PUMP INLET PIPE)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
| 15705D — Bracket(FOR INJECTION PUMP INLET PIPE) | ||||
| 15783-68010 |
Bracket(FOR INJECTION PUMP INLET PIPE)
1985-10 → 1987-08
ended
|
2H HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
