Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

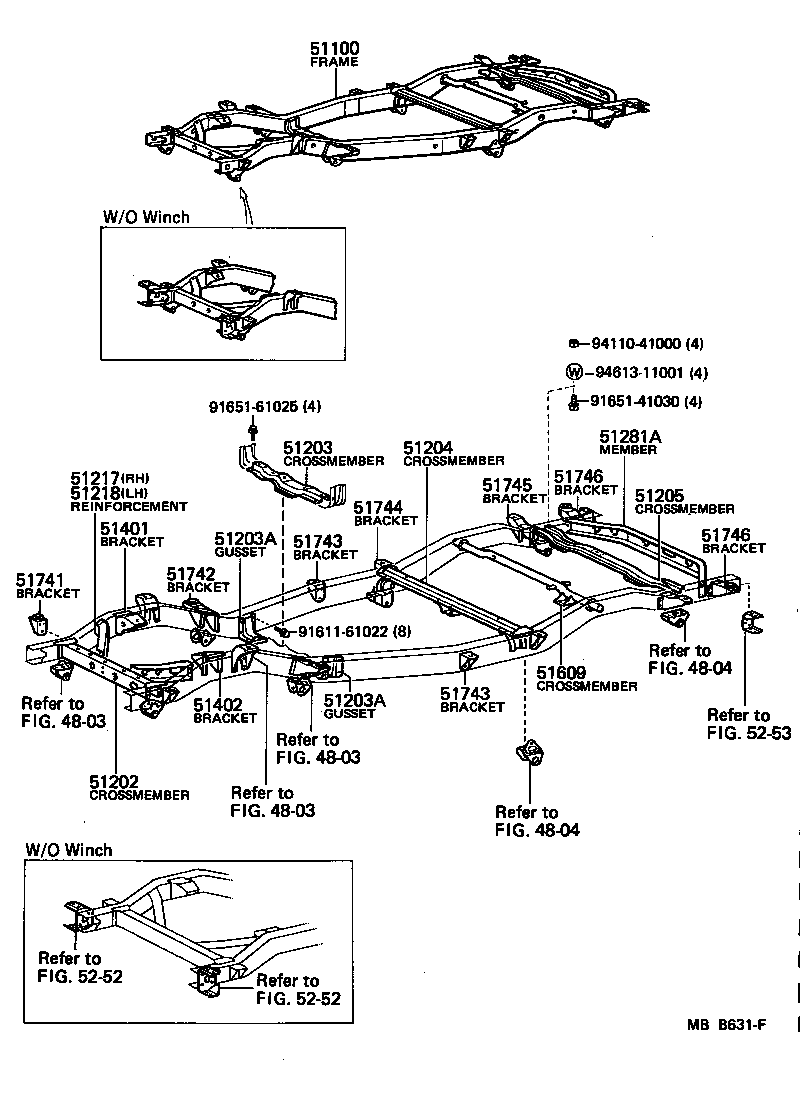

Exploded illustration MBB631F 51100 — FRAME ASSY (14 parts) 9411041000 — not listed in this catalogue 9461311001 — not listed in this catalogue 9165141030 — not listed in this catalogue 9165161025 — not listed in this catalogue 51281A — MEMBER, REAR DIAGONAL (3 parts) 51203 — CROSSMEMBER SUB-ASSY, FRAME, NO.2 (8 parts) 51204 — CROSSMEMBER SUB-ASSY, FRAME, NO.3 (6 parts) 51746 — BRACKET, BODY MOUNTING, NO.6 (1 parts) 51217 — REINFORCEMENT, FRONT CROSSMEMBER, LOWER RH (2 parts) 51745 — BRACKET, BODY MOUNTING, NO.5 (4 parts) 51218 — REINFORCEMENT, FRONT CROSSMEMBER, LOWER LH (2 parts) 51205 — CROSSMEMBER SUB-ASSY, FRAME, NO.4 (1 parts) 51744 — BRACKET, BODY MOUNTING, NO.4 (4 parts) 51401 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH (4 parts) 51746 — BRACKET, BODY MOUNTING, NO.6 (1 parts) 51203A — GUSSET SUB-ASSY, CROSSMEMBER, NO.2 (10 parts) 51743 — BRACKET, BODY MOUNTING, NO.3 (5 parts) 51742 — BRACKET, BODY MOUNTING, NO.2 (2 parts) 51741 — BRACKET, REAR BODY MOUNTING, NO.1 (6 parts) 9161161022 — not listed in this catalogue 4804 — not listed in this catalogue 51609 — CROSSMEMBER SUB-ASSY, REAR SHOCK ABSORBER SUPPORT (3 parts) 51743 — BRACKET, BODY MOUNTING, NO.3 (5 parts) 51203A — GUSSET SUB-ASSY, CROSSMEMBER, NO.2 (10 parts) 51402 — BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH (4 parts) 4803 — not listed in this catalogue 5253 — not listed in this catalogue 4803 — not listed in this catalogue 51202 — CROSSMEMBER SUB-ASSY, FRAME, NO.1 (1 parts) 4803 — not listed in this catalogue 4804 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue
MBB631F · 21 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
80 parts on this figure
Part number Description Fitment Price
51100 — Frame Assy
51001-60580 note Frame Assy
1980-08 → 1983-07 ended
FJ60 —
51001-60581 note Frame Assy
1983-07 → 1985-04 ended
FJ60 —
51001-60603 Frame Assy
1985-10 → 1987-08 ended
HJ60 5F —
51001-60620 note Frame Assy
1980-08 → 1983-07 ended
BJ60 —
51001-60621 note Frame Assy
1983-07 → 1984-11 ended
BJ60 —
51001-60622 note Frame Assy
1984-11 → 1985-10 ended
BJ60 —
51001-60640 note Frame Assy
1980-08 → 1983-07 ended
FJ60 —
51001-60641 note Frame Assy
1983-07 → 1985-04 ended
FJ60 —
51001-60680 note Frame Assy
1980-08 → 1983-07 ended
BJ60 —
51001-60681 note Frame Assy
1983-07 → 1984-11 ended
BJ60 —
51001-60682 note Frame Assy
1984-11 → 1985-10 ended
BJ60 —
51002-60451 Frame Assy
1985-10 → 1987-08 ended
HJ60 4FC —
51002-60500 note Frame Assy
1985-04 → 1987-08 ended
FJ60 —
51002-60510 note Frame Assy
1985-04 → 1985-10 ended
FJ60 —
51202 — Crossmember Sub-assy, Frame, NO.1
51201-60080 Crossmember Sub-assy, Frame, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
51203 — Crossmember Sub-assy, Frame, NO.2
51202-60070 Crossmember Sub-assy, Frame, NO.2
1980-08 → 1982-10 ended
BJ60,FJ60 —
51202-60071 Crossmember Sub-assy, Frame, NO.2
1982-10 → 1984-11 ended
BJ60,FJ60 —
51202-60071 Crossmember Sub-assy, Frame, NO.2
1984-11 → 1985-04 ended
FJ60 —
51202-60072 Crossmember Sub-assy, Frame, NO.2
1984-11 → 1985-04 ended
BJ60 —
51202-60072 Crossmember Sub-assy, Frame, NO.2
1985-04 → 1986-11 ended
BJ60,FJ60,HJ60 MTM —
51202-60073 Crossmember Sub-assy, Frame, NO.2
1986-11 → 1987-08 ended
FJ60,HJ60 MTM —
51202-60150 Crossmember Sub-assy, Frame, NO.2
1985-10 → 1986-11 ended
HJ60 4FC —
51202-60151 Crossmember Sub-assy, Frame, NO.2
1986-11 → 1987-08 ended
HJ60 4FC —
51203A — Gusset Sub-assy, Crossmember, NO.2
51041-60010 note Gusset Sub-assy, Crossmember, NO.2
1980-08 → 1985-04 ended
FJ60 —
51041-60020 note Gusset Sub-assy, Crossmember, NO.2
1980-08 → 1984-11 ended
BJ60 —
51042-60010 note Gusset Sub-assy, Crossmember, NO.2
1980-08 → 1985-04 ended
FJ60 —
51042-60020 note Gusset Sub-assy, Crossmember, NO.2
1980-08 → 1984-11 ended
BJ60 —
51321-60011 note Gusset Sub-assy, Crossmember, NO.2
1984-11 → 1985-04 ended
BJ60 —
51321-60011 note Gusset Sub-assy, Crossmember, NO.2
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
51321-60030 note Gusset Sub-assy, Crossmember, NO.2
1985-10 → 1987-08 ended
HJ60 4FC —
51322-60011 note Gusset Sub-assy, Crossmember, NO.2
1984-11 → 1985-04 ended
BJ60 —
51322-60011 note Gusset Sub-assy, Crossmember, NO.2
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
51322-60030 note Gusset Sub-assy, Crossmember, NO.2
1985-10 → 1987-08 ended
HJ60 4FC —
51204 — Crossmember Sub-assy, Frame, NO.3
51203-60100 Crossmember Sub-assy, Frame, NO.3
1980-08 → 1984-11 ended
BJ60,FJ60 —
51203-60100 Crossmember Sub-assy, Frame, NO.3
1984-11 → 1985-04 ended
FJ60 —
51203-60101 Crossmember Sub-assy, Frame, NO.3
1984-11 → 1985-04 ended
BJ60 —
51203-60101 Crossmember Sub-assy, Frame, NO.3
1985-04 → 1986-04 ended
BJ60,FJ60 —
51203-60102 Crossmember Sub-assy, Frame, NO.3
1985-10 → 1987-08 ended
HJ60 —
51203-60102 Crossmember Sub-assy, Frame, NO.3
1986-04 → 1987-08 ended
FJ60 —
51205 — Crossmember Sub-assy, Frame, NO.4
51205-60010 Crossmember Sub-assy, Frame, NO.4
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
51217 — Reinforcement, Front Crossmember, Lower RH
51217-60010 Reinforcement, Front Crossmember, Lower RH
1980-08 → 1984-09 ended
BJ60,FJ60 —
51217-60011 Reinforcement, Front Crossmember, Lower RH
1984-09 → 1987-08 ended
BJ60,FJ60,HJ60 —
51218 — Reinforcement, Front Crossmember, Lower LH
51218-60010 Reinforcement, Front Crossmember, Lower LH
1980-08 → 1984-09 ended
BJ60,FJ60 —
51218-60011 Reinforcement, Front Crossmember, Lower LH
1984-09 → 1987-08 ended
BJ60,FJ60,HJ60 —
51281A — Member, Rear Diagonal
51209-60090 Member, Rear Diagonal
1984-11 → 1987-08 ended
BJ60,HJ60 —
51281-60060 Member, Rear Diagonal
1980-08 → 1984-11 ended
BJ60,FJ60 —
51281-60060 Member, Rear Diagonal
1984-11 → 1987-08 ended
FJ60 —
51401 — Bracket Sub-assy, Engine Front Mounting, RH
51401-60021 Bracket Sub-assy, Engine Front Mounting, RH
1985-10 → 1987-08 ended
HJ60 —
51421-60040 Bracket Sub-assy, Engine Front Mounting, RH
1980-08 → 1987-08 ended
FJ60 —
51421-60060 Bracket Sub-assy, Engine Front Mounting, RH
1980-08 → 1984-11 ended
BJ60 —
51421-60061 Bracket Sub-assy, Engine Front Mounting, RH
1984-11 → 1985-10 ended
BJ60 —
51402 — Bracket Sub-assy, Engine Front Mounting, LH
51422-60040 Bracket Sub-assy, Engine Front Mounting, LH
1980-08 → 1987-08 ended
FJ60 —
51422-60052 Bracket Sub-assy, Engine Front Mounting, LH
1985-10 → 1987-08 ended
HJ60 —
51422-60060 Bracket Sub-assy, Engine Front Mounting, LH
1980-08 → 1984-11 ended
BJ60 —
51422-60061 Bracket Sub-assy, Engine Front Mounting, LH
1984-11 → 1985-10 ended
BJ60 —
51609 — Crossmember Sub-assy, Rear Shock Absorber Support
51204-60050 Crossmember Sub-assy, Rear Shock Absorber Support
1980-08 → 1983-07 ended
BJ60,FJ60 —
51204-60051 Crossmember Sub-assy, Rear Shock Absorber Support
1983-07 → 1987-08 ended
BJ60,FJ60 —
51204-60052 Crossmember Sub-assy, Rear Shock Absorber Support
1985-10 → 1987-08 ended
HJ60 —
51741 — Bracket, Rear Body Mounting, NO.1
51701-60050 Bracket, Rear Body Mounting, NO.1
1980-08 → 1984-11 ended
BJ60,FJ60 —
51701-60050 Bracket, Rear Body Mounting, NO.1
1984-11 → 1985-04 ended
FJ60 —
51701-60051 note Bracket, Rear Body Mounting, NO.1
1984-11 → 1985-04 ended
BJ60 —
51701-60051 note Bracket, Rear Body Mounting, NO.1
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
51702-60020 note Bracket, Rear Body Mounting, NO.1
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
51702-60020 note Bracket, Rear Body Mounting, NO.1
1984-11 → 1985-04 ended
BJ60 —
51742 — Bracket, Body Mounting, NO.2
51703-60020 note Bracket, Body Mounting, NO.2
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
51704-60010 note Bracket, Body Mounting, NO.2
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
51743 — Bracket, Body Mounting, NO.3
51705-60060 Bracket, Body Mounting, NO.3
1980-08 → 1984-11 ended
BJ60,FJ60 —
51705-60060 Bracket, Body Mounting, NO.3
1984-11 → 1985-04 ended
FJ60 —
51705-60061 Bracket, Body Mounting, NO.3
1984-11 → 1985-04 ended
BJ60 —
51705-60061 Bracket, Body Mounting, NO.3
1985-04 → 1985-05 ended
BJ60,FJ60 —
51705-60062 Bracket, Body Mounting, NO.3
1985-05 → 1987-08 ended
BJ60,FJ60,HJ60 —
51744 — Bracket, Body Mounting, NO.4
51705-60060 Bracket, Body Mounting, NO.4
1980-08 → 1984-11 ended
BJ60,FJ60 —
51705-60060 Bracket, Body Mounting, NO.4
1984-11 → 1985-04 ended
FJ60 —
51705-60110 Bracket, Body Mounting, NO.4
1984-11 → 1985-04 ended
BJ60 —
51705-60110 Bracket, Body Mounting, NO.4
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
51745 — Bracket, Body Mounting, NO.5
51707-60030 Bracket, Body Mounting, NO.5
1984-11 → 1985-04 ended
BJ60 —
51707-60030 Bracket, Body Mounting, NO.5
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
51737-60020 Bracket, Body Mounting, NO.5
1980-08 → 1984-11 ended
BJ60,FJ60 —
51737-60020 Bracket, Body Mounting, NO.5
1984-11 → 1985-04 ended
FJ60 —
51746 — Bracket, Body Mounting, NO.6
51709-60020 Bracket, Body Mounting, NO.6
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
