Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

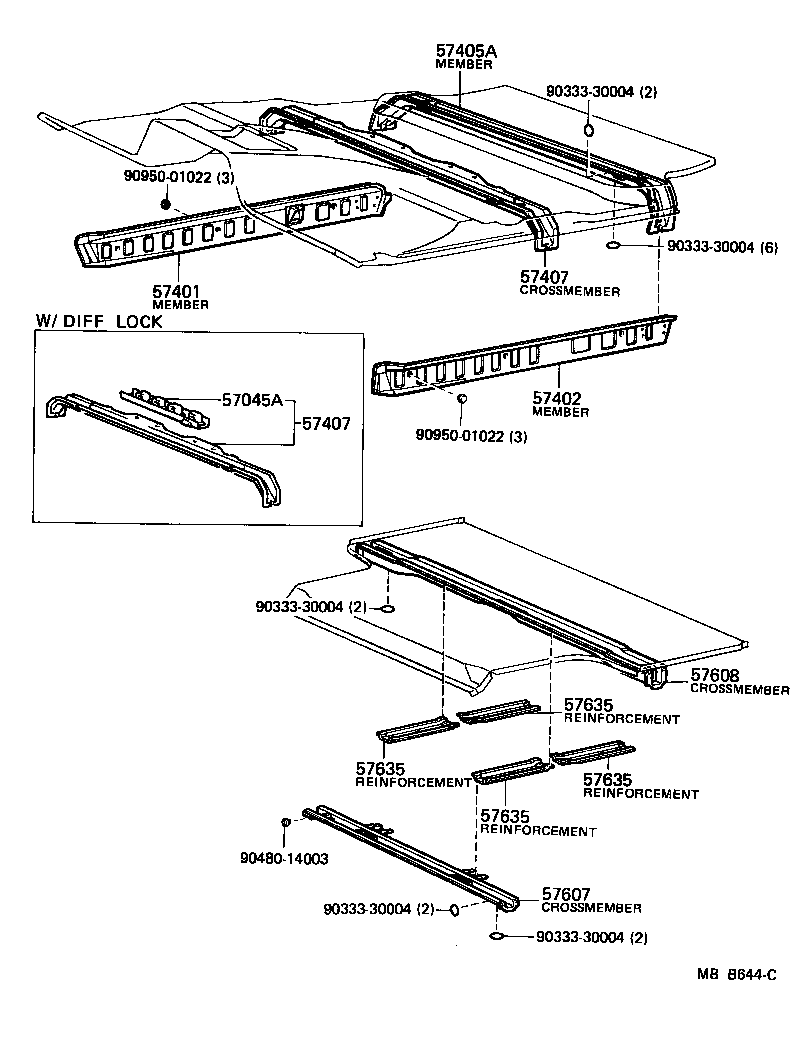

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 57045A — Reinforcement Sub-assy, Differential Lock Lever Support | ||||
| 57045-90A01 |
Reinforcement Sub-assy, Differential Lock Lever Support
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 57401 — Member Sub-assy, Main Floor Side, RH | ||||
| 57401-90A01 |
Member Sub-assy, Main Floor Side, RH
1980-08 → 1983-09
ended
|
BJ60,FJ60 | — | |
| 57401-90A05 |
Member Sub-assy, Main Floor Side, RH
1983-09 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 57402 — Member Sub-assy, Main Floor Side, LH | ||||
| 57402-90A01 |
Member Sub-assy, Main Floor Side, LH
1980-08 → 1983-09
ended
|
BJ60,FJ60 | — | |
| 57402-90A05 |
Member Sub-assy, Main Floor Side, LH
1983-09 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 57405A — Member Sub-assy, Center Floor Cross, NO.2 | ||||
| 57405-90A00 |
Member Sub-assy, Center Floor Cross, NO.2
1980-08 → 1983-09
ended
|
BJ60,FJ60 | — | |
| 57405-90A03 |
Member Sub-assy, Center Floor Cross, NO.2
1983-09 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 57407 — Crossmember Sub-assy, Center Floor, NO.1 | ||||
| 57407-90A00 note |
Crossmember Sub-assy, Center Floor, NO.1
1980-08 → 1981-10
ended
|
FJ60 USA | — | |
| 57407-90A01 note |
Crossmember Sub-assy, Center Floor, NO.1
1980-08 → 1981-10
ended
|
FJ60 USA | — | |
| 57407-90A01 note |
Crossmember Sub-assy, Center Floor, NO.1
1981-10 → 1983-09
ended
|
FJ60 | — | |
| 57407-90A03 note |
Crossmember Sub-assy, Center Floor, NO.1
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 57407-90A03 note |
Crossmember Sub-assy, Center Floor, NO.1
1981-10 → 1983-09
ended
|
BJ60,FJ60 | — | |
| 57407-90A04 note |
Crossmember Sub-assy, Center Floor, NO.1
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 57407-90A06 note |
Crossmember Sub-assy, Center Floor, NO.1
1983-09 → 1985-02
ended
|
FJ60 | — | |
| 57407-90A09 |
Crossmember Sub-assy, Center Floor, NO.1
1983-09 → 1986-04
ended
|
BJ60,FJ60,HJ60 | — | |
| 57407-90A09 |
Crossmember Sub-assy, Center Floor, NO.1
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 57407-90A09 |
Crossmember Sub-assy, Center Floor, NO.1
1986-04 → 1987-08
ended
|
HJ60 | — | |
| 57407-90A21 note |
Crossmember Sub-assy, Center Floor, NO.1
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 57407-90A24 note |
Crossmember Sub-assy, Center Floor, NO.1
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 57607 — Crossmember Sub-assy, Rear Floor, NO.1 | ||||
| 57605-90A01 |
Crossmember Sub-assy, Rear Floor, NO.1
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 57608 — Crossmember Sub-assy, Rear Floor, NO.2 | ||||
| 57606-90A00 |
Crossmember Sub-assy, Rear Floor, NO.2
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 57606-90A00 |
Crossmember Sub-assy, Rear Floor, NO.2
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 57606-90A03 |
Crossmember Sub-assy, Rear Floor, NO.2
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 57606-90A03 |
Crossmember Sub-assy, Rear Floor, NO.2
1985-04 → 1986-12
ended
|
BJ60,FJ60,HJ60 | — | |
| 57606-90A07 |
Crossmember Sub-assy, Rear Floor, NO.2
1986-12 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 57635 — Reinforcement, Rear Floor Side Member | ||||
| 57635-90A00 |
Reinforcement, Rear Floor Side Member
1980-08 → 1983-05
ended
|
BJ60,FJ60 | — | |
| 57635-90A02 |
Reinforcement, Rear Floor Side Member
1983-05 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
