Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

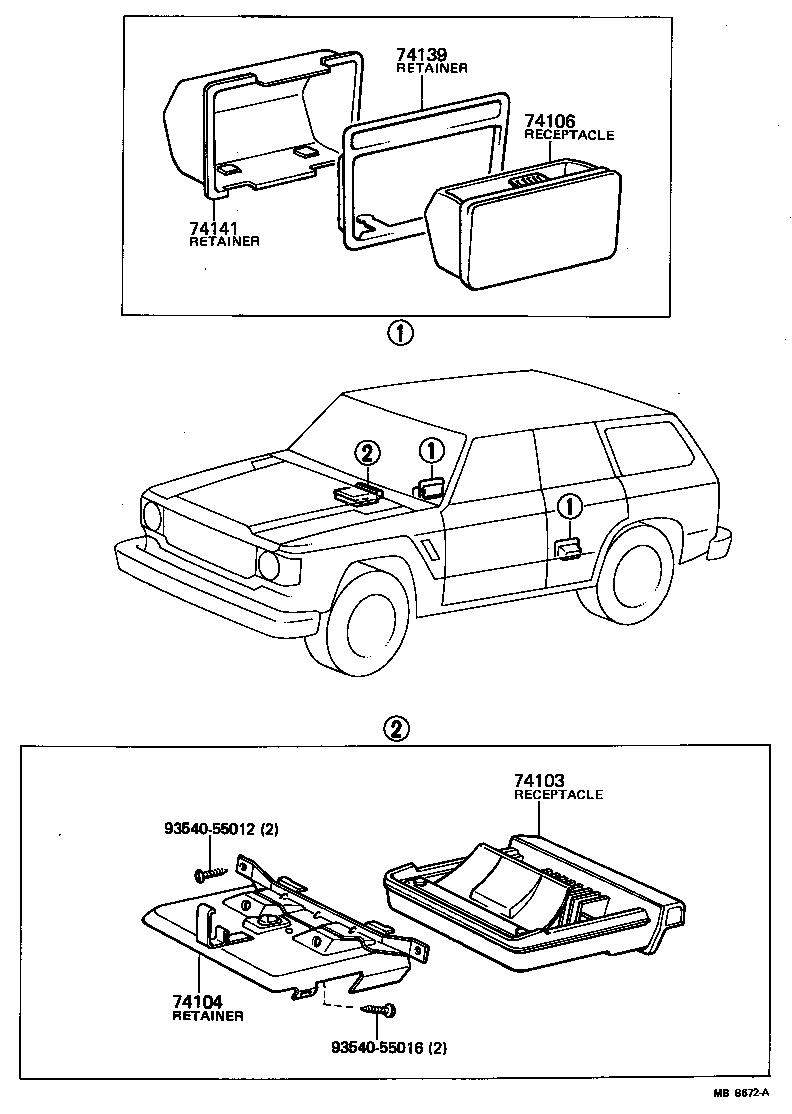

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74103 — Receptacle Sub-assy, Ash, NO.1 | ||||
| 74102-90A00-01 note |
Receptacle Sub-assy, Ash, NO.1
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74102-90A00-05 note |
Receptacle Sub-assy, Ash, NO.1
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74104 — Retainer Sub-assy, Ash Receptacle, NO.1 | ||||
| 74104-90A00 |
Retainer Sub-assy, Ash Receptacle, NO.1
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74106 — Receptacle Sub-assy, Ash, NO.2 | ||||
| 74105-10010-13 note |
Receptacle Sub-assy, Ash, NO.2
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74105-10010-26 note |
Receptacle Sub-assy, Ash, NO.2
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74139 — Retainer, Rear Ash Receptacle, Outer | ||||
| 74135-10030 |
Retainer, Rear Ash Receptacle, Outer
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74141 — Retainer, Rear Ash Receptacle, Inner | ||||
| 74137-10030 |
Retainer, Rear Ash Receptacle, Inner
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
