Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

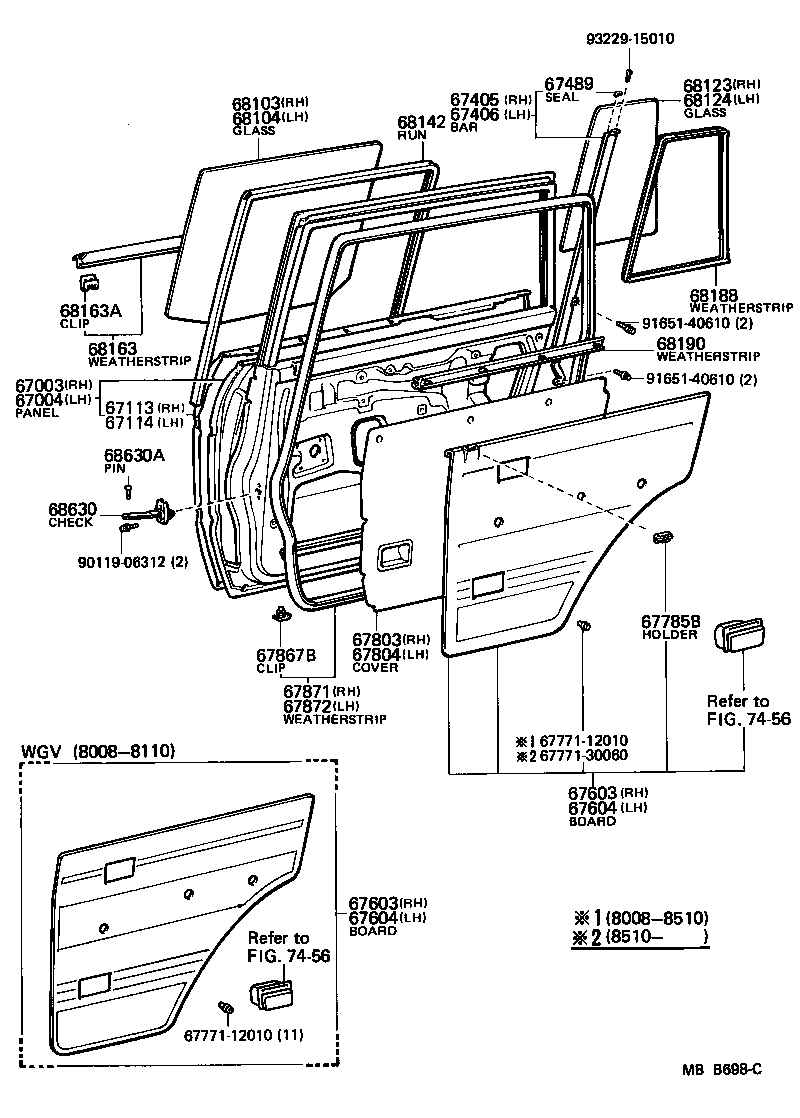

Exploded illustration MBB698C 9322915010 — not listed in this catalogue 67489 — SEAL, REAR DOOR DIVISION BAR (2 parts) 68123 — GLASS, REAR DOOR WINDOW, RH (4 parts) 67405 — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH (1 parts) 68124 — GLASS, REAR DOOR WINDOW, LH (4 parts) 68103 — GLASS SUB-ASSY, REAR DOOR, RH (4 parts) 67406 — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH (1 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (4 parts) 68142 — RUN, REAR DOOR GLASS (2 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (2 parts) 68163A — CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) (4 parts) 9165140610 — not listed in this catalogue 68190 — WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER (3 parts) 68163 — WEATHERSTRIP, REAR DOOR GLASS, OUTER (8 parts) 9165140610 — not listed in this catalogue 67003 — PANEL SUB-ASSY, REAR DOOR, RH (6 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (6 parts) 67113 — PANEL, REAR DOOR, OUTER RH (4 parts) 67114 — PANEL, REAR DOOR, OUTER LH (3 parts) 68630A — PIN(FOR REAR DOOR CHECK) (4 parts) 68630 — CHECK ASSY, REAR DOOR (1 parts) 9011906312 — not listed in this catalogue 67785B — HOLDER, DOOR LOCKING BUTTON COLLAR(FOR REAR DOOR) (2 parts) 67803 — COVER SUB-ASSY, REAR DOOR SERVICE HOLE, RH (1 parts) 67804 — COVER SUB-ASSY, REAR DOOR SERVICE HOLE, LH (1 parts) 67867B — CLIP, DOOR WEATHERSTRIP(FOR REAR DOOR) (1 parts) 67871 — WEATHERSTRIP, REAR DOOR, RH (1 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (1 parts) 7456 — not listed in this catalogue 6777112010 — not listed in this catalogue 6777130060 — not listed in this catalogue 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (12 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (9 parts) 67603 — BOARD SUB-ASSY, REAR DOOR TRIM, RH (12 parts) 67604 — BOARD SUB-ASSY, REAR DOOR TRIM, LH (9 parts) 7456 — not listed in this catalogue 6777112010 — not listed in this catalogue
MBB698C · 28 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-90A01 Panel Sub-assy, Rear Door, RH
1980-08 → 1983-09 ended
BJ60,FJ60 —
67003-90A03 Panel Sub-assy, Rear Door, RH
1983-09 → 1984-09 ended
BJ60,FJ60 —
67003-90A07 Panel Sub-assy, Rear Door, RH
1985-12 → 1986-04 ended
FJ60 —
67003-90A07 Panel Sub-assy, Rear Door, RH
1984-09 → 1985-12 ended
BJ60,FJ60,HJ60 —
67003-90A15 Panel Sub-assy, Rear Door, RH
1986-04 → 1987-08 ended
FJ60 —
67003-90A15 Panel Sub-assy, Rear Door, RH
1985-12 → 1987-08 ended
HJ60 —
67004 — Panel Sub-assy, Rear Door, LH
67004-90A01 Panel Sub-assy, Rear Door, LH
1980-08 → 1983-09 ended
BJ60,FJ60 —
67004-90A03 Panel Sub-assy, Rear Door, LH
1983-09 → 1984-09 ended
BJ60,FJ60 —
67004-90A07 Panel Sub-assy, Rear Door, LH
1984-09 → 1985-12 ended
BJ60,FJ60,HJ60 —
67004-90A07 Panel Sub-assy, Rear Door, LH
1985-12 → 1986-04 ended
FJ60 —
67004-90A15 Panel Sub-assy, Rear Door, LH
1985-12 → 1987-08 ended
HJ60 —
67004-90A15 Panel Sub-assy, Rear Door, LH
1986-04 → 1987-08 ended
FJ60 —
67113 — Panel, Rear Door, Outer RH
67113-90A01 Panel, Rear Door, Outer RH
1980-08 → 1985-12 ended
BJ60,FJ60,HJ60 —
67113-90A01 Panel, Rear Door, Outer RH
1985-12 → 1986-04 ended
FJ60 —
67113-90A05 Panel, Rear Door, Outer RH
1985-12 → 1987-08 ended
HJ60 —
67113-90A05 Panel, Rear Door, Outer RH
1986-04 → 1987-08 ended
FJ60 —
67114 — Panel, Rear Door, Outer LH
67114-90A01 Panel, Rear Door, Outer LH
1980-08 → 1985-12 ended
BJ60,FJ60,HJ60 —
67114-90A05 Panel, Rear Door, Outer LH
1985-12 → 1987-08 ended
HJ60 —
67114-90A05 Panel, Rear Door, Outer LH
1986-04 → 1987-08 ended
FJ60 —
67405 — Bar Sub-assy, Rear Door Window Division, RH
67407-90A00 Bar Sub-assy, Rear Door Window Division, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67406 — Bar Sub-assy, Rear Door Window Division, LH
67408-90A00 Bar Sub-assy, Rear Door Window Division, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67489 — Seal, Rear Door Division Bar
67481-20010 note Seal, Rear Door Division Bar
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67482-20010 note Seal, Rear Door Division Bar
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67603 — Board Sub-assy, Rear Door Trim, RH
67630-90A02-06 note Board Sub-assy, Rear Door Trim, RH
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
67630-90A03-03 note Board Sub-assy, Rear Door Trim, RH
1982-10 → 1984-11 ended
BJ60,FJ60 —
67630-90A03-03 note Board Sub-assy, Rear Door Trim, RH
1984-11 → 1985-04 ended
FJ60 —
67630-90A03-06 note Board Sub-assy, Rear Door Trim, RH
1981-10 → 1984-11 ended
BJ60,FJ60 —
67630-90A03-06 note Board Sub-assy, Rear Door Trim, RH
1984-11 → 1985-04 ended
FJ60 —
67630-90A03-06 note Board Sub-assy, Rear Door Trim, RH
1980-08 → 1981-10 ended
FJ60 USA —
67630-90A12-03 note Board Sub-assy, Rear Door Trim, RH
1984-11 → 1985-04 ended
BJ60 —
67630-90A12-03 note Board Sub-assy, Rear Door Trim, RH
1985-04 → 1986-08 ended
BJ60,FJ60,HJ60 —
67630-90A12-06 note Board Sub-assy, Rear Door Trim, RH
1984-11 → 1985-04 ended
BJ60 —
67630-90A12-06 note Board Sub-assy, Rear Door Trim, RH
1985-04 → 1986-08 ended
BJ60,FJ60,HJ60 —
67630-90A24-03 note Board Sub-assy, Rear Door Trim, RH
1986-08 → 1987-08 ended
FJ60,HJ60 —
67630-90A24-06 note Board Sub-assy, Rear Door Trim, RH
1986-08 → 1987-08 ended
FJ60,HJ60 —
67604 — Board Sub-assy, Rear Door Trim, LH
67640-90A02-06 note Board Sub-assy, Rear Door Trim, LH
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
67640-90A03-03 note Board Sub-assy, Rear Door Trim, LH
1982-10 → 1986-08 ended
BJ60,FJ60,HJ60 —
67640-90A03-06 note Board Sub-assy, Rear Door Trim, LH
1980-08 → 1981-10 ended
FJ60 USA —
67640-90A03-06 note Board Sub-assy, Rear Door Trim, LH
1981-10 → 1984-11 ended
BJ60,FJ60 —
67640-90A03-06 note Board Sub-assy, Rear Door Trim, LH
1984-11 → 1985-04 ended
FJ60 —
67640-90A12-06 note Board Sub-assy, Rear Door Trim, LH
1984-11 → 1985-04 ended
BJ60 —
67640-90A12-06 note Board Sub-assy, Rear Door Trim, LH
1985-04 → 1986-08 ended
BJ60,FJ60,HJ60 —
67640-90A24-03 note Board Sub-assy, Rear Door Trim, LH
1986-08 → 1987-08 ended
FJ60,HJ60 —
67640-90A24-06 note Board Sub-assy, Rear Door Trim, LH
1986-08 → 1987-08 ended
FJ60,HJ60 —
67785B — Holder, Door Locking Button Collar(FOR REAR DOOR)
69751-20040 Holder, Door Locking Button Collar(FOR REAR DOOR)
1981-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
69751-20040 Holder, Door Locking Button Collar(FOR REAR DOOR)
1980-08 → 1981-10 ended
FJ60 USA —
67803 — Cover Sub-assy, Rear Door Service Hole, RH
67805-90A01 Cover Sub-assy, Rear Door Service Hole, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67804 — Cover Sub-assy, Rear Door Service Hole, LH
67805-90A01 Cover Sub-assy, Rear Door Service Hole, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67867B — Clip, Door Weatherstrip(FOR REAR DOOR)
67868-30040 Clip, Door Weatherstrip(FOR REAR DOOR)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67871 — Weatherstrip, Rear Door, RH
67871-90A00 Weatherstrip, Rear Door, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67872 — Weatherstrip, Rear Door, LH
67872-90A00 Weatherstrip, Rear Door, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68103 — Glass Sub-assy, Rear Door, RH
68113-90A00 note Glass Sub-assy, Rear Door, RH
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
68113-90A00 note Glass Sub-assy, Rear Door, RH
1981-10 → 1982-01 ended
BJ60 —
68113-90A01 note Glass Sub-assy, Rear Door, RH
1980-08 → 1982-01 ended
FJ60 USA —
68113-90A01 note Glass Sub-assy, Rear Door, RH
1982-01 → 1987-08 ended
BJ60,FJ60,HJ60 —
68104 — Glass Sub-assy, Rear Door, LH
68114-90A00 note Glass Sub-assy, Rear Door, LH
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
68114-90A00 note Glass Sub-assy, Rear Door, LH
1981-10 → 1982-01 ended
BJ60 —
68114-90A01 note Glass Sub-assy, Rear Door, LH
1982-01 → 1987-08 ended
BJ60,FJ60,HJ60 —
68114-90A01 note Glass Sub-assy, Rear Door, LH
1980-08 → 1982-01 ended
FJ60 USA —
68123 — Glass, Rear Door Window, RH
68123-90A00 note Glass, Rear Door Window, RH
1980-08 → 1982-01 ended
BJ60,FJ60 WGV —
68123-90A00 note Glass, Rear Door Window, RH
1981-10 → 1982-01 ended
BJ60 —
68123-90A01 note Glass, Rear Door Window, RH
1980-08 → 1982-01 ended
FJ60 USA —
68123-90A01 note Glass, Rear Door Window, RH
1982-01 → 1987-08 ended
BJ60,FJ60,HJ60 —
68124 — Glass, Rear Door Window, LH
68124-90A00 note Glass, Rear Door Window, LH
1980-08 → 1982-01 ended
BJ60,FJ60 WGV —
68124-90A00 note Glass, Rear Door Window, LH
1981-10 → 1982-01 ended
BJ60 —
68124-90A01 note Glass, Rear Door Window, LH
1980-08 → 1982-01 ended
FJ60 USA —
68124-90A01 note Glass, Rear Door Window, LH
1982-01 → 1987-08 ended
BJ60,FJ60,HJ60 —
68142 — Run, Rear Door Glass
68142-90A00 Run, Rear Door Glass
1980-08 → 1985-10 ended
BJ60,FJ60 —
68142-90A01 Run, Rear Door Glass
1985-10 → 1987-08 ended
FJ60,HJ60 —
68163 — Weatherstrip, Rear Door Glass, Outer
68180-90A00 note Weatherstrip, Rear Door Glass, Outer
1985-12 → 1986-04 ended
FJ60 —
68180-90A00 note Weatherstrip, Rear Door Glass, Outer
1980-08 → 1985-12 ended
BJ60,FJ60,HJ60 —
68180-90A01 note Weatherstrip, Rear Door Glass, Outer
1985-12 → 1987-08 ended
HJ60 —
68180-90A01 note Weatherstrip, Rear Door Glass, Outer
1986-04 → 1987-08 ended
FJ60 —
68230-90A00 note Weatherstrip, Rear Door Glass, Outer
1980-08 → 1985-12 ended
BJ60,FJ60,HJ60 —
68230-90A00 note Weatherstrip, Rear Door Glass, Outer
1985-12 → 1986-04 ended
FJ60 —
68230-90A01 note Weatherstrip, Rear Door Glass, Outer
1985-12 → 1987-08 ended
HJ60 —
68230-90A01 note Weatherstrip, Rear Door Glass, Outer
1986-04 → 1987-08 ended
FJ60 —
68163A — Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68211-10030 Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
1980-08 → 1985-12 ended
BJ60,FJ60,HJ60 —
68211-10030 Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
1985-12 → 1986-04 ended
FJ60 —
68211-90K00 Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
1986-04 → 1987-08 ended
FJ60 —
68211-90K00 Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
1985-12 → 1987-08 ended
HJ60 —
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-90A00 note Weatherstrip, Rear Door Quarter Window, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68189-90A00 note Weatherstrip, Rear Door Quarter Window, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68190 — Weatherstrip Assy, Rear Door Glass, Inner
68190-90A00 Weatherstrip Assy, Rear Door Glass, Inner
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
68190-90A01 Weatherstrip Assy, Rear Door Glass, Inner
1980-08 → 1981-10 ended
FJ60 USA —
68190-90A01 Weatherstrip Assy, Rear Door Glass, Inner
1981-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
68630 — Check Assy, Rear Door
68630-90A00 Check Assy, Rear Door
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68630A — Pin(FOR REAR DOOR CHECK)
68617-12010 Pin(FOR REAR DOOR CHECK)
1984-10 → 1985-07 ended
BJ60,FJ60 —
68617-22010 Pin(FOR REAR DOOR CHECK)
1980-08 → 1984-10 ended
BJ60,FJ60 —
68617-90A00 Pin(FOR REAR DOOR CHECK)
1985-07 → 1986-06 ended
BJ60,FJ60,HJ60 —
68617-90A01 Pin(FOR REAR DOOR CHECK)
1986-06 → 1987-08 ended
FJ60,HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
