Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

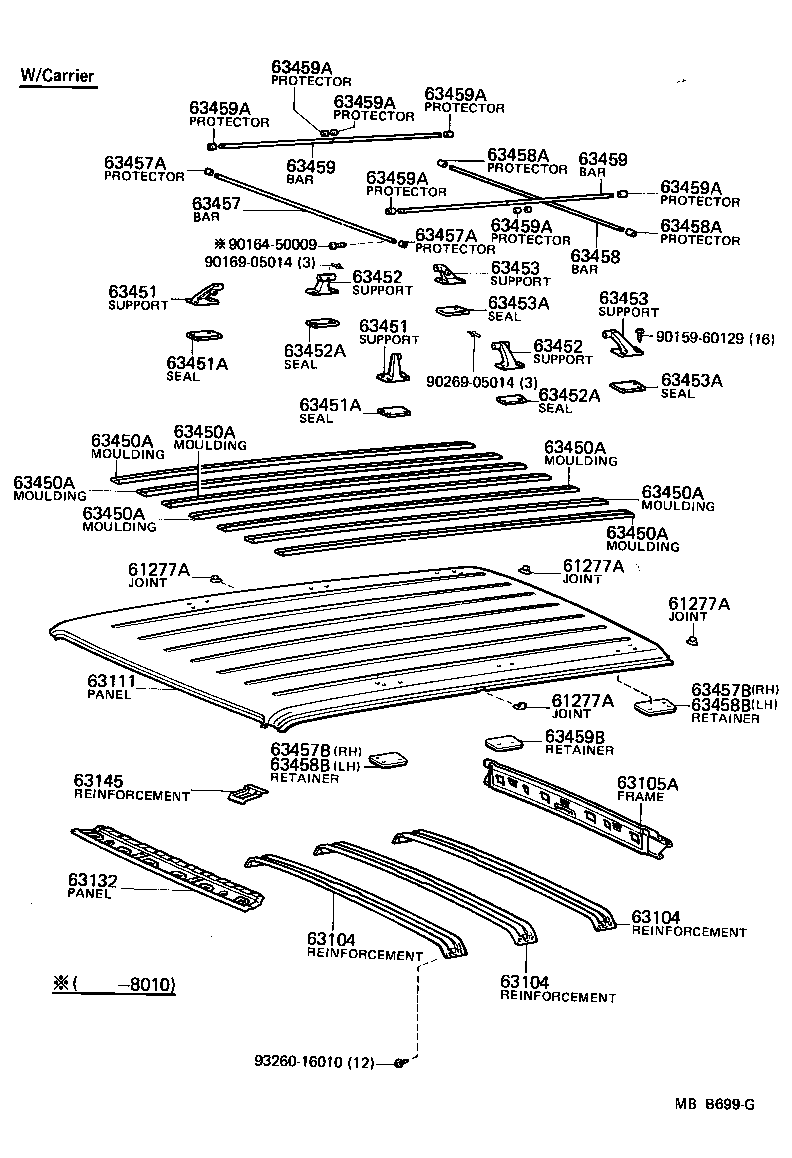

Exploded illustration MBB699G 63459A — PROTECTOR, ROOF CARRIER, SIDE BAR (1 parts) 63459A — PROTECTOR, ROOF CARRIER, SIDE BAR (1 parts) 63459A — PROTECTOR, ROOF CARRIER, SIDE BAR (1 parts) 63459A — PROTECTOR, ROOF CARRIER, SIDE BAR (1 parts) 63458A — PROTECTOR, ROOF CARRIER, REAR BAR (1 parts) 63459 — BAR, ROOF CARRIER, SIDE (1 parts) 63457A — PROTECTOR, ROOF CARRIER, FRONT BAR (1 parts) 63459 — BAR, ROOF CARRIER, SIDE (1 parts) 63459A — PROTECTOR, ROOF CARRIER, SIDE BAR (1 parts) 63459A — PROTECTOR, ROOF CARRIER, SIDE BAR (1 parts) 63457 — BAR, ROOF CARRIER, FRONT (1 parts) 63459A — PROTECTOR, ROOF CARRIER, SIDE BAR (1 parts) 63458A — PROTECTOR, ROOF CARRIER, REAR BAR (1 parts) 63457A — PROTECTOR, ROOF CARRIER, FRONT BAR (1 parts) 9016450009 — not listed in this catalogue 63458 — BAR, ROOF CARRIER, REAR (1 parts) 9016905014 — not listed in this catalogue 63453 — SUPPORT, ROOF CARRIER, NO.3 (2 parts) 63452 — SUPPORT, ROOF CARRIER, NO.2 (1 parts) 63451 — SUPPORT, ROOF CARRIER, NO.1 (2 parts) 63453 — SUPPORT, ROOF CARRIER, NO.3 (2 parts) 63453A — SEAL, ROOF CARRIER, NO.3 SUPPORT (2 parts) 63451 — SUPPORT, ROOF CARRIER, NO.1 (2 parts) 9015960129 — not listed in this catalogue 63452 — SUPPORT, ROOF CARRIER, NO.2 (1 parts) 63452A — SEAL, ROOF CARRIER, NO.2 SUPPORT (1 parts) 63451A — SEAL, ROOF CARRIER, NO.1 SUPPORT (2 parts) 63453A — SEAL, ROOF CARRIER, NO.3 SUPPORT (2 parts) 9026905014 — not listed in this catalogue 63452A — SEAL, ROOF CARRIER, NO.2 SUPPORT (1 parts) 63451A — SEAL, ROOF CARRIER, NO.1 SUPPORT (2 parts) 63450A — MOULDING, ROOF CARRIER (2 parts) 63450A — MOULDING, ROOF CARRIER (2 parts) 63450A — MOULDING, ROOF CARRIER (2 parts) 63450A — MOULDING, ROOF CARRIER (2 parts) 63450A — MOULDING, ROOF CARRIER (2 parts) 63450A — MOULDING, ROOF CARRIER (2 parts) 63450A — MOULDING, ROOF CARRIER (2 parts) 61277A — JOINT, ROOF DRIP CHANNEL (1 parts) 61277A — JOINT, ROOF DRIP CHANNEL (1 parts) 61277A — JOINT, ROOF DRIP CHANNEL (1 parts) 63111 — PANEL, ROOF (3 parts) 63457B — RETAINER, ROOF CARRIER, NO.1 RH (1 parts) 61277A — JOINT, ROOF DRIP CHANNEL (1 parts) 63458B — RETAINER, ROOF CARRIER, NO.1 LH (1 parts) 63459B — RETAINER, ROOF CARRIER, NO.2 (1 parts) 63457B — RETAINER, ROOF CARRIER, NO.1 RH (1 parts) 63458B — RETAINER, ROOF CARRIER, NO.1 LH (1 parts) 63145 — REINFORCEMENT, WINDSHIELD HEADER INNER PANEL (1 parts) 63105A — FRAME SUB-ASSY, BACK DOOR OPENING (1 parts) 63132 — PANEL, WINDSHIELD HEADER, INNER (1 parts) 63104 — REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER (3 parts) 63104 — REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER (3 parts) 63104 — REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER (3 parts) 9326016010 — not listed in this catalogue
MBB699G · 50 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
31 parts on this figure
Part number Description Fitment Price
61277A — Joint, Roof Drip Channel
61277-90A00 Joint, Roof Drip Channel
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
63104 — Reinforcement Sub-assy, Roof Panel, Center
63141-90A00 note Reinforcement Sub-assy, Roof Panel, Center
1980-08 → 1981-10 ended
BJ60,FJ60 —
63141-90A00 note Reinforcement Sub-assy, Roof Panel, Center
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63141-90A00 note Reinforcement Sub-assy, Roof Panel, Center
1981-10 → 1987-08 ended
FJ60 —
63105A — Frame Sub-assy, Back Door Opening
63105-90A00 Frame Sub-assy, Back Door Opening
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63111 — Panel, Roof
63111-90A00 note Panel, Roof
1980-08 → 1981-10 ended
BJ60,FJ60 —
63111-90A00 note Panel, Roof
1981-10 → 1987-08 ended
FJ60 —
63111-90A01 note Panel, Roof
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63132 — Panel, Windshield Header, Inner
63132-90A00 Panel, Windshield Header, Inner
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63145 — Reinforcement, Windshield Header Inner Panel
63145-90A00 Reinforcement, Windshield Header Inner Panel
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63450A — Moulding, Roof Carrier
75631-90A00 Moulding, Roof Carrier
1980-08 → 1986-10 ended
BJ60,FJ60,HJ60 —
75631-90A01 Moulding, Roof Carrier
1986-10 → 1987-08 ended
FJ60,HJ60 —
63451 — Support, Roof Carrier, NO.1
63441-90A00 note Support, Roof Carrier, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63442-90A00 note Support, Roof Carrier, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63451A — Seal, Roof Carrier, NO.1 Support
63435-90A00 note Seal, Roof Carrier, NO.1 Support
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63436-90A00 note Seal, Roof Carrier, NO.1 Support
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63452 — Support, Roof Carrier, NO.2
63443-90A00 Support, Roof Carrier, NO.2
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63452A — Seal, Roof Carrier, NO.2 Support
63437-90A00 Seal, Roof Carrier, NO.2 Support
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63453 — Support, Roof Carrier, NO.3
63441-90A00 note Support, Roof Carrier, NO.3
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63442-90A00 note Support, Roof Carrier, NO.3
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63453A — Seal, Roof Carrier, NO.3 Support
63438-90A00 note Seal, Roof Carrier, NO.3 Support
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63439-90A00 note Seal, Roof Carrier, NO.3 Support
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63457 — Bar, Roof Carrier, Front
63447-90A00 Bar, Roof Carrier, Front
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63457A — Protector, Roof Carrier, Front Bar
63445-90A00 Protector, Roof Carrier, Front Bar
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63457B — Retainer, Roof Carrier, NO.1 RH
63457-90A00 Retainer, Roof Carrier, NO.1 RH
1981-07 → 1987-08 ended
BJ60,FJ60,HJ60 —
63458 — Bar, Roof Carrier, Rear
63448-90A00 Bar, Roof Carrier, Rear
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63458A — Protector, Roof Carrier, Rear Bar
63445-90A00 Protector, Roof Carrier, Rear Bar
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63458B — Retainer, Roof Carrier, NO.1 LH
63458-90A00 Retainer, Roof Carrier, NO.1 LH
1981-07 → 1987-08 ended
BJ60,FJ60,HJ60 —
63459 — Bar, Roof Carrier, Side
63449-90A00 Bar, Roof Carrier, Side
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63459A — Protector, Roof Carrier, Side Bar
63444-90A00 note Protector, Roof Carrier, Side Bar
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
63459B — Retainer, Roof Carrier, NO.2
63459-90A00 Retainer, Roof Carrier, NO.2
1981-07 → 1987-08 ended
BJ60,FJ60,HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
