Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

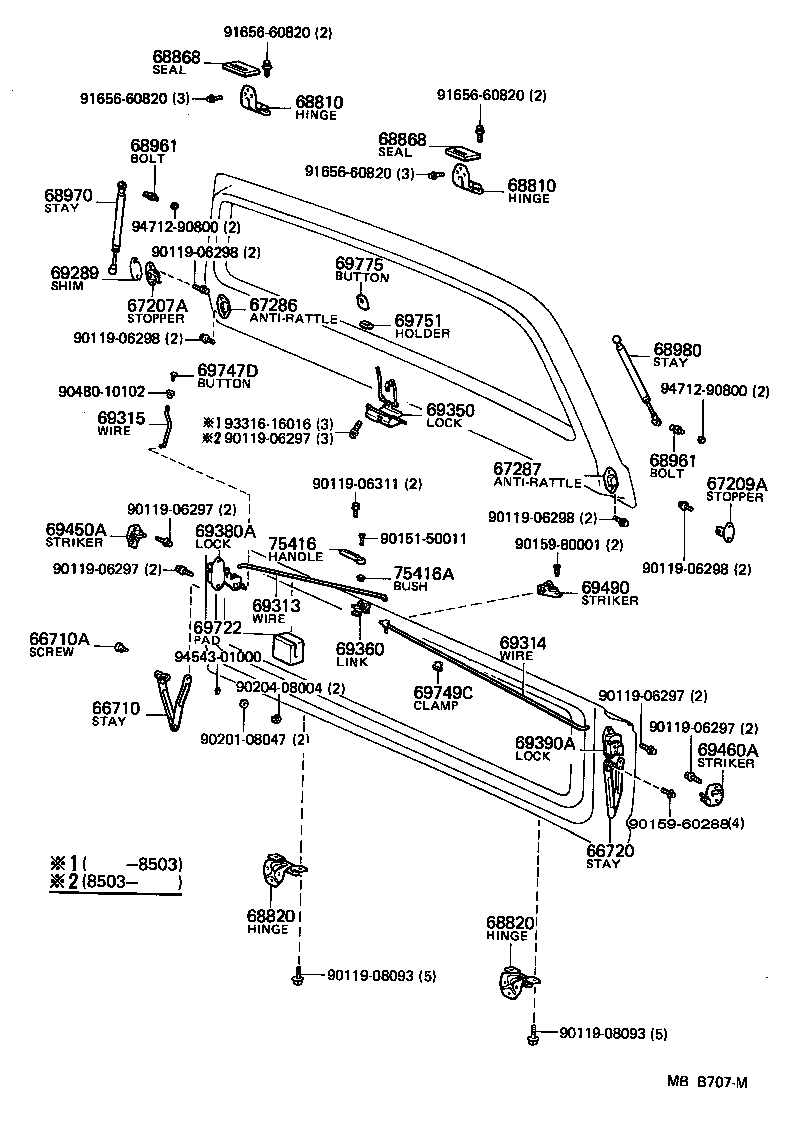

Exploded illustration MBB707M 9165660820 — not listed in this catalogue 68868 — SEAL, BACK DOOR HINGE (1 parts) 9165660820 — not listed in this catalogue 9165660820 — not listed in this catalogue 68810 — HINGE ASSY, BACK DOOR, UPPER (1 parts) 68868 — SEAL, BACK DOOR HINGE (1 parts) 68961 — BOLT, BACK DOOR STAY (2 parts) 9165660820 — not listed in this catalogue 68810 — HINGE ASSY, BACK DOOR, UPPER (1 parts) 68970 — STAY ASSY, BACK DOOR, RH (2 parts) 9471290800 — not listed in this catalogue 9011906298 — not listed in this catalogue 69775 — BUTTON, DOOR LOCKING(FOR BACK DOOR) (6 parts) 69289 — SHIM, BACK DOOR STOPPER (1 parts) 67286 — ANTI-RATTLE, BACK DOOR, RH (1 parts) 67207A — STOPPER SUB-ASSY, BACK DOOR, RH (1 parts) 69751 — HOLDER, DOOR LOCK CONTROL KNOB (5 parts) 9011906298 — not listed in this catalogue 68980 — STAY ASSY, BACK DOOR (2 parts) 69747D — BUTTON, DOOR LOCKING(FOR TAIL GATE) (2 parts) 9471290800 — not listed in this catalogue 9048010102 — not listed in this catalogue 69350 — LOCK ASSY, BACK DOOR (2 parts) 69315 — WIRE, TAIL GATE LOCK, NO.3 (1 parts) 9331616016 — not listed in this catalogue 9011906297 — not listed in this catalogue 68961 — BOLT, BACK DOOR STAY (2 parts) 67287 — ANTI-RATTLE, BACK DOOR, LH (1 parts) 67209A — STOPPER SUB-ASSY, BACK DOOR, LH (1 parts) 9011906311 — not listed in this catalogue 9011906297 — not listed in this catalogue 9011906298 — not listed in this catalogue 69450A — STRIKER ASSY, TAIL GATE, LOWER RH (1 parts) 69380A — LOCK ASSY, TAIL GATE, LOWER RH (2 parts) 9015150011 — not listed in this catalogue 75416 — HANDLE, TAIL GATE, INSIDE (2 parts) 9015980001 — not listed in this catalogue 9011906297 — not listed in this catalogue 9011906298 — not listed in this catalogue 75416A — BUSH, TAIL GATE INSIDE HANDLE (1 parts) 69490 — STRIKER ASSY, BACK DOOR LOCK (1 parts) 69313 — WIRE, TAIL GATE LOCK, NO.1 (1 parts) 69722 — PAD, BACK DOOR LOCK CONTROL (2 parts) 66710A — SCREW, TAIL GATE ASSY (1 parts) 69314 — WIRE, TAIL GATE LOCK, NO.2 (1 parts) 69360 — LINK ASSY, TAIL GATE REMOTE CONTROL (2 parts) 9454301000 — not listed in this catalogue 9020408004 — not listed in this catalogue 69749C — CLAMP, TAIL GATE LOCK LINK (2 parts) 9011906297 — not listed in this catalogue 66710 — STAY ASSY, TAIL GATE, RH (1 parts) 9011906297 — not listed in this catalogue 9020108047 — not listed in this catalogue 69390A — LOCK ASSY, TAIL GATE, LOWER LH (1 parts) 69460A — STRIKER ASSY, TAIL GATE, LOWER LH (1 parts) 9015960288 — not listed in this catalogue 66720 — STAY ASSY, TAIL GATE, LH (1 parts) 68820 — HINGE ASSY, BACK DOOR, LOWER (1 parts) 68820 — HINGE ASSY, BACK DOOR, LOWER (1 parts) 9011908093 — not listed in this catalogue 9011908093 — not listed in this catalogue
MBB707M · 35 callouts, 26 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
50 parts on this figure
Part number Description Fitment Price
66710 — Stay Assy, Tail Gate, RH
65706-90A00 Stay Assy, Tail Gate, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
66710A — Screw, Tail Gate Assy
65777-90A00 Screw, Tail Gate Assy
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
66720 — Stay Assy, Tail Gate, LH
65707-90A00 Stay Assy, Tail Gate, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67207A — Stopper Sub-assy, Back Door, RH
67207-90A00 Stopper Sub-assy, Back Door, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67209A — Stopper Sub-assy, Back Door, LH
67209-90A00 Stopper Sub-assy, Back Door, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67286 — Anti-rattle, Back Door, RH
67285-90A00 Anti-rattle, Back Door, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
67287 — Anti-rattle, Back Door, LH
67286-90A00 Anti-rattle, Back Door, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68810 — Hinge Assy, Back Door, Upper
68810-90A00 Hinge Assy, Back Door, Upper
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68820 — Hinge Assy, Back Door, Lower
66110-90A00 Hinge Assy, Back Door, Lower
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68868 — Seal, Back Door Hinge
68868-90A00 Seal, Back Door Hinge
1980-09 → 1987-08 ended
BJ60,FJ60,HJ60 —
68961 — Bolt, Back Door Stay
68961-12010 Bolt, Back Door Stay
1980-08 → 1985-12 ended
BJ60,FJ60,HJ60 —
68961-23010 Bolt, Back Door Stay
1985-12 → 1987-08 ended
FJ60,HJ60 —
68970 — Stay Assy, Back Door, RH
68950-69015 note Stay Assy, Back Door, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68950-69025 note Stay Assy, Back Door, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68980 — Stay Assy, Back Door
68950-69015 note Stay Assy, Back Door
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
68950-69025 note Stay Assy, Back Door
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69289 — Shim, Back Door Stopper
69289-90A00 Shim, Back Door Stopper
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69313 — Wire, Tail Gate Lock, NO.1
69764-90A00 Wire, Tail Gate Lock, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69314 — Wire, Tail Gate Lock, NO.2
69705-90A00 Wire, Tail Gate Lock, NO.2
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69315 — Wire, Tail Gate Lock, NO.3
69767-90A00 Wire, Tail Gate Lock, NO.3
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69350 — Lock Assy, Back Door
69350-90A02 Lock Assy, Back Door
1980-08 → 1985-03 ended
BJ60,FJ60 —
69350-90A03 Lock Assy, Back Door
1985-03 → 1987-08 ended
BJ60,FJ60,HJ60 —
69360 — Link Assy, Tail Gate Remote Control
69690-90A00 Link Assy, Tail Gate Remote Control
1980-08 → 1981-03 ended
BJ60,FJ60 —
69690-90A01 Link Assy, Tail Gate Remote Control
1981-03 → 1987-08 ended
BJ60,FJ60,HJ60 —
69380A — Lock Assy, Tail Gate, Lower RH
69380-90A00 Lock Assy, Tail Gate, Lower RH
1980-08 → 1986-10 ended
BJ60,FJ60,HJ60 —
69380-90A01 Lock Assy, Tail Gate, Lower RH
1986-10 → 1987-08 ended
FJ60,HJ60 —
69390A — Lock Assy, Tail Gate, Lower LH
69390-90A00 Lock Assy, Tail Gate, Lower LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69450A — Striker Assy, Tail Gate, Lower RH
69450-90A00 Striker Assy, Tail Gate, Lower RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69460A — Striker Assy, Tail Gate, Lower LH
69460-90A00 Striker Assy, Tail Gate, Lower LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69490 — Striker Assy, Back Door Lock
69430-90A01 Striker Assy, Back Door Lock
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
69722 — Pad, Back Door Lock Control
69722-90A00 Pad, Back Door Lock Control
1984-11 → 1987-08 ended
BJ60,HJ60 —
69722-90A00 Pad, Back Door Lock Control
1986-04 → 1987-08 ended
FJ60 —
69747D — Button, Door Locking(FOR TAIL GATE)
69747-20020 Button, Door Locking(FOR TAIL GATE)
1980-08 → 1984-11 ended
BJ60,FJ60 —
69747-20020-01 note Button, Door Locking(FOR TAIL GATE)
1984-11 → 1987-08 ended
BJ60,FJ60,HJ60 —
69749C — Clamp, Tail Gate Lock Link
69749-12010 Clamp, Tail Gate Lock Link
1980-08 → 1987-04 ended
BJ60,FJ60,HJ60 —
69749-30020 Clamp, Tail Gate Lock Link
1987-04 → 1987-08 ended
FJ60,HJ60 —
69751 — Holder, Door Lock Control Knob
69751-20030-01 note Holder, Door Lock Control Knob
1980-08 → 1982-01 ended
BJ60,FJ60 —
69751-20031-03 note Holder, Door Lock Control Knob
1982-10 → 1985-03 ended
BJ60,FJ60 —
69751-20031-06 note Holder, Door Lock Control Knob
1982-01 → 1984-11 ended
BJ60,FJ60 —
69751-20031-06 note Holder, Door Lock Control Knob
1984-11 → 1985-03 ended
FJ60 —
69751-20031-26 note Holder, Door Lock Control Knob
1984-11 → 1985-03 ended
BJ60 —
69775 — Button, Door Locking(FOR BACK DOOR)
69706-90A00-03 note Button, Door Locking(FOR BACK DOOR)
1985-03 → 1987-08 ended
BJ60,FJ60,HJ60 —
69706-90A00-06 note Button, Door Locking(FOR BACK DOOR)
1985-03 → 1987-08 ended
BJ60,FJ60,HJ60 —
69741-20020-16 note Button, Door Locking(FOR BACK DOOR)
1980-08 → 1980-11 ended
BJ60,FJ60 —
69741-90A00-03 note Button, Door Locking(FOR BACK DOOR)
1982-10 → 1985-03 ended
BJ60,FJ60 —
69741-90A00-06 note Button, Door Locking(FOR BACK DOOR)
1980-11 → 1984-11 ended
BJ60,FJ60 —
69741-90A00-16 note Button, Door Locking(FOR BACK DOOR)
1984-11 → 1985-03 ended
BJ60,FJ60 —
75416 — Handle, Tail Gate, Inside
69212-90A00 Handle, Tail Gate, Inside
1981-01 → 1987-08 ended
BJ60,FJ60,HJ60 —
75416-95661 Handle, Tail Gate, Inside
1980-08 → 1981-01 ended
BJ60,FJ60 —
75416A — Bush, Tail Gate Inside Handle
75415-95660 Bush, Tail Gate Inside Handle
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
