Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

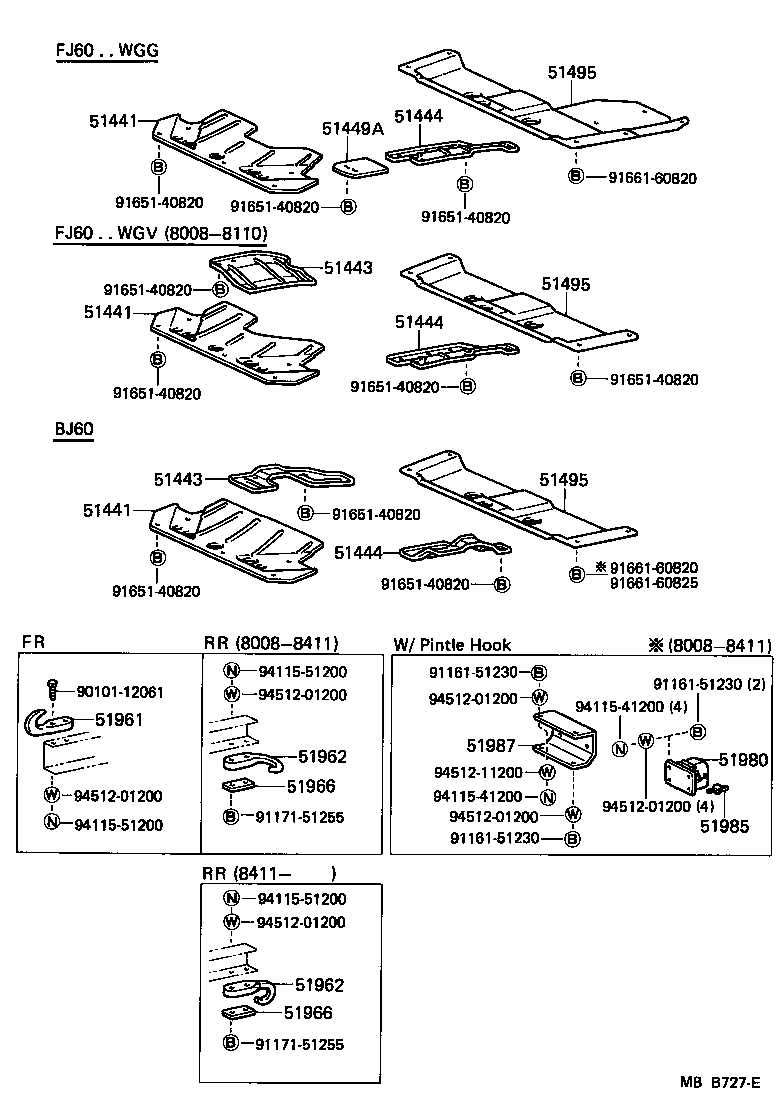

Exploded illustration MBB727E 51495 — COVER, TRANSMISSION UNDER (8 parts) 51444 — COVER, ENGINE UNDER, REAR LH (4 parts) 51441 — COVER, ENGINE UNDER, NO.1 (4 parts) 51449A — COVER, ENGINE SIDE UNDER, LH (1 parts) 9166160820 — not listed in this catalogue 9165140820 — not listed in this catalogue 9165140820 — not listed in this catalogue 9165140820 — not listed in this catalogue 51443 — COVER, ENGINE UNDER, REAR RH (4 parts) 51495 — COVER, TRANSMISSION UNDER (8 parts) 9165140820 — not listed in this catalogue 51441 — COVER, ENGINE UNDER, NO.1 (4 parts) 51444 — COVER, ENGINE UNDER, REAR LH (4 parts) 9165140820 — not listed in this catalogue 9165140820 — not listed in this catalogue 9165140820 — not listed in this catalogue 51443 — COVER, ENGINE UNDER, REAR RH (4 parts) 51495 — COVER, TRANSMISSION UNDER (8 parts) 51441 — COVER, ENGINE UNDER, NO.1 (4 parts) 9165140820 — not listed in this catalogue 51444 — COVER, ENGINE UNDER, REAR LH (4 parts) 9166160820 — not listed in this catalogue 9166160825 — not listed in this catalogue 9165140820 — not listed in this catalogue 9165140820 — not listed in this catalogue 9411551200 — not listed in this catalogue 9116151230 — not listed in this catalogue 9116151230 — not listed in this catalogue 9010112061 — not listed in this catalogue 9451201200 — not listed in this catalogue 9451201200 — not listed in this catalogue 9411541200 — not listed in this catalogue 51961 — HOOK, NO.1 (1 parts) 51987 — BRACKET, PINTLE HOOK (3 parts) 51962 — HOOK, NO.2 (2 parts) 51980 — HOOK ASSY, PINTLE (2 parts) 9451211200 — not listed in this catalogue 51966 — RETAINER, REAR HOOK (1 parts) 9451201200 — not listed in this catalogue 9411541200 — not listed in this catalogue 9451201200 — not listed in this catalogue 9117151255 — not listed in this catalogue 9451201200 — not listed in this catalogue 9411551200 — not listed in this catalogue 51985 — HOOK, EYELET PINTLE (2 parts) 9116151230 — not listed in this catalogue 9411551200 — not listed in this catalogue 9451201200 — not listed in this catalogue 51962 — HOOK, NO.2 (2 parts) 51966 — RETAINER, REAR HOOK (1 parts) 9117151255 — not listed in this catalogue
MBB727E · 20 callouts, 31 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
32 parts on this figure
Part number Description Fitment Price
51441 — Cover, Engine Under, NO.1
51441-60060 Cover, Engine Under, NO.1
1980-08 → 1986-04 ended
FJ60 —
51441-60061 Cover, Engine Under, NO.1
1985-10 → 1987-08 ended
HJ60 —
51441-60061 Cover, Engine Under, NO.1
1986-04 → 1987-08 ended
FJ60 —
51441-60070 Cover, Engine Under, NO.1
1980-08 → 1985-10 ended
BJ60 —
51443 — Cover, Engine Under, Rear RH
51443-60030 Cover, Engine Under, Rear RH
1980-08 → 1985-10 ended
FJ60 CND —
51443-60050 Cover, Engine Under, Rear RH
1980-08 → 1984-11 ended
BJ60 —
51443-60051 Cover, Engine Under, Rear RH
1984-11 → 1985-10 ended
BJ60 —
51443-60100 Cover, Engine Under, Rear RH
1985-10 → 1987-08 ended
HJ60 —
51444 — Cover, Engine Under, Rear LH
51444-60040 Cover, Engine Under, Rear LH
1980-08 → 1984-11 ended
FJ60 —
51444-60041 Cover, Engine Under, Rear LH
1984-11 → 1987-08 ended
FJ60 —
51444-60060 Cover, Engine Under, Rear LH
1980-08 → 1984-11 ended
BJ60 —
51444-60070 Cover, Engine Under, Rear LH
1985-10 → 1987-08 ended
HJ60 —
51449A — Cover, Engine Side Under, LH
51449-60010 Cover, Engine Side Under, LH
1980-08 → 1986-08 ended
FJ60 USA —
51495 — Cover, Transmission Under
51405-60020 Cover, Transmission Under
1980-08 → 1985-04 ended
FJ60 USA —
51405-60060 Cover, Transmission Under
1985-04 → 1987-08 ended
FJ60 —
51495-60070 Cover, Transmission Under
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
51495-60090 Cover, Transmission Under
1981-10 → 1984-11 ended
BJ60 —
51495-60091 Cover, Transmission Under
1984-11 → 1986-11 ended
BJ60,HJ60 5F —
51495-60140 Cover, Transmission Under
1985-10 → 1986-11 ended
HJ60 4FC —
51495-60141 Cover, Transmission Under
1986-11 → 1987-08 ended
HJ60 4FC —
58208-60040 Cover, Transmission Under
1986-11 → 1987-08 ended
HJ60 5F —
51961 — Hook, NO.1
51961-60010 Hook, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
51962 — Hook, NO.2
51961-36040 Hook, NO.2
1984-11 → 1987-08 ended
BJ60,FJ60,HJ60 —
51965-60010 Hook, NO.2
1980-08 → 1984-11 ended
BJ60,FJ60 —
51966 — Retainer, Rear Hook
51966-60010 Retainer, Rear Hook
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
51980 — Hook Assy, Pintle
51980-60010 Hook Assy, Pintle
1980-08 → 1981-10 ended
BJ60,FJ60 —
51980-60010 Hook Assy, Pintle
1981-10 → 1986-08 ended
FJ60 —
51985 — Hook, Eyelet Pintle
51985-60011 Hook, Eyelet Pintle
1980-08 → 1981-10 ended
BJ60,FJ60 —
51985-60011 Hook, Eyelet Pintle
1981-10 → 1986-08 ended
FJ60 —
51987 — Bracket, Pintle Hook
51987-60010 Bracket, Pintle Hook
1980-08 → 1981-10 ended
BJ60,FJ60 —
51987-60010 Bracket, Pintle Hook
1981-10 → 1984-11 ended
FJ60 —
51987-60030 Bracket, Pintle Hook
1984-11 → 1986-08 ended
FJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
