Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

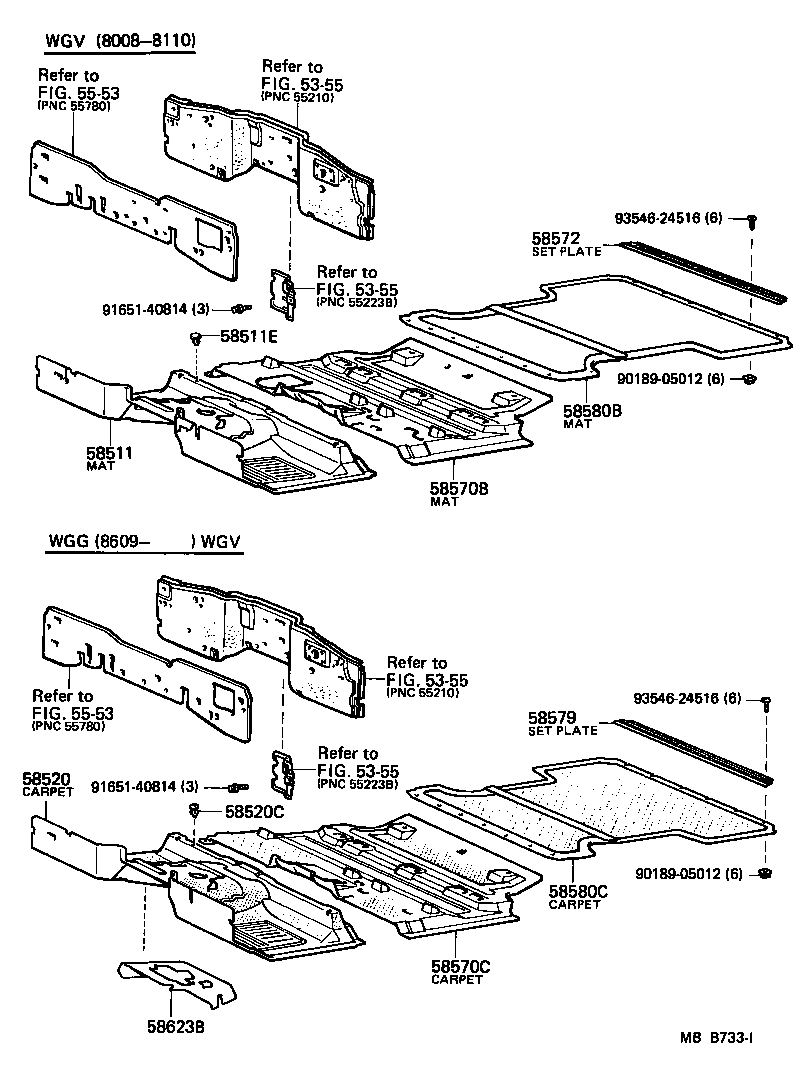

Exploded illustration MBB733I 5355 — not listed in this catalogue 5553 — not listed in this catalogue 9354624516 — not listed in this catalogue 58572 — SET PLATE, REAR FLOOR MAT, REAR (1 parts) 5355 — not listed in this catalogue 9165140814 — not listed in this catalogue 58511E — CLIP(FOR FRONT FLOOR MAT) (1 parts) 9018905012 — not listed in this catalogue 58580B — MAT ASSY, REAR FLOOR, REAR (1 parts) 58511 — MAT, FLOOR, FRONT (2 parts) 58570B — MAT ASSY, REAR FLOOR (2 parts) 5355 — not listed in this catalogue 9354624516 — not listed in this catalogue 5553 — not listed in this catalogue 58579 — SET PLATE, REAR FLOOR CARPET, NO.1 (2 parts) 5355 — not listed in this catalogue 58520 — CARPET ASSY, FRONT FLOOR (17 parts) 9165140814 — not listed in this catalogue 58520C — CLIP(FOR FRONT FLOOR CARPET) (4 parts) 9018905012 — not listed in this catalogue 58580C — CARPET ASSY, REAR FLOOR, REAR (15 parts) 58570C — CARPET ASSY, REAR FLOOR (23 parts) 58623B — PAD, FRONT FLOOR SILENCER, CENTER (1 parts)
MBB733I · 11 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
69 parts on this figure
Part number Description Fitment Price
58511 — Mat, Floor, Front
58510-90A01 note Mat, Floor, Front
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
58510-90A04 note Mat, Floor, Front
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
58511E — Clip(FOR FRONT FLOOR MAT)
90467-12035-B1 note Clip(FOR FRONT FLOOR MAT)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
58520 — Carpet Assy, Front Floor
58510-90A11 note Carpet Assy, Front Floor
1980-08 → 1981-10 ended
FJ60 USA —
58510-90A14 note Carpet Assy, Front Floor
1980-08 → 1981-10 ended
FJ60 USA —
58510-90A14 note Carpet Assy, Front Floor
1981-10 → 1982-10 ended
BJ60,FJ60 —
58510-90A31-03 note Carpet Assy, Front Floor
1982-10 → 1984-11 ended
BJ60,FJ60 —
58510-90A31-03 note Carpet Assy, Front Floor
1984-11 → 1985-04 ended
FJ60 —
58510-90A31-06 note Carpet Assy, Front Floor
1982-10 → 1984-11 ended
BJ60,FJ60 —
58510-90A31-06 note Carpet Assy, Front Floor
1984-11 → 1985-04 ended
FJ60 —
58510-90A49-03 note Carpet Assy, Front Floor
1984-11 → 1985-04 ended
BJ60 —
58510-90A49-03 note Carpet Assy, Front Floor
1985-04 → 1986-04 ended
BJ60,FJ60 —
58510-90A49-06 note Carpet Assy, Front Floor
1984-11 → 1985-04 ended
BJ60 —
58510-90A49-06 note Carpet Assy, Front Floor
1985-04 → 1986-04 ended
BJ60,FJ60 —
58510-90A85-03 note Carpet Assy, Front Floor
1985-10 → 1987-08 ended
HJ60 4FC —
58510-90A85-06 note Carpet Assy, Front Floor
1985-10 → 1987-08 ended
HJ60 4FC —
58510-90A98-03 note Carpet Assy, Front Floor
1985-10 → 1987-08 ended
HJ60 5F —
58510-90A98-03 note Carpet Assy, Front Floor
1986-04 → 1987-08 ended
FJ60 —
58510-90A98-06 note Carpet Assy, Front Floor
1985-10 → 1987-08 ended
HJ60 5F —
58510-90A98-06 note Carpet Assy, Front Floor
1986-04 → 1987-08 ended
FJ60 —
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-12035-03 note Clip(FOR FRONT FLOOR CARPET)
1985-10 → 1987-08 ended
HJ60 —
90467-12035-03 note Clip(FOR FRONT FLOOR CARPET)
1986-04 → 1987-08 ended
FJ60 —
90467-12035-06 note Clip(FOR FRONT FLOOR CARPET)
1985-10 → 1987-08 ended
HJ60 —
90467-12035-06 note Clip(FOR FRONT FLOOR CARPET)
1986-04 → 1987-08 ended
FJ60 —
58570B — Mat Assy, Rear Floor
58540-90A01 note Mat Assy, Rear Floor
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
58540-90A03 note Mat Assy, Rear Floor
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
58570C — Carpet Assy, Rear Floor
58540-90A11-06 note Carpet Assy, Rear Floor
1980-08 → 1981-10 ended
FJ60 USA —
58540-90A13-03 note Carpet Assy, Rear Floor
1982-10 → 1985-04 ended
FJ60 —
58540-90A13-06 note Carpet Assy, Rear Floor
1982-10 → 1985-04 ended
FJ60 —
58540-90A13-06 note Carpet Assy, Rear Floor
1980-08 → 1982-10 ended
FJ60 USA —
58540-90A16-06 note Carpet Assy, Rear Floor
1980-08 → 1981-10 ended
FJ60 USA —
58540-90A19-03 note Carpet Assy, Rear Floor
1982-10 → 1984-11 ended
BJ60,FJ60 —
58540-90A19-03 note Carpet Assy, Rear Floor
1984-11 → 1985-04 ended
FJ60 —
58540-90A19-06 note Carpet Assy, Rear Floor
1981-10 → 1982-10 ended
BJ60,FJ60 —
58540-90A19-06 note Carpet Assy, Rear Floor
1984-11 → 1985-04 ended
FJ60 —
58540-90A19-06 note Carpet Assy, Rear Floor
1980-08 → 1981-10 ended
FJ60 USA —
58540-90A19-06 note Carpet Assy, Rear Floor
1982-10 → 1984-11 ended
BJ60,FJ60 —
58540-90A48-03 note Carpet Assy, Rear Floor
1985-04 → 1986-04 ended
FJ60 —
58540-90A48-06 note Carpet Assy, Rear Floor
1985-04 → 1986-04 ended
FJ60 —
58540-90A52-03 note Carpet Assy, Rear Floor
1984-11 → 1985-04 ended
BJ60 —
58540-90A52-03 note Carpet Assy, Rear Floor
1985-04 → 1986-04 ended
BJ60,FJ60 —
58540-90A52-06 note Carpet Assy, Rear Floor
1984-11 → 1985-04 ended
BJ60 —
58540-90A52-06 note Carpet Assy, Rear Floor
1985-04 → 1986-04 ended
BJ60,FJ60 —
58540-90A83-03 note Carpet Assy, Rear Floor
1985-10 → 1987-08 ended
HJ60 —
58540-90A83-03 note Carpet Assy, Rear Floor
1986-04 → 1987-08 ended
FJ60 —
58540-90A83-06 note Carpet Assy, Rear Floor
1985-10 → 1987-08 ended
HJ60 —
58540-90A83-06 note Carpet Assy, Rear Floor
1986-04 → 1987-08 ended
FJ60 —
58540-90G14-03 note Carpet Assy, Rear Floor
1986-04 → 1987-08 ended
FJ60 —
58540-90G14-06 note Carpet Assy, Rear Floor
1986-04 → 1987-08 ended
FJ60 —
58572 — Set Plate, Rear Floor Mat, Rear
58573-90A00 Set Plate, Rear Floor Mat, Rear
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
58579 — Set Plate, Rear Floor Carpet, NO.1
58573-90A00 Set Plate, Rear Floor Carpet, NO.1
1981-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
58573-90A00 Set Plate, Rear Floor Carpet, NO.1
1980-08 → 1981-10 ended
FJ60 USA —
58580B — Mat Assy, Rear Floor, Rear
58581-90A00-06 note Mat Assy, Rear Floor, Rear
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
58580C — Carpet Assy, Rear Floor, Rear
58570-90A00-03 note Carpet Assy, Rear Floor, Rear
1982-10 → 1984-11 ended
BJ60,FJ60 —
58570-90A00-03 note Carpet Assy, Rear Floor, Rear
1984-11 → 1985-04 ended
FJ60 —
58570-90A00-06 note Carpet Assy, Rear Floor, Rear
1980-08 → 1981-10 ended
FJ60 USA —
58570-90A00-06 note Carpet Assy, Rear Floor, Rear
1981-10 → 1984-11 ended
BJ60,FJ60 —
58570-90A00-06 note Carpet Assy, Rear Floor, Rear
1984-11 → 1985-04 ended
FJ60 —
58570-90A00-13 note Carpet Assy, Rear Floor, Rear
1984-11 → 1985-04 ended
BJ60 —
58570-90A00-13 note Carpet Assy, Rear Floor, Rear
1985-04 → 1986-04 ended
BJ60,FJ60 —
58570-90A00-16 note Carpet Assy, Rear Floor, Rear
1984-11 → 1985-04 ended
BJ60 —
58570-90A00-16 note Carpet Assy, Rear Floor, Rear
1985-04 → 1986-04 ended
BJ60,FJ60 —
58570-90A28-03 note Carpet Assy, Rear Floor, Rear
1985-10 → 1987-08 ended
HJ60 —
58570-90A28-06 note Carpet Assy, Rear Floor, Rear
1985-10 → 1987-08 ended
HJ60 —
58570-90A32-03 note Carpet Assy, Rear Floor, Rear
1986-04 → 1987-08 ended
FJ60 WGG —
58570-90A32-06 note Carpet Assy, Rear Floor, Rear
1986-04 → 1987-08 ended
FJ60 WGG —
58570-90A34-03 note Carpet Assy, Rear Floor, Rear
1986-09 → 1987-08 ended
FJ60 WGV —
58570-90A34-06 note Carpet Assy, Rear Floor, Rear
1986-09 → 1987-08 ended
FJ60 WGV —
58623B — Pad, Front Floor Silencer, Center
58623-90A00 Pad, Front Floor Silencer, Center
1985-12 → 1987-08 ended
HJ60 5F —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
