Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

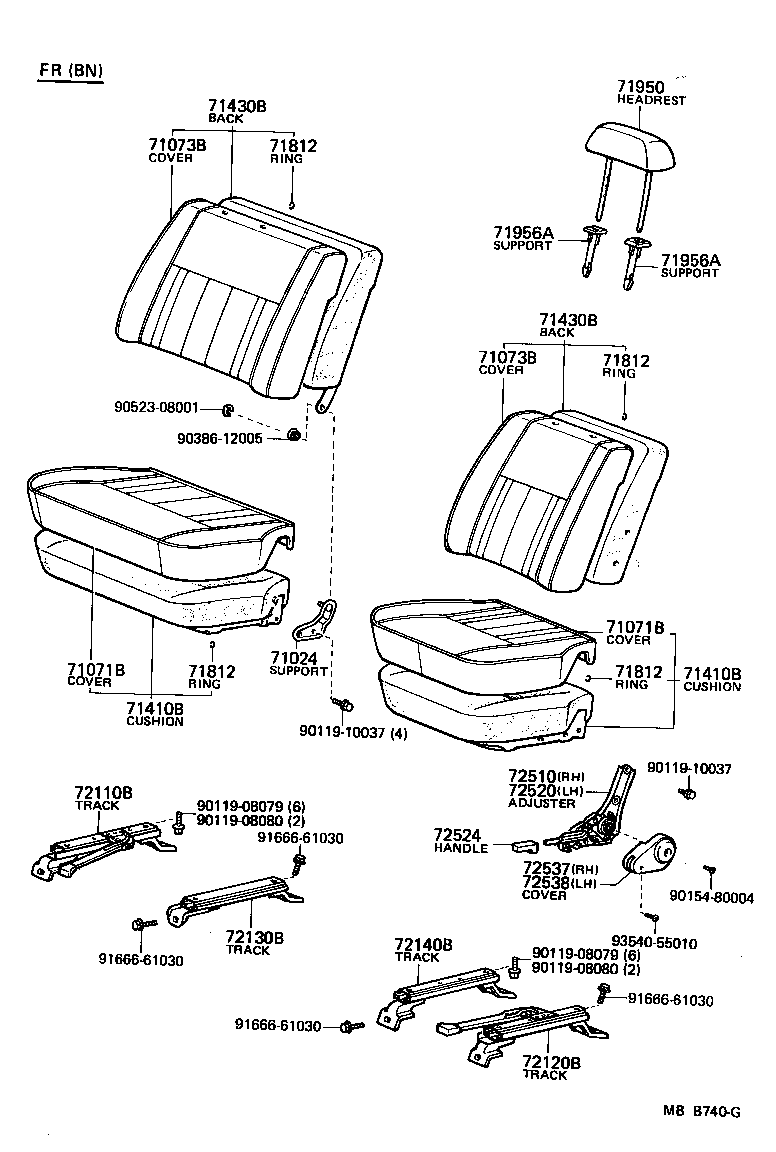

Exploded illustration MBB740G 71950 — HEADREST ASSY, FRONT SEAT (5 parts) 71430B — BACK ASSY, FRONT SEAT(FOR BENCH TYPE) (4 parts) 71073B — COVER, FRONT SEATBACK(FOR BENCH TYPE) (4 parts) 71812 — CLIP (FOR FRONT SEAT CUSHION COVER) (4 parts) 71956A — SUPPORT, FRONT SEAT HEADREST (12 parts) 71956A — SUPPORT, FRONT SEAT HEADREST (12 parts) 71430B — BACK ASSY, FRONT SEAT(FOR BENCH TYPE) (4 parts) 71073B — COVER, FRONT SEATBACK(FOR BENCH TYPE) (4 parts) 71812 — CLIP (FOR FRONT SEAT CUSHION COVER) (4 parts) 9052308001 — not listed in this catalogue 9038612005 — not listed in this catalogue 71071B — COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) (4 parts) 71024 — PLATE SUB-ASSY, FRONT SEAT HINGE, LH (1 parts) 71071B — COVER, FRONT SEAT CUSHION(FOR BENCH TYPE) (4 parts) 71812 — CLIP (FOR FRONT SEAT CUSHION COVER) (4 parts) 71812 — CLIP (FOR FRONT SEAT CUSHION COVER) (4 parts) 71410B — CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) (5 parts) 71410B — CUSHION ASSY, FRONT SEAT(FOR BENCH TYPE) (5 parts) 9011910037 — not listed in this catalogue 9011910037 — not listed in this catalogue 72510 — ADJUSTER ASSY, RECLINING SEATBACK, RH (3 parts) 72520 — ADJUSTER ASSY, RECLINING SEATBACK, LH (2 parts) 72110B — TRACK ASSY, SEAT, OUTER RH (FOR BENCH SEAT) (1 parts) 9011908079 — not listed in this catalogue 9011908080 — not listed in this catalogue 72524 — HANDLE, RECLINING ADJUSTER RELEASE (12 parts) 9166661030 — not listed in this catalogue 72537 — COVER, RECLINING HINGE OUTER, RH (5 parts) 72538 — COVER, RECLINING HINGE OUTER, LH (5 parts) 9015480004 — not listed in this catalogue 72130B — TRACK ASSY, RH SEAT, INNER (FOR BENCH SEAT) (1 parts) 9354055010 — not listed in this catalogue 72140B — TRACK ASSY, LH SEAT, INNER (FOR BENCH SEAT) (1 parts) 9011908079 — not listed in this catalogue 9166661030 — not listed in this catalogue 9011908080 — not listed in this catalogue 9166661030 — not listed in this catalogue 9166661030 — not listed in this catalogue 72120B — TRACK ASSY, SEAT, OUTER LH (FOR BENCH SEAT) (1 parts)
MBB740G · 25 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
70 parts on this figure
Part number Description Fitment Price
71024 — Plate Sub-assy, Front Seat Hinge, LH
71023-90A02 Plate Sub-assy, Front Seat Hinge, LH
1980-08 → 1981-10 ended
BJ60,FJ60 —
71071B — Cover, Front Seat Cushion(FOR BENCH TYPE)
71071-90A00 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
71071-90A02-06 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1980-08 → 1981-10 ended
FJ60 USA —
71071-90A04 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
71071-90A07 note Cover, Front Seat Cushion(FOR BENCH TYPE)
1980-08 → 1981-10 ended
FJ60 USA —
71073B — Cover, Front Seatback(FOR BENCH TYPE)
71073-90A04 note Cover, Front Seatback(FOR BENCH TYPE)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
71073-90A06-06 note Cover, Front Seatback(FOR BENCH TYPE)
1980-08 → 1981-10 ended
FJ60 USA —
71073-90A14 note Cover, Front Seatback(FOR BENCH TYPE)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
71073-90A16 note Cover, Front Seatback(FOR BENCH TYPE)
1980-08 → 1981-10 ended
FJ60 USA —
71410B — Cushion Assy, Front Seat(FOR BENCH TYPE)
71410-90A04 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1980-08 → 1981-10 ended
FJ60 USA —
71410-90A05 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
71420-90A00 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1980-08 → 1981-04 ended
FJ60 USA —
71420-90A02 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
71420-90A06-06 note Cushion Assy, Front Seat(FOR BENCH TYPE)
1981-04 → 1981-10 ended
FJ60 USA —
71430B — Back Assy, Front Seat(FOR BENCH TYPE)
71430-90A08 note Back Assy, Front Seat(FOR BENCH TYPE)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
71430-90A10 note Back Assy, Front Seat(FOR BENCH TYPE)
1980-08 → 1981-10 ended
FJ60 USA —
71440-90A00-06 note Back Assy, Front Seat(FOR BENCH TYPE)
1980-08 → 1981-10 ended
FJ60 USA —
71440-90A01 note Back Assy, Front Seat(FOR BENCH TYPE)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
71812 — Clip (FOR FRONT SEAT CUSHION COVER)
71812-30010 Clip (FOR FRONT SEAT CUSHION COVER)
1980-08 → 1984-11 ended
BJ60,FJ60 —
71812-30010 Clip (FOR FRONT SEAT CUSHION COVER)
1984-11 → 1985-04 ended
FJ60 —
90468-18071 Clip (FOR FRONT SEAT CUSHION COVER)
1984-11 → 1985-04 ended
BJ60 —
90468-18071 Clip (FOR FRONT SEAT CUSHION COVER)
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
71950 — Headrest Assy, Front Seat
71910-90A01-03 note Headrest Assy, Front Seat
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
71910-90A01-06 note Headrest Assy, Front Seat
1980-08 → 1984-11 ended
BJ60,FJ60 —
71910-90A01-06 note Headrest Assy, Front Seat
1984-11 → 1985-04 ended
FJ60 —
71910-90A01-16 note Headrest Assy, Front Seat
1984-11 → 1985-04 ended
BJ60 —
71910-90A01-16 note Headrest Assy, Front Seat
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
71956A — Support, Front Seat Headrest
71930-90A00 note Support, Front Seat Headrest
1980-08 → 1982-10 ended
BJ60,FJ60 —
71931-90A00 note Support, Front Seat Headrest
1980-08 → 1982-10 ended
BJ60,FJ60 —
71956-30020-13 note Support, Front Seat Headrest
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
71956-30020-16 note Support, Front Seat Headrest
1984-11 → 1985-04 ended
FJ60 —
71956-30020-16 note Support, Front Seat Headrest
1982-10 → 1984-11 ended
BJ60,FJ60 —
71956-30020-56 note Support, Front Seat Headrest
1984-11 → 1985-04 ended
BJ60 —
71956-30020-56 note Support, Front Seat Headrest
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
71990-30020-13 note Support, Front Seat Headrest
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
71990-30020-16 note Support, Front Seat Headrest
1982-10 → 1984-11 ended
BJ60,FJ60 —
71990-30020-16 note Support, Front Seat Headrest
1984-11 → 1985-04 ended
FJ60 —
71990-30020-56 note Support, Front Seat Headrest
1984-11 → 1985-04 ended
BJ60 —
71990-30020-56 note Support, Front Seat Headrest
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
72110B — Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110-90A00 Track Assy, Seat, Outer RH (FOR BENCH SEAT)
1980-08 → 1981-10 ended
BJ60,FJ60 —
72120B — Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120-90A00 Track Assy, Seat, Outer LH (FOR BENCH SEAT)
1980-08 → 1981-10 ended
BJ60,FJ60 —
72130B — Track Assy, RH Seat, Inner (FOR BENCH SEAT)
72130-90A01 Track Assy, RH Seat, Inner (FOR BENCH SEAT)
1980-08 → 1981-10 ended
BJ60,FJ60 —
72140B — Track Assy, LH Seat, Inner (FOR BENCH SEAT)
72130-90A00 Track Assy, LH Seat, Inner (FOR BENCH SEAT)
1980-08 → 1981-10 ended
BJ60,FJ60 —
72510 — Adjuster Assy, Reclining Seatback, RH
72510-90A00 note Adjuster Assy, Reclining Seatback, RH
1980-08 → 1986-08 ended
BJ60,FJ60,HJ60 —
72510-90A01 note Adjuster Assy, Reclining Seatback, RH
1980-08 → 1981-10 ended
BJ60,FJ60 —
72510-90A03 note Adjuster Assy, Reclining Seatback, RH
1986-08 → 1987-08 ended
FJ60,HJ60 —
72520 — Adjuster Assy, Reclining Seatback, LH
72520-90A00 Adjuster Assy, Reclining Seatback, LH
1980-08 → 1986-08 ended
BJ60,FJ60,HJ60 —
72520-90A02 Adjuster Assy, Reclining Seatback, LH
1986-08 → 1987-08 ended
FJ60,HJ60 —
72524 — Handle, Reclining Adjuster Release
72525-14010-13 note Handle, Reclining Adjuster Release
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
72525-14010-16 note Handle, Reclining Adjuster Release
1984-11 → 1985-04 ended
FJ60 —
72525-14010-16 note Handle, Reclining Adjuster Release
1982-10 → 1984-11 ended
BJ60,FJ60 —
72525-14010-56 note Handle, Reclining Adjuster Release
1984-11 → 1985-04 ended
BJ60 —
72525-14010-56 note Handle, Reclining Adjuster Release
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
72525-90A00 note Handle, Reclining Adjuster Release
1980-08 → 1982-10 ended
BJ60,FJ60 —
72526-14010-13 note Handle, Reclining Adjuster Release
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
72526-14010-16 note Handle, Reclining Adjuster Release
1984-11 → 1985-04 ended
FJ60 —
72526-14010-16 note Handle, Reclining Adjuster Release
1982-10 → 1984-11 ended
BJ60,FJ60 —
72526-14010-56 note Handle, Reclining Adjuster Release
1984-11 → 1985-04 ended
BJ60 —
72526-14010-56 note Handle, Reclining Adjuster Release
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
72526-90A00 note Handle, Reclining Adjuster Release
1980-08 → 1982-10 ended
BJ60,FJ60 —
72537 — Cover, Reclining Hinge Outer, RH
72551-90A00-03 note Cover, Reclining Hinge Outer, RH
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
72551-90A00-06 note Cover, Reclining Hinge Outer, RH
1980-08 → 1984-11 ended
BJ60,FJ60 —
72551-90A00-06 note Cover, Reclining Hinge Outer, RH
1984-11 → 1985-04 ended
FJ60 —
72551-90A00-16 note Cover, Reclining Hinge Outer, RH
1984-11 → 1985-04 ended
BJ60 —
72551-90A00-16 note Cover, Reclining Hinge Outer, RH
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
72538 — Cover, Reclining Hinge Outer, LH
72552-90A00-03 note Cover, Reclining Hinge Outer, LH
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
72552-90A00-06 note Cover, Reclining Hinge Outer, LH
1980-08 → 1984-11 ended
BJ60,FJ60 —
72552-90A00-06 note Cover, Reclining Hinge Outer, LH
1984-11 → 1985-04 ended
FJ60 —
72552-90A00-16 note Cover, Reclining Hinge Outer, LH
1984-11 → 1985-04 ended
BJ60 —
72552-90A00-16 note Cover, Reclining Hinge Outer, LH
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
