Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

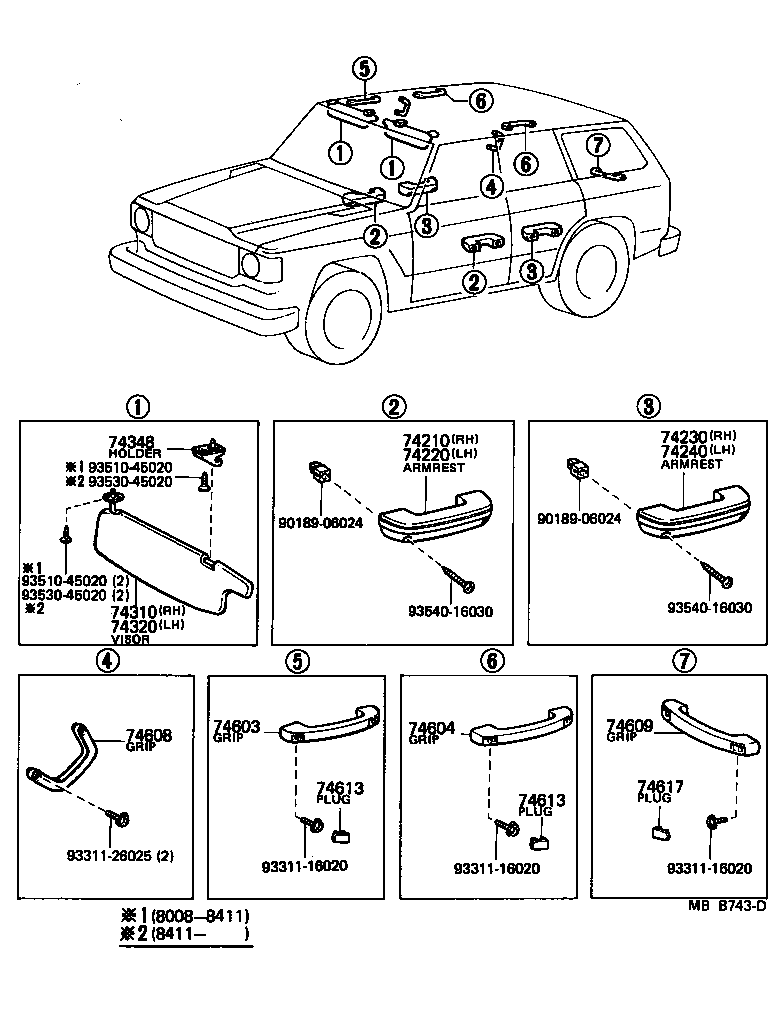

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74210 — Armrest Assy, Front, RH | ||||
| 74250-20010-16 note |
Armrest Assy, Front, RH
1980-08 → 1981-01
ended
|
BJ60,FJ60 | — | |
| 74250-90A00-03 note |
Armrest Assy, Front, RH
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74250-90A00-06 note |
Armrest Assy, Front, RH
1981-01 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74250-90A00-06 note |
Armrest Assy, Front, RH
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74250-90A00-16 note |
Armrest Assy, Front, RH
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74250-90A00-16 note |
Armrest Assy, Front, RH
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74220 — Armrest Assy, Front, LH | ||||
| 74250-20010-16 note |
Armrest Assy, Front, LH
1980-08 → 1981-01
ended
|
BJ60,FJ60 | — | |
| 74250-90A00-03 note |
Armrest Assy, Front, LH
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74250-90A00-06 note |
Armrest Assy, Front, LH
1981-01 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74250-90A00-06 note |
Armrest Assy, Front, LH
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74250-90A00-16 note |
Armrest Assy, Front, LH
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74250-90A00-16 note |
Armrest Assy, Front, LH
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74230 — Armrest Assy, Rear, RH | ||||
| 74250-20010-16 note |
Armrest Assy, Rear, RH
1980-08 → 1981-01
ended
|
BJ60,FJ60 | — | |
| 74250-90A00-03 note |
Armrest Assy, Rear, RH
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74250-90A00-06 note |
Armrest Assy, Rear, RH
1981-01 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74250-90A00-06 note |
Armrest Assy, Rear, RH
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74250-90A00-16 note |
Armrest Assy, Rear, RH
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74250-90A00-16 note |
Armrest Assy, Rear, RH
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74240 — Armrest Assy, Rear, LH | ||||
| 74250-20010-16 note |
Armrest Assy, Rear, LH
1980-08 → 1981-01
ended
|
BJ60,FJ60 | — | |
| 74250-90A00-03 note |
Armrest Assy, Rear, LH
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74250-90A00-06 note |
Armrest Assy, Rear, LH
1981-01 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74250-90A00-06 note |
Armrest Assy, Rear, LH
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74250-90A00-16 note |
Armrest Assy, Rear, LH
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74250-90A00-16 note |
Armrest Assy, Rear, LH
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74310 — Visor Assy, RH | ||||
| 74310-90A00-08 note |
Visor Assy, RH
1980-08 → 1981-10
ended
|
BJ60,FJ60 CND | — | |
| 74310-90A01-08 note |
Visor Assy, RH
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74310-90A01-08 note |
Visor Assy, RH
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74310-90A01-18 note |
Visor Assy, RH
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74310-90A01-18 note |
Visor Assy, RH
1985-04 → 1985-09
ended
|
BJ60,FJ60 | — | |
| 74310-90A03-18 note |
Visor Assy, RH
1985-09 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 74310-90A04-18 note |
Visor Assy, RH
1985-10 → 1986-08
ended
|
HJ60 | — | |
| 74310-90A27-08 note |
Visor Assy, RH
1986-04 → 1986-08
ended
|
FJ60 | — | |
| 74310-90A39-08 note |
Visor Assy, RH
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 74310-90A52-08 note |
Visor Assy, RH
1986-08 → 1987-08
ended
|
FJ60 | — | |
| 74320 — Visor Assy, LH | ||||
| 74320-90A00-08 note |
Visor Assy, LH
1984-09 → 1984-11
ended
|
BJ60 | — | |
| 74320-90A00-08 note |
Visor Assy, LH
1980-08 → 1984-09
ended
|
BJ60,FJ60 | — | |
| 74320-90A11-08 note |
Visor Assy, LH
1984-09 → 1985-04
ended
|
FJ60 | — | |
| 74320-90A12-08 note |
Visor Assy, LH
1984-11 → 1986-08
ended
|
BJ60,HJ60 | — | |
| 74320-90A13-08 note |
Visor Assy, LH
1985-04 → 1986-04
ended
|
FJ60 | — | |
| 74320-90A24-08 note |
Visor Assy, LH
1986-04 → 1986-08
ended
|
FJ60 | — | |
| 74320-90A31-08 note |
Visor Assy, LH
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 74320-90A42-08 note |
Visor Assy, LH
1986-08 → 1987-08
ended
|
FJ60 | — | |
| 74348 — Holder, Visor | ||||
| 74348-12010-08 note |
Holder, Visor
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74348-12010-08 note |
Holder, Visor
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74348-12010-18 note |
Holder, Visor
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74348-12010-18 note |
Holder, Visor
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74603 — Grip Sub-assy, Assist, Front | ||||
| 74610-10020-08 note |
Grip Sub-assy, Assist, Front
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74610-10020-08 note |
Grip Sub-assy, Assist, Front
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74610-10020-18 note |
Grip Sub-assy, Assist, Front
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74610-10020-18 note |
Grip Sub-assy, Assist, Front
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74604 — Grip Sub-assy, Assist, Rear | ||||
| 74610-10020-08 note |
Grip Sub-assy, Assist, Rear
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74610-10020-08 note |
Grip Sub-assy, Assist, Rear
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74610-10020-18 note |
Grip Sub-assy, Assist, Rear
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74610-10020-18 note |
Grip Sub-assy, Assist, Rear
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74608 — Grip Sub-assy, Rear Door Assist | ||||
| 74620-87001-08 note |
Grip Sub-assy, Rear Door Assist
1980-08 → 1981-01
ended
|
BJ60,FJ60 | — | |
| 74620-90A00 |
Grip Sub-assy, Rear Door Assist
1981-01 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74620-90A00-08 note |
Grip Sub-assy, Rear Door Assist
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74620-90A00-18 note |
Grip Sub-assy, Rear Door Assist
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74620-90A00-18 note |
Grip Sub-assy, Rear Door Assist
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74609 — Grip Assy, Back Door Assist | ||||
| 74610-10020-08 note |
Grip Assy, Back Door Assist
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74610-10020-08 note |
Grip Assy, Back Door Assist
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74610-10020-18 note |
Grip Assy, Back Door Assist
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74610-10020-18 note |
Grip Assy, Back Door Assist
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74613 — Plug, Assist Grip | ||||
| 74617-14010-08 note |
Plug, Assist Grip
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74617-14010-08 note |
Plug, Assist Grip
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74617-14010-18 note |
Plug, Assist Grip
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74617-14010-18 note |
Plug, Assist Grip
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 74617 — Plug, Back Door Assist Grip | ||||
| 74617-14010-08 note |
Plug, Back Door Assist Grip
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 74617-14010-08 note |
Plug, Back Door Assist Grip
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 74617-14010-18 note |
Plug, Back Door Assist Grip
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 74617-14010-18 note |
Plug, Back Door Assist Grip
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
