Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

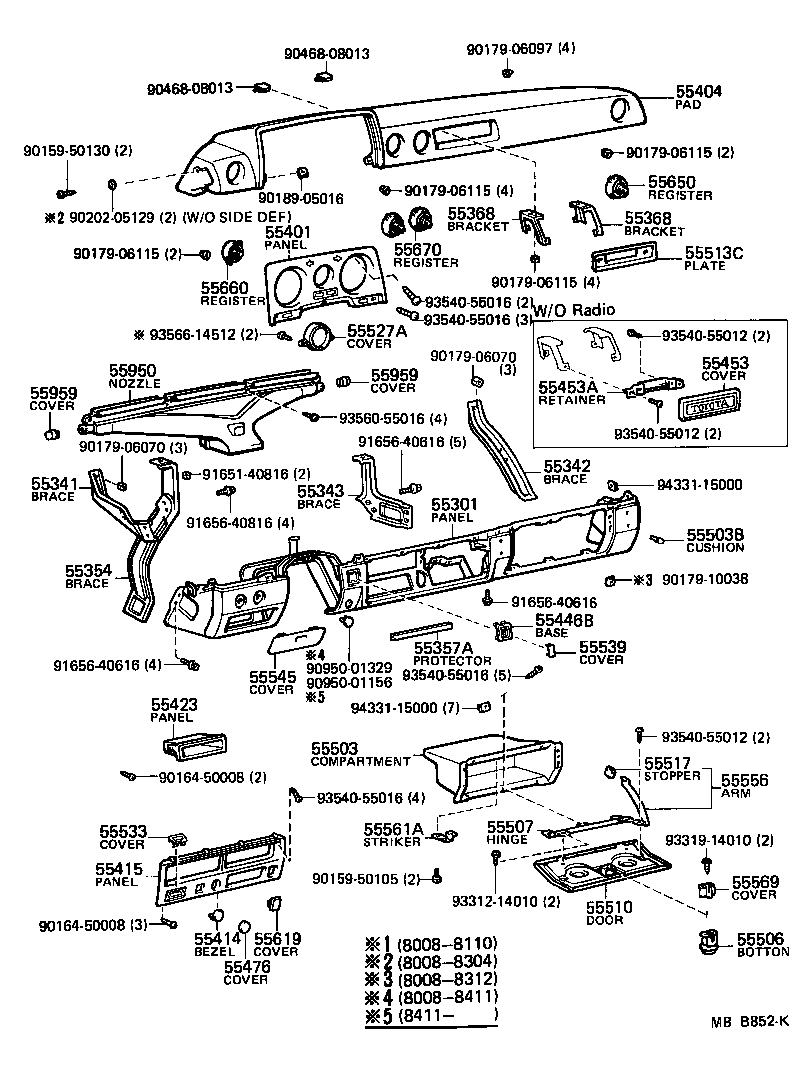

Exploded illustration MBB852K 9017906097 — not listed in this catalogue 9046808013 — not listed in this catalogue 9046808013 — not listed in this catalogue 55404 — SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER (9 parts) 9015950130 — not listed in this catalogue 9017906115 — not listed in this catalogue 55650 — REGISTER ASSY, INSTRUMENT PANEL, NO.1 (1 parts) 9017906115 — not listed in this catalogue 9018905016 — not listed in this catalogue 55368 — BRACKET, RADIO TUNER MOUNTING (2 parts) 9020205129 — not listed in this catalogue 55368 — BRACKET, RADIO TUNER MOUNTING (2 parts) 55401 — PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH (7 parts) 55670 — REGISTER ASSY, INSTRUMENT PANEL, NO.3 (1 parts) 55513C — PLATE, RADIO TUNER FINISH (1 parts) 9017906115 — not listed in this catalogue 9017906115 — not listed in this catalogue 55660 — REGISTER ASSY, INSTRUMENT PANEL, NO.2 (1 parts) 9354055016 — not listed in this catalogue 9354055016 — not listed in this catalogue 55527A — COVER, METER OPENING (1 parts) 9356614512 — not listed in this catalogue 9354055012 — not listed in this catalogue 9017906070 — not listed in this catalogue 55453 — COVER, RADIO TUNER OPENING (2 parts) 55950 — NOZZLE ASSY, DEFROSTER (1 parts) 55959 — COVER, DEFROSTER NOZZLE OPENING, NO.1 (2 parts) 55453A — RETAINER, RADIO TUNER OPENING, NO.1 (2 parts) 55959 — COVER, DEFROSTER NOZZLE OPENING, NO.1 (2 parts) 9356055016 — not listed in this catalogue 9354055012 — not listed in this catalogue 9165640616 — not listed in this catalogue 9017906070 — not listed in this catalogue 55342 — BRACE, INSTRUMENT PANEL, NO.2 (1 parts) 9165140816 — not listed in this catalogue 55341 — BRACE, INSTRUMENT PANEL, NO.1 (2 parts) 9433115000 — not listed in this catalogue 55343 — BRACE, INSTRUMENT PANEL, NO.3 (1 parts) 55301 — PANEL SUB-ASSY, INSTRUMENT (11 parts) 9165640816 — not listed in this catalogue 55503B — CUSHION(FOR GLOVE COMPARTMENT) (1 parts) 55354 — BRACE, INSTRUMENT PANEL TO FLOOR (2 parts) 9017910038 — not listed in this catalogue 9165640616 — not listed in this catalogue 55446B — SPACER, INSTRUMENT PANEL SAFETY PAD, SET (6 parts) 55539 — COVER, SPARE SWITCH HOLE (2 parts) 55357A — PROTECTOR, EDGE, NO.1 (1 parts) 9165640616 — not listed in this catalogue 9095001329 — not listed in this catalogue 9354055016 — not listed in this catalogue 55545 — COVER, FUSE BOX OPENING (5 parts) 9095001156 — not listed in this catalogue 55423 — PANEL, STEREO PLAYER FINISH (1 parts) 9433115000 — not listed in this catalogue 9354055012 — not listed in this catalogue 55503 — COMPARTMENT SUB-ASSY, GLOVE (1 parts) 55517 — STOPPER, GLOVE COMPARTMENT DOOR ARM (1 parts) 9016450008 — not listed in this catalogue 55556 — ARM, GLOVE COMPARTMENT DOOR CHECK (1 parts) 9354055016 — not listed in this catalogue 55507 — HINGE SUB-ASSY, GLOVE COMPARTMENT DOOR (1 parts) 55561A — STRIKER, GLOVE COMPARTMENT DOOR LOCK (1 parts) 55533 — COVER, AUTO CLOCK HOLE (1 parts) 9331914010 — not listed in this catalogue 55415 — PANEL, INSTRUMENT CLUSTER FINISH, CENTER (7 parts) 9015950105 — not listed in this catalogue 55569 — COVER, GLOVE COMPARTMENT DOOR LOCK (5 parts) 9331214010 — not listed in this catalogue 55510 — DOOR ASSY, GLOVE COMPARTMENT (5 parts) 9016450008 — not listed in this catalogue 55414 — BEZEL, CIGAR LIGHTER HOLE (2 parts) 55619 — COVER, SWITCH HOLE (1 parts) 55506 — BUTTON SUB-ASSY, GLOVE COMPARTMENT DOOR LOCK (3 parts) 55476 — COVER, CIGARETTE LIGHTER HOLE (1 parts)
MBB852K · 38 callouts, 36 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
93 parts on this figure
Part number Description Fitment Price
55301 — Panel Sub-assy, Instrument
55301-90A09 Panel Sub-assy, Instrument
1980-08 → 1982-10 ended
BJ60,FJ60 —
55301-90A35-03 note Panel Sub-assy, Instrument
1982-10 → 1984-11 ended
BJ60,FJ60 —
55301-90A35-03 note Panel Sub-assy, Instrument
1984-11 → 1985-04 ended
FJ60 —
55301-90A35-05 note Panel Sub-assy, Instrument
1984-11 → 1985-04 ended
FJ60 —
55301-90A35-05 note Panel Sub-assy, Instrument
1982-10 → 1984-11 ended
BJ60,FJ60 —
55301-90A51-03 note Panel Sub-assy, Instrument
1984-11 → 1985-10 ended
BJ60 —
55301-90A51-05 note Panel Sub-assy, Instrument
1984-11 → 1985-10 ended
BJ60 —
55301-90A55-03 note Panel Sub-assy, Instrument
1985-04 → 1987-08 ended
FJ60 —
55301-90A55-05 note Panel Sub-assy, Instrument
1985-04 → 1987-08 ended
FJ60 —
55301-90A63-03 note Panel Sub-assy, Instrument
1985-10 → 1987-08 ended
HJ60 —
55301-90A63-05 note Panel Sub-assy, Instrument
1985-10 → 1987-08 ended
HJ60 —
55341 — Brace, Instrument Panel, NO.1
55341-90A02 Brace, Instrument Panel, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60 —
55341-90A03 Brace, Instrument Panel, NO.1
1985-10 → 1987-08 ended
HJ60 —
55342 — Brace, Instrument Panel, NO.2
55342-90A01 Brace, Instrument Panel, NO.2
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55343 — Brace, Instrument Panel, NO.3
55344-90A01 Brace, Instrument Panel, NO.3
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55354 — Brace, Instrument Panel TO Floor
55351-90A01 Brace, Instrument Panel TO Floor
1980-08 → 1987-08 ended
BJ60,FJ60 —
55351-90A03 Brace, Instrument Panel TO Floor
1985-10 → 1987-08 ended
HJ60 —
55357A — Protector, Edge, NO.1
55357-90A00 Protector, Edge, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55368 — Bracket, Radio Tuner Mounting
55366-90A00 note Bracket, Radio Tuner Mounting
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55368-90A00 note Bracket, Radio Tuner Mounting
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55401 — Panel Sub-assy, Instrument Cluster Finish
55410-90A01 Panel Sub-assy, Instrument Cluster Finish
1980-08 → 1982-10 ended
FJ60 —
55410-90A04 Panel Sub-assy, Instrument Cluster Finish
1980-08 → 1982-10 ended
BJ60 —
55410-90A29-03 note Panel Sub-assy, Instrument Cluster Finish
1982-10 → 1987-08 ended
FJ60 —
55410-90A39 Panel Sub-assy, Instrument Cluster Finish
1982-10 → 1984-11 ended
BJ60 —
55410-90A60-03 note Panel Sub-assy, Instrument Cluster Finish
1984-11 → 1985-10 ended
BJ60 —
55410-90G05-03 note Panel Sub-assy, Instrument Cluster Finish
1985-10 → 1987-08 ended
HJ60 —
55410-90G13-03 note Panel Sub-assy, Instrument Cluster Finish
1986-08 → 1987-08 ended
HJ60 —
55404 — Safety Pad Sub-assy, Instrument Panel, Upper
55401-90A02-03 note Safety Pad Sub-assy, Instrument Panel, Upper
1982-10 → 1986-09 ended
FJ60 —
55401-90A02-03 note Safety Pad Sub-assy, Instrument Panel, Upper
1986-09 → 1987-08 ended
FJ60 —
55401-90A02-06 note Safety Pad Sub-assy, Instrument Panel, Upper
1980-08 → 1985-04 ended
FJ60 USA —
55401-90A02-16 note Safety Pad Sub-assy, Instrument Panel, Upper
1985-04 → 1987-08 ended
FJ60 —
55401-90A03-03 note Safety Pad Sub-assy, Instrument Panel, Upper
1982-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
55401-90A03-06 note Safety Pad Sub-assy, Instrument Panel, Upper
1980-08 → 1984-11 ended
BJ60,FJ60 —
55401-90A03-06 note Safety Pad Sub-assy, Instrument Panel, Upper
1984-11 → 1985-04 ended
FJ60 —
55401-90A03-16 note Safety Pad Sub-assy, Instrument Panel, Upper
1984-11 → 1985-04 ended
BJ60 —
55401-90A03-16 note Safety Pad Sub-assy, Instrument Panel, Upper
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
55414 — Bezel, Cigar Lighter Hole
55477-90A00 Bezel, Cigar Lighter Hole
1980-08 → 1987-08 ended
BJ60,FJ60 —
55477-90A01 Bezel, Cigar Lighter Hole
1985-10 → 1987-08 ended
HJ60 —
55415 — Panel, Instrument Cluster Finish, Center
55412-90A01-03 note Panel, Instrument Cluster Finish, Center
1982-10 → 1984-11 ended
BJ60,FJ60 —
55412-90A01-03 note Panel, Instrument Cluster Finish, Center
1984-11 → 1985-04 ended
FJ60 —
55412-90A01-05 note Panel, Instrument Cluster Finish, Center
1980-08 → 1984-11 ended
BJ60,FJ60 —
55412-90A01-05 note Panel, Instrument Cluster Finish, Center
1984-11 → 1987-08 ended
FJ60 —
55412-90A01-13 note Panel, Instrument Cluster Finish, Center
1985-04 → 1987-08 ended
FJ60 —
55412-90A02-05 note Panel, Instrument Cluster Finish, Center
1984-11 → 1987-08 ended
BJ60,HJ60 —
55412-90A02-13 note Panel, Instrument Cluster Finish, Center
1984-11 → 1987-08 ended
BJ60,HJ60 —
55423 — Panel, Stereo Player Finish
55521-90A00 Panel, Stereo Player Finish
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55446B — Spacer, Instrument Panel Safety Pad, Set
55446-90A01-03 note Spacer, Instrument Panel Safety Pad, Set
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
55446-90A01-03 note Spacer, Instrument Panel Safety Pad, Set
1984-11 → 1985-04 ended
BJ60 —
55446-90A01-05 note Spacer, Instrument Panel Safety Pad, Set
1984-11 → 1985-04 ended
BJ60 —
55446-90A01-05 note Spacer, Instrument Panel Safety Pad, Set
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
55446-90A02-03 note Spacer, Instrument Panel Safety Pad, Set
1984-11 → 1987-08 ended
BJ60,HJ60 —
55446-90A02-05 note Spacer, Instrument Panel Safety Pad, Set
1984-11 → 1987-08 ended
BJ60,HJ60 —
55453 — Cover, Radio Tuner Opening
55522-90A00 Cover, Radio Tuner Opening
1981-10 → 1987-08 ended
FJ60 —
55522-90A00 Cover, Radio Tuner Opening
1980-08 → 1981-10 ended
BJ60,FJ60 —
55453A — Retainer, Radio Tuner Opening, NO.1
55417-90A00 Retainer, Radio Tuner Opening, NO.1
1980-08 → 1981-10 ended
BJ60,FJ60 —
55417-90A00 Retainer, Radio Tuner Opening, NO.1
1981-10 → 1987-08 ended
FJ60 —
55476 — Cover, Cigarette Lighter Hole
55477-10010-01 note Cover, Cigarette Lighter Hole
1980-08 → 1981-10 ended
BJ60,FJ60 —
55503 — Compartment Sub-assy, Glove
55581-90A02 Compartment Sub-assy, Glove
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55503B — Cushion(FOR GLOVE COMPARTMENT)
90541-03015 Cushion(FOR GLOVE COMPARTMENT)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55506 — Button Sub-assy, Glove Compartment Door Lock
55560-12020 Button Sub-assy, Glove Compartment Door Lock
1986-04 → 1987-08 ended
FJ60 —
55560-12020 Button Sub-assy, Glove Compartment Door Lock
1984-11 → 1986-08 ended
BJ60,HJ60 —
55560-12020 Button Sub-assy, Glove Compartment Door Lock
1980-08 → 1984-11 ended
BJ60,FJ60 —
55507 — Hinge Sub-assy, Glove Compartment Door
55505-90A00 Hinge Sub-assy, Glove Compartment Door
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55510 — Door Assy, Glove Compartment
55501-90A00-03 note Door Assy, Glove Compartment
1982-10 → 1984-11 ended
BJ60,FJ60 —
55501-90A00-03 note Door Assy, Glove Compartment
1984-11 → 1985-04 ended
FJ60 —
55501-90A00-05 note Door Assy, Glove Compartment
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55501-90A00-13 note Door Assy, Glove Compartment
1984-11 → 1985-04 ended
BJ60 —
55501-90A00-13 note Door Assy, Glove Compartment
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
55513C — Plate, Radio Tuner Finish
55513-90A00 Plate, Radio Tuner Finish
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55517 — Stopper, Glove Compartment Door Arm
55517-14010 Stopper, Glove Compartment Door Arm
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55527A — Cover, Meter Opening
55527-90A00 Cover, Meter Opening
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
55533 — Cover, Auto Clock Hole
55533-90A00 Cover, Auto Clock Hole
1984-11 → 1987-08 ended
BJ60,HJ60 —
55539 — Cover, Spare Switch Hole
55539-32010-01 note Cover, Spare Switch Hole
1984-11 → 1985-04 ended
BJ60 —
55539-32010-01 note Cover, Spare Switch Hole
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 MTM —
55545 — Cover, Fuse Box Opening
55545-90A00-03 note Cover, Fuse Box Opening
1982-10 → 1984-11 ended
BJ60,FJ60 —
55545-90A00-03 note Cover, Fuse Box Opening
1984-11 → 1985-04 ended
FJ60 —
55545-90A00-05 note Cover, Fuse Box Opening
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55545-90A00-13 note Cover, Fuse Box Opening
1984-11 → 1985-04 ended
BJ60 —
55545-90A00-13 note Cover, Fuse Box Opening
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
55556 — Arm, Glove Compartment Door Check
55556-90A01 Arm, Glove Compartment Door Check
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55561A — Striker, Glove Compartment Door Lock
55561-90A00 Striker, Glove Compartment Door Lock
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55569 — Cover, Glove Compartment Door Lock
55569-90A00-03 note Cover, Glove Compartment Door Lock
1984-11 → 1985-04 ended
FJ60 —
55569-90A00-03 note Cover, Glove Compartment Door Lock
1982-10 → 1984-11 ended
BJ60,FJ60 —
55569-90A00-05 note Cover, Glove Compartment Door Lock
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55569-90A00-13 note Cover, Glove Compartment Door Lock
1984-11 → 1985-04 ended
BJ60 —
55569-90A00-13 note Cover, Glove Compartment Door Lock
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
55619 — Cover, Switch Hole
55524-90A00 Cover, Switch Hole
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55650 — Register Assy, Instrument Panel, NO.1
55650-90A00 Register Assy, Instrument Panel, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55660 — Register Assy, Instrument Panel, NO.2
55650-90A00 Register Assy, Instrument Panel, NO.2
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55670 — Register Assy, Instrument Panel, NO.3
55670-90A00 Register Assy, Instrument Panel, NO.3
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55950 — Nozzle Assy, Defroster
55950-90A01 Nozzle Assy, Defroster
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
55959 — Cover, Defroster Nozzle Opening, NO.1
55959-14010 Cover, Defroster Nozzle Opening, NO.1
1980-08 → 1986-09 ended
FJ60 USA —
55959-14010 Cover, Defroster Nozzle Opening, NO.1
1986-09 → 1987-08 ended
FJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
