Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

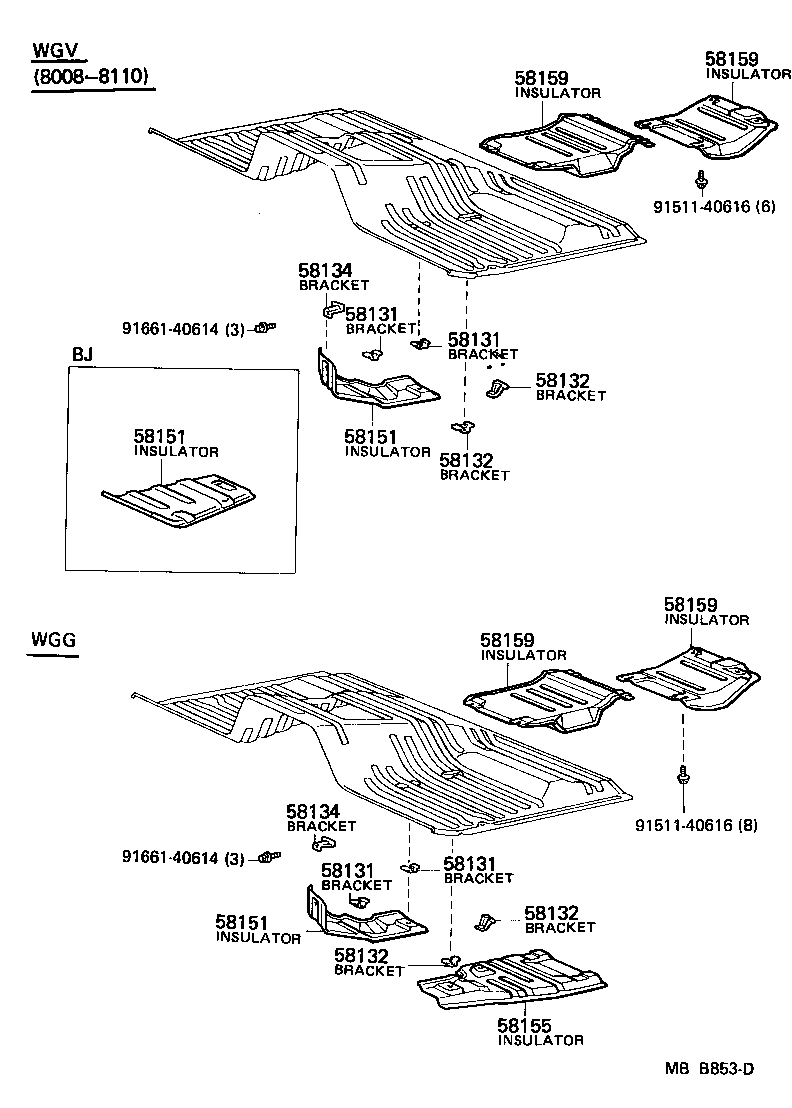

Exploded illustration MBB853D 58159 — INSULATOR, MAIN MAFFLAR HEAT (4 parts) 58159 — INSULATOR, MAIN MAFFLAR HEAT (4 parts) 9151140616 — not listed in this catalogue 58134 — BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1 (7 parts) 58131 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (2 parts) 9166140614 — not listed in this catalogue 58131 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (2 parts) 58132 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 (6 parts) 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (2 parts) 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (2 parts) 58132 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 (6 parts) 58159 — INSULATOR, MAIN MAFFLAR HEAT (4 parts) 58159 — INSULATOR, MAIN MAFFLAR HEAT (4 parts) 58134 — BRACKET, CENTER FLOOR HEAT INSULATOR, NO.1 (7 parts) 9151140616 — not listed in this catalogue 9166140614 — not listed in this catalogue 58131 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (2 parts) 58131 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (2 parts) 58132 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 (6 parts) 58151 — INSULATOR, FRONT FLOOR HEAT, NO.1 (2 parts) 58132 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 (6 parts) 58155 — INSULATOR, FRONT FLOOR HEAT, NO.3 (3 parts)
MBB853D · 18 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
24 parts on this figure
Part number Description Fitment Price
58131 — Bracket, Front Floor Heat Insulator, NO.1
58131-90A00 Bracket, Front Floor Heat Insulator, NO.1
1980-08 → 1985-10 ended
BJ60 —
58231-90A00 Bracket, Front Floor Heat Insulator, NO.1
1980-08 → 1987-08 ended
FJ60,HJ60 —
58132 — Bracket, Front Floor Heat Insulator, NO.2
58131-90A00 note Bracket, Front Floor Heat Insulator, NO.2
1980-08 → 1984-11 ended
BJ60 —
58131-90A00 note Bracket, Front Floor Heat Insulator, NO.2
1980-08 → 1986-06 ended
FJ60 USA —
58132-90A00 note Bracket, Front Floor Heat Insulator, NO.2
1980-08 → 1984-11 ended
BJ60 —
58132-90A00 note Bracket, Front Floor Heat Insulator, NO.2
1980-08 → 1986-09 ended
FJ60 USA —
58132-90A00 note Bracket, Front Floor Heat Insulator, NO.2
1986-09 → 1987-08 ended
FJ60 —
58344-90A01 note Bracket, Front Floor Heat Insulator, NO.2
1986-06 → 1987-08 ended
FJ60 —
58134 — Bracket, Center Floor Heat Insulator, NO.1
58131-90A00 note Bracket, Center Floor Heat Insulator, NO.1
1980-08 → 1984-11 ended
BJ60,FJ60 —
58131-90A00 note Bracket, Center Floor Heat Insulator, NO.1
1984-11 → 1985-04 ended
FJ60 —
58232-90A00 note Bracket, Center Floor Heat Insulator, NO.1
1985-10 → 1986-06 ended
HJ60 —
58232-90A00 note Bracket, Center Floor Heat Insulator, NO.1
1980-08 → 1986-06 ended
BJ60,FJ60 —
58345-90A00 note Bracket, Center Floor Heat Insulator, NO.1
1984-11 → 1985-04 ended
BJ60 —
58345-90A00 note Bracket, Center Floor Heat Insulator, NO.1
1985-04 → 1987-08 ended
BJ60,FJ60 —
58345-90A00 note Bracket, Center Floor Heat Insulator, NO.1
1985-10 → 1987-08 ended
HJ60 —
58151 — Insulator, Front Floor Heat, NO.1
58153-90A00 Insulator, Front Floor Heat, NO.1
1980-08 → 1985-10 ended
BJ60 —
58155-90A00 Insulator, Front Floor Heat, NO.1
1980-08 → 1987-08 ended
FJ60,HJ60 —
58155 — Insulator, Front Floor Heat, NO.3
58151-90A00 Insulator, Front Floor Heat, NO.3
1980-08 → 1982-10 ended
FJ60 USA —
58151-90A01 Insulator, Front Floor Heat, NO.3
1982-10 → 1986-04 ended
FJ60 —
58151-90A03 Insulator, Front Floor Heat, NO.3
1986-04 → 1987-08 ended
FJ60 —
58159 — Insulator, Main Mafflar Heat
58041-90A00 note Insulator, Main Mafflar Heat
1980-08 → 1986-04 ended
BJ60,FJ60 —
58041-90A01 note Insulator, Main Mafflar Heat
1985-10 → 1987-08 ended
HJ60 —
58041-90A01 note Insulator, Main Mafflar Heat
1986-04 → 1987-08 ended
FJ60 —
58043-90A00 note Insulator, Main Mafflar Heat
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
