Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

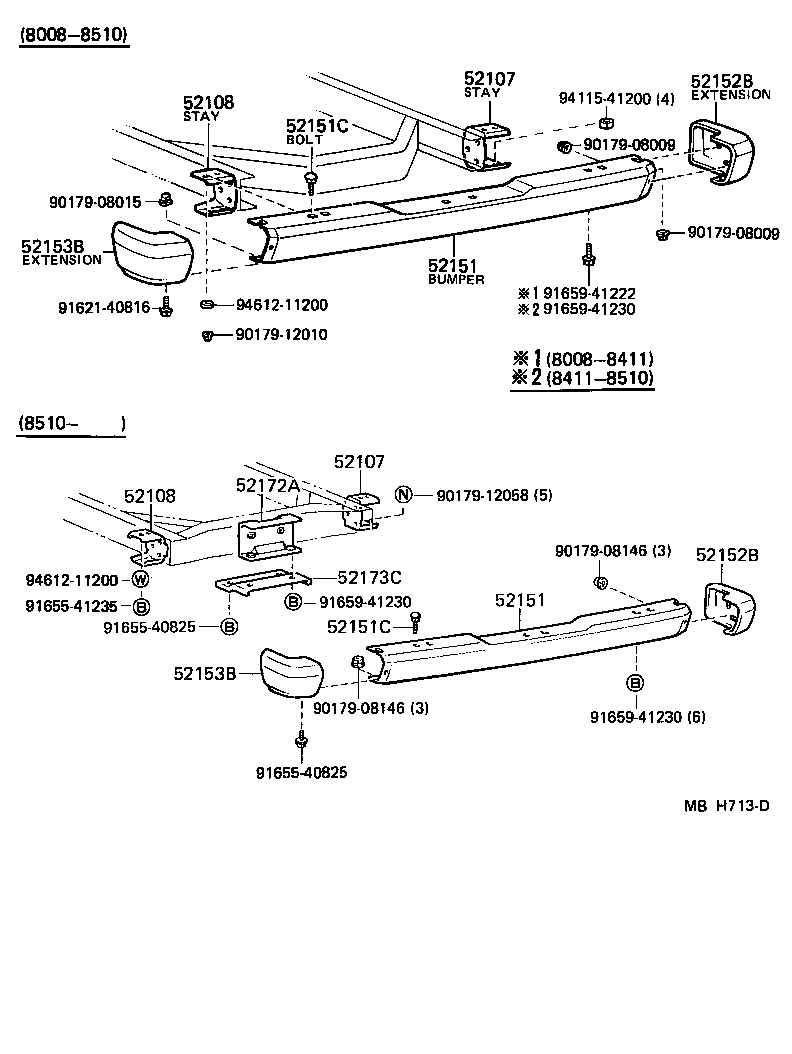

Exploded illustration MBH713D 52107 — STAY SUB-ASSY, REAR BUMPER, RH (1 parts) 52152B — EXTENSION, REAR BUMPER, RH (1 parts) 9411541200 — not listed in this catalogue 52108 — STAY SUB-ASSY, REAR BUMPER, LH (1 parts) 52151C — BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) (4 parts) 9017908009 — not listed in this catalogue 9017908015 — not listed in this catalogue 9017908009 — not listed in this catalogue 52153B — EXTENSION, REAR BUMPER, LH (1 parts) 52151 — BUMPER ASSY, REAR (8 parts) 9165941222 — not listed in this catalogue 9461211200 — not listed in this catalogue 9162140816 — not listed in this catalogue 9165941230 — not listed in this catalogue 9017912010 — not listed in this catalogue 52107 — STAY SUB-ASSY, REAR BUMPER, RH (1 parts) 52172A — REINFORCEMENT, REAR BUMPER BAR, CENTER (1 parts) 52108 — STAY SUB-ASSY, REAR BUMPER, LH (1 parts) 9017912058 — not listed in this catalogue 9017908146 — not listed in this catalogue 52152B — EXTENSION, REAR BUMPER, RH (1 parts) 52173C — REINFORCEMENT, REAR BUMPER, NO.3 (1 parts) 9461211200 — not listed in this catalogue 52151 — BUMPER ASSY, REAR (8 parts) 9165941230 — not listed in this catalogue 9165541235 — not listed in this catalogue 52151C — BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) (4 parts) 9165540825 — not listed in this catalogue 52153B — EXTENSION, REAR BUMPER, LH (1 parts) 9017908146 — not listed in this catalogue 9165941230 — not listed in this catalogue 9165540825 — not listed in this catalogue
MBH713D · 14 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
18 parts on this figure
Part number Description Fitment Price
52107 — Stay Sub-assy, Rear Bumper, RH
52153-60060 Stay Sub-assy, Rear Bumper, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
52108 — Stay Sub-assy, Rear Bumper, LH
52154-60010 Stay Sub-assy, Rear Bumper, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
52151 — Bumper Assy, Rear
52151-60030 Bumper Assy, Rear
1980-08 → 1984-11 ended
BJ60,FJ60 —
52151-60030 Bumper Assy, Rear
1984-11 → 1985-04 ended
FJ60 —
52151-60031 Bumper Assy, Rear
1984-11 → 1985-04 ended
BJ60 —
52151-60031 Bumper Assy, Rear
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
52151-60040 note Bumper Assy, Rear
1980-08 → 1984-11 ended
BJ60,FJ60 —
52151-60040 note Bumper Assy, Rear
1984-11 → 1985-04 ended
FJ60 —
52151-60041 note Bumper Assy, Rear
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
52151-60041 note Bumper Assy, Rear
1984-11 → 1985-04 ended
BJ60 —
52151C — Bolt, Round Head Square Neck(FOR REAR BUMPER)
90112-12041 Bolt, Round Head Square Neck(FOR REAR BUMPER)
1980-08 → 1984-11 ended
BJ60,FJ60 —
90112-12041 Bolt, Round Head Square Neck(FOR REAR BUMPER)
1984-11 → 1985-04 ended
BJ60 —
90112-12041 Bolt, Round Head Square Neck(FOR REAR BUMPER)
1984-11 → 1985-04 ended
FJ60 —
90112-12041 Bolt, Round Head Square Neck(FOR REAR BUMPER)
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
52152B — Extension, Rear Bumper, RH
52106-60010 Extension, Rear Bumper, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
52153B — Extension, Rear Bumper, LH
52107-60010 Extension, Rear Bumper, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
52172A — Reinforcement, Rear Bumper Bar, Center
52172-60020 Reinforcement, Rear Bumper Bar, Center
1985-10 → 1987-08 ended
HJ60 —
52173C — Reinforcement, Rear Bumper, NO.3
52173-60050 Reinforcement, Rear Bumper, NO.3
1985-10 → 1987-08 ended
HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
