Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

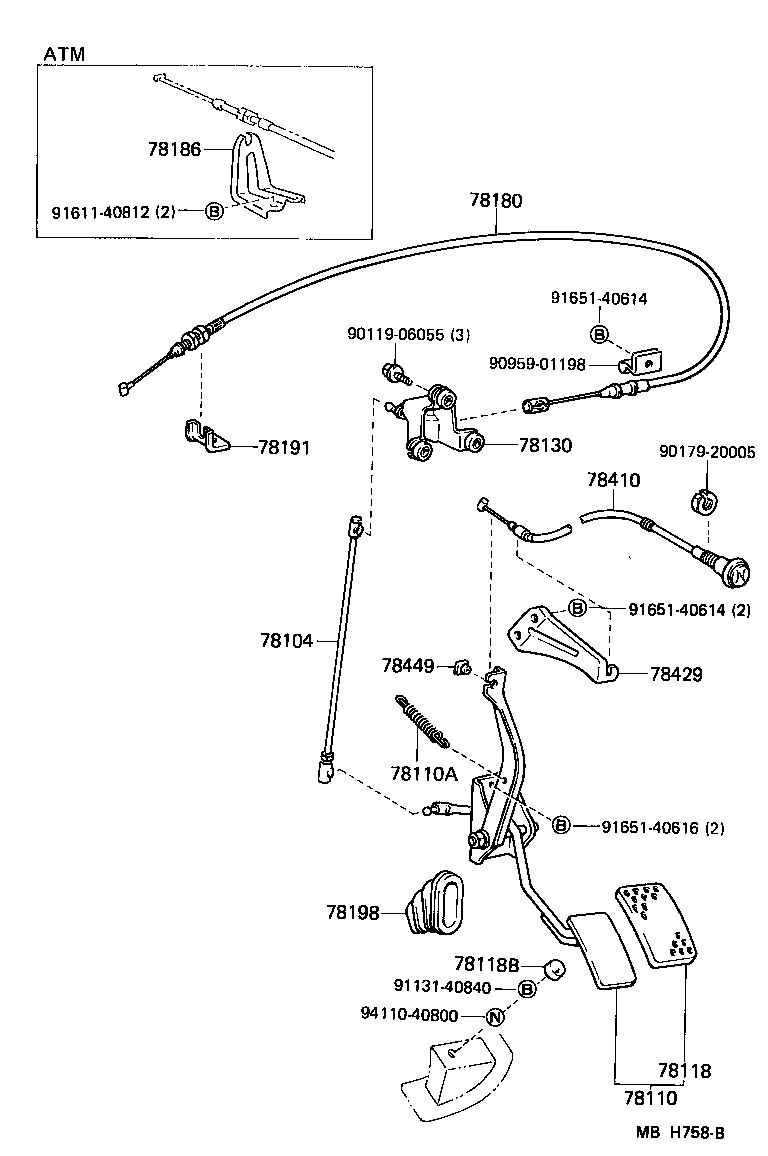

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 78104 — Rod Sub-assy, Accelerator Connecting, NO.2 | ||||
| 78104-90A00 |
Rod Sub-assy, Accelerator Connecting, NO.2
1980-08 → 1987-08
ended
|
FJ60 | — | |
| 78104-90A01 |
Rod Sub-assy, Accelerator Connecting, NO.2
1980-08 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 78110 — Rod Assy, Accelerator Pedal | ||||
| 78120-90A02 |
Rod Assy, Accelerator Pedal
1980-08 → 1985-04
ended
|
FJ60 | — | |
| 78120-90A03 |
Rod Assy, Accelerator Pedal
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 78120-90A06 |
Rod Assy, Accelerator Pedal
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 78120-90A07 |
Rod Assy, Accelerator Pedal
1985-04 → 1987-08
ended
|
FJ60 | — | |
| 78110A — Spring (FOR ACCELERATOR PEDAL ROD) | ||||
| 90506-12262 |
Spring (FOR ACCELERATOR PEDAL ROD)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 78118 — Pad, Accelerator Pedal | ||||
| 78111-95110 |
Pad, Accelerator Pedal
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 78118B — Stopper, Accelerator Pedal | ||||
| 78118-90K00 |
Stopper, Accelerator Pedal
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 78118-90K00 |
Stopper, Accelerator Pedal
1985-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 78130 — Bellcrank Assy, Accelerator | ||||
| 78160-90A01 |
Bellcrank Assy, Accelerator
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 78160-90A02 |
Bellcrank Assy, Accelerator
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 78170-90A00 |
Bellcrank Assy, Accelerator
1980-08 → 1987-08
ended
|
FJ60 | — | |
| 78180 — Wire Assy, Accelerator | ||||
| 78180-90A04 |
Wire Assy, Accelerator
1980-08 → 1982-05
ended
|
BJ60 | — | |
| 78180-90A08 |
Wire Assy, Accelerator
1982-05 → 1984-11
ended
|
BJ60 | — | |
| 78180-90A13 |
Wire Assy, Accelerator
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 78180-90A14 |
Wire Assy, Accelerator
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 78180-90A15 |
Wire Assy, Accelerator
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 78186 — Support, Accelerator Control Cable, NO.1 | ||||
| 78186-90A01 |
Support, Accelerator Control Cable, NO.1
1985-10 → 1987-08
ended
|
HJ60 4FC | — | |
| 78191 — Bracket, Accelerator Wire Support | ||||
| 78183-90A00 |
Bracket, Accelerator Wire Support
1980-08 → 1985-10
ended
|
BJ60 | — | |
| 78198 — Boot, Accelerator Connecting Rod | ||||
| 78199-90352 |
Boot, Accelerator Connecting Rod
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 78410 — Cable Assy, Throttle Control | ||||
| 78410-90A02 |
Cable Assy, Throttle Control
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 78410-90A03 |
Cable Assy, Throttle Control
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 78410-90A03 |
Cable Assy, Throttle Control
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 78429 — Bracket, Throttle Rod | ||||
| 78471-90A00 |
Bracket, Throttle Rod
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 78449 — Guide, Throttle Cable | ||||
| 78449-90300 |
Guide, Throttle Cable
1980-08 → 1985-07
ended
|
BJ60,FJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
