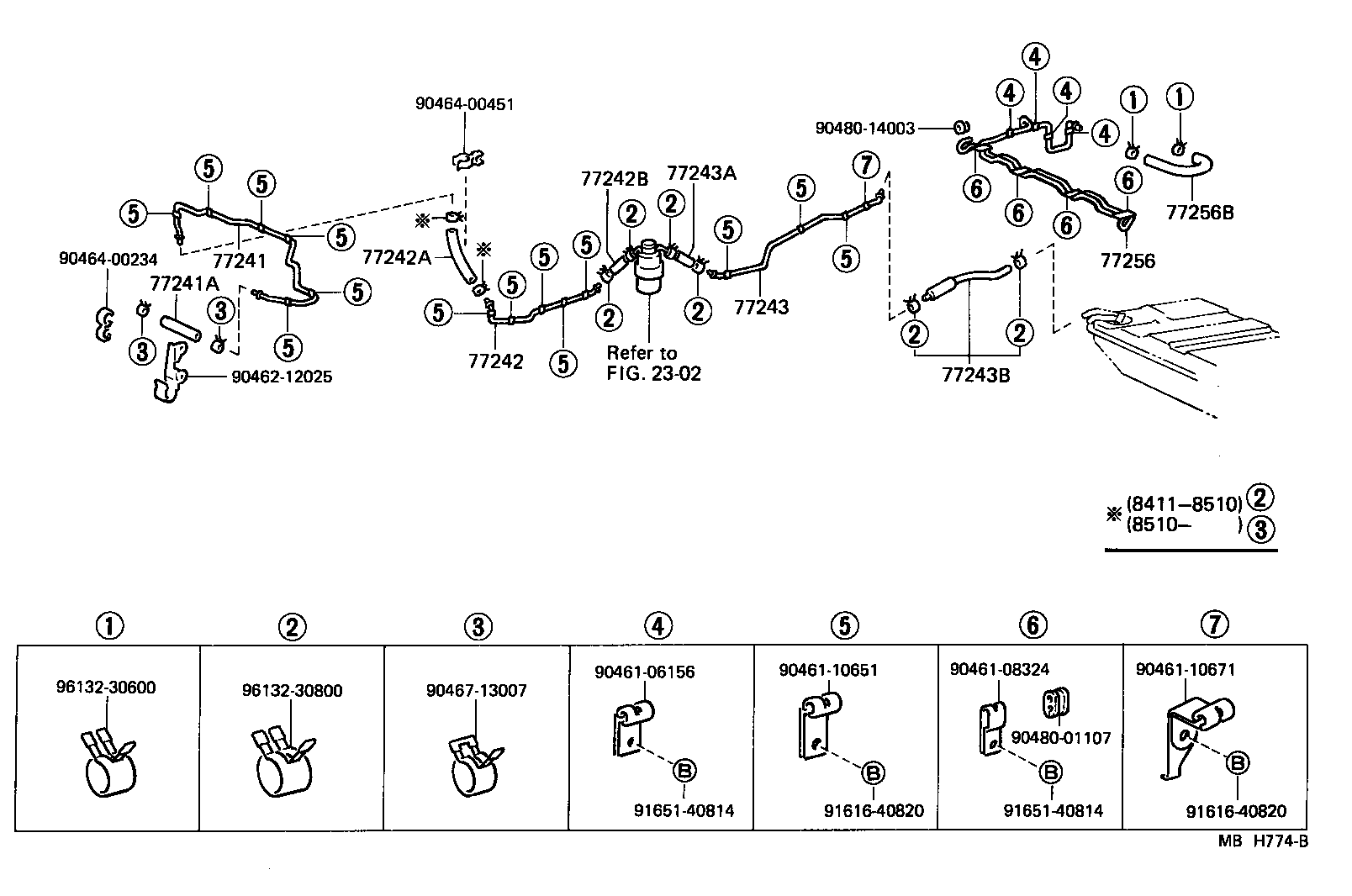

Exploded illustration MBH774B 9046400451 — not listed in this catalogue 9048014003 — not listed in this catalogue 77243A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3) (6 parts) 77242B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2) (2 parts) 77256B — HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3) (6 parts) 77242A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2) (4 parts) 9046400234 — not listed in this catalogue 77241 — TUBE, FUEL MAIN, NO.1 (4 parts) 77256 — TUBE, FUEL EMISSION, NO.3 (4 parts) 77241A — HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.1) (2 parts) 77243 — TUBE, FUEL MAIN, NO.3 (5 parts) 77242 — TUBE, FUEL MAIN, NO.2 (3 parts) 2302 — not listed in this catalogue 77243B — HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3) (1 parts) 9046212025 — not listed in this catalogue 9046108324 — not listed in this catalogue 9046110671 — not listed in this catalogue 9046110651 — not listed in this catalogue 9046106156 — not listed in this catalogue 9613230600 — not listed in this catalogue 9613230800 — not listed in this catalogue 9046713007 — not listed in this catalogue 9048001107 — not listed in this catalogue 9161640820 — not listed in this catalogue 9165140814 — not listed in this catalogue 9165140814 — not listed in this catalogue 9161640820 — not listed in this catalogue
MBH774B · 10 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
77241 — Tube, Fuel Main, NO.1
77253-60020 Tube, Fuel Main, NO.1
1980-08 → 1982-10 ended
BJ60 —
77253-60021 Tube, Fuel Main, NO.1
1982-10 → 1983-01 ended
BJ60 —
77253-60040 Tube, Fuel Main, NO.1
1983-01 → 1984-11 ended
BJ60 —
77253-60041 Tube, Fuel Main, NO.1
1984-11 → 1985-10 ended
BJ60 —
77241A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
95332-08060 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1980-08 → 1981-10 ended
BJ60 —
95332-08080 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.1)
1981-10 → 1985-10 ended
BJ60 —
77242 — Tube, Fuel Main, NO.2
77252-60051 Tube, Fuel Main, NO.2
1985-10 → 1987-08 ended
HJ60 —
77252-60060 note Tube, Fuel Main, NO.2
1980-08 → 1984-11 ended
BJ60 —
77252-60061 Tube, Fuel Main, NO.2
1984-11 → 1985-10 ended
BJ60 —
77242A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
1984-11 → 1985-10 ended
BJ60 —
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
1980-08 → 1984-11 ended
BJ60 —
95332-08040 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
1985-10 → 1987-02 ended
HJ60 —
95333-08040 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.2)
1987-02 → 1987-08 ended
HJ60 —
77242B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
95332-08020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
1980-08 → 1987-02 ended
BJ60,HJ60 —
95333-08020 note Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.2)
1987-02 → 1987-08 ended
HJ60 —
77243 — Tube, Fuel Main, NO.3
77251-60200 Tube, Fuel Main, NO.3
1983-05 → 1983-07 ended
BJ60 —
77251-60201 Tube, Fuel Main, NO.3
1983-07 → 1984-11 ended
BJ60 —
77251-60210 note Tube, Fuel Main, NO.3
1980-08 → 1983-07 ended
BJ60 —
77251-60211 note Tube, Fuel Main, NO.3
1983-07 → 1984-11 ended
BJ60 —
77251-60212 note Tube, Fuel Main, NO.3
1984-11 → 1987-08 ended
BJ60,HJ60 —
77243A — Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
95332-08020 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
1980-08 → 1987-02 ended
BJ60,HJ60 —
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
1983-01 → 1984-11 ended
BJ60 —
95332-08030 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
1984-11 → 1985-10 ended
BJ60 —
95332-08040 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
1980-08 → 1987-02 ended
FJ60 —
95333-08020 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
1987-02 → 1987-08 ended
HJ60 —
95333-08040 note Hose, Fuel, NO.1 (FOR MAIN TUBE, NO.3)
1987-02 → 1987-08 ended
FJ60 —
77243B — Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050 Hose, Fuel, NO.2 (FOR MAIN TUBE, NO.3)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
77256 — Tube, Fuel Emission, NO.3
77244-60110 Tube, Fuel Emission, NO.3
1980-08 → 1986-09 ended
FJ60 USA —
77244-60110 Tube, Fuel Emission, NO.3
1986-09 → 1987-08 ended
FJ60 —
77244-60140 Tube, Fuel Emission, NO.3
1981-10 → 1987-08 ended
BJ60,HJ60 —
77244-60140 Tube, Fuel Emission, NO.3
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
77256B — Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
95332-06030 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
1980-08 → 1986-09 ended
FJ60 USA —
95332-06030 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
1981-10 → 1987-02 ended
BJ60,HJ60 —
95332-06030 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
1986-09 → 1987-02 ended
FJ60 —
95333-06030 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
1987-02 → 1987-08 ended
FJ60 —
95333-06030 note Hose, Fuel, NO.2 (FOR EMISSION TUBE, NO.3)
1987-02 → 1987-08 ended
HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
