Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

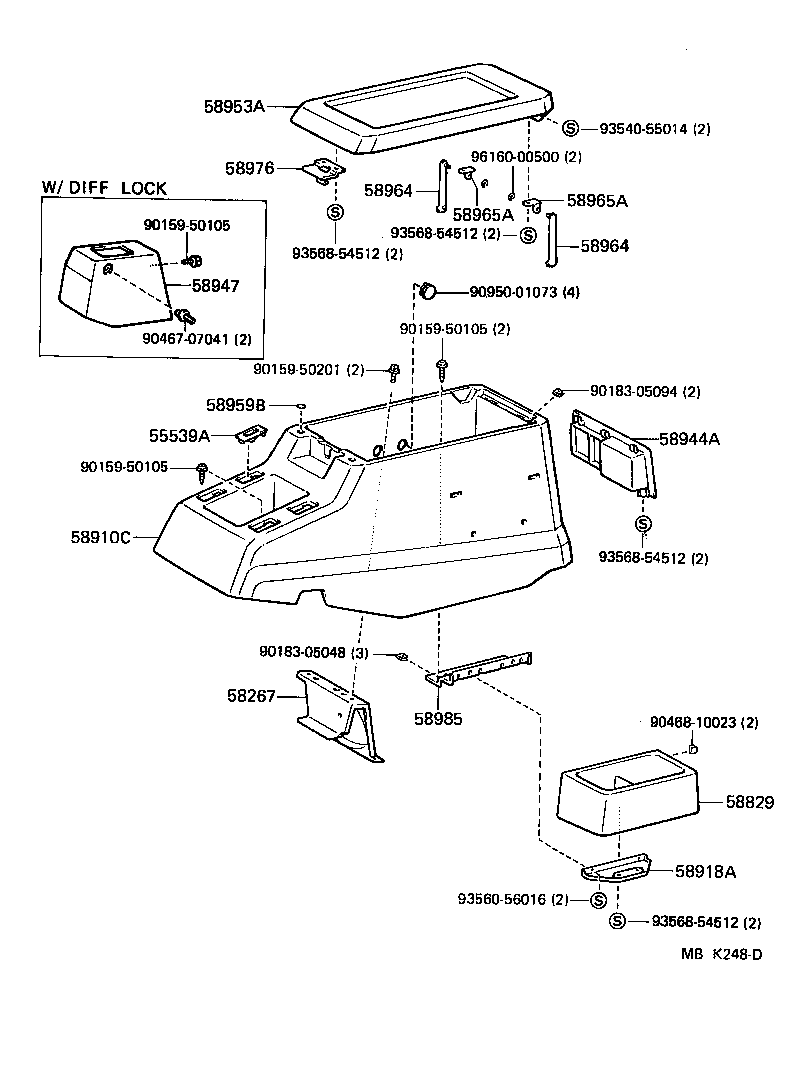

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55539A — Cover, Spare Switch Hole | ||||
| 55539-20020-13 note |
Cover, Spare Switch Hole
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 55539-20020-13 note |
Cover, Spare Switch Hole
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 55539-20020-26 note |
Cover, Spare Switch Hole
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 55539-20020-26 note |
Cover, Spare Switch Hole
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58267 — Bracket, Console Box Support, Center | ||||
| 58996-90A00 |
Bracket, Console Box Support, Center
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 58996-90A00 |
Bracket, Console Box Support, Center
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 58996-90A02 |
Bracket, Console Box Support, Center
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 58996-90A02 |
Bracket, Console Box Support, Center
1985-04 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 58996-90A04 |
Bracket, Console Box Support, Center
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58996-90A04 |
Bracket, Console Box Support, Center
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58829 — Pocket, Console Box | ||||
| 58825-90A00-03 note |
Pocket, Console Box
1982-10 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 58825-90A00-06 note |
Pocket, Console Box
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 58825-90A00-06 note |
Pocket, Console Box
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 58825-90A00-16 note |
Pocket, Console Box
1985-04 → 1986-04
ended
|
BJ60,FJ60 | — | |
| 58825-90A00-16 note |
Pocket, Console Box
1984-11 → 1985-04
ended
|
BJ60 | — | |
| 58825-90A01-03 note |
Pocket, Console Box
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58825-90A01-03 note |
Pocket, Console Box
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58825-90A01-06 note |
Pocket, Console Box
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58825-90A01-06 note |
Pocket, Console Box
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58910C — Box Assy, Console, Rear | ||||
| 58911-90A02-03 note |
Box Assy, Console, Rear
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58911-90A02-06 note |
Box Assy, Console, Rear
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58911-90A03-03 note |
Box Assy, Console, Rear
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58911-90A03-06 note |
Box Assy, Console, Rear
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58911-90A05-03 note |
Box Assy, Console, Rear
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 58911-90A05-06 note |
Box Assy, Console, Rear
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 58918A — Bracket, Box Support | ||||
| 58918-90A00 |
Bracket, Box Support
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58918-90A00 |
Bracket, Box Support
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58944A — Cover, Console, Rear | ||||
| 58944-90A00-03 note |
Cover, Console, Rear
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58944-90A00-06 note |
Cover, Console, Rear
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58944-90A01-03 note |
Cover, Console, Rear
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58944-90A01-06 note |
Cover, Console, Rear
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58947 — Cover, Differential Lock Lever | ||||
| 58947-90A03-03 note |
Cover, Differential Lock Lever
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 58947-90A03-06 note |
Cover, Differential Lock Lever
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 58953A — Door, Console Compartment, Upper | ||||
| 58951-90A01-03 note |
Door, Console Compartment, Upper
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58951-90A01-03 note |
Door, Console Compartment, Upper
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58951-90A01-06 note |
Door, Console Compartment, Upper
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58951-90A01-06 note |
Door, Console Compartment, Upper
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58959B — Cushion, Console Compartment Door | ||||
| 58959-16010 |
Cushion, Console Compartment Door
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58959-16010 |
Cushion, Console Compartment Door
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58964 — Stopper, Console Compartment Door, NO.1 | ||||
| 58964-30030 note |
Stopper, Console Compartment Door, NO.1
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58964-30030 note |
Stopper, Console Compartment Door, NO.1
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58964-90K00 note |
Stopper, Console Compartment Door, NO.1
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58964-90K00 note |
Stopper, Console Compartment Door, NO.1
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58965A — Stopper, Console Compartment Door, NO.2 | ||||
| 58965-12010 note |
Stopper, Console Compartment Door, NO.2
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58965-12010 note |
Stopper, Console Compartment Door, NO.2
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58965-20020 note |
Stopper, Console Compartment Door, NO.2
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58965-20020 note |
Stopper, Console Compartment Door, NO.2
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58976 — Striker, Console Compartment Door Lock | ||||
| 58976-20010 |
Striker, Console Compartment Door Lock
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58976-20010 |
Striker, Console Compartment Door Lock
1986-04 → 1987-08
ended
|
FJ60 | — | |
| 58985 — Retainer, Console Box | ||||
| 58985-90A00 |
Retainer, Console Box
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 58985-90A00 |
Retainer, Console Box
1986-04 → 1987-08
ended
|
FJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
