Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

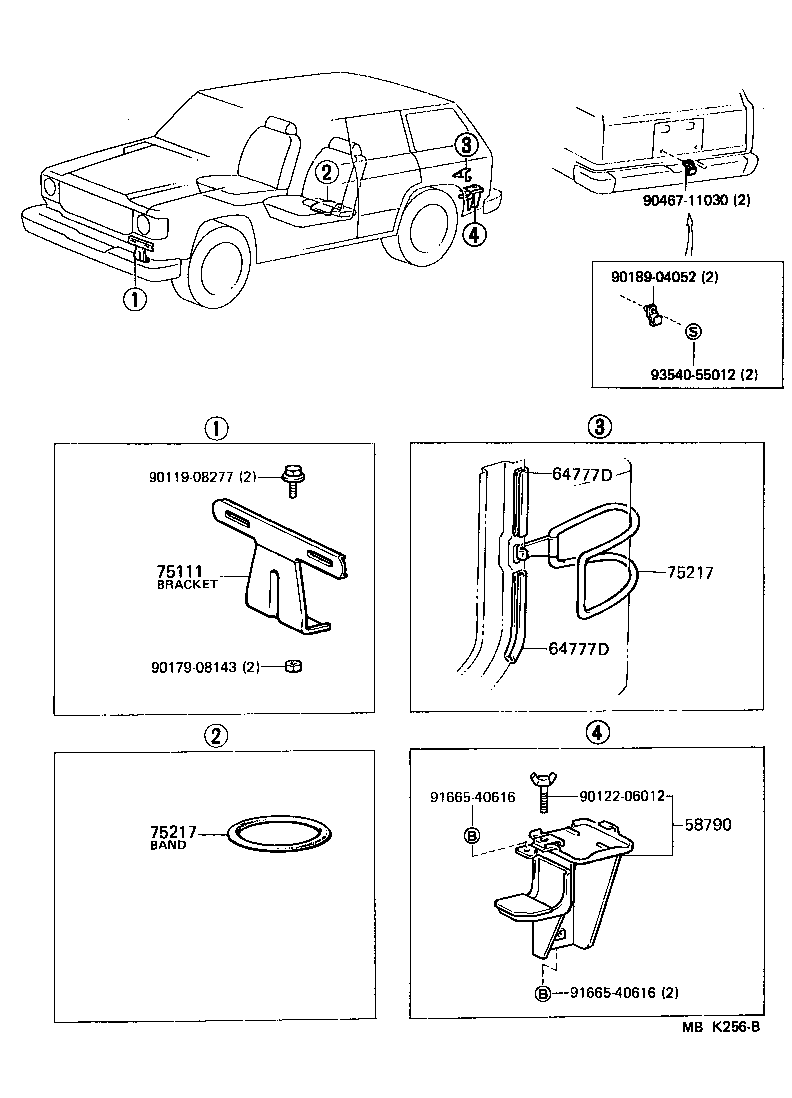

Exploded illustration MBK256B 9046711030 — not listed in this catalogue 9018904052 — not listed in this catalogue 9354055012 — not listed in this catalogue 64777D — PROTECTOR, QUARTER, INNER (2 parts) 9011908277 — not listed in this catalogue 75111 — BRACKET, FRONT LICENSE PLATE (1 parts) 75217 — BAND, TOOL BAG (3 parts) 64777D — PROTECTOR, QUARTER, INNER (2 parts) 9017908143 — not listed in this catalogue 9012206012 — not listed in this catalogue 9166540616 — not listed in this catalogue 58790 — CARRIER ASSY, JACK (2 parts) 75217 — BAND, TOOL BAG (3 parts) 9166540616 — not listed in this catalogue
MBK256B · 6 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
8 parts on this figure
Part number Description Fitment Price
58790 — Carrier Assy, Jack
58790-90A00 Carrier Assy, Jack
1985-10 → 1987-08 ended
HJ60 —
58790-90A00 Carrier Assy, Jack
1986-04 → 1987-08 ended
FJ60 —
64777D — Protector, Quarter, Inner
64777-90A00 Protector, Quarter, Inner
1985-10 → 1987-08 ended
HJ60 —
64777-90A00 Protector, Quarter, Inner
1986-04 → 1987-08 ended
FJ60 —
75111 — Bracket, Front License Plate
75101-60011 note Bracket, Front License Plate
1980-08 → 1985-10 ended
BJ60,FJ60 —
75217 — Band, Tool Bag
58705-90A01 Band, Tool Bag
1985-10 → 1987-08 ended
HJ60 —
58705-90A01 Band, Tool Bag
1986-04 → 1987-08 ended
FJ60 —
58781-90A00 Band, Tool Bag
1980-08 → 1986-04 ended
BJ60,FJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
