Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

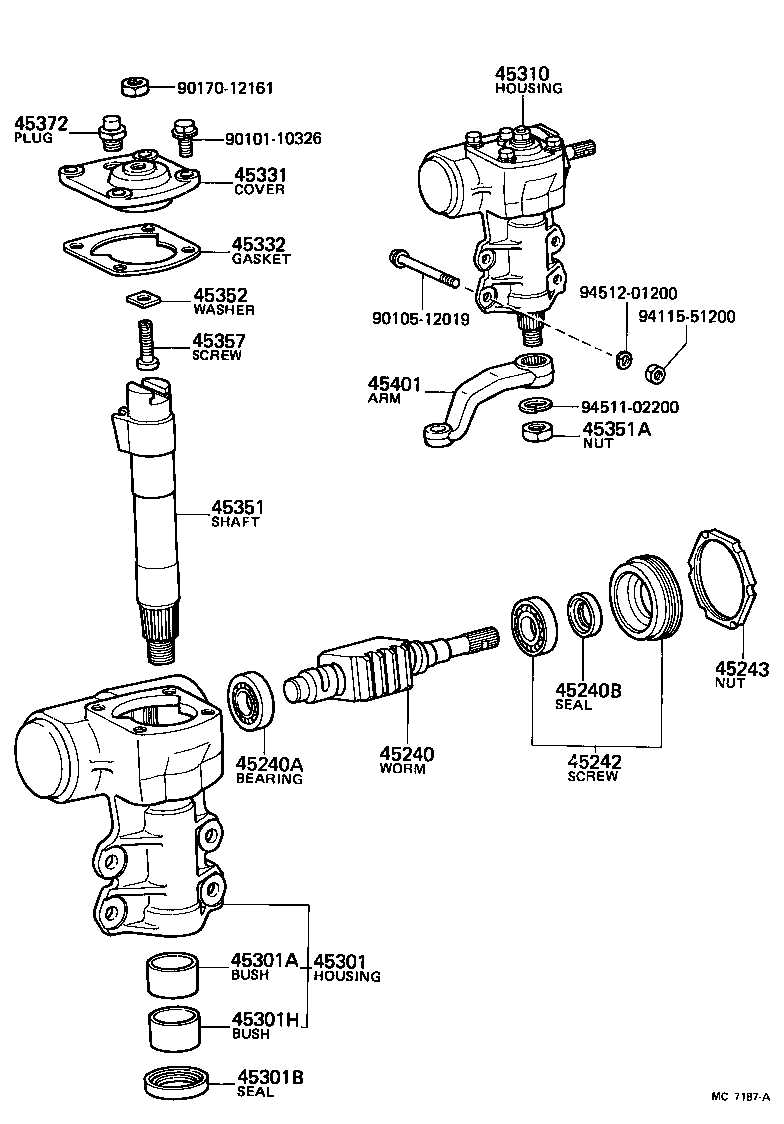

Exploded illustration MC7187A 45310 — HOUSING ASSY, STEERING GEAR (2 parts) 9017012161 — not listed in this catalogue 45372 — PLUG, STEERING GEAR HOUSING OIL (2 parts) 9010110326 — not listed in this catalogue 45331 — COVER, SECTOR SHAFT END (2 parts) 45332 — GASKET, SECTOR SHAFT END COVER (2 parts) 9451201200 — not listed in this catalogue 45352 — WASHER, SECTOR SHAFT THRUST (6 parts) 9411551200 — not listed in this catalogue 9010512019 — not listed in this catalogue 45357 — SCREW, SECTOR SHAFT ADJUSTING (2 parts) 45401 — ARM SUB-ASSY, PITMAN (2 parts) 9451102200 — not listed in this catalogue 45351A — NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) (2 parts) 45351 — SHAFT, STEERING SECTOR (2 parts) 45243 — NUT, WORM BEARING ADJUSTING SCREW LOCK (2 parts) 45240B — SEAL, OIL(FOR STEERING WORM) (2 parts) 45240 — WORM ASSY, STEERING (2 parts) 45242 — SCREW, WORM BEARING ADJUSTING (2 parts) 45240A — BEARING(FOR STEERING WORM) (2 parts) 45301A — BUSH OR BEARING, SECTOR SHAFT, NO.1 (2 parts) 45301 — HOUSING SUB-ASSY, STEERING GEAR (2 parts) 45301H — BUSH OR BEARING, SECTOR SHAFT, NO.2 (2 parts) 45301B — SEAL, OIL(FOR SECTOR SHAFT) (2 parts)
MC7187A · 18 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
40 parts on this figure
Part number Description Fitment Price
45240 — Worm Assy, Steering
45240-60020 Worm Assy, Steering
1981-10 → 1982-10 ended
BJ60 —
45240-60020 Worm Assy, Steering
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45240A — Bearing(FOR STEERING WORM)
90363-20015 Bearing(FOR STEERING WORM)
1981-10 → 1982-10 ended
BJ60 —
90363-20015 Bearing(FOR STEERING WORM)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45240B — Seal, Oil(FOR STEERING WORM)
90311-19001 Seal, Oil(FOR STEERING WORM)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
90311-19001 Seal, Oil(FOR STEERING WORM)
1981-10 → 1982-10 ended
BJ60 —
45242 — Screw, Worm Bearing Adjusting
45305-60010 Screw, Worm Bearing Adjusting
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45305-60010 Screw, Worm Bearing Adjusting
1981-10 → 1982-10 ended
BJ60 —
45243 — Nut, Worm Bearing Adjusting Screw Lock
45243-60010 Nut, Worm Bearing Adjusting Screw Lock
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45243-60010 Nut, Worm Bearing Adjusting Screw Lock
1981-10 → 1982-10 ended
BJ60 —
45301 — Housing Sub-assy, Steering Gear
45301-60050 Housing Sub-assy, Steering Gear
1981-10 → 1982-10 ended
BJ60 —
45301-60050 Housing Sub-assy, Steering Gear
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45301A — Bush OR Bearing, Sector Shaft, NO.1
90999-73060 Bush OR Bearing, Sector Shaft, NO.1
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
90999-73060 Bush OR Bearing, Sector Shaft, NO.1
1981-10 → 1982-10 ended
BJ60 —
45301B — Seal, Oil(FOR SECTOR SHAFT)
90311-36104 Seal, Oil(FOR SECTOR SHAFT)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
90311-36104 Seal, Oil(FOR SECTOR SHAFT)
1981-10 → 1982-10 ended
BJ60 —
45301H — Bush OR Bearing, Sector Shaft, NO.2
90999-73060 Bush OR Bearing, Sector Shaft, NO.2
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
90999-73060 Bush OR Bearing, Sector Shaft, NO.2
1981-10 → 1982-10 ended
BJ60 —
45310 — Housing Assy, Steering Gear
45310-60060 Housing Assy, Steering Gear
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45310-60060 Housing Assy, Steering Gear
1981-10 → 1982-10 ended
BJ60 —
45331 — Cover, Sector Shaft End
45304-60020 Cover, Sector Shaft End
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45304-60020 Cover, Sector Shaft End
1981-10 → 1982-10 ended
BJ60 —
45332 — Gasket, Sector Shaft End Cover
45332-37010 Gasket, Sector Shaft End Cover
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45332-37010 Gasket, Sector Shaft End Cover
1981-10 → 1982-10 ended
BJ60 —
45351 — Shaft, Steering Sector
45351-60030 Shaft, Steering Sector
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45351-60030 Shaft, Steering Sector
1981-10 → 1982-10 ended
BJ60 —
45351A — Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
90170-22058 Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
90170-22058 Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
1981-10 → 1987-08 ended
BJ60,FJ60,HJ60 —
45352 — Washer, Sector Shaft Thrust
45352-37010 note Washer, Sector Shaft Thrust
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45352-37010 note Washer, Sector Shaft Thrust
1981-10 → 1982-10 ended
BJ60 —
45353-37010 note Washer, Sector Shaft Thrust
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45353-37010 note Washer, Sector Shaft Thrust
1981-10 → 1982-10 ended
BJ60 —
45354-37010 note Washer, Sector Shaft Thrust
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45354-37010 note Washer, Sector Shaft Thrust
1981-10 → 1982-10 ended
BJ60 —
45357 — Screw, Sector Shaft Adjusting
45357-36010 Screw, Sector Shaft Adjusting
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45357-36010 Screw, Sector Shaft Adjusting
1981-10 → 1982-10 ended
BJ60 —
45372 — Plug, Steering Gear Housing Oil
90930-03058 Plug, Steering Gear Housing Oil
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
90930-03058 Plug, Steering Gear Housing Oil
1981-10 → 1982-10 ended
BJ60 —
45401 — Arm Sub-assy, Pitman
45411-60090 Arm Sub-assy, Pitman
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
45411-60090 Arm Sub-assy, Pitman
1981-10 → 1982-10 ended
BJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
