Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

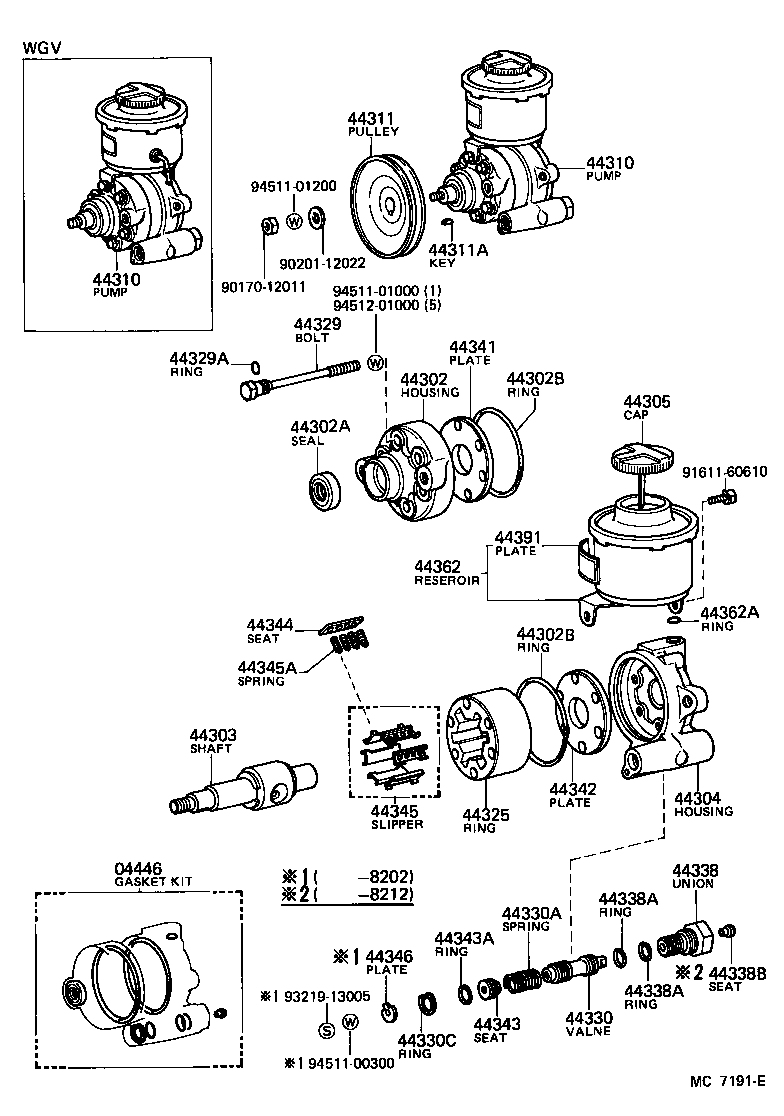

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04446 — Gasket Kit, Power Steering Pump | ||||
| 04446-30010 |
Gasket Kit, Power Steering Pump
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 04446-30010 |
Gasket Kit, Power Steering Pump
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 04446-30010 |
Gasket Kit, Power Steering Pump
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 04446-35010 |
Gasket Kit, Power Steering Pump
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44302 — Housing Sub-assy, Vane Pump, Front | ||||
| 44302-12010 |
Housing Sub-assy, Vane Pump, Front
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 44302-14010 |
Housing Sub-assy, Vane Pump, Front
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 44302-30020 |
Housing Sub-assy, Vane Pump, Front
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44302-30020 |
Housing Sub-assy, Vane Pump, Front
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44302-30020 |
Housing Sub-assy, Vane Pump, Front
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44302A — Seal, Oil, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90310-21034 |
Seal, Oil, NO.1(FOR VANE PUMP HOUSING)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 90310-21034 |
Seal, Oil, NO.1(FOR VANE PUMP HOUSING)
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90310-21034 |
Seal, Oil, NO.1(FOR VANE PUMP HOUSING)
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44302B — Ring, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-60001 |
Ring, O, NO.1(FOR VANE PUMP HOUSING)
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 90301-69170 |
Ring, O, NO.1(FOR VANE PUMP HOUSING)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 90301-69170 |
Ring, O, NO.1(FOR VANE PUMP HOUSING)
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 90301-69170 |
Ring, O, NO.1(FOR VANE PUMP HOUSING)
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44303 — Shaft Sub-assy, W/Rotor | ||||
| 44303-22011 note |
Shaft Sub-assy, W/Rotor
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44303-22011 note |
Shaft Sub-assy, W/Rotor
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44303-22011 note |
Shaft Sub-assy, W/Rotor
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44303-22021 note |
Shaft Sub-assy, W/Rotor
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44303-22021 note |
Shaft Sub-assy, W/Rotor
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44303-22021 note |
Shaft Sub-assy, W/Rotor
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44304 — Housing Sub-assy, Vane Pump, Rear | ||||
| 44304-30022 |
Housing Sub-assy, Vane Pump, Rear
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44304-30022 |
Housing Sub-assy, Vane Pump, Rear
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44304-30022 |
Housing Sub-assy, Vane Pump, Rear
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44304-35040 |
Housing Sub-assy, Vane Pump, Rear
1985-10 → 1986-10
ended
|
HJ60 | — | |
| 44304-35041 |
Housing Sub-assy, Vane Pump, Rear
1986-10 → 1987-08
ended
|
HJ60 | — | |
| 44304-60020 |
Housing Sub-assy, Vane Pump, Rear
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 44305 — Cap Sub-assy, Vane Pump Oil Reservoir | ||||
| 44305-30020 |
Cap Sub-assy, Vane Pump Oil Reservoir
1980-08 → 1987-08
ended
|
FJ60 | — | |
| 44305-30020 |
Cap Sub-assy, Vane Pump Oil Reservoir
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44305-60010 |
Cap Sub-assy, Vane Pump Oil Reservoir
1982-10 → 1984-11
ended
|
BJ60 | — | |
| 44310 — Pump Assy, Vane | ||||
| 44320-60030 |
Pump Assy, Vane
1980-08 → 1980-12
ended
|
FJ60 CND | — | |
| 44320-60040 |
Pump Assy, Vane
1980-08 → 1980-12
ended
|
FJ60 USA | — | |
| 44320-60060 |
Pump Assy, Vane
1980-12 → 1981-08
ended
|
FJ60 CND | — | |
| 44320-60061 |
Pump Assy, Vane
1981-08 → 1981-10
ended
|
FJ60 CND | — | |
| 44320-60070 |
Pump Assy, Vane
1980-12 → 1981-08
ended
|
FJ60 USA | — | |
| 44320-60071 |
Pump Assy, Vane
1981-08 → 1987-08
ended
|
FJ60 WGG | — | |
| 44320-60080 |
Pump Assy, Vane
1982-10 → 1984-11
ended
|
BJ60 | — | |
| 44320-60090 |
Pump Assy, Vane
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 44320-60110 |
Pump Assy, Vane
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 44311 — Pulley, Vane Pump | ||||
| 44311-60010 |
Pulley, Vane Pump
1980-08 → 1987-08
ended
|
FJ60 | — | |
| 44311-60030 |
Pulley, Vane Pump
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 44311-60040 |
Pulley, Vane Pump
1982-10 → 1984-11
ended
|
BJ60 | — | |
| 44311-60050 |
Pulley, Vane Pump
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 44311A — Key, Vane Pump Pulley | ||||
| 90280-05008 |
Key, Vane Pump Pulley
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90280-05008 |
Key, Vane Pump Pulley
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44325 — Ring, Fixed(FOR VANE PUMP) | ||||
| 44325-30030 note |
Ring, Fixed(FOR VANE PUMP)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44325-30030 note |
Ring, Fixed(FOR VANE PUMP)
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44325-30030 note |
Ring, Fixed(FOR VANE PUMP)
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44325-30040 note |
Ring, Fixed(FOR VANE PUMP)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44325-30040 note |
Ring, Fixed(FOR VANE PUMP)
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44325-30040 note |
Ring, Fixed(FOR VANE PUMP)
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44329 — Bolt, Vane Pump Front Housing & Rear Housing Set | ||||
| 44329-30010 note |
Bolt, Vane Pump Front Housing & Rear Housing Set
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44329-30010 note |
Bolt, Vane Pump Front Housing & Rear Housing Set
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44329-30010 note |
Bolt, Vane Pump Front Housing & Rear Housing Set
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44329-30020 note |
Bolt, Vane Pump Front Housing & Rear Housing Set
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44329-30020 note |
Bolt, Vane Pump Front Housing & Rear Housing Set
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44329-30020 note |
Bolt, Vane Pump Front Housing & Rear Housing Set
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44329A — Ring, O(FOR VANE PUMP HOUSING SET BOLT) | ||||
| 96710-01007 |
Ring, O(FOR VANE PUMP HOUSING SET BOLT)
1980-08 → 1982-01
ended
|
FJ60 | — | |
| 96711-19007 |
Ring, O(FOR VANE PUMP HOUSING SET BOLT)
1982-01 → 1982-10
ended
|
FJ60 | — | |
| 96711-19007 |
Ring, O(FOR VANE PUMP HOUSING SET BOLT)
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 96711-19007 |
Ring, O(FOR VANE PUMP HOUSING SET BOLT)
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44330 — Valve Assy, Flow Control | ||||
| 44330-30100 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44330-30110 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44330-30120 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44330-30130 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44330-30140 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44330-30150 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44330-60010 note |
Valve Assy, Flow Control
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44330-60010 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44330-60010 note |
Valve Assy, Flow Control
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44330-60020 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44330-60020 note |
Valve Assy, Flow Control
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44330-60020 note |
Valve Assy, Flow Control
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44330-60030 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44330-60030 note |
Valve Assy, Flow Control
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44330-60030 note |
Valve Assy, Flow Control
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44330-60040 note |
Valve Assy, Flow Control
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44330-60040 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44330-60040 note |
Valve Assy, Flow Control
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44330-60050 note |
Valve Assy, Flow Control
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44330-60050 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44330-60050 note |
Valve Assy, Flow Control
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44330-60060 note |
Valve Assy, Flow Control
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44330-60060 note |
Valve Assy, Flow Control
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44330-60060 note |
Valve Assy, Flow Control
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44330A — Spring, Compression(FOR FLOW CONTROL VALVE) | ||||
| 90501-12103 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1986-10 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 90501-12447 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 90501-12447 |
Spring, Compression(FOR FLOW CONTROL VALVE)
1982-10 → 1986-10
ended
|
BJ60,FJ60,HJ60 | — | |
| 44330C — Ring, Snap(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
Ring, Snap(FOR FLOW CONTROL VALVE)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 96151-01700 |
Ring, Snap(FOR FLOW CONTROL VALVE)
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 44338 — Union, Pressure Port | ||||
| 44308-35030 |
Union, Pressure Port
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44308-60010 |
Union, Pressure Port
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44308-60010 |
Union, Pressure Port
1982-12 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44338-60020 |
Union, Pressure Port
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44338-60020 |
Union, Pressure Port
1982-10 → 1982-12
ended
|
BJ60,FJ60 | — | |
| 44338A — Ring, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 note |
Ring, O(FOR PRESSURE PORT UNION)
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 96710-01014 note |
Ring, O(FOR PRESSURE PORT UNION)
1980-08 → 1982-01
ended
|
FJ60 | — | |
| 96711-19014 note |
Ring, O(FOR PRESSURE PORT UNION)
1982-01 → 1982-10
ended
|
FJ60 | — | |
| 96711-19014 note |
Ring, O(FOR PRESSURE PORT UNION)
1984-11 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 96711-19014 note |
Ring, O(FOR PRESSURE PORT UNION)
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44338B — Seat, Union(FOR PRESSURE PORT UNION) | ||||
| 90410-06030 |
Seat, Union(FOR PRESSURE PORT UNION)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 90410-06030 |
Seat, Union(FOR PRESSURE PORT UNION)
1982-10 → 1982-12
ended
|
BJ60,FJ60 | — | |
| 44341 — Plate, Vane Pump Side, Front | ||||
| 44341-30020 |
Plate, Vane Pump Side, Front
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44341-30020 |
Plate, Vane Pump Side, Front
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44341-30020 |
Plate, Vane Pump Side, Front
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44342 — Plate, Vane Pump Side, Rear | ||||
| 44341-12010 |
Plate, Vane Pump Side, Rear
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44341-30020 |
Plate, Vane Pump Side, Rear
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44341-30020 |
Plate, Vane Pump Side, Rear
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44341-30020 |
Plate, Vane Pump Side, Rear
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44343 — Seat, Flow Control Spring | ||||
| 44343-12010 |
Seat, Flow Control Spring
1982-02 → 1982-10
ended
|
FJ60 | — | |
| 44343-12010 |
Seat, Flow Control Spring
1982-10 → 1986-10
ended
|
BJ60,FJ60,HJ60 | — | |
| 44343-12040 |
Seat, Flow Control Spring
1986-10 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 44343-30020 |
Seat, Flow Control Spring
1980-08 → 1982-02
ended
|
FJ60 | — | |
| 44343A — Ring, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96710-01014 |
Ring, O(FOR FLOW CONTROL SPRING SEAT)
1980-08 → 1982-01
ended
|
FJ60 | — | |
| 96711-19014 |
Ring, O(FOR FLOW CONTROL SPRING SEAT)
1982-01 → 1982-10
ended
|
FJ60 | — | |
| 96711-19014 |
Ring, O(FOR FLOW CONTROL SPRING SEAT)
1982-10 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 44344 — Seat, Spring(FOR VANE PUMP) | ||||
| 44344-30010 |
Seat, Spring(FOR VANE PUMP)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44344-30010 |
Seat, Spring(FOR VANE PUMP)
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44344-30010 |
Seat, Spring(FOR VANE PUMP)
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44345 — Slipper, Vane Pump | ||||
| 44307-22010 note |
Slipper, Vane Pump
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44307-22010 note |
Slipper, Vane Pump
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44307-22010 note |
Slipper, Vane Pump
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44307-22020 note |
Slipper, Vane Pump
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 44307-22020 note |
Slipper, Vane Pump
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44307-22020 note |
Slipper, Vane Pump
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 44345A — Spring, Compression(FOR VANE PUMP SLIPPER) | ||||
| 90501-06445 |
Spring, Compression(FOR VANE PUMP SLIPPER)
1984-11 → 1987-08
ended
|
FJ60 | — | |
| 90501-06445 |
Spring, Compression(FOR VANE PUMP SLIPPER)
1980-08 → 1982-10
ended
|
FJ60 | — | |
| 90501-06445 |
Spring, Compression(FOR VANE PUMP SLIPPER)
1982-10 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 44346 — Plate, Snap Ring Lock | ||||
| 44346-30020 |
Plate, Snap Ring Lock
1980-08 → 1982-02
ended
|
FJ60 | — | |
| 44362 — Reservoir, Oil(FOR VANE PUMP) | ||||
| 44306-60030 |
Reservoir, Oil(FOR VANE PUMP)
1980-08 → 1981-08
ended
|
FJ60 CND | — | |
| 44306-60031 |
Reservoir, Oil(FOR VANE PUMP)
1981-08 → 1981-10
ended
|
FJ60 CND | — | |
| 44306-60040 |
Reservoir, Oil(FOR VANE PUMP)
1980-08 → 1981-08
ended
|
FJ60 USA | — | |
| 44306-60041 |
Reservoir, Oil(FOR VANE PUMP)
1981-08 → 1987-08
ended
|
FJ60 WGG | — | |
| 44306-60060 |
Reservoir, Oil(FOR VANE PUMP)
1982-10 → 1984-11
ended
|
BJ60 | — | |
| 44306-60070 |
Reservoir, Oil(FOR VANE PUMP)
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 44360-60011 |
Reservoir, Oil(FOR VANE PUMP)
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 44362A — Ring, O(FOR VANE PUMP OIL RESERVOIR) | ||||
| 96710-01013 |
Ring, O(FOR VANE PUMP OIL RESERVOIR)
1980-08 → 1982-01
ended
|
FJ60 | — | |
| 96711-19013 |
Ring, O(FOR VANE PUMP OIL RESERVOIR)
1982-01 → 1982-10
ended
|
FJ60 | — | |
| 96711-19013 |
Ring, O(FOR VANE PUMP OIL RESERVOIR)
1982-10 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 44391 — Plate, Power Steering Oil Reservoir Caution | ||||
| 44391-14010 |
Plate, Power Steering Oil Reservoir Caution
1986-09 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 44391-30010 |
Plate, Power Steering Oil Reservoir Caution
1980-08 → 1981-08
ended
|
FJ60 | — | |
| 44391-30020 |
Plate, Power Steering Oil Reservoir Caution
1981-08 → 1982-10
ended
|
FJ60 | — | |
| 44391-30020 |
Plate, Power Steering Oil Reservoir Caution
1982-10 → 1986-09
ended
|
BJ60,FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
