Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

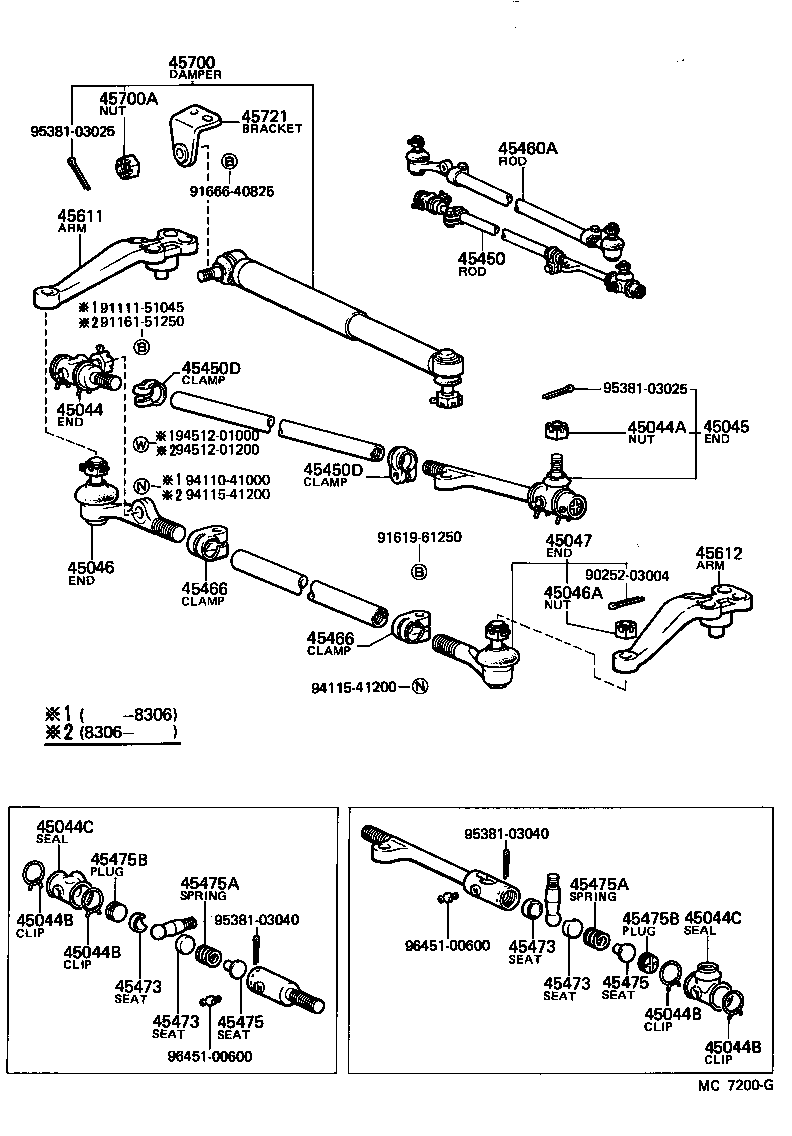

Exploded illustration MC7200G 45700 — DAMPER ASSY, STEERING (1 parts) 45700A — NUT(FOR STEERING DAMPER) (4 parts) 45721 — BRACKET, STEERING DAMPER (1 parts) 9538103025 — not listed in this catalogue 45460A — ROD ASSY, TIE (1 parts) 9166640825 — not listed in this catalogue 45611 — ARM, STEERING KNUCKLE, RH (1 parts) 45450 — ROD ASSY, STEERING RELAY (2 parts) 9111151045 — not listed in this catalogue 9116151250 — not listed in this catalogue 45450D — CLAMP, STEERING RELAY ROD END (2 parts) 9538103025 — not listed in this catalogue 45044 — END SUB-ASSY, STEERING RELAY ROD, RH (2 parts) 45045 — END SUB-ASSY, STEERING RELAY ROD, LH (2 parts) 45044A — NUT, CASTLE(FOR RELAY ROD) (1 parts) 9451201000 — not listed in this catalogue 9451201200 — not listed in this catalogue 45450D — CLAMP, STEERING RELAY ROD END (2 parts) 9411041000 — not listed in this catalogue 9411541200 — not listed in this catalogue 9161961250 — not listed in this catalogue 45047 — END SUB-ASSY, TIE ROD, LH (2 parts) 45612 — ARM, STEERING KNUCKLE, LH (1 parts) 45046 — END SUB-ASSY, TIE ROD, RH (1 parts) 9025203004 — not listed in this catalogue 45466 — CLAMP, TIE ROD END (1 parts) 45046A — NUT, CASTLE(FOR TIE ROD END) (1 parts) 45466 — CLAMP, TIE ROD END (1 parts) 9411541200 — not listed in this catalogue 45044C — SEAL, DUST(FOR RELAY ROD) (2 parts) 9538103040 — not listed in this catalogue 45475B — PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) (1 parts) 45475A — SPRING, COMPRESSION(FOR STEERING LINK JOINT) (1 parts) 45475A — SPRING, COMPRESSION(FOR STEERING LINK JOINT) (1 parts) 45044C — SEAL, DUST(FOR RELAY ROD) (2 parts) 45475B — PLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT) (1 parts) 45044B — RING, SET(FOR RELAY ROD) (1 parts) 9538103040 — not listed in this catalogue 9645100600 — not listed in this catalogue 45473 — SEAT, BALL STUD (1 parts) 45044B — RING, SET(FOR RELAY ROD) (1 parts) 45475 — SEAT, STEERING LINK JOINT SPRING (1 parts) 45473 — SEAT, BALL STUD (1 parts) 45473 — SEAT, BALL STUD (1 parts) 45044B — RING, SET(FOR RELAY ROD) (1 parts) 45473 — SEAT, BALL STUD (1 parts) 45475 — SEAT, STEERING LINK JOINT SPRING (1 parts) 45044B — RING, SET(FOR RELAY ROD) (1 parts) 9645100600 — not listed in this catalogue
MC7200G · 33 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
30 parts on this figure
Part number Description Fitment Price
45044 — End Sub-assy, Steering Relay Rod, RH
45045-69035 End Sub-assy, Steering Relay Rod, RH
1980-08 → 1983-06 ended
BJ60,FJ60 —
45045-69045 End Sub-assy, Steering Relay Rod, RH
1983-06 → 1987-08 ended
BJ60,FJ60,HJ60 —
45044A — Nut, Castle(FOR RELAY ROD)
90171-14042 Nut, Castle(FOR RELAY ROD)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45044B — Ring, Set(FOR RELAY ROD)
90467-32002 Ring, Set(FOR RELAY ROD)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45044C — Seal, Dust(FOR RELAY ROD)
45457-60010 note Seal, Dust(FOR RELAY ROD)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45458-60010 note Seal, Dust(FOR RELAY ROD)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45045 — End Sub-assy, Steering Relay Rod, LH
45044-69035 End Sub-assy, Steering Relay Rod, LH
1980-08 → 1983-06 ended
BJ60,FJ60 —
45044-69055 End Sub-assy, Steering Relay Rod, LH
1983-06 → 1987-08 ended
BJ60,FJ60,HJ60 —
45046 — End Sub-assy, Tie Rod, RH
45046-69115 End Sub-assy, Tie Rod, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45046A — Nut, Castle(FOR TIE ROD END)
90171-14042 Nut, Castle(FOR TIE ROD END)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45047 — End Sub-assy, Tie Rod, LH
45047-60020 note End Sub-assy, Tie Rod, LH
1980-08 → 1981-08 ended
BJ60,FJ60 —
45047-69065 End Sub-assy, Tie Rod, LH
1981-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45450 — Rod Assy, Steering Relay
45450-69035 Rod Assy, Steering Relay
1980-08 → 1983-06 ended
BJ60,FJ60 —
45450-69055 Rod Assy, Steering Relay
1983-06 → 1987-08 ended
BJ60,FJ60,HJ60 —
45450D — Clamp, Steering Relay Rod End
45466-55010 Clamp, Steering Relay Rod End
1980-08 → 1983-06 ended
BJ60,FJ60 —
45466-55020 Clamp, Steering Relay Rod End
1983-06 → 1987-08 ended
BJ60,FJ60,HJ60 —
45460A — Rod Assy, Tie
45460-69105 Rod Assy, Tie
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45466 — Clamp, Tie Rod End
45466-36010 Clamp, Tie Rod End
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45473 — Seat, Ball Stud
45473-35010 Seat, Ball Stud
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45475 — Seat, Steering Link Joint Spring
45475-35010 Seat, Steering Link Joint Spring
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45475A — Spring, Compression(FOR STEERING LINK JOINT)
90501-45114 Spring, Compression(FOR STEERING LINK JOINT)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45475B — Plug, Straight Screw(FOR STEERING LINK JOINT)
90340-25001 Plug, Straight Screw(FOR STEERING LINK JOINT)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45611 — Arm, Steering Knuckle, RH
45611-60040 Arm, Steering Knuckle, RH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45612 — Arm, Steering Knuckle, LH
45612-60040 Arm, Steering Knuckle, LH
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45700 — Damper Assy, Steering
45700-69025 Damper Assy, Steering
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
45700A — Nut(FOR STEERING DAMPER)
90171-12028 Nut(FOR STEERING DAMPER)
1980-08 → 1984-11 ended
BJ60,FJ60 —
90171-12028 Nut(FOR STEERING DAMPER)
1984-11 → 1985-04 ended
FJ60 —
94184-61200 Nut(FOR STEERING DAMPER)
1984-11 → 1985-04 ended
BJ60 —
94184-61200 Nut(FOR STEERING DAMPER)
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
45721 — Bracket, Steering Damper
45721-60030 Bracket, Steering Damper
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
