Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

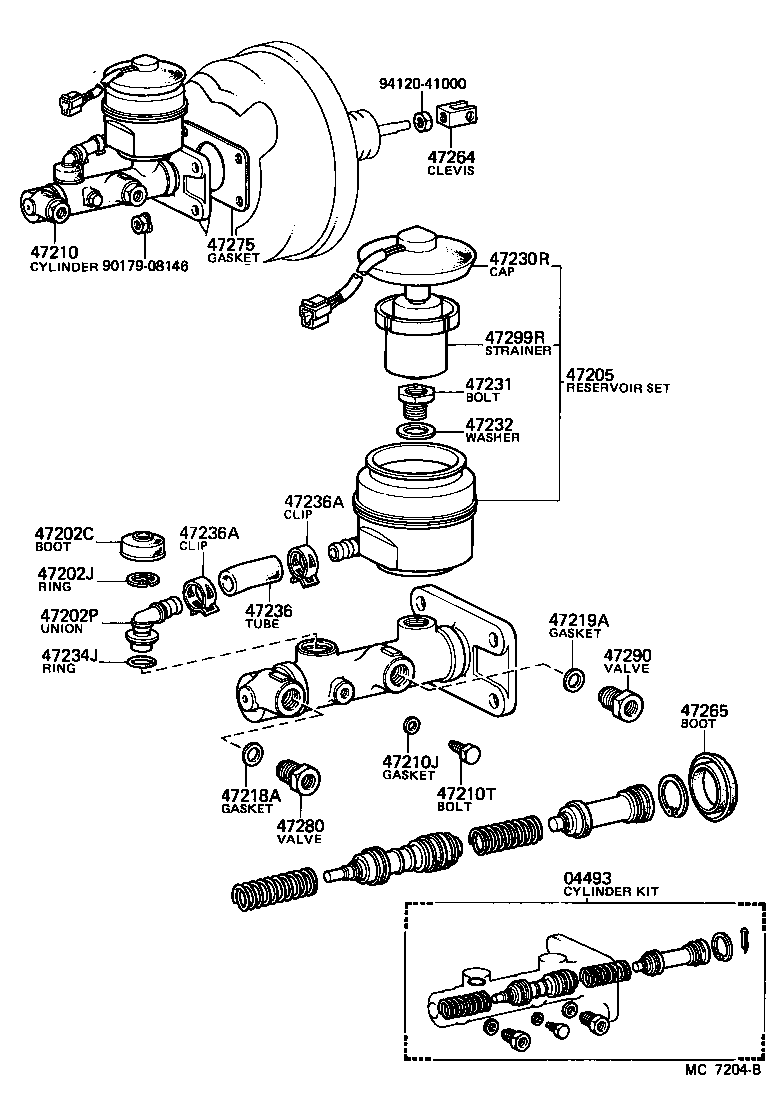

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04493 — Cylinder Kit, Brake Master | ||||
| 04493-60070 |
Cylinder Kit, Brake Master
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 04493-60070 |
Cylinder Kit, Brake Master
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 04493-60090 |
Cylinder Kit, Brake Master
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 04493-60160 |
Cylinder Kit, Brake Master
1985-04 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 47202C — Boot, Reservoir, NO.1(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 47265-20060 |
Boot, Reservoir, NO.1(FOR BRAKE MASTER CYLINDER SIDE)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47202J — Ring, Snap(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 96151-02000 |
Ring, Snap(FOR BRAKE MASTER CYLINDER SIDE)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47202P — Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90407-10003 |
Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE)
1980-08 → 1985-04
ended
|
BJ60,FJ60 | — | |
| 90407-10003 |
Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE)
1985-04 → 1985-10
ended
|
BJ60 | — | |
| 90407-10004 |
Union, Reservoir(FOR BRAKE MASTER CYLINDER SIDE)
1985-04 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 47205 — Reservoir Set, Brake Master Cylinder(FOR REAR SIDE) | ||||
| 47202-60040 |
Reservoir Set, Brake Master Cylinder(FOR REAR SIDE)
1980-08 → 1985-04
ended
|
BJ60,FJ60 | — | |
| 47202-60040 |
Reservoir Set, Brake Master Cylinder(FOR REAR SIDE)
1985-04 → 1985-10
ended
|
BJ60 | — | |
| 47202-60090 |
Reservoir Set, Brake Master Cylinder(FOR REAR SIDE)
1985-04 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 47210 — Cylinder Assy, Master, W/O Booster | ||||
| 47201-60130 |
Cylinder Assy, Master, W/O Booster
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 47201-60130 |
Cylinder Assy, Master, W/O Booster
1984-11 → 1985-04
ended
|
FJ60 | — | |
| 47201-60220 |
Cylinder Assy, Master, W/O Booster
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 47201-60340 |
Cylinder Assy, Master, W/O Booster
1985-04 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 47210J — Gasket(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
Gasket(FOR MASTER CYLINDER)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47210T — Bolt(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06008 |
Bolt(FOR BRAKE MASTER CYLINDER)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47218A — Gasket(FOR FLUID OUTLET PLUG) | ||||
| 90430-09253 |
Gasket(FOR FLUID OUTLET PLUG)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47219A — Gasket(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-09253 |
Gasket(FOR FLUID OUTLET PLUG REAR SIDE)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47230R — Cap Assy, Reservoir, NO.2(FOR REAR SIDE) | ||||
| 84460-22010 |
Cap Assy, Reservoir, NO.2(FOR REAR SIDE)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47231 — Bolt, Brake Master Cylinder Reservoir Set | ||||
| 47231-20010 |
Bolt, Brake Master Cylinder Reservoir Set
1985-04 → 1987-08
ended
|
FJ60,HJ60 | — | |
| 47231-30010 |
Bolt, Brake Master Cylinder Reservoir Set
1980-08 → 1985-04
ended
|
BJ60,FJ60 | — | |
| 47231-30010 |
Bolt, Brake Master Cylinder Reservoir Set
1985-04 → 1985-10
ended
|
BJ60 | — | |
| 47232 — Washer, Brake Reservoir Set Bolt | ||||
| 47232-30010 |
Washer, Brake Reservoir Set Bolt
1980-08 → 1987-08
ended
|
BJ60,FJ60 | — | |
| 47234J — Ring, O(FOR RESERVOIR TUBE) | ||||
| 90301-14001 |
Ring, O(FOR RESERVOIR TUBE)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47236 — Tube, Reservoir Brake | ||||
| 47234-14010 |
Tube, Reservoir Brake
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47236A — Clip(FOR RESERVOIR TUBE) | ||||
| 90467-16001 |
Clip(FOR RESERVOIR TUBE)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47264 — Clevis, Master Cylinder Push Rod | ||||
| 47264-22010 |
Clevis, Master Cylinder Push Rod
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47265 — Boot, Master Cylinder | ||||
| 47265-20050 |
Boot, Master Cylinder
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47275 — Gasket, Brake Master Cylinder | ||||
| 47275-22010 |
Gasket, Brake Master Cylinder
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47280 — Valve Assy, Brake Master Cylinder Outlet Check | ||||
| 47280-14010 |
Valve Assy, Brake Master Cylinder Outlet Check
1985-04 → 1985-10
ended
|
FJ60 | — | |
| 47280-30030 |
Valve Assy, Brake Master Cylinder Outlet Check
1980-08 → 1985-04
ended
|
BJ60,FJ60 | — | |
| 47280-30030 |
Valve Assy, Brake Master Cylinder Outlet Check
1985-04 → 1985-10
ended
|
BJ60 | — | |
| 47290 — Valve Assy, Master Cylinder Outlet(FOR REAR SIDE) | ||||
| 47280-14010 |
Valve Assy, Master Cylinder Outlet(FOR REAR SIDE)
1985-04 → 1985-10
ended
|
FJ60 | — | |
| 47280-30030 |
Valve Assy, Master Cylinder Outlet(FOR REAR SIDE)
1980-08 → 1985-04
ended
|
BJ60,FJ60 | — | |
| 47280-30030 |
Valve Assy, Master Cylinder Outlet(FOR REAR SIDE)
1985-04 → 1985-10
ended
|
BJ60 | — | |
| 47299R — Strainer, Master Cylinder Reservoir, Rear | ||||
| 47299-14010 |
Strainer, Master Cylinder Reservoir, Rear
1982-04 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 47299-20010 |
Strainer, Master Cylinder Reservoir, Rear
1980-08 → 1982-04
ended
|
BJ60,FJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
