Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

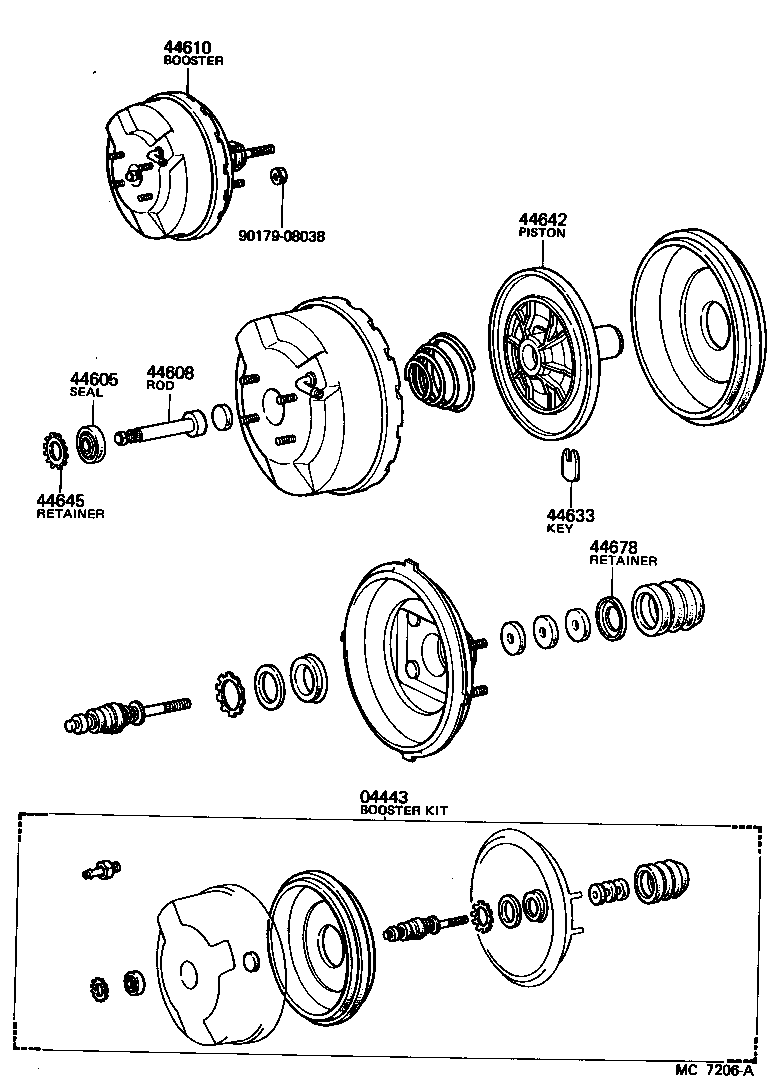

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04443 — Booster Kit, Brake | ||||
| 04443-60080 |
Booster Kit, Brake
1980-08 → 1985-04
ended
|
FJ60 | — | |
| 04443-60110 |
Booster Kit, Brake
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 04443-60240 |
Booster Kit, Brake
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 04443-60241 |
Booster Kit, Brake
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 04443-60270 |
Booster Kit, Brake
1985-04 → 1986-03
ended
|
FJ60 | — | |
| 04443-60271 |
Booster Kit, Brake
1986-03 → 1987-08
ended
|
FJ60 | — | |
| 44605 — Plate & Seal Sub-assy, Booster | ||||
| 44605-22021 |
Plate & Seal Sub-assy, Booster
1980-08 → 1985-10
ended
|
BJ60 | — | |
| 44608 — Push Rod Sub-assy, Booster | ||||
| 44606-12520 |
Push Rod Sub-assy, Booster
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44608-22090 |
Push Rod Sub-assy, Booster
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 44608-30350 |
Push Rod Sub-assy, Booster
1980-08 → 1987-08
ended
|
FJ60 | — | |
| 44610 — Booster Assy, Brake | ||||
| 44610-60100 |
Booster Assy, Brake
1980-08 → 1985-04
ended
|
FJ60 | — | |
| 44610-60150 |
Booster Assy, Brake
1980-08 → 1983-01
ended
|
BJ60 | — | |
| 44610-60151 |
Booster Assy, Brake
1983-01 → 1984-11
ended
|
BJ60 | — | |
| 44610-60400 |
Booster Assy, Brake
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 44610-60421 |
Booster Assy, Brake
1985-10 → 1987-08
ended
|
HJ60 | — | |
| 44610-60440 |
Booster Assy, Brake
1985-04 → 1986-03
ended
|
FJ60 | — | |
| 44610-60441 |
Booster Assy, Brake
1986-03 → 1987-08
ended
|
FJ60 | — | |
| 44633 — Key, Booster Valve Plunger | ||||
| 44633-22020 |
Key, Booster Valve Plunger
1980-08 → 1985-10
ended
|
BJ60 | — | |
| 44633-30350 |
Key, Booster Valve Plunger
1980-08 → 1987-08
ended
|
FJ60 | — | |
| 44642 — Piston, Brake Booster | ||||
| 44642-25080 |
Piston, Brake Booster
1980-08 → 1984-11
ended
|
BJ60 | — | |
| 44642-60280 |
Piston, Brake Booster
1984-11 → 1987-08
ended
|
BJ60,HJ60 | — | |
| 44645 — Retainer, Booster Push Rod Seal | ||||
| 44645-22020 |
Retainer, Booster Push Rod Seal
1980-08 → 1985-10
ended
|
BJ60 | — | |
| 44678 — Retainer, Booster Air Cleaner | ||||
| 44678-22020 |
Retainer, Booster Air Cleaner
1980-08 → 1987-08
ended
|
BJ60,FJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
