Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

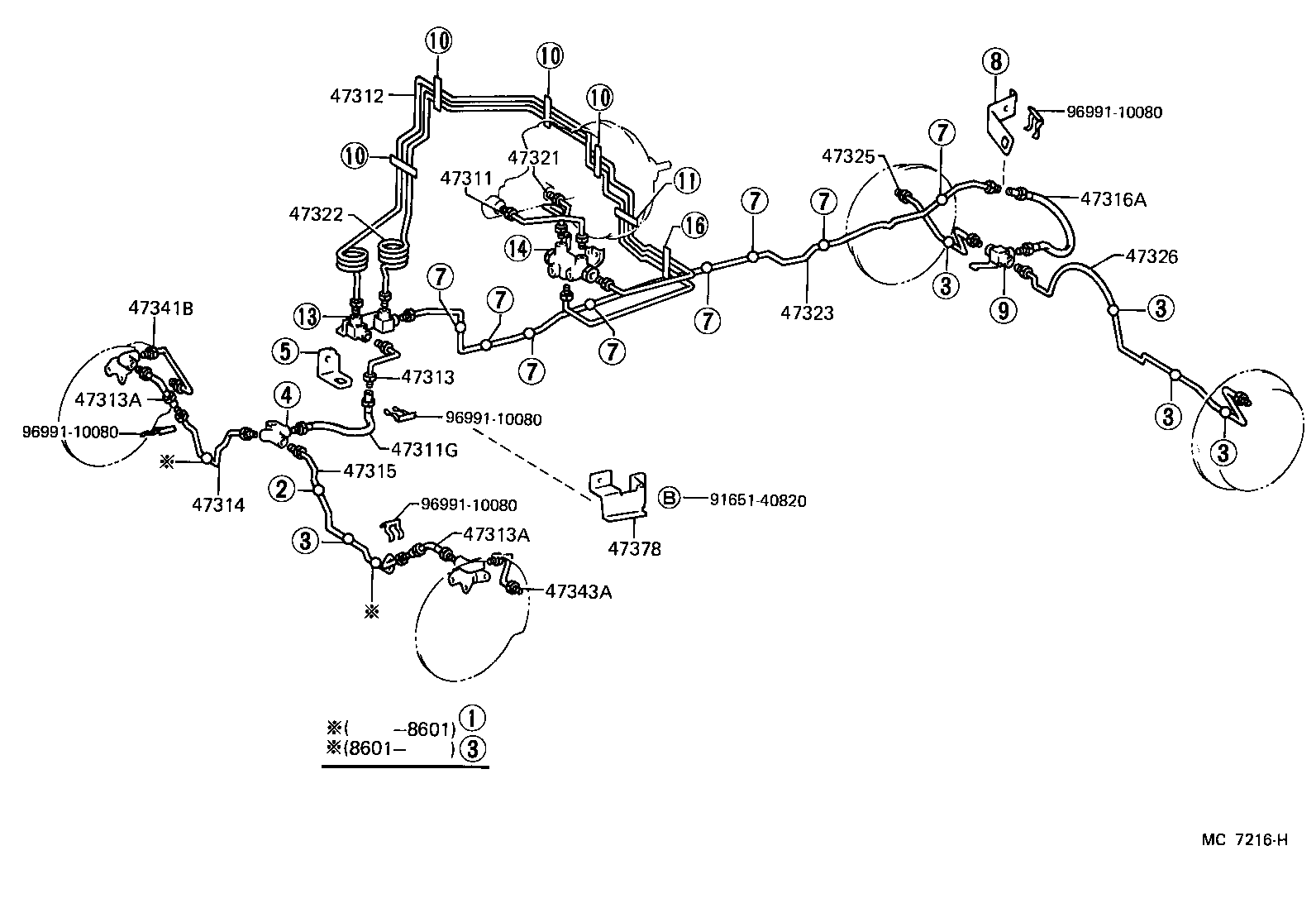

Exploded illustration MC7216H 47312 — TUBE, FRONT BRAKE, NO.2 (6 parts) 9699110080 — not listed in this catalogue 47325 — TUBE, REAR BRAKE, NO.5 (5 parts) 47321 — TUBE, REAR BRAKE, NO.1 (4 parts) 47311 — TUBE, FRONT BRAKE, NO.1 (4 parts) 47316A — HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) (4 parts) 47322 — TUBE, REAR BRAKE, NO.2 (6 parts) 47326 — TUBE, REAR BRAKE, NO.6 (5 parts) 47341B — TUBE, WHEEL CYLINDER, FRONT RH NO.1 (2 parts) 47323 — TUBE, REAR BRAKE, NO.3 (4 parts) 47313 — TUBE, FRONT BRAKE, NO.3 (4 parts) 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (1 parts) 9699110080 — not listed in this catalogue 9699110080 — not listed in this catalogue 47311G — HOSE, FLEXIBLE(FOR BRAKE TUBE) (2 parts) 47315 — TUBE, FRONT BRAKE, NO.5 (7 parts) 9165140820 — not listed in this catalogue 47314 — TUBE, FRONT BRAKE, NO.4 (6 parts) 9699110080 — not listed in this catalogue 47313A — HOSE, FLEXIBLE, NO.1(FOR FRONT) (1 parts) 47378 — PROTECTOR, BRAKE TUBE (1 parts) 47343A — TUBE, WHEEL CYLINDER, FRONT LH NO.1 (2 parts)
MC7216H · 17 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
63 parts on this figure
Part number Description Fitment Price
47311 — Tube, Front Brake, NO.1
47311-30320 Tube, Front Brake, NO.1
1980-08 → 1983-01 ended
BJ60,FJ60 —
47311-30320 Tube, Front Brake, NO.1
1983-01 → 1987-08 ended
FJ60 —
47311-30330 Tube, Front Brake, NO.1
1983-01 → 1984-11 ended
BJ60 —
47311-30400 Tube, Front Brake, NO.1
1984-11 → 1987-08 ended
BJ60,HJ60 —
47311G — Hose, Flexible(FOR BRAKE TUBE)
96940-33005 Hose, Flexible(FOR BRAKE TUBE)
1980-08 → 1987-08 ended
FJ60,HJ60 —
96940-34305 Hose, Flexible(FOR BRAKE TUBE)
1980-08 → 1985-10 ended
BJ60 —
47312 — Tube, Front Brake, NO.2
47312-60210 Tube, Front Brake, NO.2
1980-08 → 1985-04 ended
FJ60 —
47312-60211 Tube, Front Brake, NO.2
1985-04 → 1987-08 ended
FJ60 —
47312-60290 Tube, Front Brake, NO.2
1980-08 → 1983-01 ended
BJ60 —
47312-60291 Tube, Front Brake, NO.2
1983-01 → 1984-11 ended
BJ60 —
47312-60292 Tube, Front Brake, NO.2
1984-11 → 1985-10 ended
BJ60 —
47312-60442 Tube, Front Brake, NO.2
1985-10 → 1987-08 ended
HJ60 —
47313 — Tube, Front Brake, NO.3
47313-60090 Tube, Front Brake, NO.3
1980-08 → 1985-04 ended
FJ60 —
47313-60091 Tube, Front Brake, NO.3
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
47313-60110 Tube, Front Brake, NO.3
1980-08 → 1984-11 ended
BJ60 —
47313-60111 Tube, Front Brake, NO.3
1984-11 → 1985-04 ended
BJ60 —
47313A — Hose, Flexible, NO.1(FOR FRONT)
96940-39855 Hose, Flexible, NO.1(FOR FRONT)
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
47314 — Tube, Front Brake, NO.4
47315-60260 Tube, Front Brake, NO.4
1980-08 → 1985-04 ended
FJ60 —
47315-60261 Tube, Front Brake, NO.4
1985-04 → 1986-01 ended
FJ60,HJ60 —
47315-60262 Tube, Front Brake, NO.4
1986-01 → 1986-08 ended
FJ60,HJ60 —
47315-60270 Tube, Front Brake, NO.4
1980-08 → 1984-11 ended
BJ60 —
47315-60271 Tube, Front Brake, NO.4
1984-11 → 1985-10 ended
BJ60 —
47315-60340 Tube, Front Brake, NO.4
1986-08 → 1987-08 ended
FJ60,HJ60 —
47315 — Tube, Front Brake, NO.5
47316-60140 Tube, Front Brake, NO.5
1980-08 → 1985-04 ended
FJ60 —
47316-60141 Tube, Front Brake, NO.5
1985-04 → 1986-04 ended
FJ60 —
47316-60150 Tube, Front Brake, NO.5
1980-08 → 1984-11 ended
BJ60 —
47316-60151 Tube, Front Brake, NO.5
1984-11 → 1985-10 ended
BJ60 —
47316-60210 Tube, Front Brake, NO.5
1985-10 → 1986-04 ended
HJ60 —
47316-60211 Tube, Front Brake, NO.5
1986-04 → 1986-08 ended
FJ60,HJ60 —
47316-60310 Tube, Front Brake, NO.5
1986-08 → 1987-08 ended
FJ60,HJ60 —
47316A — Hose, Flexible(FOR REAR BRAKE TUBE)
96940-33605 Hose, Flexible(FOR REAR BRAKE TUBE)
1984-11 → 1985-04 ended
FJ60 —
96940-33605 Hose, Flexible(FOR REAR BRAKE TUBE)
1980-08 → 1984-11 ended
BJ60,FJ60 —
96940-33805 Hose, Flexible(FOR REAR BRAKE TUBE)
1984-11 → 1985-04 ended
BJ60 —
96940-33805 Hose, Flexible(FOR REAR BRAKE TUBE)
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
47321 — Tube, Rear Brake, NO.1
47321-30050 Tube, Rear Brake, NO.1
1983-01 → 1984-11 ended
BJ60 —
47321-30120 Tube, Rear Brake, NO.1
1984-11 → 1987-08 ended
BJ60,HJ60 —
47321-60100 Tube, Rear Brake, NO.1
1980-08 → 1983-01 ended
BJ60,FJ60 —
47321-60100 Tube, Rear Brake, NO.1
1983-01 → 1987-08 ended
FJ60 —
47322 — Tube, Rear Brake, NO.2
47322-60110 Tube, Rear Brake, NO.2
1980-08 → 1985-04 ended
FJ60 —
47322-60111 Tube, Rear Brake, NO.2
1985-04 → 1987-08 ended
FJ60 —
47322-60190 Tube, Rear Brake, NO.2
1980-08 → 1983-01 ended
BJ60 —
47322-60191 Tube, Rear Brake, NO.2
1983-01 → 1984-11 ended
BJ60 —
47322-60192 Tube, Rear Brake, NO.2
1984-11 → 1985-10 ended
BJ60 —
47322-60282 Tube, Rear Brake, NO.2
1985-10 → 1987-08 ended
HJ60 —
47323 — Tube, Rear Brake, NO.3
47323-60030 Tube, Rear Brake, NO.3
1980-06 → 1984-11 ended
BJ60,FJ60 —
47323-60030 Tube, Rear Brake, NO.3
1984-11 → 1985-04 ended
FJ60 —
47323-60031 Tube, Rear Brake, NO.3
1985-04 → 1987-08 ended
BJ60,FJ60,HJ60 —
47323-60031 Tube, Rear Brake, NO.3
1984-11 → 1985-04 ended
BJ60 —
47325 — Tube, Rear Brake, NO.5
47325-60010 Tube, Rear Brake, NO.5
1980-08 → 1984-11 ended
BJ60,FJ60 —
47325-60010 Tube, Rear Brake, NO.5
1984-11 → 1985-04 ended
FJ60 —
47325-60011 Tube, Rear Brake, NO.5
1984-11 → 1985-10 ended
BJ60 —
47325-60011 Tube, Rear Brake, NO.5
1985-04 → 1986-08 ended
FJ60,HJ60 —
47325-60100 Tube, Rear Brake, NO.5
1986-08 → 1987-08 ended
FJ60,HJ60 —
47326 — Tube, Rear Brake, NO.6
47326-60010 Tube, Rear Brake, NO.6
1980-08 → 1984-11 ended
BJ60,FJ60 —
47326-60010 Tube, Rear Brake, NO.6
1984-11 → 1985-04 ended
FJ60 —
47326-60011 Tube, Rear Brake, NO.6
1984-11 → 1985-10 ended
BJ60 —
47326-60011 Tube, Rear Brake, NO.6
1985-04 → 1986-08 ended
FJ60,HJ60 —
47326-60110 Tube, Rear Brake, NO.6
1986-08 → 1987-08 ended
FJ60,HJ60 —
47341B — Tube, Wheel Cylinder, Front RH NO.1
47341-60030 Tube, Wheel Cylinder, Front RH NO.1
1980-08 → 1984-08 ended
BJ60,FJ60 —
47341-60031 Tube, Wheel Cylinder, Front RH NO.1
1984-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
47343A — Tube, Wheel Cylinder, Front LH NO.1
47343-60020 Tube, Wheel Cylinder, Front LH NO.1
1980-08 → 1984-08 ended
BJ60,FJ60 —
47343-60021 Tube, Wheel Cylinder, Front LH NO.1
1984-08 → 1987-08 ended
BJ60,FJ60,HJ60 —
47378 — Protector, Brake Tube
47378-60040 Protector, Brake Tube
1980-08 → 1985-10 ended
FJ60 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
