Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

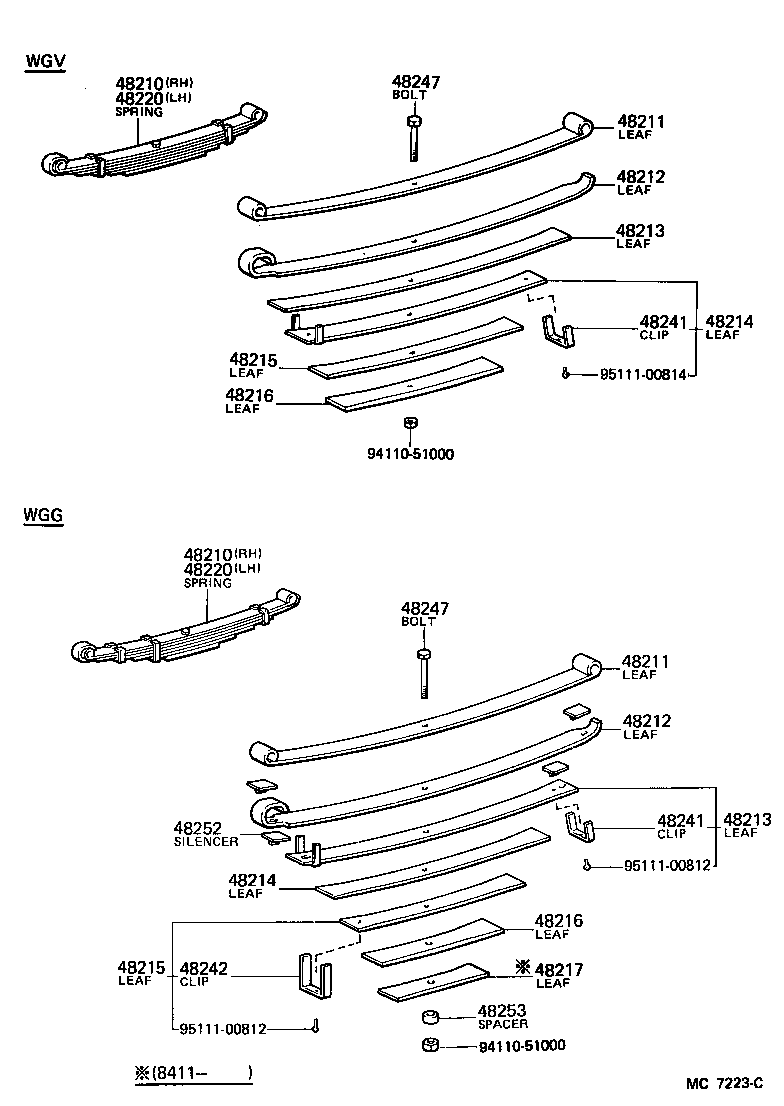

Exploded illustration MC7223C 48247 — BOLT, REAR SPRING, CENTER (4 parts) 48210 — SPRING ASSY, REAR RH (4 parts) 48220 — SPRING ASSY, REAR LH (4 parts) 48211 — LEAF, REAR SPRING, NO.1 (8 parts) 48212 — LEAF, REAR SPRING, NO.2 (8 parts) 48213 — LEAF, REAR SPRING, NO.3 (8 parts) 48241 — CLIP, REAR SPRING, NO.1 (7 parts) 48214 — LEAF, REAR SPRING, NO.4 (8 parts) 48215 — LEAF, REAR SPRING, NO.5 (8 parts) 9511100814 — not listed in this catalogue 48216 — LEAF, REAR SPRING, NO.6 (8 parts) 9411051000 — not listed in this catalogue 48210 — SPRING ASSY, REAR RH (4 parts) 48220 — SPRING ASSY, REAR LH (4 parts) 48247 — BOLT, REAR SPRING, CENTER (4 parts) 48211 — LEAF, REAR SPRING, NO.1 (8 parts) 48212 — LEAF, REAR SPRING, NO.2 (8 parts) 48213 — LEAF, REAR SPRING, NO.3 (8 parts) 48241 — CLIP, REAR SPRING, NO.1 (7 parts) 48252 — SILENCER, REAR SPRING (1 parts) 9511100812 — not listed in this catalogue 48214 — LEAF, REAR SPRING, NO.4 (8 parts) 48216 — LEAF, REAR SPRING, NO.6 (8 parts) 48215 — LEAF, REAR SPRING, NO.5 (8 parts) 48217 — LEAF, REAR SPRING, NO.7 (2 parts) 48242 — CLIP, REAR SPRING, NO.2 (6 parts) 48253 — SPACER, REAR SPRING, NO.1 (1 parts) 9511100812 — not listed in this catalogue 9411051000 — not listed in this catalogue
MC7223C · 24 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
48210 — Spring Assy, Rear RH
48210-60270 Spring Assy, Rear RH
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48210-60280 Spring Assy, Rear RH
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48210-60280 Spring Assy, Rear RH
1984-11 → 1987-08 ended
FJ60 —
48210-60410 Spring Assy, Rear RH
1984-11 → 1987-08 ended
BJ60,HJ60 —
48211 — Leaf, Rear Spring, NO.1
48211-60240 note Leaf, Rear Spring, NO.1
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48211-60250 note Leaf, Rear Spring, NO.1
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48211-60250 note Leaf, Rear Spring, NO.1
1984-11 → 1987-08 ended
FJ60 —
48211-60270 note Leaf, Rear Spring, NO.1
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48211-60280 note Leaf, Rear Spring, NO.1
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48211-60280 note Leaf, Rear Spring, NO.1
1984-11 → 1987-08 ended
FJ60 —
48211-60400 note Leaf, Rear Spring, NO.1
1984-11 → 1987-08 ended
BJ60,HJ60 —
48211-60410 note Leaf, Rear Spring, NO.1
1984-11 → 1987-08 ended
BJ60,HJ60 —
48212 — Leaf, Rear Spring, NO.2
48212-60240 note Leaf, Rear Spring, NO.2
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48212-60250 note Leaf, Rear Spring, NO.2
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48212-60250 note Leaf, Rear Spring, NO.2
1984-11 → 1987-08 ended
FJ60 —
48212-60270 note Leaf, Rear Spring, NO.2
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48212-60280 note Leaf, Rear Spring, NO.2
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48212-60280 note Leaf, Rear Spring, NO.2
1984-11 → 1987-08 ended
FJ60 —
48212-60400 note Leaf, Rear Spring, NO.2
1984-11 → 1987-08 ended
BJ60,HJ60 —
48212-60410 note Leaf, Rear Spring, NO.2
1984-11 → 1987-08 ended
BJ60,HJ60 —
48213 — Leaf, Rear Spring, NO.3
48202-60250 note Leaf, Rear Spring, NO.3
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48202-60250 note Leaf, Rear Spring, NO.3
1984-11 → 1987-08 ended
FJ60 —
48202-60280 note Leaf, Rear Spring, NO.3
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48202-60280 note Leaf, Rear Spring, NO.3
1984-11 → 1987-08 ended
FJ60 —
48202-60400 note Leaf, Rear Spring, NO.3
1984-11 → 1987-08 ended
BJ60,HJ60 —
48202-60410 note Leaf, Rear Spring, NO.3
1984-11 → 1987-08 ended
BJ60,HJ60 —
48213-60240 note Leaf, Rear Spring, NO.3
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48213-60270 note Leaf, Rear Spring, NO.3
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48214 — Leaf, Rear Spring, NO.4
48202-60240 note Leaf, Rear Spring, NO.4
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48202-60270 note Leaf, Rear Spring, NO.4
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48214-60250 note Leaf, Rear Spring, NO.4
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48214-60250 note Leaf, Rear Spring, NO.4
1984-11 → 1987-08 ended
FJ60 —
48214-60280 note Leaf, Rear Spring, NO.4
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48214-60280 note Leaf, Rear Spring, NO.4
1984-11 → 1987-08 ended
FJ60 —
48214-60400 note Leaf, Rear Spring, NO.4
1984-11 → 1987-08 ended
BJ60,HJ60 —
48214-60410 note Leaf, Rear Spring, NO.4
1984-11 → 1987-08 ended
BJ60,HJ60 —
48215 — Leaf, Rear Spring, NO.5
48203-60250 note Leaf, Rear Spring, NO.5
1984-11 → 1987-08 ended
FJ60 —
48203-60250 note Leaf, Rear Spring, NO.5
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48203-60280 note Leaf, Rear Spring, NO.5
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48203-60280 note Leaf, Rear Spring, NO.5
1984-11 → 1987-08 ended
FJ60 —
48203-60400 note Leaf, Rear Spring, NO.5
1984-11 → 1987-08 ended
BJ60,HJ60 —
48203-60410 note Leaf, Rear Spring, NO.5
1984-11 → 1987-08 ended
BJ60,HJ60 —
48215-60240 note Leaf, Rear Spring, NO.5
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48215-60270 note Leaf, Rear Spring, NO.5
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48216 — Leaf, Rear Spring, NO.6
48216-60240 note Leaf, Rear Spring, NO.6
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48216-60250 note Leaf, Rear Spring, NO.6
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48216-60250 note Leaf, Rear Spring, NO.6
1984-11 → 1987-08 ended
FJ60 —
48216-60270 note Leaf, Rear Spring, NO.6
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48216-60280 note Leaf, Rear Spring, NO.6
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48216-60280 note Leaf, Rear Spring, NO.6
1984-11 → 1987-08 ended
FJ60 —
48216-60400 note Leaf, Rear Spring, NO.6
1984-11 → 1987-08 ended
BJ60,HJ60 —
48216-60410 note Leaf, Rear Spring, NO.6
1984-11 → 1987-08 ended
BJ60,HJ60 —
48217 — Leaf, Rear Spring, NO.7
48217-60400 note Leaf, Rear Spring, NO.7
1984-11 → 1987-08 ended
BJ60,HJ60 —
48217-60410 note Leaf, Rear Spring, NO.7
1984-11 → 1987-08 ended
BJ60,HJ60 —
48220 — Spring Assy, Rear LH
48210-60240 Spring Assy, Rear LH
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48210-60250 Spring Assy, Rear LH
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48210-60250 Spring Assy, Rear LH
1984-11 → 1987-08 ended
FJ60 —
48210-60400 Spring Assy, Rear LH
1984-11 → 1987-08 ended
BJ60,HJ60 —
48241 — Clip, Rear Spring, NO.1
48141-35021 note Clip, Rear Spring, NO.1
1982-05 → 1984-11 ended
BJ60,FJ60 —
48141-35021 note Clip, Rear Spring, NO.1
1984-11 → 1987-08 ended
FJ60 —
48141-60081 Clip, Rear Spring, NO.1
1980-08 → 1982-05 ended
BJ60,FJ60 WGG —
48141-60081 note Clip, Rear Spring, NO.1
1982-05 → 1984-11 ended
BJ60,FJ60 —
48141-60081 note Clip, Rear Spring, NO.1
1984-11 → 1987-08 ended
FJ60 —
48142-60081 Clip, Rear Spring, NO.1
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48241-60250 note Clip, Rear Spring, NO.1
1984-11 → 1987-08 ended
BJ60,HJ60 —
48242 — Clip, Rear Spring, NO.2
48142-60081 Clip, Rear Spring, NO.2
1980-08 → 1982-05 ended
BJ60,FJ60 WGG —
48142-60081 note Clip, Rear Spring, NO.2
1982-05 → 1984-11 ended
BJ60,FJ60 —
48142-60081 note Clip, Rear Spring, NO.2
1984-11 → 1987-08 ended
FJ60 —
48142-60121 note Clip, Rear Spring, NO.2
1984-11 → 1987-08 ended
BJ60,HJ60 —
48142-60280 note Clip, Rear Spring, NO.2
1982-05 → 1984-11 ended
BJ60,FJ60 —
48142-60280 note Clip, Rear Spring, NO.2
1984-11 → 1987-08 ended
FJ60 —
48247 — Bolt, Rear Spring, Center
48247-29210 Bolt, Rear Spring, Center
1980-08 → 1981-10 ended
BJ60,FJ60 CND —
48247-60250 Bolt, Rear Spring, Center
1980-08 → 1984-11 ended
BJ60,FJ60 WGG —
48247-60250 Bolt, Rear Spring, Center
1984-11 → 1987-08 ended
FJ60 —
48247-60380 note Bolt, Rear Spring, Center
1984-11 → 1987-08 ended
BJ60,HJ60 —
48252 — Silencer, Rear Spring
48252-26070 Silencer, Rear Spring
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 WGG —
48253 — Spacer, Rear Spring, NO.1
48253-15010 Spacer, Rear Spring, NO.1
1980-08 → 1987-08 ended
BJ60,FJ60,HJ60 WGG —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
