Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

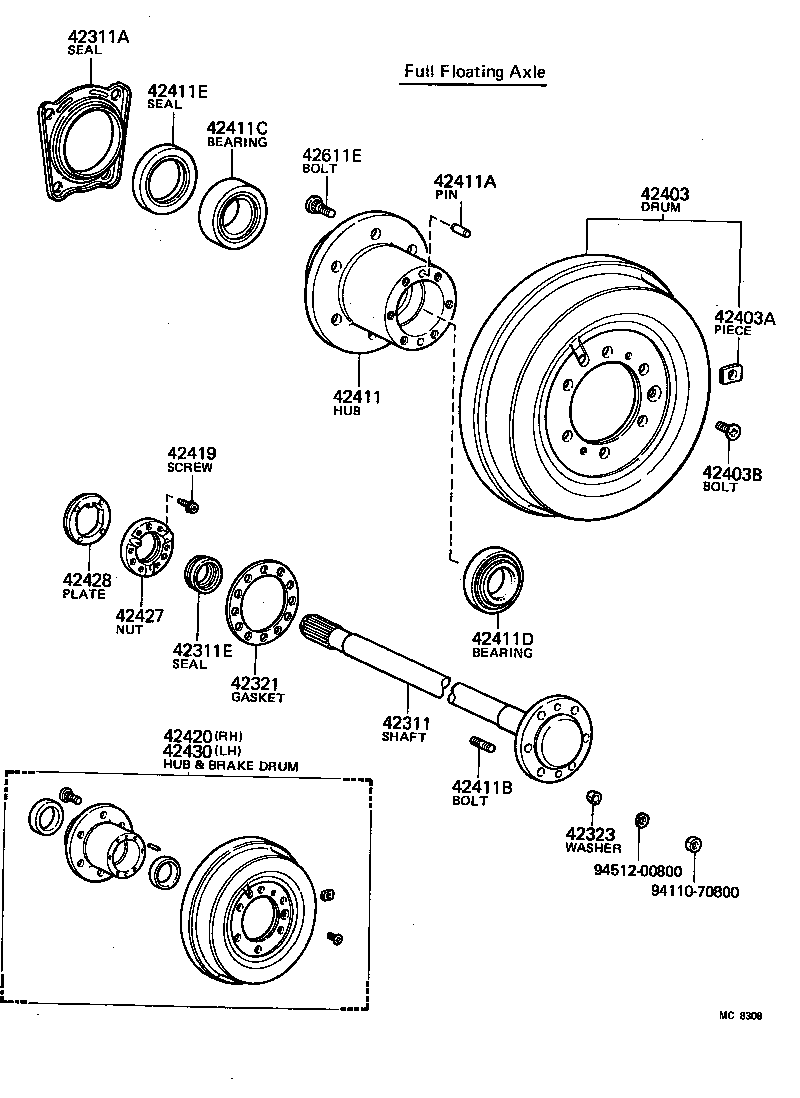

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 42311 — Shaft, Rear Axle | ||||
| 42311-60052 note |
Shaft, Rear Axle
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42311-60052 note |
Shaft, Rear Axle
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 42311-60060 note |
Shaft, Rear Axle
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 42311-60060 note |
Shaft, Rear Axle
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42311-60080 note |
Shaft, Rear Axle
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42312-60050 note |
Shaft, Rear Axle
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 42312-60060 note |
Shaft, Rear Axle
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42312-60060 note |
Shaft, Rear Axle
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 42311A — Seal, Oil(FOR REAR AXLE SHAFT) | ||||
| 90313-93001 |
Seal, Oil(FOR REAR AXLE SHAFT)
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 90313-93001 |
Seal, Oil(FOR REAR AXLE SHAFT)
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 90313-93001 note |
Seal, Oil(FOR REAR AXLE SHAFT)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42311E — Seal, Oil(FOR REAR AXLE SHAFT OUTER) | ||||
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 90310-35001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90311-47001 note |
Seal, Oil(FOR REAR AXLE SHAFT OUTER)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 42321 — Gasket, Rear Axle Shaft | ||||
| 43422-60010 |
Gasket, Rear Axle Shaft
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 43422-60010 |
Gasket, Rear Axle Shaft
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 43422-60020 note |
Gasket, Rear Axle Shaft
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42323 — Washer, Cone (FOR REAR AXLE SHAFT) | ||||
| 42323-60010 |
Washer, Cone (FOR REAR AXLE SHAFT)
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42323-60010 note |
Washer, Cone (FOR REAR AXLE SHAFT)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42323-60010 |
Washer, Cone (FOR REAR AXLE SHAFT)
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 42403 — Drum Sub-assy, Rear Brake | ||||
| 42431-60020 |
Drum Sub-assy, Rear Brake
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 42403A — Piece, Balance (FOR REAR BRAKE DRUM) | ||||
| 90937-01117 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90937-01118 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90937-01119 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90937-01120 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1980-08 → 1986-12
ended
|
BJ60,FJ60,HJ60 | — | |
| 90937-01121 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 90937-01122 note |
Piece, Balance (FOR REAR BRAKE DRUM)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 42403B — Bolt, Set (FOR REAR BRAKE DRUM SETTING) | ||||
| 90113-10003 |
Bolt, Set (FOR REAR BRAKE DRUM SETTING)
1980-08 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
| 42411 — Hub, Rear Axle | ||||
| 42411-60011 note |
Hub, Rear Axle
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42411-60011 |
Hub, Rear Axle
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42411-60011 |
Hub, Rear Axle
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 42411A — Pin, Straight (FOR REAR AXLE HUB) | ||||
| 90250-07057 |
Pin, Straight (FOR REAR AXLE HUB)
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 90250-07057 |
Pin, Straight (FOR REAR AXLE HUB)
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 90250-07057 note |
Pin, Straight (FOR REAR AXLE HUB)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42411B — Bolt, Stud (FOR REAR AXLE HUB) | ||||
| 90116-08325 |
Bolt, Stud (FOR REAR AXLE HUB)
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 90116-08325 |
Bolt, Stud (FOR REAR AXLE HUB)
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 90116-08325 note |
Bolt, Stud (FOR REAR AXLE HUB)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42411C — Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING) | ||||
| 90368-49084 |
Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 90368-49084 |
Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 90368-49084 note |
Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42411D — Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING) | ||||
| 90368-45087 |
Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 90368-45087 |
Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 90368-45087 note |
Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42411E — Seal, Oil (FOR REAR AXLE HUB) | ||||
| 90311-62001 note |
Seal, Oil (FOR REAR AXLE HUB)
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 90311-62001 |
Seal, Oil (FOR REAR AXLE HUB)
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 90311-62001 |
Seal, Oil (FOR REAR AXLE HUB)
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 42419 — Screw, Rear Axle Bearing Lock Nut | ||||
| 42419-60011 |
Screw, Rear Axle Bearing Lock Nut
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42419-60011 |
Screw, Rear Axle Bearing Lock Nut
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 42419-60011 note |
Screw, Rear Axle Bearing Lock Nut
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42420 — Hub (OR SHAFT) & Brake Drum Rear Axle, RH | ||||
| 42420-60070 note |
Hub (OR SHAFT) & Brake Drum Rear Axle, RH
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42420-60070 note |
Hub (OR SHAFT) & Brake Drum Rear Axle, RH
1981-10 → 1983-05
ended
|
FJ60 | — | |
| 42427 — Nut, Rear Axle Bearing Lock | ||||
| 42427-60020 |
Nut, Rear Axle Bearing Lock
1980-08 → 1981-04
ended
|
BJ60,FJ60 | — | |
| 42427-60021 |
Nut, Rear Axle Bearing Lock
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 42427-60021 note |
Nut, Rear Axle Bearing Lock
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42427-60021 |
Nut, Rear Axle Bearing Lock
1981-04 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42428 — Plate, Rear Axle Lock Nut | ||||
| 42428-60011 |
Plate, Rear Axle Lock Nut
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42428-60011 |
Plate, Rear Axle Lock Nut
1981-10 → 1982-10
ended
|
FJ60 | — | |
| 42428-60011 note |
Plate, Rear Axle Lock Nut
1986-08 → 1987-08
ended
|
HJ60 | — | |
| 42430 — Hub (OR SHAFT) & Brake Drum Rear Axle, LH | ||||
| 42420-60070 note |
Hub (OR SHAFT) & Brake Drum Rear Axle, LH
1980-08 → 1981-10
ended
|
BJ60,FJ60 | — | |
| 42420-60070 note |
Hub (OR SHAFT) & Brake Drum Rear Axle, LH
1981-10 → 1983-05
ended
|
FJ60 | — | |
| 42611E — Bolt, Hub (FOR REAR AXLE) | ||||
| 90942-02034 |
Bolt, Hub (FOR REAR AXLE)
1980-08 → 1984-11
ended
|
BJ60,FJ60 | — | |
| 90942-02052 |
Bolt, Hub (FOR REAR AXLE)
1984-11 → 1987-08
ended
|
BJ60,FJ60,HJ60 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
