Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ60,FJ6# · catalogue 791420 · United States
Discontinued model
Data version 1988-01

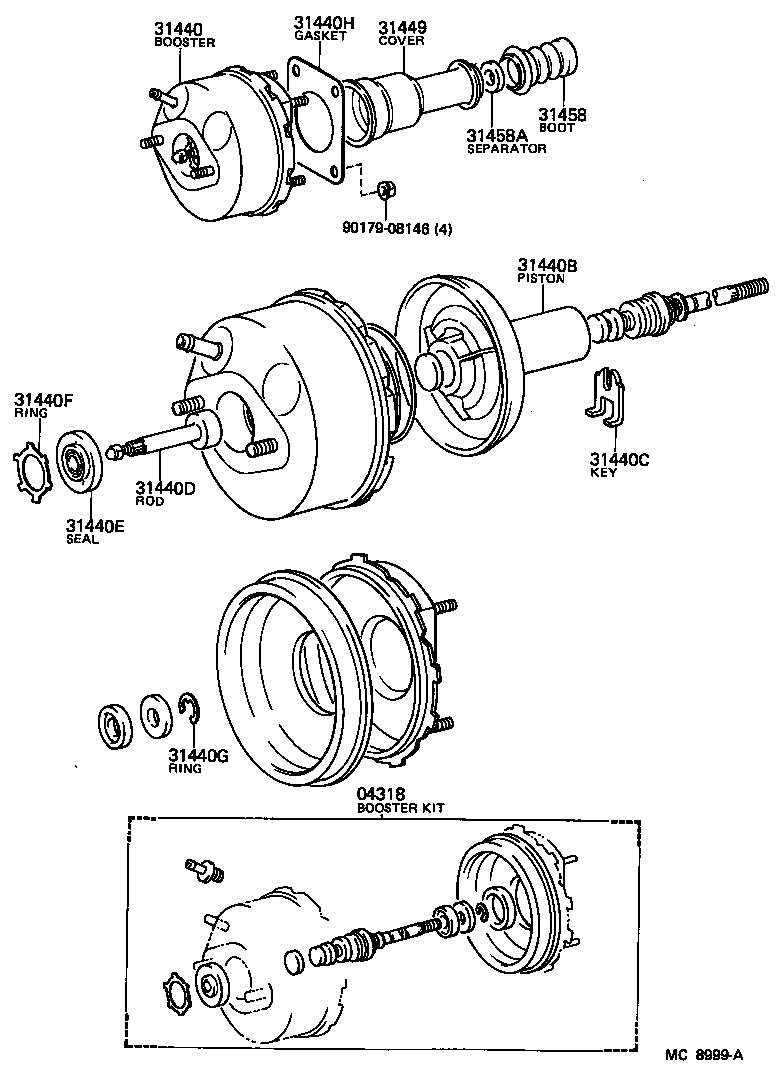

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04318 — Booster Kit, Clutch | ||||
| 04318-60010 |
Booster Kit, Clutch
1983-01 → 1984-11
ended
|
BJ60 | — | |
| 04318-60030 |
Booster Kit, Clutch
1984-11 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31440 — Booster Assy, Clutch W/Air Cleaner | ||||
| 31440-60020 |
Booster Assy, Clutch W/Air Cleaner
1983-01 → 1984-11
ended
|
BJ60 | — | |
| 31440-60050 |
Booster Assy, Clutch W/Air Cleaner
1985-10 → 1987-08
ended
|
HJ60 5F | — | |
| 31440-60060 |
Booster Assy, Clutch W/Air Cleaner
1984-11 → 1985-10
ended
|
BJ60 | — | |
| 31440B — Piston, Booster(FOR CLUTCH BOOSTER) | ||||
| 44642-60020 |
Piston, Booster(FOR CLUTCH BOOSTER)
1983-01 → 1984-11
ended
|
BJ60 | — | |
| 44642-87502 |
Piston, Booster(FOR CLUTCH BOOSTER)
1984-11 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31440C — Key, Valve Stopper(FOR CLUTCH BOOSTER) | ||||
| 44635-10010 |
Key, Valve Stopper(FOR CLUTCH BOOSTER)
1983-01 → 1984-11
ended
|
BJ60 | — | |
| 44635-12480 |
Key, Valve Stopper(FOR CLUTCH BOOSTER)
1984-11 → 1987-04
ended
|
BJ60,HJ60 5F | — | |
| 44635-36010 |
Key, Valve Stopper(FOR CLUTCH BOOSTER)
1987-04 → 1987-08
ended
|
HJ60 5F | — | |
| 31440D — Rod Sub-assy, Booster Piston(FOR CLUTCH BOOSTER) | ||||
| 44606-12520 |
Rod Sub-assy, Booster Piston(FOR CLUTCH BOOSTER)
1984-11 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 44606-32010 |
Rod Sub-assy, Booster Piston(FOR CLUTCH BOOSTER)
1983-01 → 1984-11
ended
|
BJ60 | — | |
| 31440E — Seal, Booster Body NO.1(FOR CLUTCH BOOSTER) | ||||
| 44621-28120 |
Seal, Booster Body NO.1(FOR CLUTCH BOOSTER)
1983-01 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31440F — Ring, Circular Internal(FOR CLUTCH BOOSTER) | ||||
| 44628-28120 |
Ring, Circular Internal(FOR CLUTCH BOOSTER)
1983-01 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31440G — Ring, E(FOR CLUTCH BOOSTER AIR VALVE) | ||||
| 96160-01000 |
Ring, E(FOR CLUTCH BOOSTER AIR VALVE)
1983-01 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31440H — Gasket, Clutch Booster Bracket | ||||
| 44785-14010 |
Gasket, Clutch Booster Bracket
1983-01 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31449 — Cover, Clutch Booster Piston | ||||
| 31449-60010 |
Cover, Clutch Booster Piston
1983-01 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31458 — Boot, Clutch Booster Piston Cover | ||||
| 31458-60010 |
Boot, Clutch Booster Piston Cover
1983-01 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
| 31458A — Separator, Air Cleaner(FOR CLUTCH BOOSTER) | ||||
| 44672-22120 |
Separator, Air Cleaner(FOR CLUTCH BOOSTER)
1983-01 → 1987-08
ended
|
BJ60,HJ60 5F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
